READ THE INSTALLATION INSTRUCTIONS CAREFULLY & COMPLETELY BEFORE BEGINNING THE INSTALLATION!
Designed for use with the SWG Series Power Venter for controlling Natural
Gas or L.P. Gas Appliances equipped with a 24V electric damper. It is
designed for modular connection to the appliance controls via the damper
cable connection.
WARNING: INSTALLER: IF THE APPLIANCE DOES NOT HAVE A BLOCKED VENT
SWITCH, A GSK-3P SPILLAGE SWITCH KIT, P/N 46458600, (NOT INCLUDED)
MUST BE INSTALLED (SEE DIAGRAM B).
SYSTEM CONTROL KIT
Model: CK-41P
I
TEMS INCLUDED IN KIT
1) Control box with mounted pressure switch, post purge timer and
7" vent damper cable
2) Flexible conduit connector
1) ¼" tubing connectors
I
NOT
TEMS
INCLUDED IN KIT
• ¼" O.D. aluminum, copper or stainless steel tubing
• Junction box with connectors and additional circuit wiring, if
required
DO NOT DESTROY
THESE INSTRUCTIONS MUST REMAIN WITH EQUIPMENT
Advertisement
Table of Contents
Related Manuals for Field Controls 46457800
Summary of Contents for Field Controls 46457800

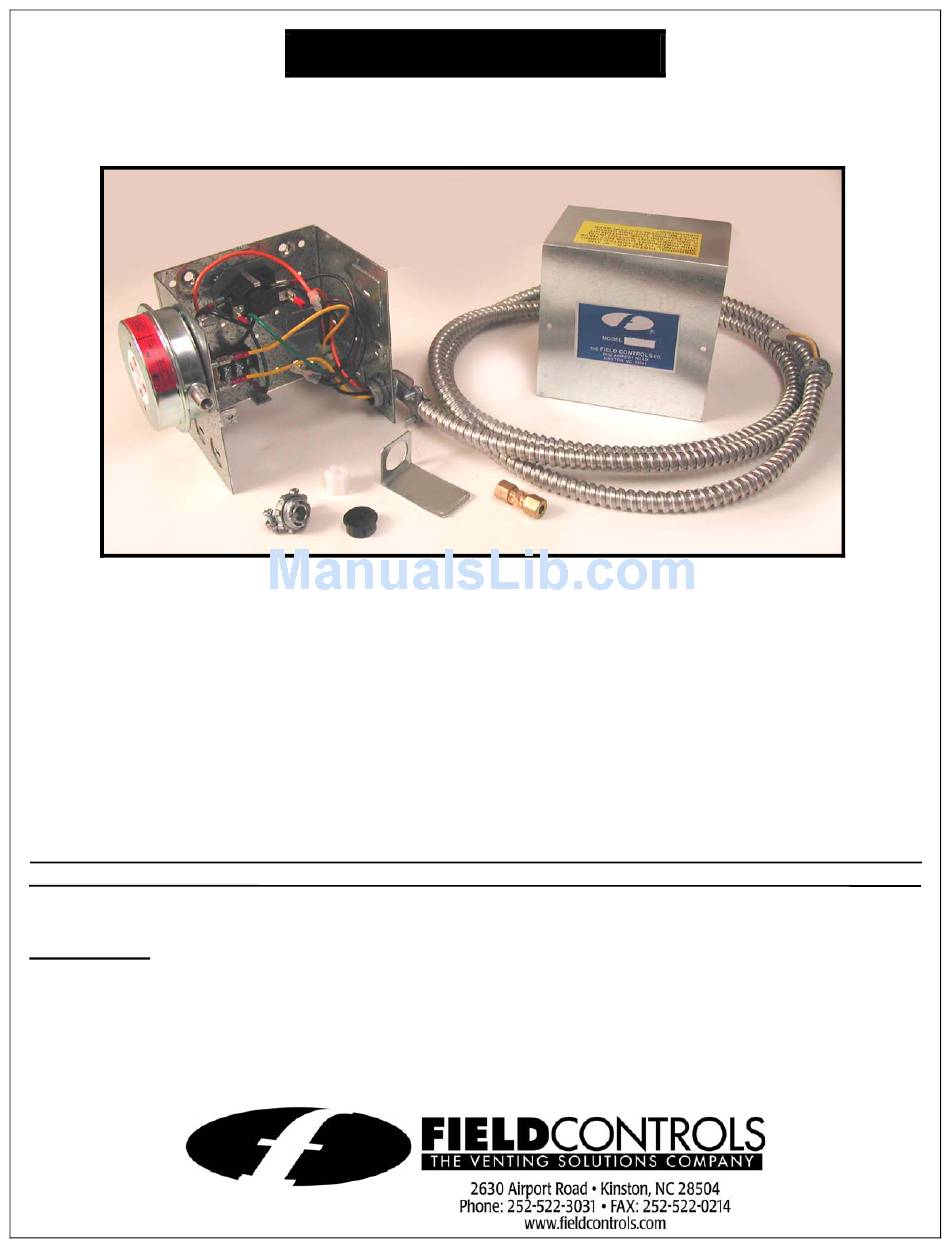

- Page 1 SYSTEM CONTROL KIT Model: CK-41P READ THE INSTALLATION INSTRUCTIONS CAREFULLY & COMPLETELY BEFORE BEGINNING THE INSTALLATION! Designed for use with the SWG Series Power Venter for controlling Natural Gas or L.P. Gas Appliances equipped with a 24V electric damper. It is designed for modular connection to the appliance controls via the damper cable connection.
