Dimplex Longbourn LBN20 Installation And Operating Instructions

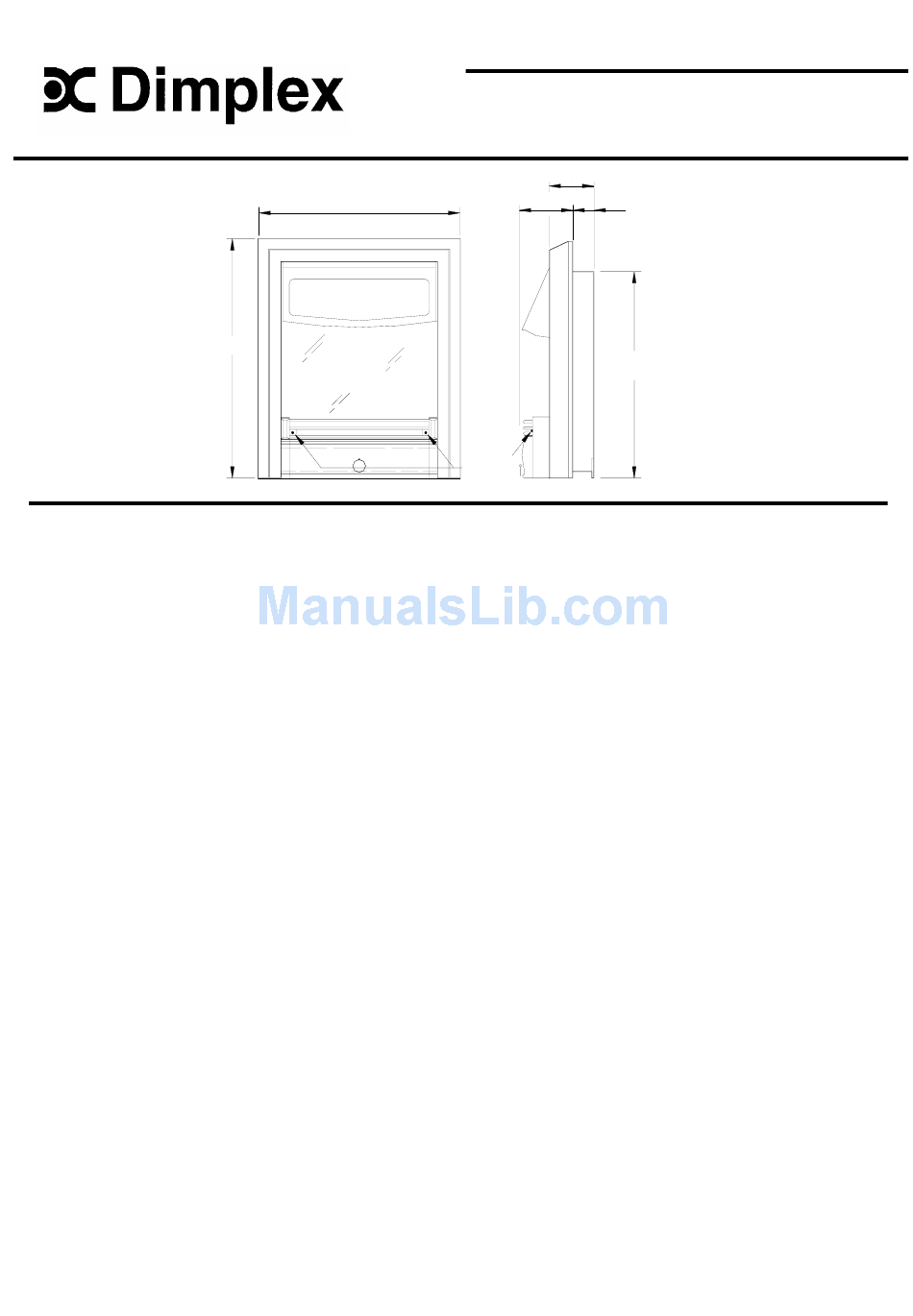

Fig. 1
IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ
CAREFULLY AND RETAINED FOR FUTURE
REFERENCE.
General
Unpack the heater carefully and retain the packaging
for possible future use, in the event of moving or
returning the fire to your supplier. Loose coals are
packed separately within the carton. When the heater
is assembled the coals are placed on top off the fuel
bed.
The heaters is designed for use inset into a 407mm
(16") or 457mm (18") wide by 559mm (22") high
fireplace opening see also section "Installation in a fire
place opening".
A 2kw fan heater discreetly positioned in the canopy of
the fire provides heating in cold weather. Switching
allows half or full heat.
A minimum distance of 1 metre (39") must be
maintained between the front of the heater and any
surrounding furniture, overhanging curtains or other
obstructions.
Before connecting the heater check that the supply
voltage is the same as that stated on the heater.
Electrical
Warning: This appliance must be earthed
This heater must be used on an ∼ (AC) supply
only and the voltage marked on the heater must
correspond with the supply voltage.
For your convenience, the heater is fitted with a
rewireable plug incorporating a 13 amp fuse.
In the event of replacing the fuse in the plug
supplied, a 13 amp fuse approved by ASTA to BS
1362 must be used.
521
620
Installation and Operating Instructions
Longbourn Model No. LBN20
Incorporating 2Kw fan heater
127
173 67
540
Screws for
removing
grate
Important Safety Advice
When using electrical appliances, basic precautions should
always be followed to reduce the risk of fire, electric shock,
and injury to persons, including the following:
•
If the appliance is damaged, check immediately with the
supplier before installation and operation.
•
DO NOT use outdoors.
•
DO NOT use in the immediate surroundings of a bath
shower or swimming pool.
•
DO NOT locate the heater immediately below a fixed
socket outlet or connection box.
•
DO NOT COVER THE HEATER. Do not place material
or garments on the heater, or obstruct the air circulation
around the heater, for instance by curtains or furniture,
as this could cause overheating and a fire risk.
•
DO NOT leave young children, the elderly, or the infirm
unsupervised in the vicinity of the heater.
•
DO NOT use this heater in series with thermal control, a
programmable controller, a timer or any other device
that switches the heater automatically, since a fire risk
exists when the heater is accidentally covered or
displaced. Ensure that furniture, curtains or other
combustible material are positioned NO closer than
1meter from the heater.
•
In the event of a fault unplug the heater.
•
Unplug the heater when not required for long periods.
•
Keep supply cord away from the front of the heater.
•
Although this heater complies with safety standards, we
do not recommend its use on deep pile carpets or on
long hair type of rugs.
•
The appliance must be positioned so that the plug is
accessible.
•
If the supply cord is damaged it must be replaced by the
manufacturer or service agent or a similarly qualified
person in order to avoid a hazard.
Issue 2 4/2/05
