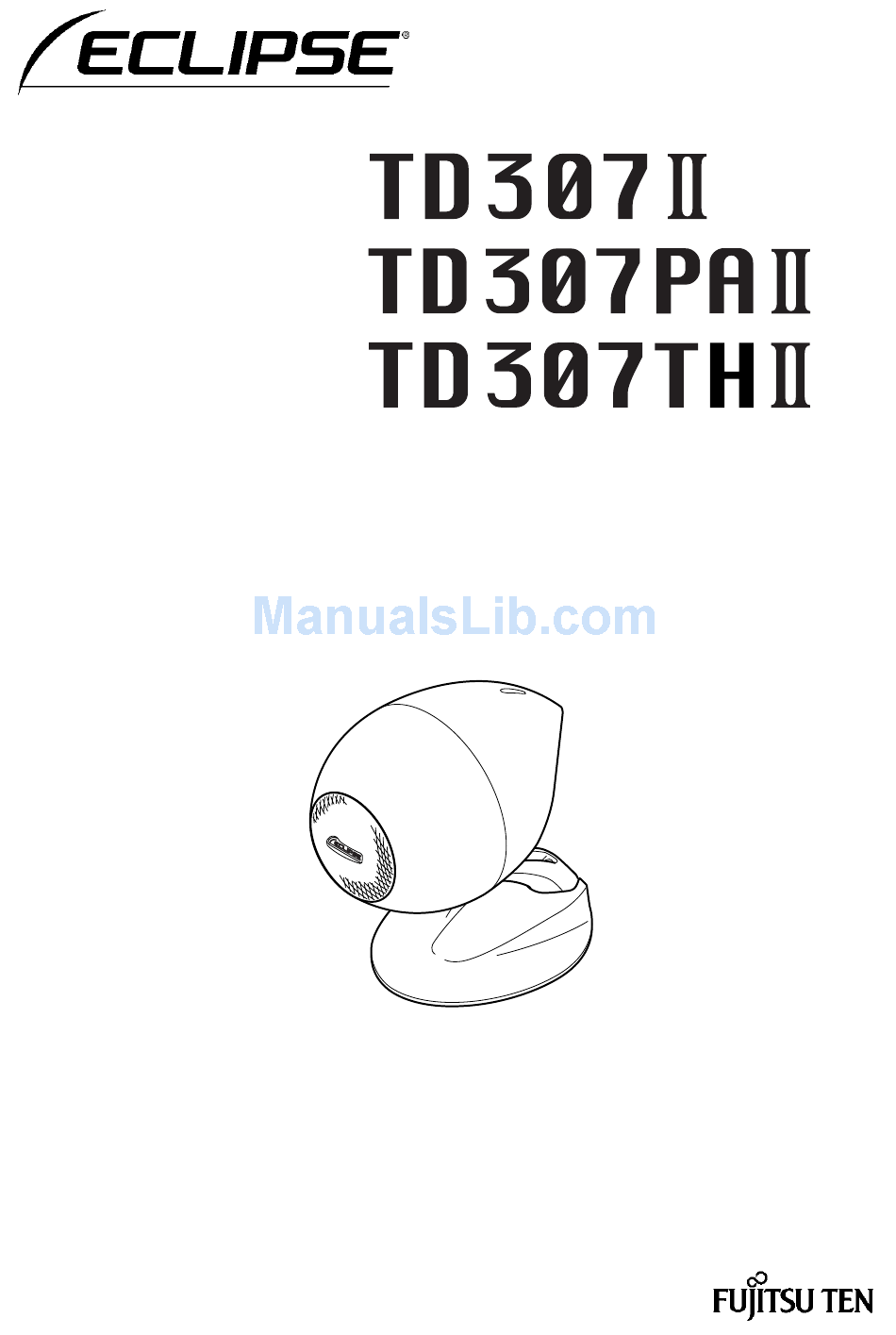

- Page 1 Speaker Speaker for Speaker for OWNER'S MANUAL Thank you for purchasing this speaker. Please read this Owner's Manual before use. Be particularly sure to read the Safety Instructions section before using the product. Keep this Owner's Manual together with the warranty in a safe place for later reference.
-
Page 2: Table Of Contents
Contents Foreword ..............2 For your safety in using this product . -
Page 3: For Your Safety In Using This Product
For your safety in using this product Before use The indicator symbols shown below are used in this manual and on the speaker to ensure proper and safe use of the product, prevent injuries and avoid damage to surrounding items. Please become familiar with these symbols and their associated information before proceeding to the assembly instructions of this manual. -
Page 4: Cautions On Use
Cautions on use Always be sure to minimize the volume before turning on the power and before switching input. Sudden high volume output can damage the connected speaker system. Even pleasant music can be a disturbance at times. To avoid disturbance in your neighborhood, enjoy your unit at an appropriate volume. -
Page 5: Part Names And Connections
Part names and connections Speaker unit (Black) (Red) Speaker neck Speaker input terminals Speaker wire Wire hole Speaker wire Speaker base (for diameter of less than 7 mm) Caution When connecting the speaker wires, insert the ends of the speaker wires correctly so that they do not touch neighboring terminals, otherwise it may cause short-circuits. -
Page 6: Installing The Speaker
Installing the speaker This speaker can be installed and used on a floor, and it can also be installed to a ceiling or wall. If installing to a ceiling or wall, use screws (sold separately) to install it and also be sure to install the drop-prevention wire. Caution •... - Page 7 Remove the screws from the bottom of the speaker Screws x3 base. The screws which are removed will not be used. Give them to the customer to keep safely. Speaker base Remove the base cover. Remove the hexagon head screw which is used for Speaker base securing the base cover drop-prevention wire from Base cover...
- Page 8 Install the drop-prevention wire to the speaker unit. Hexagonal head bolt Wire Caution Washer • Attach the drop-prevention wire securely to the speaker so that the speaker will not fall down. • Use the hexagonal head bolt and washer which were removed from the speaker earlier to secure the wire to the speaker.
- Page 9 Install the speaker base at the speaker installation Speaker base position using the screws (sold separately). Caution • Install the speaker neck and speaker base securely so that the speaker will not fall down. • The screws which are used to install the speaker to the ceiling or wall are not provided with the Screws (sold separately) speaker, so purchase them separately.
- Page 10 Route the speaker wires. Speaker base • To make it easier to connect the speaker wires to Speaker base the speaker, leave about 8 inches (20 cm) of speaker wire hanging out. • The speaker wires can be passed through the Speaker wire (7 mm diameter or speaker base and the speaker neck which will...
- Page 11 Install the base cover drop-prevention wire to the speaker base by carrying out step in reverse. Hexagon head screw Install the base cover to the speaker base. Base cover drop- prevention wire Base cover Install the drop-prevention wire to the ceiling. Drop-prevention wire Caution Install the drop-prevention wire securely to the...
-
Page 12: Adjusting The Speaker Base And Speaker Neck Assembly Positions
Adjusting the speaker base and speaker neck assembly positions The TD307 II speaker can be installed in a variety of layouts by changing the way the speaker base and speaker neck are installed. Speaker base When disassembling the speaker, refer to steps in "Installing the speaker"... -
Page 13: Adjusting The Speaker Angle
Adjusting the speaker angle Use the Allen key which is supplied with the speaker to loosen the angle adjustment bolt 30˚ underneath the speaker. 25˚ The speaker is heavy, so hold it with your hand when adjusting the angle. Set the speaker to the desired angle. The vertical angle of the speaker can be adjusted Angle adjustment bolt 25°... -
Page 14: Removing The Protective Net
Removing the protective net You can remove the protective net of the speaker if desired. Insert the end of a flat-tipped screwdriver into the notch of the protective net, and lever it upward to Protective net lift up the protective net. Caution Be careful not to damage the paper of the speaker cone or the speaker housing when using a flat-... -
Page 15: Cleaning/Specifications
Cleaning/Specifications Cleaning Specifications Before cleaning this product, make sure that Specifications and appearance are subject to the power is turned off and the power cord is change without prior notification. disconnected from the wall outlet. • Clean this product gently with a soft cloth. Speaker If the speaker is particularly dirty, moisten the Diameter: 6.5 cm... -
Page 16: Warranty And After-Sales Service
Warranty and after-sales service Warranty (included) When asking for repairs Read the warranty conditions carefully and During the warranty period then keep the warranty in a safe place. Hand over the warranty when asking for repairs. Warranty period Repairs will be carried out according to the The warranty period is one year from the date warranty conditions.
