Installation Points To Remember - Directed Electronics 430 Series Installation Manual

Hide thumbs

Table of Contents

4-pin shock

sensor plug

2-pin

micro

LED

plug

Do not disconnect the battery if the vehicle has an anti-theft-coded radio. If equipped with an air bag, avoid discon-

necting the battery if possible.

IMPORTANT! Many airbag systems will display a diagnostic code through their warning light after they lose

power. Disconnecting the battery requires this code to be erased, a procedure that can require a trip to the

dealer.

Before beginning the installation:

•

Check with the customer on Status LED location.

•

Remove the domelight fuse. This prevents accidentally draining the battery.

•

Roll down a window to avoid being locked out of the car.

After the install:

•

Test all functions. The "Using Your System" section of the Owner's Guide is very helpful when testing.

•

When testing, don't forget that this system is equipped with Nuisance Prevention

bypass trigger zones, making them appear to stop working. (See page 21)

Technical Manuals Online! - http://www.tech-man.com

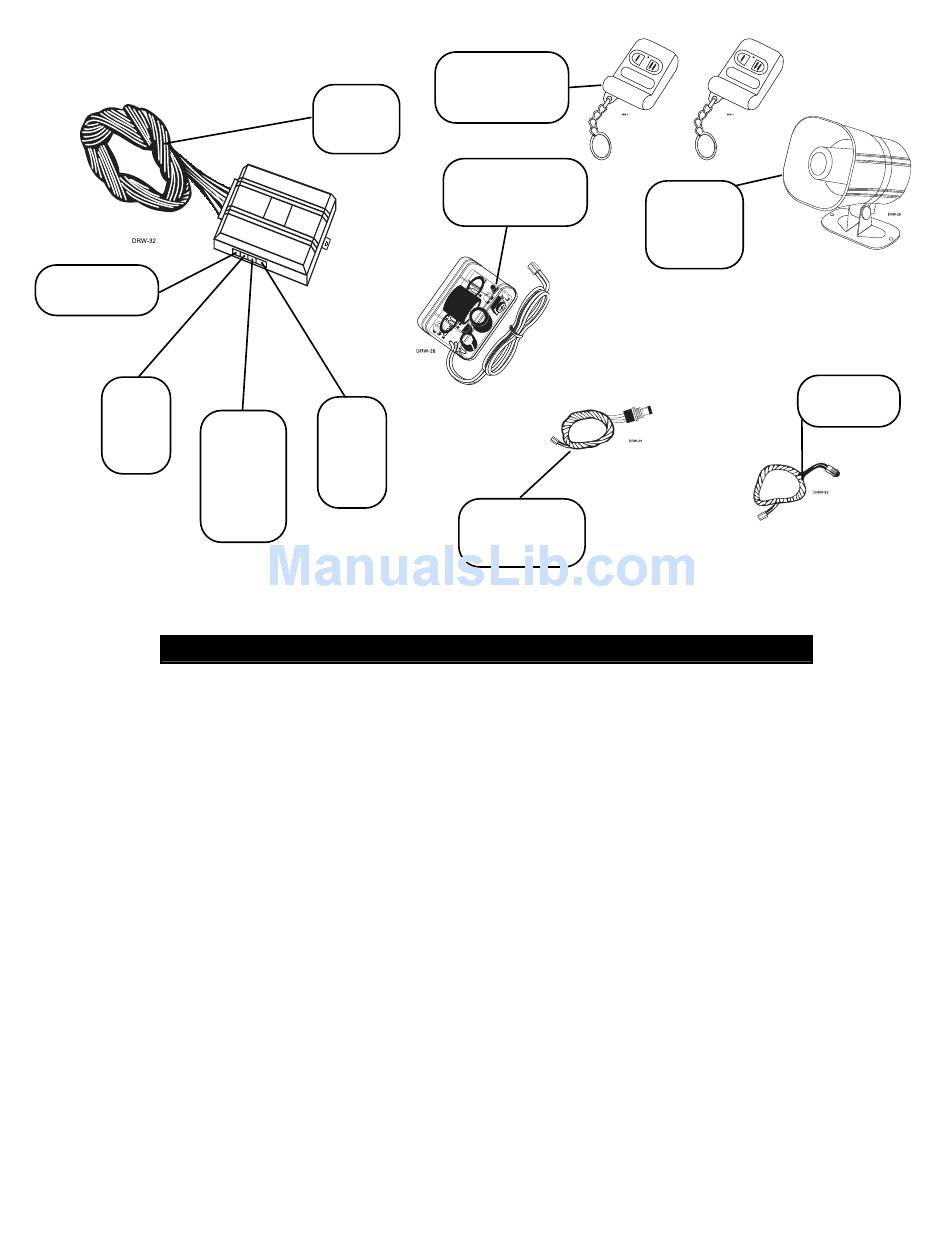

Primary
