Fishman POWERBRIDGE SYSTEM Manual page 4

Stereo Output Jack
Every Powerbridge™ Pickup includes a TRS
Jack specifically intended for use with the Fishman Powerbridge™
System.
Instrument Cables
Depending on how you set up your Powerbridge™ system, you will use
one of these three cables (available from your Fishman dealer):
Stereo "Y" Cable - Used to split your Piezo and magnetic pickup
signals and send them to two separate amplifiers.
Stereo Instrument Cable - Lets you plug into one of our
Powertronics™ preamps for either mono or stereo Piezo / magnetic
output.
Standard Mono Instrument Cable - Plugs into a Powerchip™
equipped guitar for combined Piezo / magnetic output. A mono cable
will short out the Piezo signal if the Powerbridge™ Pickup is not wired
with a Powerchip™.

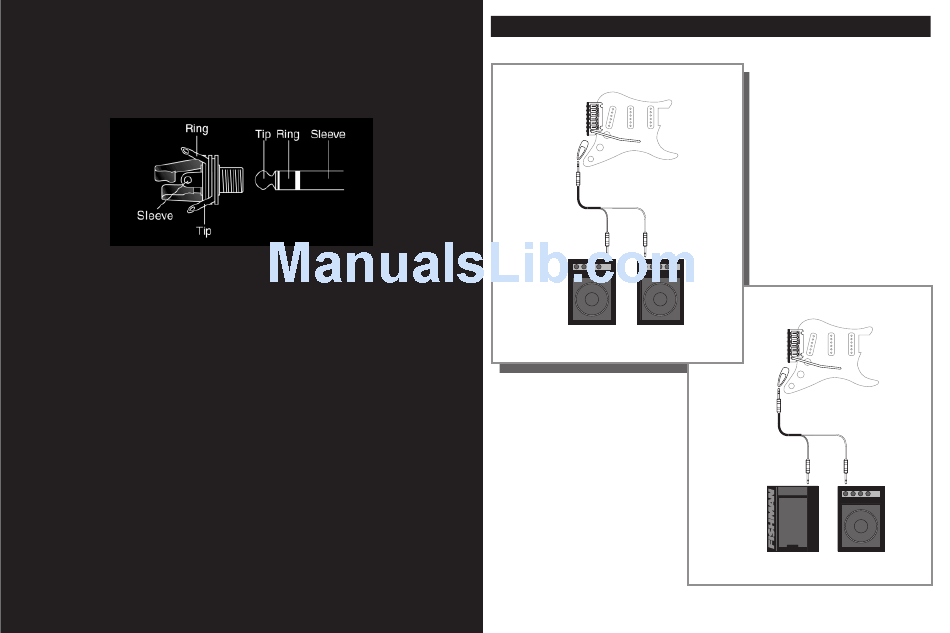

The following pages illustrate some
typical Passive Setups for the Powerbridge
and your magnetic pickups
Stereo Output
(Tip/Ring/Sleeve)
Eight
Passive Powerbridge™ Setups
Stereo Output Jack
(Tip/Ring/Sleeve)
Stereo "Y" Cable
Powerbridge™ Signal Pure Magnetic Signal
(Ring)
Electric Guitar Electric Guitar
Amp #1 Amp #2
While playing the
Powerbridge™ through a
standard electric amp
gives you a pretty cool
alternative to your
magnetic pickups, an
acoustic guitar amplifier
does a great job of
reproducing the more
acoustic qualities of the
Powerbridge™.
With the Powerbridge's™
Stereo Output Jack, you
can use a Stereo"Y" Cable
(available at your Fishman
dealer) to send Piezo and
magnetic pickup signals to
separate amplifiers.
(Tip)
Stereo Output Jack
(Tip/Ring/Sleeve)
Powerbridge™ Signal Pure Magnetic Signal
(Ring)
Acoustic Guitar Electric Guitar
Amp Amp
Nine
(Tip)
