Fishman ONBOARD AURA - CUTOUT Template

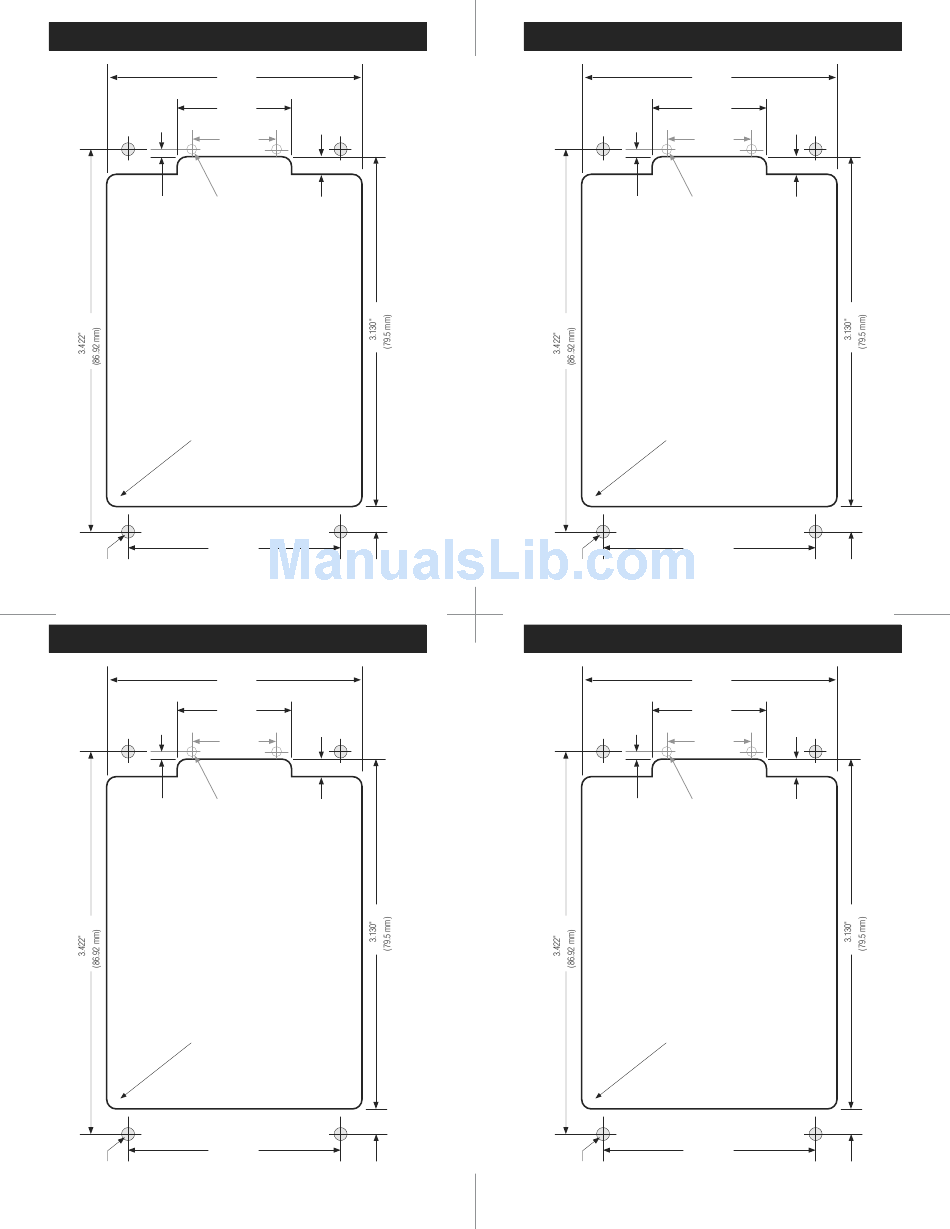

Fishman Prefix Series Cutout Template
2.284"
(57.51 mm)
1.024"
(26.01 mm)
.757"
(19.23 mm)
For bezels with 6 holes
.073"
(1.85 mm)
2x D .089" (2.26 mm)
6x R 0.093"
(2.36 mm)
3/16" Cutter
1.902"
(48.3 mm)
4x D .116"
(2.94 mm)
009-087-001 Rev 4 6-08
www.fishman.com
Fishman Prefix Series Cutout Template
2.284"
(57.51 mm)
1.024"
(26.01 mm)
.757"
(19.23 mm)
For bezels with 6 holes
.073"
(1.85 mm) 2x D .089" (2.26 mm)
6x R 0.093"
(2.36 mm)
3/16" Cutter
1.902"
(48.3 mm)
4x D .116"
(2.94 mm)
009-087-001 Rev 4 6-08
www.fishman.com
.157"
(4.00 mm)
0.230"
(5.84 mm)
.157"
(4.00 mm)
0.230"
(5.84 mm)
Fishman Prefix Series Cutout Template
2.284"
(57.51 mm)
1.024"
(26.01 mm)
.757"
(19.23 mm)
For bezels with 6 holes
.073"
(1.85 mm)
2x D .089" (2.26 mm)
6x R 0.093"
(2.36 mm)
3/16" Cutter
1.902"
(48.3 mm)
4x D .116"
(2.94 mm)
009-087-001 Rev 4 6-08
www.fishman.com
Fishman Prefix Series Cutout Template
2.284"
(57.51 mm)
1.024"
(26.01 mm)
.757"
(19.23 mm)
For bezels with 6 holes
.073"
(1.85 mm) 2x D .089" (2.26 mm)
6x R 0.093"
(2.36 mm)
3/16" Cutter
1.902"
(48.3 mm)
4x D .116"
(2.94 mm)
009-087-001 Rev 4 6-08
www.fishman.com
.157"
(4.00 mm)
0.230"
(5.84 mm)
.157"
(4.00 mm)
0.230"
(5.84 mm)
