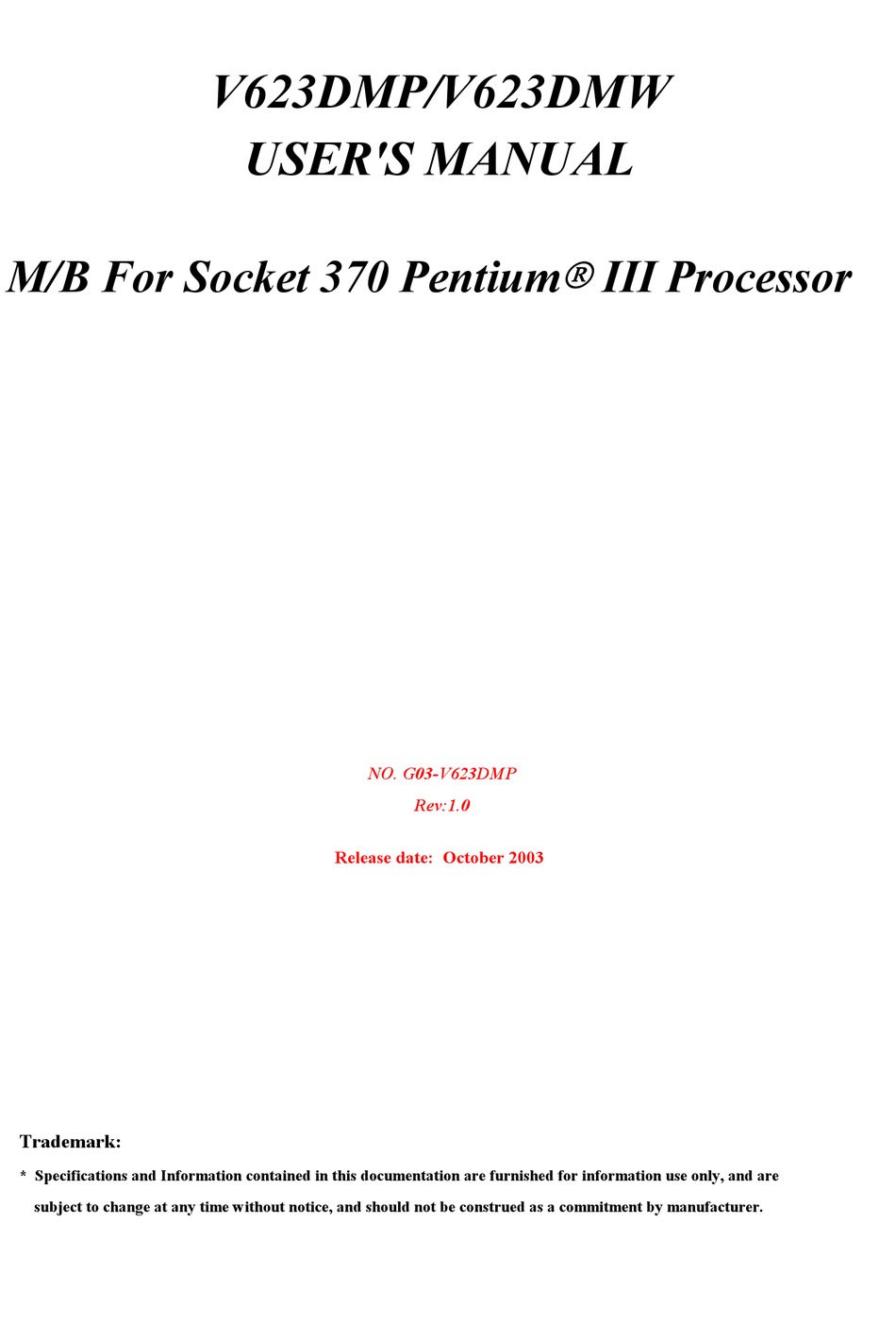

V623DMP/V623DMW
USER'S MANUAL
M/B For Socket 370 Pentium
III Processor
NO. G03-V623DMP
Rev:1.0
Release date: October 2003
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
Advertisement
Table of Contents
Related Manuals for JETWAY V623DMR1A
Summary of Contents for JETWAY V623DMR1A
- Page 1 V623DMP/V623DMW USER'S MANUAL M/B For Socket 370 Pentium III Processor NO. G03-V623DMP Rev:1.0 Release date: October 2003 Trademark: * Specifications and Information contained in this documentation are furnished for information use only, and are subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
-
Page 2: Table Of Contents
TABLE OF CONTENT USER’S NOTICE ......................ii MANUAL REVISION INFORMATION ................ii THERMAL SOLUTIONS ....................ii CHAPTER 1 INTRODUCTION OF MOTHERBOARD 1-1 FEATURE OF MOTHERBOARD................1 1-2 SPECIFICATION .....................2 1-3 PERFORMANCE LIST ...................3 1-4 LAYOUT DIAGRAM & JUMPER SETTING ............4 CHAPTER 2 HARDWARE INSTALLATION 2-1 HARDWARE INSTALLATION STEPS ..............6 2-2 CHECKING MOTHERBOARD'S JUMPER SETTING........6 2-3 INSTALL CPU ......................7... -
Page 3: User's Notice
USER’S NOTICE COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER. -
Page 4: Feature Of Motherboard
Chapter 1 Introduction of V623DMP/V623DMW Motherboard 1-1 Feature of motherboard The V623DMP/V623DMW motherboard is design for use Intel’s new generation Pentium processors, which utilize the Socket 370 design and the memory size expandable to 2GB. This motherboard uses the newest VIA VT8623 (CLE266) SMA (Share Memory Architecture) North bridge chipset and VT8235 south bridge chipset. -
Page 5: Specification
1-2 Specification Spec Description ∗ Micro ATX form factor 4 layers PCB size: 24.4x19.0cm Design ∗ VIA VT8623 SMA (Share Memory Architecture) North Bridge Chipset ∗ VIA VT8235 South Bridge ∗ ICS 950908 Clock Generator Clock Generator ∗ Support 66/100/133MHz system Bus Clock (CPU Bus Clock) ∗... -
Page 6: Performance List
1-3 Performance List The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.) Intel Pentium III ... -
Page 7: Layout Diagram & Jumper Setting
1-4 Layout Diagram & Jumper Setting PRINT GAME/MIDI PORT PS/2 MOUSE PS/2 Keyboard LINE-IN COM1 LINE-OUT VIA VT1622A Chip K/B Power ON Jumper (JP1) ATX Power Connector CPU FAN PS2 KB/Mouse Port USB Port/ 370 CPU Socket LAN Connector DIMM Socket X2 COM2 Connector TV OUT Connector Floppy Connector... - Page 8 Jumpers Jumper Name Description Page Keyboard Power ON Function Setting 3-pin Block USB Power On Function Setting 3-pin Block CMOS RAM Clear Function Setting 3-pin Block On board Sound Chip Enabled/Disabled 3-pin Block Connectors Connector Name Description Page ATXPWR ATX Power Connector 20-pin Block p.13 KB/MS1...
-
Page 9: Chapter 2 Hardware Installation
Chapter 2 Hardware installation 2-1 Hardware installation Steps Before using your computer, you had better complete the following steps: 1. Check motherboard jumper setting 2. Install CPU and Fan 3. Install System Memory (DIMM) 4. Install Expansion cards 5. Connect IDE and Floppy cables, Front Panel /Back Panel cable 6. -
Page 10: Install Cpu
(3) CMOS RAM Clear (3-pin): JP5 A battery must be used to retain the motherboard configuration in CMOS RAM short 1-2 pins of JP5 to store the CMOS data. To clear the CMOS, follow the procedure below: Turn off the system and unplug the AC power Remove ATX power cable from ATX power connector Locate JP5 and short pins 2-3 for a few seconds Return JP5 to its normal setting by shorting pins 1-2... - Page 11 PCI - Peripheral Component Interconnect - a high speed interface for video cards, sound cards, network interface cards, and modems; runs at 33MHz. Serial Port - a low speed interface typically used for mouse and external modems. Parallel Port - a low speed interface typically used for printers. PS/2 - a low speed interface used for mouse and keyboards.
-
Page 12: Setting Cpu Bus Clock & Memory Clock Jumper
2-3-2 Setting CPU Bus Clock & Memory Clock Jumper Setting the front side bus frequency and SDRAM frequency The motherboard uses jumper less function for the front side bus frequency and SDRAM frequency users don’t need setting any jumper when plug the CPU in motherboard For experience user looking for over clocking possibility, please refer to sec 2-3-4. -
Page 13: Install Memory
CMOS Setup Utility – Copyright(C) 1984-2003 Award Software Miscellaneous Control Auto Detect DIMM/PCI Clk Enabled Item Help Spread Spectrum Disabled ** Current Host/PCI Clock is 133/133 MHz ** Host/PCI Clock at Next Boot is 133/33MHz ** Current DRAM Clock is 133MHz ** Menu Level >... -
Page 14: Expansion Cards
Figure 2-4 NOTE! When you install DIMM module fully into the DIMM socket the eject tab should be locked into the DIMM module very firmly and fit into its indention on both sides. WARNING! For the DDR SDRAM CLOCK is set at 133MHz, use only DDR266-compliant DDR Modules. -
Page 15: Interrupt Request Table For This Motherboard
System Timer Keyboard Controller Programmable Interrupt Communications Port (COM2) Communications Port (COM1) Sound Card (sometimes LPT2) Floppy Disk Controller Printer Port (LPT1) System CMOS/Real Time Clock ACPI Mode when enabled 10 * IRQ Holder for PCI Steering 11 * IRQ Holder for PCI Steering 12 * PS/2 Compatible Mouse Port Numeric Data Processor... - Page 16 ATX Power Supply connector. This is a new defined 20-pins connector that usually comes with ATX case. The ATX Power Supply allows to use soft power on momentary switch that connect from the front panel switch to 2-pins Power On jumper pole on the motherboard.
- Page 17 PS/2 MOUSE PRINT GAME/MIDI PORT PS/2 LINE-IN Keyboard COM1 LINE-OUT Floppy drive Connector (34-pin block): FDD This connector supports the provided floppy drive ribbon cable. After connecting the single plug end to motherboard, connect the two plugs at other end to the floppy drives. Pin 1 Floppy Drive Connector (10) Primary IDE Connector (40-pin block): IDE1...
-
Page 18: Headers
• For performance issues, we strongly suggest you don’t install a CD-ROM or DVD-ROM drive on the same IDE channel as a hard disk. Otherwise, the system performance on this channel may drop. 2-6-2 Headers COM2 Serial Port Headers (9-pin) : COM2 This board has one serial port header COM2, it come with cable providing serial port COM2. - Page 19 These headers are used for connecting the additional USB port plug. By attaching an option USB cable, your can be provided with two additional USB plugs affixed to the back panel. USB1/2 Pin 1 USB Port Headers IDE Activity LED: HD_LED This connector connects to the hard disk activity indicator light on the case.
- Page 20 CPUFAN SFAN (11) IR infrared module Headers (5-pin) : IR This connector supports the optional wireless transmitting and receiving infrared module. You must configure the setting through the BIOS setup to use the IR function. Pin 1 IR infrared module Headers (12) CD Audio-In Headers (4-pin) : CDIN CDIN is the connectors for CD-Audio Input signal.
-
Page 21: Starting Up Your Computer
2-7 Starting Up Your Computer 1. After all connections are made, close your computer case cover. 2. Be sure all the switch are off, and check that the power supply input voltage is set to proper position, usually in-put voltage is 220V∼240V or 110V∼120V depending on your country’s voltage used. -
Page 22: Chapter 3 Introducing Bios
Chapter 3 Introducing BIOS The BIOS is a program located on a Flash Memory on the motherboard. This program is a bridge between motherboard and operating system. When you start the computer, the BIOS program gain control. The BIOS first operates an auto-diagnostic test called POST (power on self test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization. -
Page 23: Getting Help
3-2 Getting Help Main Menu The on-line description of the highlighted setup function is displayed at the bottom of the screen. Status Page Setup Menu/Option Page Setup Menu Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. - Page 24 Standard CMOS Features Use this Menu for basic system configurations. Advanced BIOS Features Use this menu to set the Advanced Features available on your system. Advanced Chipset Features Use this menu to change the values in the chipset registers and optimize your system’s performance.
-
Page 25: Standard Cmos Features
3-4 Standard CMOS Features The items in Standard CMOS Setup Menu are divided into several categories. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item. CMOS Setup Utility –... -
Page 26: Advanced Bios Features
Cylinder number of cylinders Head number of heads Precomp write precomp Landing Zone landing zone Sector number of sectors 3-5 Advanced BIOS Features CMOS Setup Utility – Copyright(C) 1984-2003 Award Software Advanced BIOS Features Anti-Virus Protection Disabled Item Help CPU L1 Cache Enabled CPU L2 Cache Enabled... -
Page 27: Advanced Chipset Features
Choose Enabled or Disabled. This option enables the Level 2 cache memory. CPU L2 Cache ECC Checking Choose Enabled or Disabled. This option enables the Level 2 cache memory ECC (error check correction). Processor Number Feature This option is for Pentium III processor. During Enabled, this will check the CPU Serial number. Disabled this option if you don’t want the system to know the Serial number. -
Page 28: Dram Timing Setting
The Advanced Chipset Features Setup option is used to change the values of the chipset registers. These registers control most of the system options in the computer. CMOS Setup Utility – Copyright(C) 1984-2003 Award Software Advanced Chipset Features DRAM Timing Setting Press Enter Item Help AGP Timing Setting... -
Page 29: Agp Timing Settings
CMOS Setup Utility – Copyright(C) 1984-2003 Award Software DRAM Timing Setting DRAM Timing By SPD Item Help x DRAM CAS Latency Bank Interleave 4 Banks RAS Precharge Time Menu Level >> RAS Active Time RAS to CAS Delay When set to “Auto”, BIOS will program this DRAM Command Rate Timing mainly by the... -
Page 30: Pci Timing Settings
CMOS Setup Utility – Copyright(C) 1984-2003 Award Software AGP Timing Settings AGP Aperture Size 64MB Item Help AGP Mode AGP Fast Write Disabled AGP Master 1 WS Write Disabled Menu Level >> AGP Master 1 WS Read Disabled CPU to AGP Post Write Enabled AGP Delay Transaction Enabled... -
Page 31: On-Chip Ide Function
Please refer to section 3-7-1 OnChip Device Function Please refer to section 3-7-2 OnChip SIO Function Please refer to section 3-7-3 Init Display First This item allows you to decide to activate whether PCI Slot or on-chip VGA first. The settings are: PCI Slot, AGP Slot, On-Chip VGA. -
Page 32: On-Chip Device Function
Ultra DMA/33 implementation is possible only if your IDE hard drive supports it and the operating environment includes a DMA driver (Windows 95 OSR2 or a third-party IDE bus master driver). If your hard drive and your system software both support Ultra DMA/33 and Ultra DMA/66, select Auto to enable BIOS support. -
Page 33: Power Management Setup
CMOS Setup Utility – Copyright(C) 1984-2003 Award Software On-Chip SIO Function Onboard FDD Controller Enabled Item Help Onboard Serial Port 1 3F8/IRQ4 Onboard Serial Port 2 2F8/IRQ3 Onboard Fast IR Disabled Menu Level >> x Fast IR IRQ x Fast IR DMA Onboard Parallel Port 378/IRQ7 Parallel Port Mode... -
Page 34: Wake Up Events
The Power Management Setup allows you to configure your system to most effectively save energy saving while operating in a manner consistent with your own style of computer use. CMOS Setup Utility – Copyright(C) 1984-2003 Award Software Power Management Setup ACPI Function Enabled... -
Page 35: Pnp/Pci Configuration Setup
CMOS Setup Utility – Copyright(C) 1984-2003 Award Software Wake Up Events Item Help LPT&COM LPT/COM HDD&FDD PCI Master Menu Level >> Wake-Up on Ring/LAN Disabled Wake-Up on PCI PME Disabled PS2KB Wakeup Selection Hot Key PS2KB Wakeup from S1-S5 Disabled Wake-Up on RTC Alarm Disabled x Date of Month Alarm... -
Page 36: Pc Health Status
Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings. -
Page 37: Miscellaneous Control
only available if there is Hardware Monitor onboard. CMOS Setup Utility – Copyright(C) 1984-2003 Award Software PC Health Status Item Help Current Fan 1 Speed 4964 RPM Current Fan 2 Speed 0 RPM CPU Vcore 1.450V Menu Level > 3.3V 3.208V +12V 12.256V... -
Page 38: Set Supervisor/User Password
When you press <Enter> on this item, you get confirmation dialog box with a message similar Load Standard Defaults (Y/N)? N Pressing <Y> loads the BIOS default values for the most stable, minimal-performance system operations. Load Optimized Defaults When you press <Enter> on this item, you get a confirmation dialog box with a message similar to: Load Optimized Defaults (Y/N)? N Pressing <Y>... -
Page 39: Chapter 4 Driver & Free Program Installation
DRIVER & FREE PROGRAM INSTALLATION Check your package and there is A MAGIC INSTALL CD included. This CD consists of all DRIVERS you need and some free application programs and utility programs. In addition, this CD also include an auto detect software which can tell you which hardware is installed, and which DRIVERS needed so that your system can function properly. - Page 40 IDE : VIA ATAPI VENDOR SUPPORT DRIVER IS USED TO FIXED COMPATIBILITY ISSUE FOR IDE DEVICES AGPVXD : VIA AGPVXD DRIVER IS TO BE INSTALLED, IF YOU ARE USING AN AGP VGA CARD, VIAGART.VXD WILL PROVIDE SERVICE ROUTINES TO YOUR VGA DRIVER AND INTERFACE DIRECTLY TO HARDWARE, PROVIDING FAST GRAPHIC ACCESS IRQ ROUTING :...
-
Page 41: Install Via Vga Driver
7. Click NEXT to Install VIA AGP VXD Driver 8. Click NEXT to Install VIA IRQ Routing Mini port Driver 9. Click Finish to restart computer 4-2 VGA install VIA VGA Driver For WINDOWS 9X/ME/NT4.0/2000/XP 1. Click VGA when MAGIC INSTALL MENU Click NEXT When ProSavageDDR Driver appears Install Setup Wizard Appears... - Page 42 4-3 Sound Install CMI8738-6CH/C3DX PCI Audio Driver 1. Click SOUND when MAGIC INSTALL 2. Click Install Device Driver and Applications MENU appears 3. Choose English when Setup Language screen 4. Click Next when copyright Issue appears, click appears and Click OK Next or choose BROWSE to change the path for the file to be store 5.
- Page 43 9. This is the C-Media Audio Rack Play table 10. Click Start\Program\PCI Audio Application\ Multi-Channel Audio Demo to test the 6CH Speaker position 11. Click C-Media Mixer\Advanced\Speakers, 12. Enable USING Xear 3D, you can select 4/6 this is the C-Media Audio speaker Speakers Xear Functions Configuration setting.
-
Page 44: Magic Bios Install Bios Live Update Utility
4-4 LAN Install RTL810X LAN Controller Driver The path of the file: for WINDOWS 98SE is X:\RTLLAN\WIN98 for WINDOWS 98ME is X:\RTLLAN\WINME for WINDOWS NT4.0 is X:\RTLLAN\WINNT4 for WINDOWS 2000 is X:\RTLLAN\WIN2000 for WINDOWS XP is X:\RTLLAN\WINXP WINDOWS 98SE/98ME/2000/XP Setup 1. - Page 45 After finish Setup you will have a Magic Double click the Magic BIOS icon you will BIOS icon in your screen have this picture, choose from internet you can upgrade BIOS On-line When On-line update BIOS the program Click Next if you need update BIOS, after will auto-check your BIOS version upgrade BIOS, the system will clear CMOS and automatically restart...
-
Page 46: Usb2.0 Install Via Usb2.0 Device Driver
4-6 USB2.0 Install VIA USB2.0 Device Driver 1. Click USB2.0 when MAGIC INSTALL 2. When USB2.0 Setup Program Appear, Click MENU Appear NEXT 3. Select Install USB Driver and Click NEXT 4. Select FINISH and Restart your Computer 5. Check device working properly in Device Manager The Path of the file is X:\VIA\VIAUSB20\SETUP.EXE 4-7 PC-CILLIN Install PC-CILLIN 2002 Anti-virus program... - Page 47 3. This is license agreement, select "I Accept 4. Click NEXT and Enter your Customer the terms" and Click NEXT Information, Click NEXT or choose Change to change the path for the file to be stored 5. Click INSTALL, Start to install the software 6. Setup Complete and click FINISH 7.
-
Page 48: How To Disable On-Board Sound
4-8 HOW TO DISABLE ON-BOARD SOUND Enter BIOS SETUP choose INTEGRATE PERIPHERALS choose ON-CHIP DEVICE FUNCTION choose AC97 AUDIO Disable on-board sound function by press PAGE DOWN KEY to Disable 4-9 HOW TO UPDATE BIOS Before update BIOS users have to “Disable”, “Flash Part Write Protect” item which in “Miscellaneous Control”...
