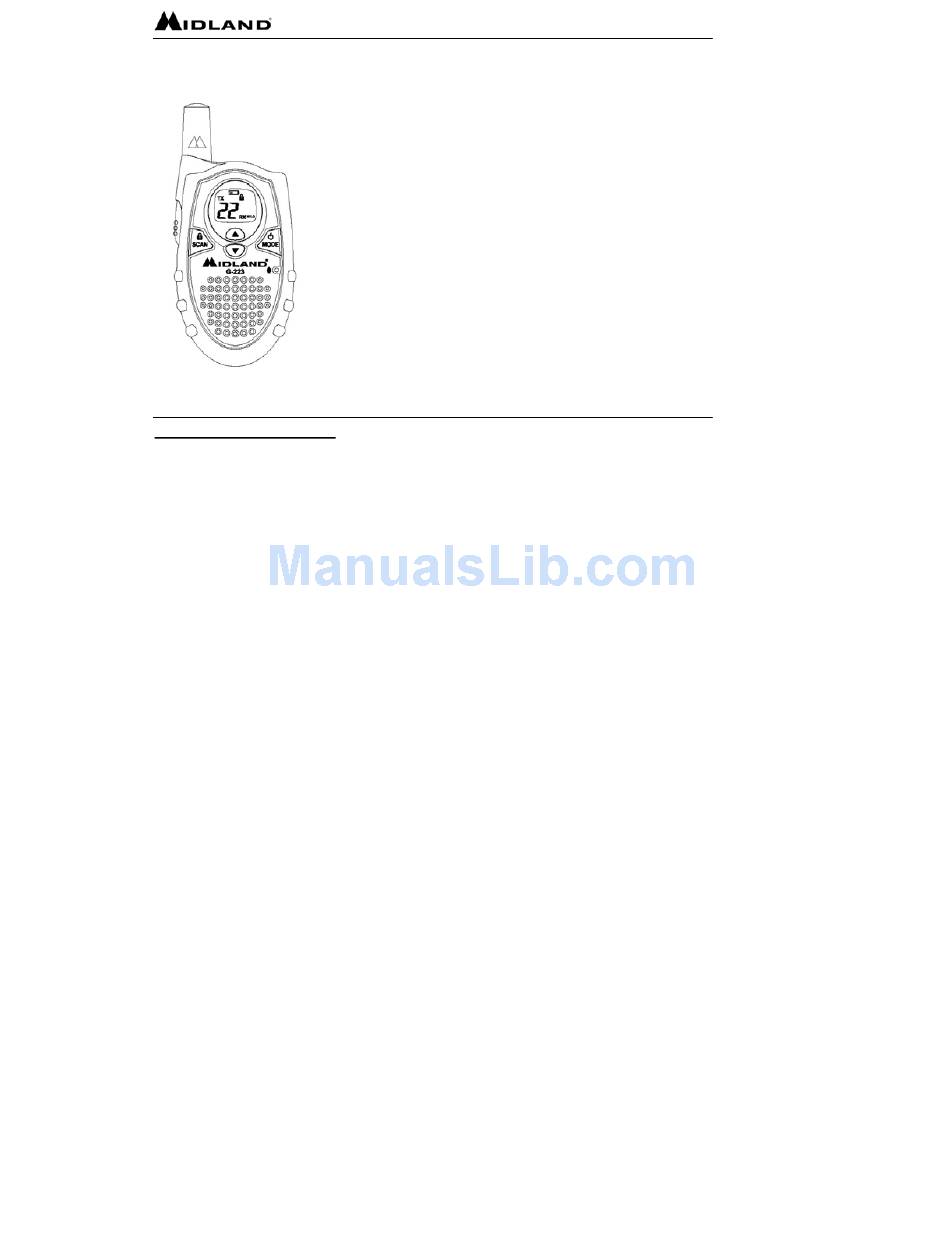

- Page 1 Owner’s Manual For Models G-223 GMRS/FRS Radio FEATURES • 22 Channels • Scan • Key Pad Lock • Call Alert • Power HI/LO • Roger Beep Tone http://www.midlandradio.com - 1 -...
- Page 2 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device does not cause harmful interference, and (2) this radio must accept any interference received, including interference that may cause undesired operation. To maintain compliance with FCC’s RF exposure guidelines, this transmitter and its antenna must maintain a separation distance of at least 2 inches from your body.
-
Page 3: Table Of Contents
Index Accessories Accessories order form Introduction FCC Licensing Information Controls and Buttons LCD Display Installing Batteries Charging the Batteries Operation 11-15 Problems & Solution Technical Specification Frequency and Charts Warranty Information MIDLAND Family Products http://www.midlandradio.com - 3 -... -
Page 4: Accessories
Accessories – Accessories can be purchased at or fill www.midlandradio.com in the form on the following page and mail it to our address. AVP-2 One Dual Desk Charger 2 Rechargeable battery packs 1 AC Adapter $39.95 http://www.midlandradio.com - 4 -... -
Page 5: Accessories Order Form
ACCESSORIES ORDER FORM Please send Money Order or fill in Visa/Master Card information and mail to the address below. Please DO NOT sent cash or checks. Make Money Order to Midland Radio Corporation. Name:____________________________ _____________________ Address:_______________________________________________ City:_____________________ State_____ Zip Code____________ Tel: __________________ email: ___________________________ CC#______________________ Type:___________ Exp._________... -
Page 6: Introduction
Mobile Radio Service operation, this compact package is big in performance. It is a quality piece of electronic equipment, skillfully constructed with the finest components. The circuitry is all solid-state and mounted on a rugged printed circuit board. Your G-223 is designed for reliable and trouble-free performance. -
Page 7: Controls And Buttons

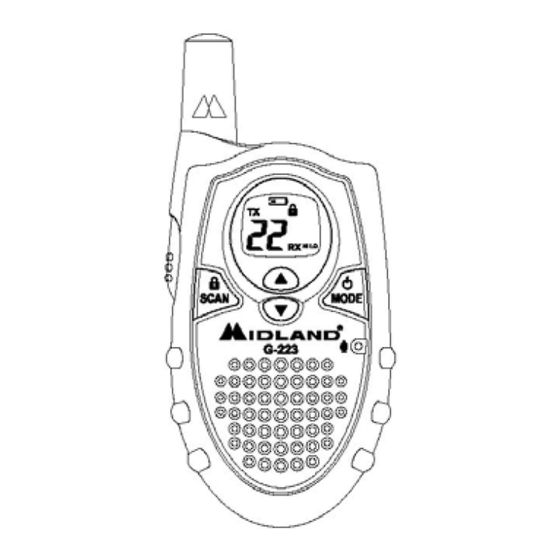

Control Buttons & Indicators - Turn On/Off the Radio - Enter/Exit the menu - Talk on the Radio - Send a Call Tone - Save a setting - Increase the volume - Scroll through the menu - Decrease the Volume - Scan for active - Scroll through the menu channels... -
Page 8: Lcd Display
LCD Display Low Battery level Indicator Key Pad Lock Icon Transmit (TX) Icon Channel Indicator Receive (RX) Icon Power Hi/Lo Indicator http://www.midlandradio.com - 8 -... -
Page 9: Installing Batteries
Installing Batteries Your G-223 radio operates with either 4 AAA Alkaline Batteries or optional NiMH battery pack. The belt clip should be removed (page 15) to ease installation or removal. To install the batteries: 1. With the back of the radio facing you, remove the Battery Cover by sliding it down from the unit. -
Page 10: Charging The Batteries
Charging the batteries (Optional NiMH battery Pack Only) Your G-223 is equipped to allow using a rechargeable NiMH battery pack, which can be recharged by a Desktop Charger (not included). Batteries must be charged when the low battery icon flashes on the display. Do not charge alkaline batteries of any kind in the unit. - Page 11 Call Tone : Your G-223 can transmit a call tone for a fixed length of time. To send a call tone, press the PTT twice rapidly. The TX icon will appear during transmitting a call tone and tone can be heard on the speaker for confirmation.
- Page 12 Scan : Your G-223 can scan all of the 22 channel to observe for any activity. To enter the scan mode, press the button for one second. Press button again for one second to exit the scan mode. Your radio will rapidly scan each of the 22 channels and stop on any active channel.
- Page 13 User Interface To access the advanced features of your G-223, your radio has the following menu functions: Mode Channel Power Roger 1~22 Hi/Lo On/Off Note : The unit will automatically go to normal mode after 5 seconds of no button activity during menu setting.
- Page 14 Power Selection: Your G-223 has two transmit power levels. To select the power level on channels 1~7 and 15~22: • Press until the “Pr” appears on the display. • Press to select between high and low power levels. The Hi/Lo icon will alternately appear during setting.
- Page 15 Belt Clip : To install the belt clip: • Slide the clip up into the slot on the back of the radio until the latching mechanism clicks. To remove the belt clip: • Pull the latching tab outward, then gently slide the belt clip down toward the bottom of the radio.
-
Page 16: Problems & Solution
PROBLEM SOLUTION No Power - Check battery installation and/or replace batteries Cannot Receive - Confirm the radios have the same channel settings. Messages - Make sure that you are with in range of the other transceivers. - Buildings and other obstructions may interfere with your communication. Radio is not - Make sure key lock is not on. -
Page 17: Technical Specification
Technical Specification A. Specification Channels 22 Channels Operating Frequency UHF 462.5500 ~ 467.7125 MHz Power Source 4 AAA Alkaline or rechargeable Ni-MH Batteries Output Power Typically. 2 Watts HI, 0.5 Watts LO B. Current Drain : • Receive : 150mA max •... -
Page 18: Frequency And Charts
Channel Frequency Chart CH. No CH. Freq. CH. No CH. Freq. CH. No CH. Freq. 462.5625 467.5875 462.6000 462.5875 467.6125 462.6250 462.6125 467.6375 462.6500 462.6375 467.6625 462.6750 462.6625 467.6875 462.7000 462.6875 467.7125 462.7250 462.7125 462.5500 467.5625 462.5750 http://www.midlandradio.com - 18 -... -
Page 19: Warranty Information
Limited Warranty Midland Radio Corporation will repair or replace, at its option without charge, any Midland FRS/GMRS transceiver which fails due to a defect in material or workmanship within One Year following the initial consumer purchase. This warranty does not apply to water damage, battery leak or abuse. -
Page 20: Midland Family Products
