STANDARD EQUIPMENT
Alternator, 35 ampere 24 V
Fan guard structure
Anti-slip plates
Hydraulic track adjusters (each side)
Automatic deaeration system for fuel line
In-line filter
Automatic engine warm-up system
Multi-function color monitor
Batteries, large capacity
Power maximizing system
Dry type air cleaner, double element
PPC hydraulic control system
Electric horn
Radiator and oil cooler dust proof net
EMMS monitoring system
Rearview mirror, LH
Engine, Komatsu SAA6D125E-5
Shoes, triple grouser: 500 mm 20"
Engine overheat prevention system
Starting motor, 11 kW 24 V x 1
OPTIONAL EQUIPMENT
Alternator, 50 ampere 24 V
Water spray nozzles above the belt conveyor
Conveyor protective plate
Water tank & spraying system
Travel control lever
MAGNETIC SEPARATOR:
MUCK CONVEYOR:
Magnetic separator for primary
Muck conveyor assembly can
conveyor, 750 mm 30" wide
be folded by hydraulic cylinder,
3414 mm x 600 mm 11'2" x 2'
www.Komatsu.com
CEN00275-00
Materials and specifications are subject to change without notice
Travel alarm
Wired remote controller
RADIO REMOTE CONTROLLER:
Function:
Travel
Left/Right
Forward/Reverse
Feeder
On/Off
Work equipment
Start/Stop
Mode selection
Operation/Travel
Emergency shut-off
Horn
Printed in Japan 200706 IP.AD.SIN (10)
is a trademark of Komatsu Ltd. Japan
BR580JG
-1
M
OBILE
HORSEPOWER
Gross: 262.5 kW 352 HP @ 1900 rpm
Net: 257 kW 345 HP @ 1900 rpm
OPERATING WEIGHT
49000 - 51000 kg 108,000 - 112,440 lb
BR
580
JG

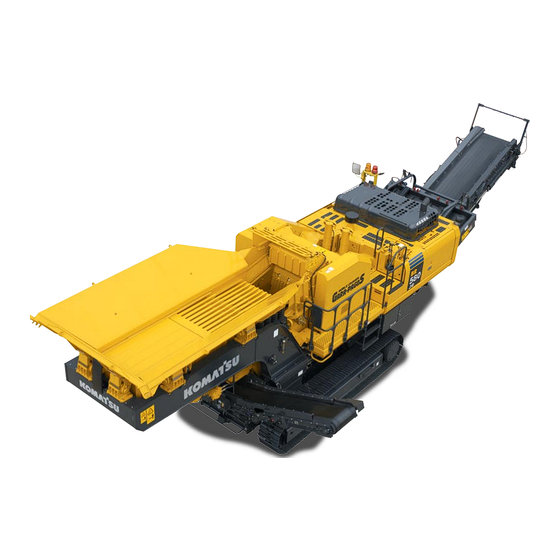

Photo may include optional equipment.
C
RUSHER
Advertisement
Related Manuals for Komatsu BR580JG-1
Summary of Contents for Komatsu BR580JG-1
- Page 1 HORSEPOWER Gross: 262.5 kW 352 HP @ 1900 rpm STANDARD EQUIPMENT Net: 257 kW 345 HP @ 1900 rpm Alternator, 35 ampere 24 V Fan guard structure Travel alarm OPERATING WEIGHT Anti-slip plates Hydraulic track adjusters (each side) Wired remote controller 49000 - 51000 kg 108,000 - 112,440 lb Automatic deaeration system for fuel line In-line filter...
- Page 2 BR580JG BR580JG MOBILE CRUSHER O B I L E R U S H E R ROUND HORSEPOWER Gross: 262.5 kW 352 HP @ 1900 rpm Net: 257 kW 345 HP @ 1900 rpm High-speed, large-capacity OPERATING WEIGHT conveyor belt 49000 - 51000 kg A 1050 mm 42"...
- Page 3 BR580JG BR580JG MOBILE CRUSHER O B I L E R U S H E R RODUCTIVITY EATURES PERATION, AINTENANCE Komatsu’s hydraulic crusher protection Ease of operation Maximum reliability and minimal maintenance mechanism All the switches necessary for operation are located on the In addition to the spacious large clearance between the jaw Jaw crushers typically protect themselves by bending toggle main control panel, making it easier for the operator...
- Page 4 BR580JG WA380-6 BR580JG MOBILE CRUSHER WA380 O B I L E R U S H E R PECIFICATIONS DIMENSIONS At operation ENGINE CRUSHER Model ......Komatsu SAA6D125E-5 Jaw .
