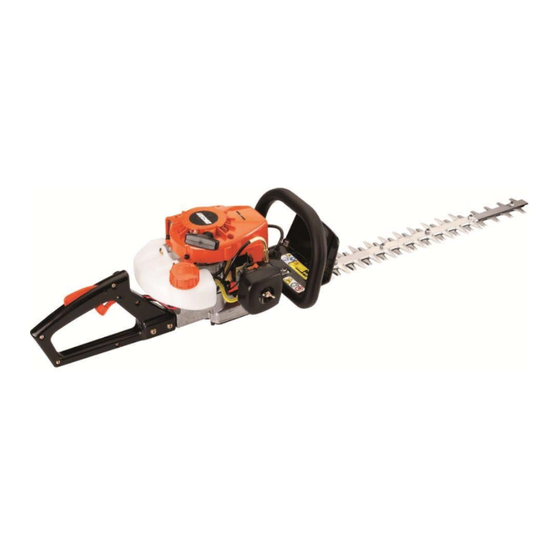

Echo HC-150 HEDGE TRIMMER - PARTS CATALOG SERIAL NUMBER 10001001-10999999 Parts Catalog

Hide thumbs

Advertisement

Quick Links

Download this manual
PARTS CATALOG
HC-150 Hedge
Trimmer
21.2cc
MODEL:SERIAL NUMBERS
HC-150:
S/N: 10001001 - 10999999
ECHO, INCORPORATED
400 Oakwood Road Lake Zurich, Illinois 60047 USA
WWW.ECHO-USA.COM
99922203278_150/10
REVISED 04/30/09
2009 ECHO Incorporated, RePower is Registered Trademark of ECHO Incorporated. All Rights Reserved

Advertisement

loading

Related Manuals for Echo HC-150 HEDGE TRIMMER - PARTS CATALOG SERIAL NUMBER 10001001-10999999

Summary of Contents for Echo HC-150 HEDGE TRIMMER - PARTS CATALOG SERIAL NUMBER 10001001-10999999

  • Page 1 PARTS CATALOG HC-150 Hedge Trimmer 21.2cc MODEL:SERIAL NUMBERS HC-150: S/N: 10001001 - 10999999 ECHO, INCORPORATED 400 Oakwood Road Lake Zurich, Illinois 60047 USA WWW.ECHO-USA.COM 99922203278_150/10 REVISED 04/30/09 2009 ECHO Incorporated, RePower is Registered Trademark of ECHO Incorporated. All Rights Reserved...

  • Page 2: Table Of Contents

    Table of Contents Part Number Index Table of Contents Click Any Diagram Description Below To View That Diagram. HC-150 S/N: 10001001 - 10999999 Intake....................................4 Carburetor -- RB-K75...............................6 Exhaust.....................................8 Standard Starter................................10 Fuel System...................................12 Engine, Short Block, Ignition, Clutch, Cylinder Cover....................14 Cutters, Gear Case, Tools..............................16 Handle, Ignition Switch, Throttle Cable........................18 Part Number Index.................................20 Part Description Index..............................21...
  • Page 3 This Page Intentionally Left Blank - 3 -...
  • Page 4 Table of Contents Part Number Index HC-150 Hedge Trimmer Intake 99922203278_150/10 - 4 - REVISED 04/30/09...
  • Page 5 Table of Contents Part Number Index HC-150 Hedge Trimmer Intake ITEM PART NUMBER DESCRIPTION REMARKS 21041752730 BOLT, WING 13031306563 LID, AIR CLEANER - GRAY 13031054130 FILTER, AIR 12901152730 PLATE, PREVENT 90022005065 SCREW 5X65 P021000991 CASE, AIR CLEANER - GRAY 89012152730 LABEL - CHOKE 13001013410 GASKET, INTAKE...

  • Page 6: Carburetor -- Rb-K75

    Table of Contents Part Number Index HC-150 Hedge Trimmer Carburetor -- RB-K75 99922203278_150/10 - 6 - REVISED 04/30/09...
  • Page 7 Table of Contents Part Number Index HC-150 Hedge Trimmer Carburetor -- RB-K75 ITEM PART NUMBER DESCRIPTION REMARKS A021000740 CARBURETOR -- RB-K75 P005001320 ROTOR COVER ASY 12534413931 SCREW, ROTOR COVER ASY 12534452130 SCREW, ROTOR COVER P005001330 SCREW, CABLE ADJUST P005001240 SWIVEL P005000190 E-RING P005000100...

  • Page 8: Exhaust

    Table of Contents Part Number Index HC-150 Hedge Trimmer Exhaust 99922203278_150/10 - 8 - REVISED 04/30/09...
  • Page 9 Table of Contents Part Number Index HC-150 Hedge Trimmer Exhaust ITEM PART NUMBER DESCRIPTION REMARKS P021012290 GASKET KIT V104000590 SHIELD, EXHAUST 14581011520 MUFFLER 90060000005 WASHER 5 90010505050 SCREW 5X50 14586240630 SCREEN, MUFFLER 14586642031 GASKET, EXHAUST A313000610 GUIDE, EXHAUST 90024204010 SCREW 4X10 A300000080 MUFFLER A313000640...

  • Page 10: Standard Starter

    Table of Contents Part Number Index HC-150 Hedge Trimmer Standard Starter 99922203278_150/10 - 10 - REVISED 04/30/09...
  • Page 11 Table of Contents Part Number Index HC-150 Hedge Trimmer Standard Starter ITEM PART NUMBER DESCRIPTION REMARKS 17720012220 STARTER ASY INCLUDES ITEMS 2-8 10151106562 COVER, FAN 17722042030 SPRING, REWIND 17721544430 DRUM, STARTER 17722610120 ROPE, STARTER - 3X1000mm REPOWER BULK OPTION: 99944440000 17722742030 GUIDE, ROPE 17722811120...

  • Page 12: Fuel System

    Table of Contents Part Number Index HC-150 Hedge Trimmer Fuel System 99922203278_150/10 - 12 - REVISED 04/30/09...
  • Page 13 Table of Contents Part Number Index HC-150 Hedge Trimmer Fuel System ITEM PART NUMBER DESCRIPTION REMARKS A350000680 TANK, FUEL INCLUDES ITEM 2 13104528230 SPACER 90027505015 SCREW 5X15 13201007530 PIPE, FUEL - 3X5X195mm REPOWER BULK OPTION: 90014 V137000030 GROMMET 13201309820 CLIP 13120507320 STRAINER, FUEL 13201006460...

  • Page 14: Engine, Short Block, Ignition, Clutch, Cylinder Cover

    Table of Contents Part Number Index HC-150 Hedge Trimmer Engine, Short Block, Ignition, Clutch, Cylinder Cover 99922203278_150/10 - 14 - REVISED 04/30/09...
  • Page 15 Table of Contents Part Number Index HC-150 Hedge Trimmer Engine, Short Block, Ignition, Clutch, Cylinder Cover ITEM PART NUMBER DESCRIPTION REMARKS SB1074 SHORT BLOCK INCLUDES ITEM 2-17 90016205022 SCREW 5X22 A130000550 CYLINDER V100000160 GASKET, CYLINDER P021007772 PISTON KIT INCLUDES ITEMS 6-10 A101000090 RING, PISTON 10001311520...

  • Page 16: Cutters, Gear Case, Tools

    Table of Contents Part Number Index HC-150 Hedge Trimmer Cutters, Gear Case, Tools 99922203278_150/10 - 16 - REVISED 04/30/09...
  • Page 17 Table of Contents Part Number Index HC-150 Hedge Trimmer Cutters, Gear Case, Tools ITEM PART NUMBER DESCRIPTION REMARKS 17500506560 DRUM, CLUTCH 90070200035 CIRCLIP 35 90087236202 BEARING, BALL 90087036202 BEARING, BALL 90070100014 CIRCLIP 14 13192061830 CUSHION, FUEL TANK C531000051 CASE, GEAR 90016304016 SCREW 4X16 88011054230...

  • Page 18: Handle, Ignition Switch, Throttle Cable

    Table of Contents Part Number Index HC-150 Hedge Trimmer Handle, Ignition Switch, Throttle Cable 99922203278_150/10 - 18 - REVISED 04/30/09...
  • Page 19 Table of Contents Part Number Index HC-150 Hedge Trimmer Handle, Ignition Switch, Throttle Cable ITEM PART NUMBER DESCRIPTION REMARKS 35110006560 REAR HANDLE SET 90025504016 SCREW 4X16 90022005047 SCREW 5X47 90060000005 WASHER 5 90056000005 LOCKNUT 90034250025 SPRING PIN 5X25 17809006560 LOCKOUT, THROTTLE CONTROL 17801006560 CONTROL,THROTTLE 17804315130...

  • Page 20: Part Number Index

    Table of Contents Part Number Index Part Number Index Click The Page Number After Any Part Number To View The Diagram Containing That Part. Part Number Page Part Number Page Part Number Page ------------------ ..... 5, 7 89012152730 .... V104000590 ....10001311520 ....
  • Page 21 Table of Contents Part Number Index Part Description Index Click The Page Number After Any Part Desciption To View The Diagram Containing That Part. GASKET, PUMP..7 ROPE, STARTER - 3X1000mm..11 GEAR, SPUR..17 ROTOR COVER ASY..7 GRIP, STARTER..11 BEARING, BALL..17 GROMMET..13, 15 BEARING, BALL - 6201..15 GUIDE, EXHAUST..9 BEARING, NEEDLE..15...
  • Page 22 Table of Contents Part Number Index Part Description Index (continued) WASHER 5..9, 19 WASHER 6..19 WASHER, CLUTCH..15 WASHER, CONICAL..9 WRENCH, W/SCREWDRIVER..17 99922203278_150/10 - 22 - REVISED 04/30/09...
  • Page 23 NOTES 99922203278_150/10 - 23 - REVISED 04/30/09...
  • Page 24 ECHO, INCORPORATED 400 Oakwood Road Lake Zurich, IL 60047 USA WWW.ECHO-USA.COM...
