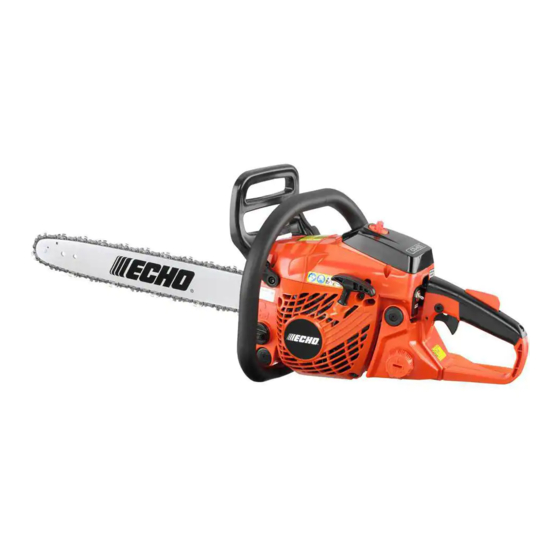

Echo CS-400 - SERIAL NUMBER C08111001001-C08111999999 Parts Catalog

36.3cc s/n: c08111001001-c08111999999
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPTIONAL ATTACHMENTS & ACCESSORIES
Accessories
103942147
CS Carry Bag
99988801207
ToughChest Chain Saw Case - 24"
Guide Bars
16A0ED3757
Guide Bar - 16" (.050" Ga)
Sawing Chains
91VG57CQ
Sawing Chain - 16" (.050" Ga)
2011 ECHO Incorporated, RePower is Registered Trademark of ECHO Incorporated. All Rights Reserved
PARTS CATALOG
CS-400 Chain Saw
MODEL:SERIAL NUMBERS
CS-400:
S/N: C08111001001 - C08111999999
ECHO, INCORPORATED
400 Oakwood Road Lake Zurich, Illinois 60047 USA
WWW.ECHO-USA.COM
36.3cc
99922204126
REVISED 03/02/11
