Summary of Contents for Delta A08184
-

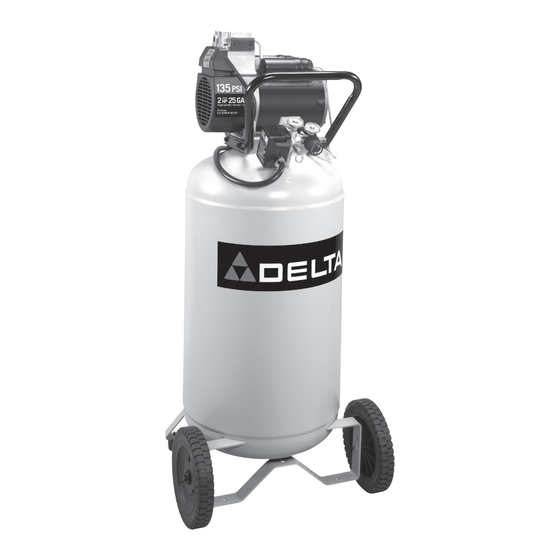

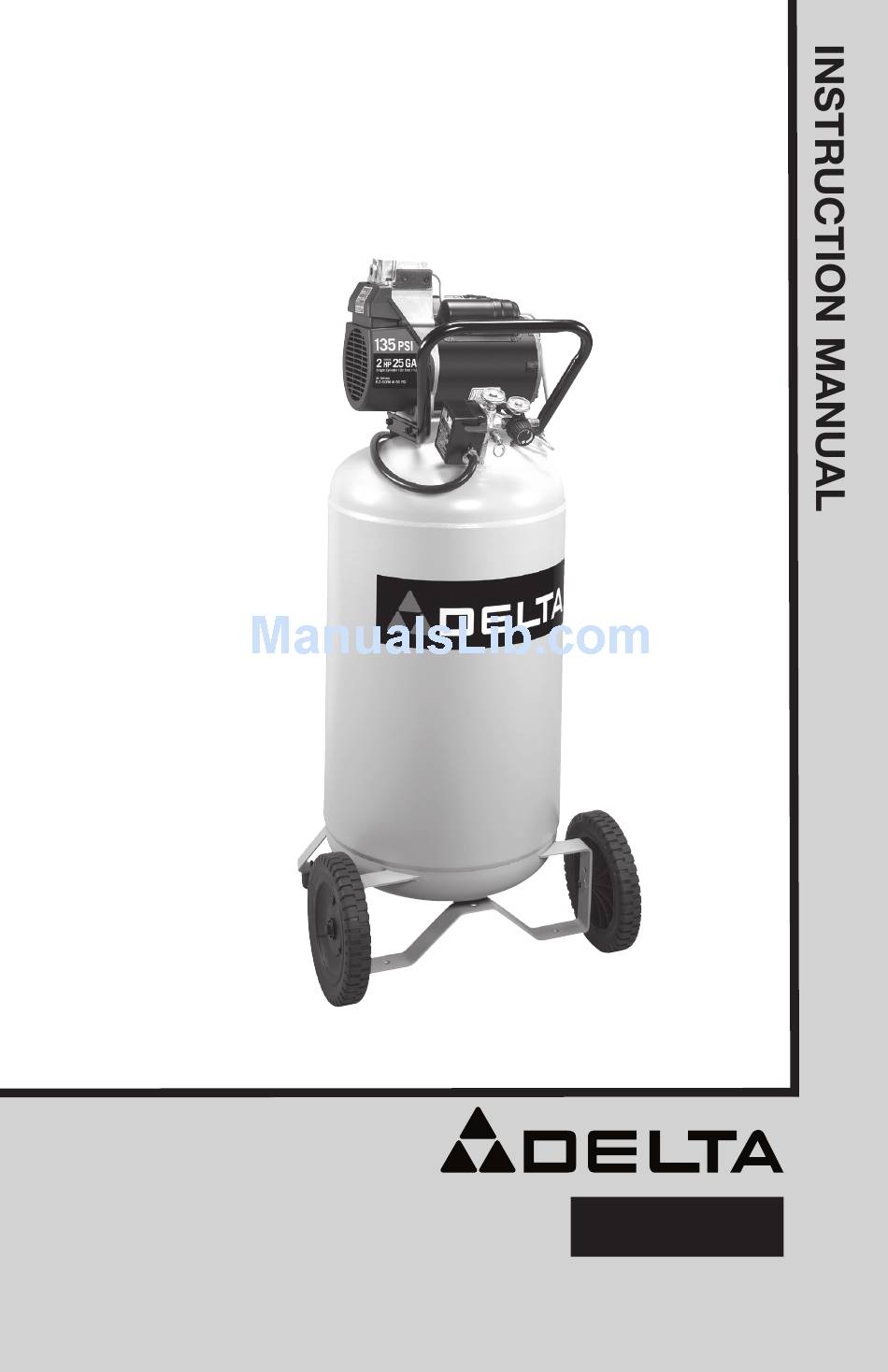

Page 1: Air Compressor
To learn more about DELTA MACHINERY visit our website at: www.deltamachinery.com. For Parts, Service, Warranty or other Assistance, please call 1-866-422-4286. Oil-Free Air Compressor (66-651-1) PART NO. Copyright © 2004 Delta Machinery ESPAÑOL: PÁGINA 27 FRANÇAIS: PAGE 53 A08184 Rev. 0... -
Page 2: Safety Guidelines - Definitions
MSHA/NIOSH approved, properly fitting face mask or respirator when using such tools. When using air tools, basic safety precautions should always be followed to reduce the risk of of personal injury. A08184 Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. - Page 3 Always remain in attendance with the product when it is operating. Always disconnect electrical power by moving pressure switch lever to the off position and drain tank daily or after each use. 3- ENG How To Prevent It A08184...
- Page 4 A08184 HAZARD WARNING: Risk of Bursting HAZARD Always wear ANSI Z87.1 approved safety glasses with side shields when using the compressor.
- Page 5 Read and follow the safety instructions provided on the label or safety data sheets for the materials you are spraying. Use a NIOSH/MSHA approved respirator designed for use with your specific application. 5- ENG How To Prevent It How To Prevent It A08184...
- Page 6 Touching exposed metal such as the compressor head or outlet tubes, can result in serious burns. A08184 WARNING: Risk of Burns Never touch any exposed metal parts on compressor during or immediately after operation. Compressor will remain hot for several minutes after operation.
- Page 7 Stay alert at all times. Never defeat the safety features of this product. Equip area of operation with a fire extinguisher. Do not operate machine with missing, broken, or unauthorized parts. 7- ENG A08184...
-
Page 8: Duty Cycle
The low pressure at which the motor automatically restarts is called "cut-in" pressure. Cut-Out Pressure: When an air compressor is turned on and begins to run, air pressure in the air tank begins to build. It builds to a certain high pressure before the motor automatically shuts off - protecting your air tank from pressure higher than its capacity. -
Page 9: Assemble Wheels
The unit must be lifted, or pushed up a ramp. Assemble Rubber Feet Attach rubber feet with the screws provided as shown in previous figure. Tighten securely. Wheel 9- ENG Rubber Feet Screw Shoulder Bolt A08184... -
Page 10: Installation
HOW TO SET UP YOUR UNIT Location of the Air Compressor Locate the air compressor in a clean, dry and well ventilated area. The air compressor should be located at least 12" away from the wall or other obstructions that will interfere with the flow of air. The air compressor pump and shroud are designed to allow for proper cooling. -
Page 11: Extension Cords
If any of the above conditions cannot be met, or if operation of the compressor repeatedly causes interruption of the power, it may be necessary to operate it from a 20 amp circuit. It is not necessary to change the cord set. 11- ENG A08184... -
Page 12: Description Of Operation
Safety Valve: If the pressure switch does not shut off the air compressor at its "cut-out" pressure setting, the safety valve will protect against high pressure by "popping out" at its factory set pressure (slightly higher than the pressure switch "cut-out" setting). -
Page 13: Before Starting
Serious damage may result if the following break-in instructions are not closely followed. This procedure is required before the air compressor is put into service and when the check valve or a complete compressor pump has been replaced. Make sure the On/Auto/Off lever is in the "OFF" position. -
Page 14: Before Each Start-Up
Turn regulator knob clockwise to increase pressure and stop when desired pressure is reached. The compressor is ready for use. NOTE: Always operate the air compressor in well-ventilated areas free of gasoline or other combustible vapors. If the compressor is being used to operate a sprayer DO NOT place near the spray area. -
Page 15: Air Filter Inspection And Replacement
To ensure efficient operation and longer life of the air compressor outfit, a routine maintenance schedule should be prepared and followed. The following routine maintenance schedule is geared to an outfit in a normal working environment operating on a daily basis. If necessary, the schedule should be modified to suit the conditions under which your compressor is used. -
Page 16: Service And Adjustments
Push in the new air filter. Air Compressor Pump Intake and Exhaust Valves Once a year have a Trained Service Technician check the air compressor pump intake and exhaust valves. SERVICE AND ADJUSTMENTS Unit cycles automatically when power is on. -
Page 17: To Replace Regulator
NOTE: Arrow indicates flow of air. Make sure it is pointing in the direction of air flow. Reapply pipe sealant to outlet pressure gauge and quick connect. Reassemble outlet pressure gauge and quick connect. Orient outlet pressure gauge to read correctly. Tighten quick connect with wrench. 17- ENG A08184... - Page 18 Before you store the air compressor, make sure you do the following: Review the "Maintenance" section on the preceding pages and perform scheduled maintenance as necessary. Set the On/Auto/Off lever to "OFF". Turn the regulator counterclockwise and set the outlet pressure to zero.
-
Page 19: Troubleshooting
Performing repairs may expose voltage sources, moving parts or compressed air sources, moving parts or compressed air sources. Personal injury may occur. Prior to attempting any repairs, unplug the air compressor and bleed off all air tank air pressure. PROBLEM... - Page 20 Check valve restricted. Air leaks. Restricted air intake filter Regulator knob Damaged regulator has continuous air leak. A08184 CAUSE If there is an excessive amount of pressure drop when the accessory is used, adjust the regulator following the instructions in the "Description of Operation"...
- Page 21 Do not use a fuse or circuit breaker with higher rating than that specified for your particular branch circuit. should use a time delay fuse. conditions and/or proper extension cord. electrical appliances from circuit or operate the compressor on its own branch circuit. A08184...
-
Page 22: Air Compressor Diagram
AIR COMPRESSOR DIAGRAM Torque 15-25 ft.-lbs. Torque 9-12 ft.-lbs. A08184 Torque 100-120 in.-lbs. Torque 5-7 ft.-lbs. 22- ENG... -
Page 23: Parts List
Wheel - 9" (2) Handle Nipple 1/4-18 NPT Screw (4) Nut Hex 3/8-16 UNC - 2B (2) Regulator Adaptor Pressure Relief Tube Check Valve Nut Sleeve Assembly 3/8" Rubber Bumper (2) Bumper Screw (2) Tube Nut O-Ring Tank Drain Valve 23- ENG A08184... -
Page 24: Air Compressor Pump Diagram
AIR COMPRESSOR PUMP DIAGRAM Torque 7-10 ft.-lbs. Torque 51-63 in.-lbs. Torque 42-48 in.-lbs. Torque 100-120 in.-lbs. Torque 100-120 in.-lbs. A08184 24- ENG... - Page 25 Eccentric Bearing Assembly Motor Shim Cylinder Sleeve Connecting Rod Assembly O-Ring Valve Plate Assembly O-Ring Head Screw 1/4-20 x 1-1/8 (4) Muffler Intake Screen Filter Filter Intake Fastener Intake Filter (2) Screw Compression Ring Cap Preformed Compression Ring 25- ENG A08184...
- Page 26 , or unauthorized repair or alterations. * An air compressor that pumps air more than 50% during a one hour period is considered misuse because the air compressor is undersized for the required air demand.
