Tiger i7525 (S2672)
User's Manual
///
Tiger i7525
(S2672)
Revision 1.00
Copyright © TYAN Computer Corporation, 2004-2005. All rights reserved. No part of this manual
may be reproduced or translated without prior written consent from TYAN Computer Corp.
All registered and unregistered trademarks and company names contained in this manual are
property of their respective owners including, but not limited to the following.
TYAN, Tiger i7525 and (S2672) are trademarks of TYAN Computer Corporation.
Intel, Xeon, and combinations thereof are trademarks of Intel Corporation.
Phoenix, PhoenixBIOS are trademarks of Phoenix Technologies.
Microsoft and Windows are trademarks of Microsoft Corporation.
Linux is a trademark of Linus Torvalds.
IBM, PC, AT and PS/2 are trademarks of IBM Corporation.
ATI, ATI RAGE is a trademark of ATI Technologies Incorporated.
SMSC is a trademark of SMSC - Standard Microsystems Corporation.
Portable Document Format (PDF) is a trademark of Adobe Corporation.
Information contained in this document is furnished by TYAN Computer Corporation and has been
reviewed for accuracy and reliability prior to printing. TYAN assumes no liability whatsoever, and
disclaims any express or implied warranty, relating to sale and/or use of TYAN products including
liability or warranties relating to fitness for a particular purpose or merchantability. TYAN retains
the right to make changes to product descriptions and/or specifications at any time, without notice.
In no event will TYAN be held liable for any direct or indirect, incidental or consequential damage,
loss of use, loss of data or other malady resulting from errors or inaccuracies of information
contained in this document.
i
http://www.tyan.com
Advertisement
Table of Contents
Related Manuals for TYAN TIGER I7525
Summary of Contents for TYAN TIGER I7525
- Page 1 In no event will TYAN be held liable for any direct or indirect, incidental or consequential damage, loss of use, loss of data or other malady resulting from errors or inaccuracies of information contained in this document.
-
Page 2: Table Of Contents
Tiger i7525 (S2672) Table of Contents Table of Contents Before you begin… ........................iii Chapter 1: Introduction........................1 1.1 – Congratulations!.......................1 1.2 – Hardware Specifications ....................1 1.3 – Board Image ........................3 1.4 – Board Diagram .........................4 Chapter 2: Choose Proper Parts For Your System..............5 2.1 –... -
Page 3: Before You Begin
The retail motherboard package should contain the following: 1x Tiger i7525 (S2672) motherboard 1x 34-pin floppy drive cable 1x 80-pin Ultra-DMA-133/100/66/33 IDE cable 1x Tiger i7525 (S2672) User’s Manual 1x Tiger i7525 (S2672) Quick Reference 1x TYAN driver CD 1x I/O shield... -
Page 4: Chapter 1: Introduction
You have purchased one of the most powerful Intel Xeon -based workstation solutions in a standard ATX form factor. Based on the Intel E7525 chipset, the Tiger i7525 (S2672) features some state-of-the-art ® technologies such as dual/single 800 MHz FSB Xeon... - Page 5 Parallel IDE channels support up to 4 European Community CE ATA/ATAPI complaint devices (Declaration of Conformity) Note: TYAN reserves the right to add support or discontinue support for any OS with or without notice. Software Specifications OS (Operating System) Support...
-
Page 6: Board Image

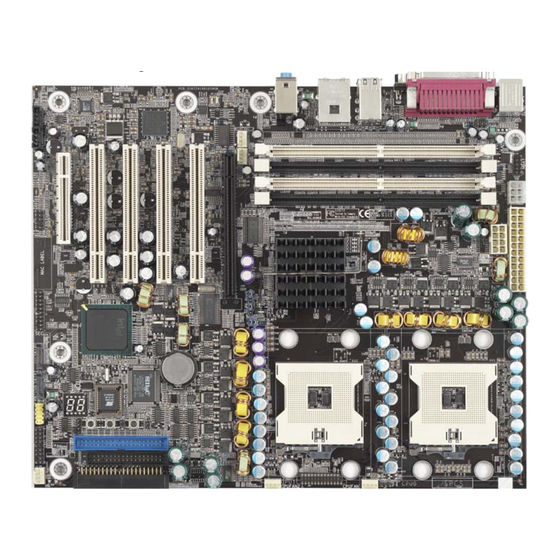

Tiger i7525 (S2672) Chapter 2: Board Installation 1.3 – Board Image The above picture is purely representative. Due to engineering updates and new board revisions, certain components may change and or be repositioned. The picture above may or may not look exactly like the board you received. -
Page 7: Board Diagram
Tiger i7525 (S2672) Chapter 2: Board Installation 1.4 – Board Diagram http://www.tyan.com... -
Page 8: Chapter 2: Choose Proper Parts For Your System
Tiger i7525 (S2672) board supports single or dual Intel Xeon processors. Single Processor System: When only install a single processor on Tiger i7525 (S2672) board, the processor must be installed on the CPU1 ZIF (Zero-Insertion-Force) socket. Dual Processor System: Tiger i7525 (S2672) board supports dual processor configurations only in which both processors operate with the same FSB frequency, core frequency, and have the same internal cache sizes. -
Page 9: Chassis/Enclosure Considerations
Chapter 2: Board Installation 2.3 – Chassis/Enclosure Considerations Motherboard size Tiger i7525 (S2672) board is in the board size of 12” (W) x9.6” (L). Motherboard and CPU Heat-sink Mounting Holes There are six motherboard-mounting holes and eight CPU heat-sink mounting holes on Tiger i7525 (S2672) board design. - Page 10 Tiger i7525 (S2672) Chapter 2: Board Installation Power requirements Check your power supply specifications to ensure sufficient power currents for each power rail based on your system configuration. The major system components/parts power sources are listed below as reference: Components/Parts...
-
Page 11: Chapter 3: Board Installation
(i.e. power supply case). For the safest conditions, TYAN recommends wearing a static safety wrist strap. (2) Inspect the mounting holes pattern of the Tiger i7525 (S2672) to match your chassis standoff locations and remove the additional standoffs. -
Page 12: Jumper Locations
Chapter 2: Board Installation 3.1 – Jumper Locations Fig. 3-1 Tiger i7525 (S2672) Jumper Location This jumper diagram is representative of the latest board revision available at the time of publishing. The board you receive may or may not look exactly like the above diagram. -
Page 13: Jumper Settings & Definitions
Tiger i7525 (S2672) Chapter 2: Board Installation 3.2 – Jumper Settings & Definitions Jumper / Function Ref. Page Connector 24-pin system power connector Page 27 8-pin CPU power connector Page 27 6-pin Workstation power connector Page 27 Front panel header... - Page 14 3-pin fan connector without PWM fan speed control. (Pin4 will be unconnected for connecting a 3-pin fan). There are five 4-pin fan connectors on Tiger i7525 (S2672) board. Use these connectors to connect chassis and processor cooling fans to your motherboard. Cooling fans can keep the system stable and reliable for its product life.
- Page 15 LED, Power LED, power button, reset button. The front panel header (marked as “P5”) has been implemented on Tiger i7525 (S2672) board for such purposes. Front Panel Header (P5) Function PIN # PIN # Function HDD LED+ PWR LED+...
- Page 16 Tiger i7525 (S2672) Chapter 2: Board Installation 3.2.4 - Front USB Connector (USB2) Front USB Header (P24) Function Pin# Pin# Function Power Power USB6- USB7- USB6+ USB7+ Reserved 3.2.5 – External HDD LED Input Headers (J65 and J90) Pin# Function...
- Page 17 Tiger i7525 (S2672) Chapter 2: Board Installation 3.2.6 - Serial ATA Connectors (SATA0 & SATA1) SATA0/SATA1 (from Intel’s FW82801ER/ICH5R South Bridge chip): User can connect up to two serial ATA hard disks to run IDE mode or configure both drives to a RAID under Windows.
-
Page 18: Mounting The Motherboard
Some chassis’ include plastic studs instead of metal. Although the plastic studs are usable, TYAN recommends using metal studs with screws that will fasten the motherboard more securely in place. -
Page 19: Installing The Memory
DDR Unbuffered DDR Unbuffered ECC Here are a few key points to note before installing memory into your Tiger i7525 (S2672): 128MB, 256MB, 512MB and 1GB Registered ECC DDR2-400 • All installed memory will be automatically detected - no need to set any jumpers •... -
Page 20: Memory Installation Procedure
Tiger i7525 (S2672) Chapter 2: Board Installation 3.5 – Memory Installation Procedure When installing memory modules, make sure the modules align properly with the memory socket. There should be keys (small indents) on your memory modules that fit according to the keys in the memory socket. -
Page 21: Installing The Processor
Tiger i7525 (S2672) Chapter 2: Board Installation 3.6 – Installing the Processor Your Tiger i7525 (S2672) supports the latest processor technologies from Intel. Check the following page on TYAN’s website for latest processor support: http://www.tyan.com The following diagrams will detail how to install your processor: The diagram is provided as a visual guide to help you install socket processors and may not be an exact representation of the processors you have. -
Page 22: Installing The Processor Heatsink
Each processor heat-sink needs to be mounted to chassis with which are 8 processor heat-sink mounting holes (4 holes for each processor) - Memory Type: The Tiger i7525 (S2672) supports DDR2 Registered type memory modules and requires minimum two memory modules to power up the system. Unbuffered or DDR-I Memory is NOT supported. -
Page 23: Attaching Drive Cables
Attaching IDE drive cabling is simple. These cables are “keyed” to only allow them to be connected in the correct manner. TYAN motherboards have two on-board IDE channels, each supporting two drives. The black connector designates the Primary channel, while the white connector designates the Secondary channel. - Page 24 Tiger i7525 (S2672) Chapter 2: Board Installation Serial ATA Attaching Serial ATA cables to the Serial ATA connectors is illustrated below: Se rial ATA Hard drive Serial ATA Cable Serial ATA Connector Serial ATA Cable Power Cable Simply plug in the BLACK END of the Serial ATA cable into the motherboard Serial ATA connector, and the other end(s) into the drive(s).
-
Page 25: Installing Add-In Cards
Tiger i7525 (S2672) Chapter 2: Board Installation Below are some symptoms of incorrectly installed floppy drives. While they are minor and installing them incorrectly doesn’t cause severe problems, it may cause your system to freeze or crash when trying to read and/or write to diskettes. -
Page 26: Connecting External Devices
Tiger i7525 (S2672) Chapter 2: Board Installation 3.10 – Connecting External Devices Connecting external devices to the motherboard is an easy task. The standard devices you should expect to plug into the motherboard are keyboards, mouse, and printer cables. The... -
Page 27: Installing The Power Supply
Tiger i7525 (S2672) Chapter 2: Board Installation 3.11 – Installing the Power Supply Power connectors Tiger i7525 (S2672) board supports EPS/12V power supply unit (PSU) with three power connectors listed below. EPS/12V Power Connectors 24-pin system power connector 8-pin CPU power connector... -
Page 28: Chapter 4: Bios Setup
Tiger i7525 (S2672) Chapter 3: BIOS Setup Chapter 4: BIOS Setup Installation The BIOS is the basic input/output system, the firmware on the motherboard that enables your hardware to interface with your software. This chapter describes different settings for the BIOS that can be used to configure your system. - Page 29 Chipset section unless you are absolutely sure of the outcome. The Chipset defaults were carefully chosen by TYAN or your system manufacturer for the best performance and reliability. Even a seemingly small change to the Chipset setup options may cause the system to become unstable or unusable.
-
Page 30: Main Bios Setup
Selects floppy type. 360 KB 5¼“ 1.2 MB 5¼“ 720 KB 3½“ 1.44/1.25 MB 3½“ 2.88 MB 3½“ Standard IDE: None View drive options. DriveName-(PM) Standard IDE: None View drive options. DriveName-(PS) Standard IDE: None View drive options. DriveName-(SM) http://www.tyan.com... - Page 31 Installed O/S: Select operating Other Windows 32 bit system installed on your Windows 64 bit system which you will Linux use most commonly. Note: incorrect setting can cause some operating systems display unexpected behaviour. System Information View system information. http://www.tyan.com...
-
Page 32: Main Submenu Standard / Native Ide
PIO 3 PIO 4 PIO 5 (only view the current setting, it should not be selectable!!) DMA Mode: None UDMA 1 UDMA 2 UDMA 3 UDMA 4 UDMA 5 (only view the current setting, it should not be selectable!!) http://www.tyan.com... - Page 33 Thunder i7525 (S2676) 4.2.1 Main Submenu System Information BIOS Version: 1.00.1691 BIOS Build Date: 03/11/2004 Ident-Nr.: System: Tiger i7525 System Version: System Serial: Board: (S2672) Board Version: S26361-D1691 Asset Tag: MAC Address: 00:E0:81:60:90:40 Setup Item Selections (Default Item Specific Help...
-
Page 34: Advanced Bios Features
Processors Display processor information configuration processor features. Chipset Configuration chipset features Diskette Controller Configuration integrated floppy disk controller ATA Controller Configuration integrated PATA SATA controllers Integrated SCSI Configuration Controller integrated SCSI controller Integrated Network Configuration Interface integrated network http://www.tyan.com... - Page 35 PCI device configuration Reset Configuration Select 'Yes' if you want Data: to clear the Extended System Configuration Data (ESCD) area. In Advanced BIOS features, you will be able to adjust many of the feature that effect system speed and boot-up options. http://www.tyan.com...
- Page 36 Please display all available All items on this menu sensors board cannot be modified. describe them clear (e.g. CPU1 settings missing or how can I determine which one is ADT1 and which one is ADT0?). http://www.tyan.com...
- Page 37 Advanced Submenu Processors CPU0 Type: Intel® XEON™ CPU0 Speed: 3.2 GHz CPU0 ID: 0F29 CPU0 Patch ID: 0015 CPU0 FSB: 800 MHz CPU1 Type: Intel® XEON™ CPU1 Speed: 3.2 GHz CPU1 ID: 0F29 CPU1 Patch ID: 0015 CPU1 FSB: 800 MHz http://www.tyan.com...
- Page 38 FSB speed Hyper-Threading: Hyper-Threading causes Enabled Disabled single physical processor to appear to be two or more logical processors. improve system performance, if enabled. This feature supported operating systems. MPS Version Configures Specification revision level. Some will require compatibility reasons. http://www.tyan.com...
- Page 39 Enabled Checking: Disabled system supporting parity this selection enables ECC mode. 4.3.6 Advanced Submenu Diskette Controller Diskette Controller: [Enabled] Setup Item Selections (Default Item Specific Help values are in bold) Diskette Controller: Enable/Disable the floppy Enabled Disabled disk controller. http://www.tyan.com...
- Page 40 Enables the Serial ATA Enabled Disabled Interface. S-ATA Mode: Compatible [Compatible] RAID Serial ATA is mapped to standard drive Native interface. [RAID] Requires identical SATA drives. [Native] Serial ATA configured in native mode. Some operating systems do not support native IDE devices. http://www.tyan.com...
- Page 41 Enabled Interface: Disabled LAN controller. Option ROM Scan: Initialize device Enabled Disabled expansion ROM. Latency Timer: Default Minimum guaranteed 0020h time slice allotted for bus master in units of 0040h 0060h PCI bus clocks. 0080h 00A0h 00C0h 00E0h http://www.tyan.com...
- Page 42 Integrated Audio: Enables/Disables Enabled Disabled integrated audio controller. 4.3.11 Advanced Submenu Integrated 1394 Integrated 1394: [Enabled] Setup Item Selections (Default Item Specific Help values are in bold) Integrated 1394: Enables/Disables Enabled Disabled integrated 1394 controller. http://www.tyan.com...
- Page 43 Interrupt: [IRQ4] Parallel Port: [Auto] Mode: [ECP] Base I/O Address: [378] Interrupt: [IRQ7] DMA channel: [DMA3] Setup Item Selections (Default Item Specific Help values are in bold) Serial Port A: Configure serial port Auto Enabled using options: Disabled [Disabled] http://www.tyan.com...
- Page 44 Set the mode for the parallel port. Bi-directional Output only Base I/O Address: Set the base I/O address for the parallel port. Interrupt: IRQ5 parallel port. IRQ7 DMA channel: DMA1 Set the DMA channel for the parallel port. DMA3 http://www.tyan.com...
- Page 45 PCI Device, Slot #2 Configuration Specific PCI device. PCI Device, Slot #3 Configuration Specific PCI device. PCI Device, Slot #4 Configuration Specific PCI device. PCI Device, Slot #5 Configuration Specific PCI device. PCI/PNP Reserve specific IRQs for Exclusion use by legacy devices. http://www.tyan.com...
- Page 46 0080h 00A0h 00C0h 00E0h 4.3.16 Advanced Configuration Submenu PCI/PNP Exclusion IRQ3: [Available] IRQ4: [Available] IRQ5: [Available] IRQ7: [Available] IRQ10: [Available] IRQ11: [Available] Setup Item Selections (Default Item Specific Help values are in bold) IRQ3 Reserves the specified Available http://www.tyan.com...
-
Page 47: Security Menu
Set User Password: [Enter] Password on boot: [Disabled] Start from Floppy: [Enabled] Start from IDE CD-ROM: [Enabled] Setup Prompt: [Enabled] Fixed disk boot sector: [Normal] Write on Flexible Disks: [Disabled] BIOS Write Protect: [Disabled] Cabinet Monitoring: [Disabled] Trusted Platform Module: [Disabled] http://www.tyan.com... - Page 48 Enabled Disabled prompt on boot; disabled doesn´t prevent setup entry. Fixed disk boot sector: Write protects boot sector Normal Write Protect on hard disk to protect against viruses. Write Flexible [Unlocked] Unlocked Disks: Locked Data can be written to http://www.tyan.com...
-
Page 49: Power Menu
Power Failure Recovery: [Last State] Setup Item Selections (Default Item Specific Help values are in bold) APM Interface: Enable/Disable Advanced Enabled Disabled Power Management (APM) BIOS-interface for non-ACPI operating systems. APM Power Saving: Disabled Configure BIOS- controlled APM. Customized Maximum Power http://www.tyan.com... - Page 50 Allows the system to be Enabled Disabled switched on via a LAN wakeup. Power-off Allows the system to be Disabled Keyboard: Enabled switched off via power button on the keyboard. Power Failure After recovery form power Last State Recovery: Stay Off failure: http://www.tyan.com...
-
Page 51: Boot Menu
Allows the system to Enabled Disabled skip certain tests while booting. This will decrease time needed boot system. Quiet Boot: Minimal startup display Enabled Disabled during boot. Boot Menu: Allows you to bypass Enabled Disabled the normal sequence of http://www.tyan.com... - Page 52 <Ctrl+Enter> expands all <Shift+1> enables disables a device. <d> Remove a device that is not installed. <+> and <-> moves the device up or down. <n> Move a removable device between Hard Disk or Removable Disk http://www.tyan.com...
-
Page 53: Exit Menu
Exit System Setup and save your changes to CMOS. Discard Changes & Exit Exit utility without saving Setup data to CMOS. Get Default Values Load default values for all Setup items. Load Previous Values Load Previous values from CMOS Setup items. http://www.tyan.com... -
Page 54: Chapter 5: Diagnostics
BIOS. There are no exceptions. TYAN does not have a policy for replacing BIOS chips directly with end users. In no event will TYAN be held responsible for damages done by the end user. -
Page 55: Appendix I: Glossary
Tiger i7525 (S2672) Appendix I: Glossary Appendix I: Glossary ACPI (Advanced Configuration and Power Interface): a power management specification that allows the operating system to control the amount of power distributed to the computer’s devices. Devices not in use can be turned off, reducing unnecessary power expenditure. - Page 56 EEPROM (Electrically Erasable Programmable ROM): also called Flash BIOS, is a ROM chip which can, unlike normal ROM, be updated. This allows you to keep up with changes in the BIOS programs without having to buy a new chip. TYAN’s BIOS updates can be found at http://www.tyan.com...
- Page 57 Form factor: an industry term for the size, shape, power supply type, and external connector type of the Personal Computer Board (PCB) or motherboard. The standard form factors are the AT and ATX, although TYAN also makes some Baby-AT and ATX Footprint boards. Global timer: onboard hardware timer, such as the Real-Time Clock (RTC).
- Page 58 Tiger i7525 (S2672) Appendix I: Glossary Latency: the amount of time that one part of a system spends waiting for another part to catch up. This is most common when the system sends data out to a peripheral device, and it waiting for the peripheral to send some data back (peripherals tend to be slower than onboard system components).
- Page 59 Tiger i7525 (S2672) Appendix I: Glossary RAID (Redundant Array of Independent Disks): a way for the same data to be stored in different places on many hard drives. By using this method, the data is stored redundantly, also the multiple hard drives will appear as a single drive to the operating system. RAID level 0 is known as striping, where data is striped (or overlapped) across multiple hard drives, but offers no fault-tolerance.
- Page 60 Tiger i7525 (S2672) Appendix I: Glossary Standby mode: in this mode, the video and hard drives shut down; all other devices continue to operate normally. Striping: see RAID UltraDMA-33/66/100: a fast version of the old DMA channel. UltraDMA is also called UltraATA.
-
Page 61: Appendix Ii: Post Error Code For Bios
Tiger i7525 (S2672) Appendix II: Post Error Code for BIOS Appendix II: Post Error Code for BIOS POST (hex) Description Test CMOS R/W functionality. CFh: Early chipset initialization: C0h: -Disable shadow RAM -Disable L2 cache (socket 7 or below) -Program basic chipset registers... - Page 62 Tiger i7525 (S2672) Appendix II: Post Error Code for BIOS POST (hex) Description Detect CPU information including brand, SMI type (Cyrix or Intel) and 18h: CPU level (586 or 686). Initial interrupts vector table. If no special specified, all H/W interrupts are 1Bh: directed to SPURIOUS_INT_HDLR &...
- Page 63 Tiger i7525 (S2672) Appendix II: Post Error Code for BIOS POST (hex) Description Test DMA Channel 1. 37h: Test DMA page registers. 39h: Test 8254 3Ch: Test 8259 interrupt mask bits for channel 1. 3Eh: Test 8259 interrupt mask bits for channel 2.
- Page 64 Tiger i7525 (S2672) Appendix II: Post Error Code for BIOS POST (hex) Description Prepare memory size information for function call: INT 15h ax=E820h 67h: Turn on L2 cache 69h: Program chipset registers according to items described in Setup & Auto- 6Bh: configuration table.
- Page 65 Tiger i7525 (S2672) Appendix II: Post Error Code for BIOS E8POST.ASM starts Description 1. Call chipset power management hook. 82h: 2. Recover the text fond used by EPA logo (not for full screen logo) 3. If password is set, ask for password.
-
Page 66: Technical Support
You may obtain service by calling the manufacturer for a Return Merchandise Authorization (RMA) number. The RMA number should be prominently displayed on the outside of the shipping carton and the package should be mailed prepaid. TYAN will pay to have the board shipped back to you. - Page 67 Tiger i7525 (S2672) Appendix III: SMDC Information Notice for the USA Compliance Information Statement (Declaration Conformity Procedure) DoC FCC Part 15: This device complies with part 15 of the FCC Rules Operation is subject to the following conditions: This device may not cause harmful interference, and This device must accept any interference received including interference that may cause undesired operation.
