System Schematic With Pp-Dc; System Schematic With Pp-1 - BENDIX SR-7 SPRING BRK MODULATING VALVE Applications

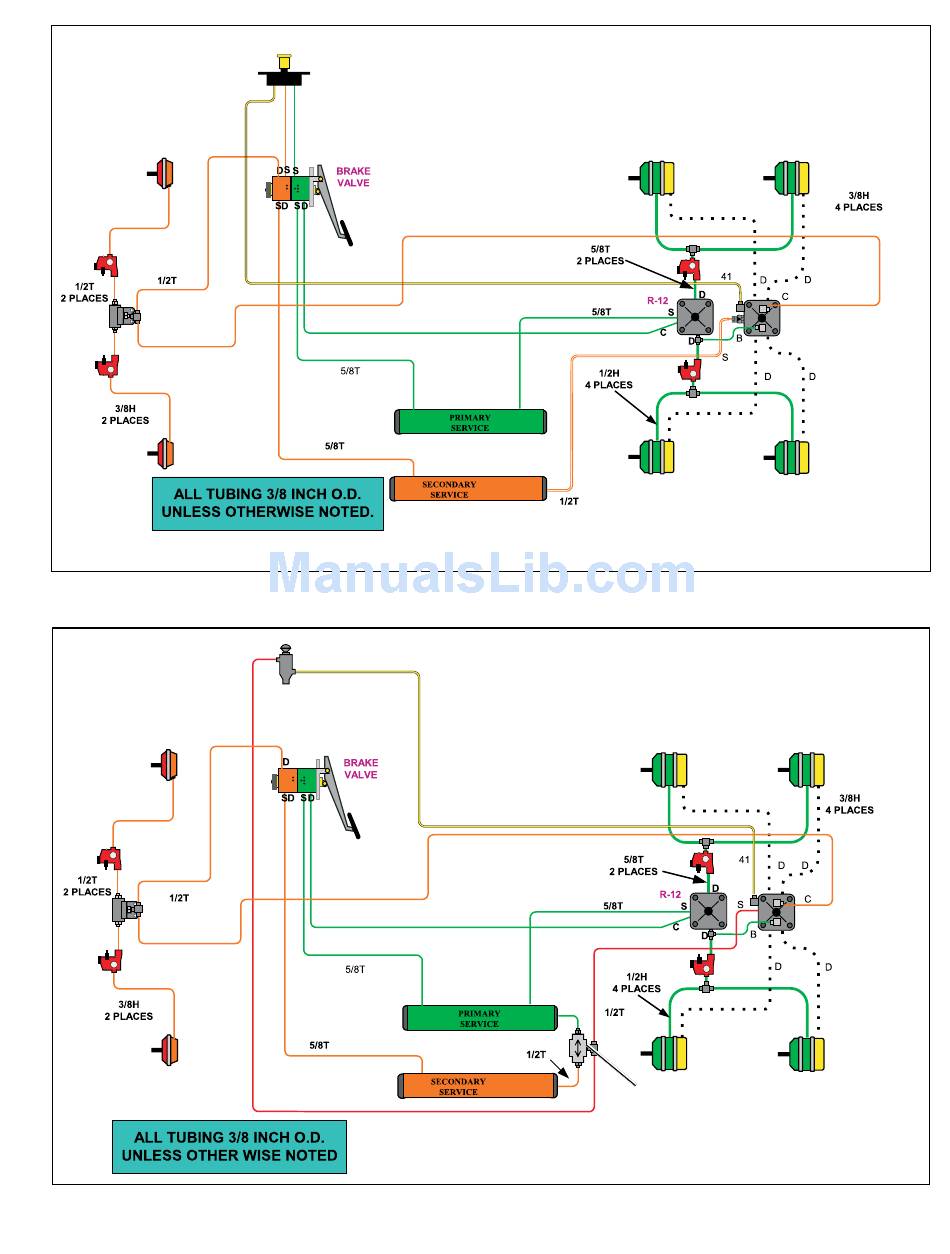

FIGURE 3 - SYSTEM SCHEMATIC WITH PP-DC
FIGURE 4 - SYSTEM SCHEMATIC WITH PP-1
PP-DC
™
VALVE
™
PARK CONTROL
PP-1
™
VALVE
™ PARK CONTROL AND DC-4
SYSTEM FOR A 4X2 OR 6X4
STRAIGHT TRUCK WITH
PP-DC PARKING CONTROL
™
SYSTEM FOR A 4X2 OR 6X4
STRAIGHT TRUCK WITH
PP-1 PARKING CONTROL
™
DC-4 ™
VALVE
™ DOUBLE CHECK VALVE
SR-7 Valve w/single check
™
Ref: 5010914
SR-7 valve
™
w/o single check
3
