Related Manuals for Yamaha GX-900RDS
Summary of Contents for Yamaha GX-900RDS

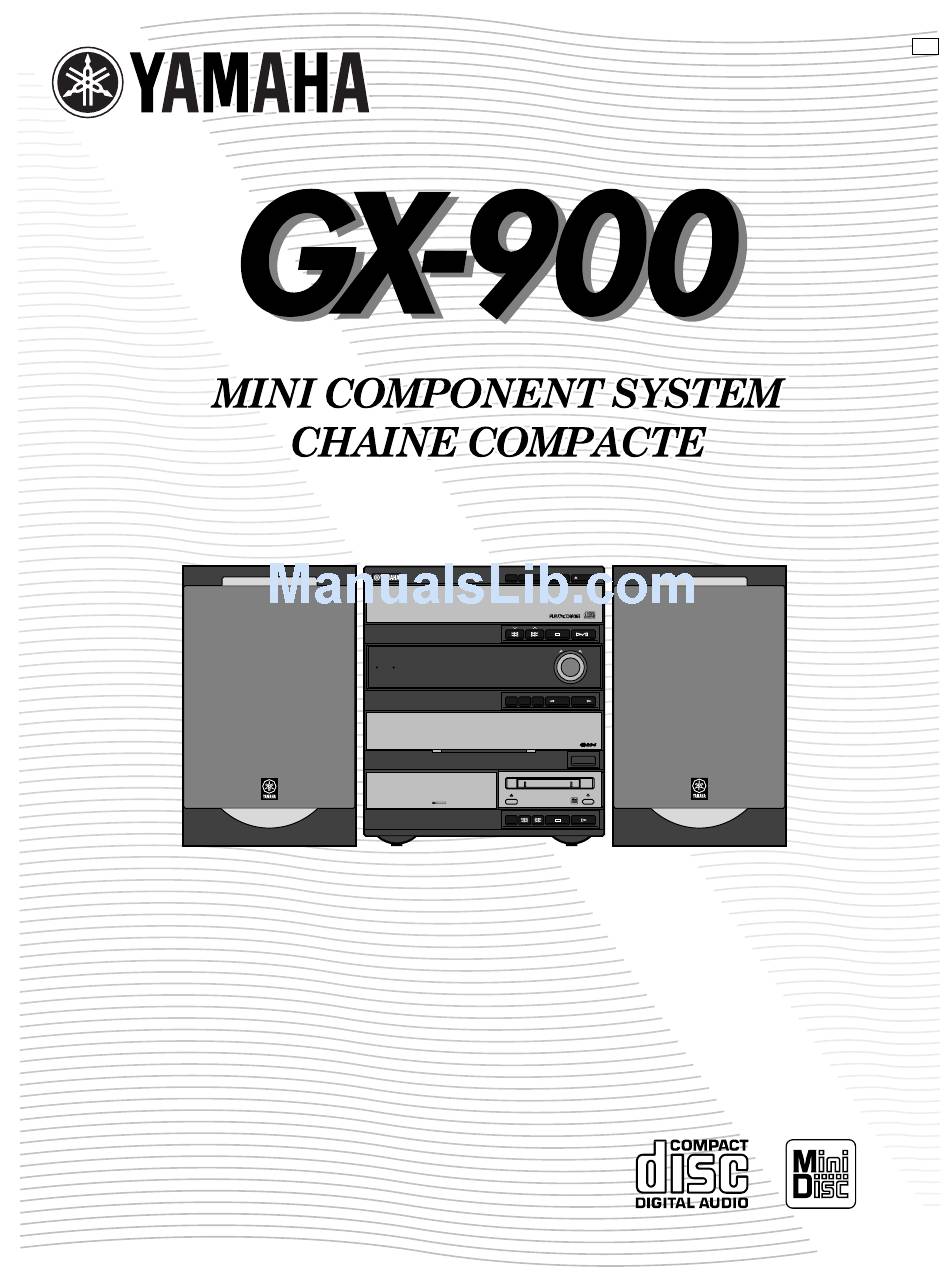

- Page 1 DISC DISC DISC DISC CHANGE OPEN / CLOSE 3–DISC CD CHANGER PTY SELECT PRESET/ TUNING/ BAND A/B/C/D/E VOLUME DOWN STANDBY TIMER YMERSION B.BOOST MUSIC INPUT INPUT PUSH OPEN MINI COMPONENT SYSTEM MINI COMPONENT SYSTEM GX-900 GX–500 STANDBY/ON TAPE AUTO REVERSE CASSETTE DECK DOLBY B NR MINIDISC RECORDER MD EDIT...
- Page 2 Unpacking After unpacking, check that the following parts are contained. Déballage Après le déballage, vérifier que les pièces suivantes sont incluses. Auspacken Nach dem Auspacken überprüfen, ob die folgenden Teile vorhanden sind. Uppackning Kontrollera efter det apparaten packats upp att följande delar finns med. Disimballaggio Verificare che tutte le parti seguenti siano contenute nell’imballaggio dell’apparecchio.
- Page 3 Setting this system Installation de ce système Aufstellen des Systems Iordningsställande av denna anläggning Installazione del sistema Instalación del sistema Opstelling van dit systeem 20 cm 20 cm 20 cm 20 cm 1 cm 1 cm 20 cm 20 cm 20 cm 20 cm English...
- Page 4 Front panel Panneau avant Frontseite Frampanelen Pannello anteriore Panel delantero Voorpaneel DISC DISC DISC DISC CHANGE OPEN / CLOSE 3 – DISC CD CHANGER PTY SELECT PRESET/ TUNING/ BAND A/B/C/D/E VOLUME DOWN STANDBY TIMER YMERSION B.BOOST MUSIC INPUT INPUT F T j G U k FREQ PS/PTY/RT/CT MODE –...
- Page 5 Amplifier/tuner Amplificateur/tuner Verstärker/Tuner Förstärkare/tuner Amplificatore/sintonizzatore Amplificador/sintonizador Versterker/tuner Display panel PHONES [p. 45] INPUT ( Panneau d’affichage [p. 9, 15, 23, 31, 43] Anzeigefeld BASS/TREBLE [p. 45] TUNER TAPE Display Quadrante delle indicazioni Front cover AUX Analog AUX Digital Visualizador Couvercle avant Displaypaneel Reglerfachabdeckung FREQ PS/PTY/RT/CT [p.
- Page 6 Remote control Telecommande Fernbedienung Fjärrkontrollen Telecomando Control remote Afstandbediening TAPE REC/PAUSE INPUT MODE M–MARK SCROLL DIRECTION MD EDIT REC/PAUSE DELETE ENTER A B C D E F G H I J K L M N O PRESET YMERSION BASS BOOST MUSIC P Q R S T U...
- Page 7 Amplifier/tuner Amplificateur/tuner Verstärker/Tuner Förstärkare/tuner Amplificatore/sintonizzatore Amplificador/sintonizador Versterker/tuner VOLUME (+/–) [p. 44] Transmission window A, B, C, D, E [p. 16] Fenêtre de transmission Übertragungsfenster POWER [p. 9] INPUT ( Fjärrkontrollsändare [p. 9, 15, 23, 31, 43] Apertura di emissione dei raggi infrarossi SLEEP [p.
-
Page 8: Table Of Contents
English Thank you for purchasing this YAMAHA product. We hope it will give you many years of trouble-free enjoyment. For the best performance, read this manual carefully. It will guide you in operating your YAMAHA product. Contents Page Page Precautions ..........1 Playing an MD ........... -
Page 9: Precautions
YAMAHA will Never open the cabinet. If something drops into the set, not be held responsible for any damage resulting from use contact your dealer. - Page 10 Precautions: Read this before operating your system CAUTION FOR CARRYING THE MAIN UNIT IMPORTANT Be sure not to carry or tip the main unit with discs Please record the serial number of this system in the space remaining in it. below.
-
Page 11: Features
Features General Tape Deck ● ● High Power Output Automatic Synchronized Recording with CD or MD 80W + 80W (6 ) RMS, 0.9% THD, 1 kHz ● ● EDIT Function Useful for Recording CD Multi-use Timer/Sleep Timer or MD ● SUBWOOFER Output for Low Frequency ●... -
Page 12: Preparations And Connections
Preparations and connections Installing batteries in the remote control Turn the remote control over and remove the battery compartment cover by pulling it up while pressing the edge of the cover in the direction of the mark. Insert the batteries (AA, R6, UM-3 type) according to the polarity markings on the inside of the battery compartment. -
Page 13: Connections
When connecting a subwoofer to this system, connect the SUBWOOFER OUT terminal of this system to the INPUT terminal of the subwoofer. * Ordinary subwoofers, including the Yamaha Active Servo Processing Subwoofer System, are designed so that the amplifier and subwoofer are in the same unit. -
Page 14: Antenna Connection
Preparations and connections Antenna connection (1) Supplied FM antenna Connect the FM antenna wire to the corresponding terminal ANTENNA and direct the FM antenna wire to the direction where the strongest signal can be received. 75 UNBAL. (2) Supplied AM loop antenna Connect the AM loop antenna wires to the corresponding terminals. -
Page 15: Setting The Clock
Preparations and connections Setting the clock While the power is on, press DISPLAY to display the time. DISC DISC DISC DISC CHANGE OPEN / CLOSE While holding TIME ADJ pressed, press HOUR and set the hour. * Press HOUR once to advance the time by 1 hour. Press 3–DISC CD CHANGER and hold to advance continuously. -
Page 16: Compact Disc Player Operation
Compact disc player operation Display information Each indicator mentioned with a number on pages 9–13 corresponds to the indicator with the same number on this page. TRACK 100 350 1K 3.5K 10K TOTAL REM RANDOM 1 2 3 4 MUSIC PROGRAM S F REP 7 8 9 10... -
Page 17: Basic Play
Compact disc player operation Basic play Turn on the power. Select the CD player by pressing INPUT until “CD” ( ) appears on the display. Press OPEN/CLOSE to open the disc tray. Place discs on the table, label side upward. * Up to three discs can be loaded on the table. -
Page 18: To Select Another Disc
Compact disc player operation To select another disc Press DISC SKIP on the remote control once or more (so that DISC (1, 2, 3) DISC CHANGE the corresponding disc number is located on the top of the disc indicator ( DISC DISC DISC... -
Page 19: Program Play
Compact disc player operation Program play DISC DISC DISC DISC CHANGE OPEN / CLOSE You can program up to 20 tracks in any desired order. When the CD player is stopped, press PROG to prepare for programming. PTY SELECT PRESET/ TUNING/ BAND A/B/C/D/E * “PROG”... -
Page 20: Random Play
Compact disc player operation Random play Tracks on a selected disc or all discs on the disc tray can be played randomly. DISC DISC DISC DISC CHANGE OPEN / CLOSE If necessary, switch the disc play mode by pressing MODE. * If the single disc play mode is selected, select the desired disc by pressing DISC SKIP. -
Page 21: Switching The Time Display
Compact disc player operation Switching the time display Every time TIME is pressed, the display will change as described below. [Example] When the second track is being played. (Refer to the illustration on the left.) 1 The elapsed play time for the current track will be displayed. -
Page 22: Tuning Operation
Tuning operation Display information Each indicator mentioned with a number on pages 15–21 corresponds to the indicator with the same number on this page. PRESET 100 350 1K 3.5K 10K STEREO TUNER AUTO KARAOKE MUSIC PROGRAM TUNED PTY HOLD VOLUME MEMORY 3 4 5 TUNED... -
Page 23: Automatic Tuning
Tuning operation Automatic tuning Turn on the power. DISC DISC DISC DISC CHANGE OPEN / CLOSE Press INPUT until “TUNER” ( ) appears on the display, or simply press TUNER on the remote control. PTY SELECT PRESET/ TUNING/ BAND A/B/C/D/E Select the reception band (FM or AM) by pressing PRESET/TUNING/BAND confirming it on the display ( VOLUME... -
Page 24: Manual Preset Tuning
Tuning operation Manual preset tuning The built-in tuner can store station frequencies selected by DISC DISC DISC DISC CHANGE OPEN / CLOSE tuning operation. With this function, you can select any desired station only by calling the corresponding preset station number. -
Page 25: Automatic Preset Tuning
Tuning operation Automatic preset tuning You can make use of an automatic preset tuning function. With this function, the built-in tuner performs automatic tuning. Up DISC DISC DISC DISC CHANGE OPEN / CLOSE to 40 stations are stored automatically. Turn on the power. PTY SELECT PRESET/ TUNING/ BAND A/B/C/D/E... -
Page 26: Receiving Rds Stations
Tuning operation Receiving RDS stations RDS (Radio Data System) is a data transmission system RDS modes employed by FM stations in many countries. Stations using The built-in tuner uses the following four modes to display this system transmit an inaudible stream of data in addition to RDS data. -
Page 27: Display Mode
Tuning operation 1 Frequency Frequency display mode display mode The frequency of the station being received is displayed. PS (Program Service name) mode 2 PS mode The name of the station being received is displayed using characters selected from among 64 Roman Alphabets including umlaut sign. * If other characters are used on the PS data, they are replaced by underbars. - Page 28 Tuning operation Calling a program of your desired program type from among preset RDS stations (PTY SEEK) DISC DISC DISC DISC CHANGE OPEN / CLOSE By designating a program type, the tuner automatically searches all preset FM stations for an RDS station which broadcasts a program of that program type.
- Page 29 Tuning operation Other functions which make use of RDS > ON (OFF) CT CLOCK data service The tuner corrects the time of the built-in clock automatically by synchronizing it with the CT data on the RDS station being received. The tuner has the following functions which make use of RDS * If you receive an RDS station of some other country, the data service.
-
Page 30: Playing Back A Tape
Playing back a tape Display information Each indicator mentioned with a number on pages 23–29 corresponds to the indicator with the same number on this page. 100 350 1K 3.5K 10K MUSIC PROGRAM KARAOKE EDIT TAPE TAPE VOLUME 2 3 4 Reverse mode indicator (play) Tape counter... -
Page 31: Basic Operation
Playing back a tape Basic operation DISC DISC DISC DISC CHANGE OPEN / CLOSE Turn on the power. Press INPUT until “TAPE” ( ) appears on 3–DISC CD CHANGER the display. PTY SELECT PRESET/ TUNING/ BAND A/B/C/D/E VOLUME DOWN Open the tray by pressing STANDBY TIMER Load the tape on the tray with side A upward, and close the... -
Page 32: Winding The Tape
Playing back a tape Winding the tape Press to wind the tape. DISC DISC DISC DISC CHANGE OPEN / CLOSE Moves rapidly in the current tape PTY SELECT PRESET/ TUNING/ BAND A/B/C/D/E running direction while winding. VOLUME DOWN Press to stop. Note When the tape is wound to the end, the tape deck will then YMERSION... -
Page 33: Recording To Tape
Recording to tape Notes ● Adjusting the VOLUME, BASS and TREBLE controls, YMERSION, B. BOOST and MUSIC buttons have no effect on the recorded sound. The recording level is automatically DISC DISC DISC DISC CHANGE OPEN / CLOSE adjusted. ● If you want to make a recording using Dolby NR, press DOLBY NR so that “... - Page 34 Recording to tape To stop recording temporarily Press TAPE REC/PAUSE. * Press of the tape deck to resume recording. DISC DISC DISC DISC CHANGE OPEN / CLOSE To stop recording Press of the tape deck. PTY SELECT PRESET/ TUNING/ BAND A/B/C/D/E VOLUME DOWN...
-
Page 35: Recording From Cds Utilizing The Edit Function
Recording to tape Recording from CDs utilizing the EDIT function DISC DISC DISC DISC CHANGE OPEN / CLOSE The EDIT function performs recording on both sides of the tape. EDIT recording PTY SELECT PRESET/ TUNING/ BAND A/B/C/D/E Press INPUT once or more until “CD” ( VOLUME DOWN appears on the display, and load the disc to be recorded. - Page 36 Recording to tape Auto-EDIT recording This recording automatically changes the order of tracks so DISC DISC DISC DISC CHANGE OPEN / CLOSE that the unrecorded space of side A is minimized. Follow steps 1–6 on the previous page. Press PROG. PTY SELECT PRESET/ TUNING/ BAND A/B/C/D/E...
- Page 37 Recording to tape Manual EDIT recording DISC DISC DISC DISC CHANGE OPEN / CLOSE You can program tracks manually while watching the remaining time on both sides of the tape. Press INPUT once or more until “CD” ( PTY SELECT PRESET/ TUNING/ BAND A/B/C/D/E appears on the display, and load a disc (or discs) on the...
-
Page 38: Playing An Md
Playing an MD Display information Each indicator mentioned with a number on pages 31–42 corresponds to the indicator with the same number on this page. DISC TRACK 100 350 1K 3.5K 10K TOTAL REM REC TOC RANDOM DIGITAL 1 2 3 4 MUSIC PROGRAM KARAOKE... -
Page 39: Basic Play
Playing an MD Basic play Turn on the power. Select the MD recorder by pressing INPUT until “MD” ( ) appears on the display. Insert an MD into the disc insertion slot in the direction of the arrow printed on the MD. * The disc title appears on the display, and then it is replaced by the total number of tracks and the total playing time of the disc (... -
Page 40: Switching The Display
Playing an MD Switching the display Selected track Elapsed play time of the number track Every time TIME is pressed, the display will change as described below. TRACK TUNER RANDOM 2 3 4 PROGRAM During play PRO LOGIC HALL 7 8 9 10 3 STEREO YMERSION TAPE [Example]... -
Page 41: Program Play
Playing an MD Program play You can program up to 30 tracks in any desired order. When the MD recorder is stopped, press PROG to prepare PROG for programming. A B C D E F G H I J K L M N O Numeric PRESET... -
Page 42: Recording To Md
Recording to MD The MD recorder allows you to make recordings from a wide Basic recording variety of program sources (both analog and digital). When recording an analog source (such as an LP or tape), Turn on the power. the MD recorder converts the analog signals to 44.1 kHz digital signal before recording them onto the MD. -
Page 43: Monaural Recording
Recording to MD Monaural recording Track-marking Recording in monaural (mono) allows you to record up to 148 The MD recorder provides both automatic and manual minutes of sound on one 74 minute MD. This may be useful methods for the track number-marking. when recording a long interview, debate, or other long time Automatic (default setting) sources on one disc. -
Page 44: Recording From Cds Utilizing The Edit Function
Recording to MD Recording from CDs utilizing the EDIT function The EDIT function makes recording operation easier. EDIT recording R. TIME EDIT A B C D E F G H I J K L M N O PRESET Tracks of a CD are recorded onto an MD with the original P Q R S T U V W X... - Page 45 Recording to MD Manual EDIT recording DISC DISC DISC DISC CHANGE OPEN / CLOSE You can program tracks manually while watching the remaining time on the MD. PTY SELECT PRESET/ TUNING/ BAND A/B/C/D/E Press INPUT once or more until “CD” ( appears on the display, and load a CD (or CDs) on the disc VOLUME DOWN...
-
Page 46: Editing And Titling Md
Editing and titling MD Editing an MD One of the main advantages of MD is its editing capabilities, Notes on editing you can remove the commercials from a radio broadcast, Before editing arrange songs into the order you want, remove songs, Make sure that the MD is not protected against erasure. - Page 47 Editing and titling an MD To erase part of a track Erase Play the track containing the part you want to erase. This function lets you erase the entire disc, a track or part of a track quickly and easily. Press MD EDIT repeatedly to display “A–B Erase ?”.
- Page 48 Editing and titling an MD Move To erase the title of a disc This function lets you change the position of any track. When Press to stop the MD recorder. you move tracks, all the tracks are automatically renumbered. Press MD EDIT repeatedly to display “Title Erase?”, then Example: Moving track 2 to the track number 4 press ENTER.
- Page 49 Editing and titling an MD Divide Disc Maintenance This function lets you divide one track into two separate tracks The MD recorder features two disc maintenance functions by adding a new track number to a certain point in the track. which optimize performance of MDs.
-
Page 50: Delete [P
Editing and titling an MD Titling an MD or track This function lets you title recorded MDs and individual Press CHARACTER. tracks. Titles may consist of capital and small letters, * The cursor appears on the display. numbers, and symbols for a maximum of 250 characters for Press CHARACTER repeatedly to select the group of each title. -
Page 51: Operating An External Unit Connected With This System
Operating an external unit connected with this system Use the external unit connected to the DIGITAL IN (OPTICAL) or AUX IN terminals on the rear of the main unit. DISC DISC DISC DISC CHANGE OPEN / CLOSE To listen to a source played on the external unit connected with this system PTY SELECT PRESET/ TUNING/ BAND... -
Page 52: Various Sound Control
Various sound control BASS BOOST 100 350 1K 3.5K 10K MUSIC PROGRAM ROCK POPS JAZZ YMERSION VOLUME Spectrum analyzer VOLUME (volume level meter) The spectrum of the input source which is divided in five MUSIC (preset equalizer mode indicator) bands will be indicated in real time. BASS BOOST YMERSION VOLUME control... -
Page 53: Listening With Headphones
Press this button so that “YMERSION” ( ) is illuminated on TIME PROG R. TIME EDIT SPACE the display. YMERSION is Yamaha’s proprietary technology MODE REPEAT RANDOM TUNER that enhances the spread of a normal stereo source play DISC SKIP... -
Page 54: Using The Built-In Timer
Using the built-in timer Timer play By using the built-in timer, you can set the time when this system turns on and a source play begins, and the time when DISC DISC DISC DISC CHANGE OPEN / CLOSE this system will be set to the standby mode automatically. Press DISPLAY. -
Page 55: Timer Recording
Using the built-in timer Timer recording To make recording onto a tape, follow steps 3–4 of “Basic DISC DISC DISC DISC CHANGE OPEN / CLOSE recording” on page 25. To make recording onto an MD, follow steps 2, 3 and 5 of “Basic recording”... -
Page 56: Appendix
Refer to the chart below when this system does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, disconnect the power cord and contact your authorized YAMAHA dealer or service center. - Page 57 Appendix Problem What to Do Cause Tape will not move during playback or Take up slack with a pencil before using. Slack tape wrapped around pinch roller. recording. Erasure prevention tab is broken off. Replace tape or cover erasure prevention hole Recording is not possible.
-
Page 58: Md System Limitations
Appendix MD system limitations The total recorded time and the remaining time on the The recording system in your MD recorder is radically MD do not total to the maximum recording time different from those used in tape and DAT decks and is •... -
Page 59: Display Messages For Md Recorder
Appendix Display messages for MD recorder Can’t Copy Not Audio Digital recording cannot be performed. (See “Copy The inserted disc is not an audio MD. protection (SCMS)” on page 50.) Tr Protected Can’t Edit The selected track cannot be edited because it is protected. Edit operations are not possible. -
Page 60: Specifications
Appendix Specifications MD section Amplifier section System ........Minidisc digital audio system Minimum RMS Output Power per Channel 6 ohm, 1 kHz, 0.9% THD ........80W+80W Recording Method ..Magnetic field moduration overwrite Input Sensitivity/Impedance Reading Method ......Non-contact optical pick up AUX ............ - Page 61 YAMAHA ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD1 7JS, ENGLAND YAMAHA SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VASTRA FRÖLUNDA, SWEDEN YAMAHA MUSIC AUSTRALIA PTY, LTD. 17-33 MARKET ST., SOUTH MELBOURNE, 3205 VIC., AUSTRALIA...
