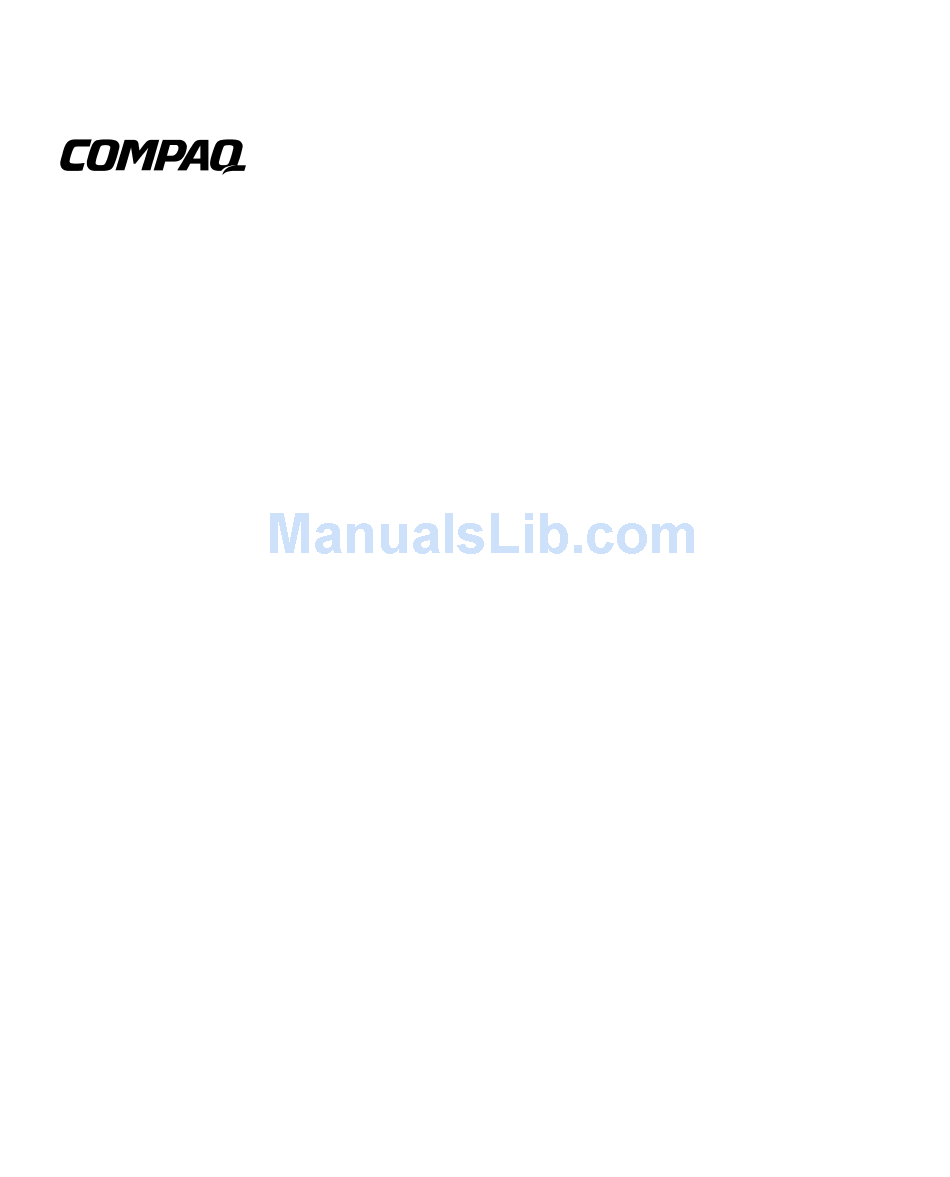

Compaq ProLiant 1850R
Setup and Installation Guide
Second Edition (January 1999)
Part Number 333172-002
Compaq Computer Corporation

Advertisement

Table of Contents
loading

Related Manuals for Compaq ProLiant 1850R

Summary of Contents for Compaq ProLiant 1850R

  • Page 1 Compaq ProLiant 1850R Setup and Installation Guide Second Edition (January 1999) Part Number 333172-002 Compaq Computer Corporation...
  • Page 2 MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE, GOOD TITLE AND AGAINST INFRINGEMENT. This publication contains information protected by copyright. No part of this publication may be photocopied or reproduced in any form without prior written consent from Compaq Computer Corporation. ã 1999 Compaq Computer Corporation.

  • Page 3: Table Of Contents

    Standard Interfaces ......................1-15 Video ..........................1-16 ROM..........................1-16 Hot Plug Power Supply ....................1-16 Warranty..........................1-16 Server Management and Configuration ..................1-17 Default Configuration......................1-17 Compaq SmartStart ......................1-18 Server Management......................1-18 Fault Tolerance........................1-19 Compaq Insight Manager ....................1-19 Compaq System Configuration Utility ................1-20 Compaq ProLiant 1850R Setup and Installation Guide...
  • Page 4 Loading the Rack Server ......................2-26 Attaching the Cable Management Arm ..................2-28 Connecting the Power Cord and Peripheral Devices ..............2-30 Powering Up the Server......................2-33 Configuring the Server with Compaq SmartStart ..............2-34 Using the Power Switch......................2-36 Using Diagnostics Tools......................2-36 Registering Your Server ......................2-37...
  • Page 5 Accessing Non Hot-Plug Areas ....................3-2 Accessing Processors, Memory Sockets, and System Board..........3-2 Installing a Processor and Processor Power Module ..............3-4 Installing a Processor Power Module ................3-7 Adding Memory to the ProLiant 1850R Server ................3-8 Maximum Memory Configuration ..................3-9 Installing DIMMs ......................3-10 Identifying Expansion Slots....................3-10 Installing an Expansion Board ....................3-12...
  • Page 6 ProLiant 1850R Server Cable Kit Contents ................4-8 SCSI Cable Connectors ......................4-10 SCSI Cabling Guidelines ......................4-11 Determining the Cables you Need ...................4-11 Internal SCSI Cabling Guide For Compaq ProLiant 1850R Servers .......4-12 Internal Cabling.......................4-13 External Cabling for Primary Storage Only................4-15 External Cabling for Secondary Storage.................4-16 ProLiant 1850R Cabling Examples .................4-17...
  • Page 7 Server Configuration and Utilities continued Novell Device Drivers from Compaq................5-11 Microsoft Windows NT Device Drivers from Compaq...........5-13 SCO OpenServer and SCO UnixWare Device Drivers from Compaq ......5-15 IBM OS/2 Device Drivers from Compaq ................5-17 SunSolaris Device Drivers from Compaq ...............5-19 Banyan Vines Device Drivers from Compaq ..............5-19...
  • Page 8 System Configuration Switch Settings (S1 Settings) ............... E-2 Processor Switch Settings......................E-3 NIC Operating Mode ....................... E-4 SCSI Device Jumper Settings ....................E-4 System Board Battery Jumper Settings..................E-5 Appendix F Specifications and Connector Interfaces ProLiant 1850R Specifications ....................F-1 Connector Interfaces.........................F-2...
  • Page 9 LAN Driver Update Procedure For NetWare 3.2 .............G-6 Installing IBM OS/2 LAN Drivers ...................G-7 Installing Banyan VINES LAN Driver................G-8 Installing SunSoft Solaris 2.5.1, 2.6, and Later Versions (Intel Platforms) +LAN Drivers ......................... G-10 Index Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 11: About This Guide

    Type When you are instructed to type information, type the information without pressing the Enter key. Enter When you are instructed to enter information, type the information and then press the Enter key. Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 12: Symbols In Text

    xii About This Guide Symbols in Text These symbols may be found in the text of this guide. They have the following meanings. WARNING: Indicates that failure to follow directions in the warning could result in bodily harm or loss of life. CAUTION: Indicates that failure to follow directions could result in damage to equipment or loss of information.

  • Page 13: Rack Stability

    Compaq Web Site The Compaq Web Site has information on this product as well as the latest drivers and Flash ROM images. You can access the Compaq Web Site by logging on to the Internet at http://www.compaq.com.
  • Page 14 In the United States, call 1-800-345-1518 In Canada, call 1-800-263-5868 For Compaq technical support: In the United States and Canada, call 1-800-386-2172 For Compaq technical support phone numbers outside the United States and Canada, visit the Compaq Web Site at: //www.compaq.com...

  • Page 15: Compaq Proliant 1850R Features

    ProLiant 1850R The Compaq ProLiant 1850R server provides the latest processor and system architecture technology, hot-plug redundant power supply, Error Checking and Correcting Memory, Dual Channel Integrated Wide-Ultra SCSI-3 controller on...
  • Page 16 Compaq ProLiant 1850R Features Figure 1-2. Compaq ProLiant 1850R server with Wide Ultra2 SCSI...

  • Page 17: Proliant 1850R Front View

    The bottom view of figure 1-2 shows the two 1.6-inch hot-plug configuration. Either configuration is possible in ProLiant 1850R without any additional hardware. Figure 1-3. ProLiant 1850R front components with Wide Ultra SCSI-3 Table 1-1 Compaq ProLiant 1850R Front Components...
  • Page 18 - Two (2) 1.6-inch height Compaq hot-plug hard drives ProLiant 1850R with Wide Ultra2 SCSI The following figure shows the available Wide Ultra2 bay configuration on the front of the server consisting of four 1-inch hot-plug drives. Figure 1-4. ProLiant 1850R front components with Wide Ultra2 SCSI...
  • Page 19 Media Configuration Positions 0, 1, 2, 3 Hot-Plug drive cage accommodating - Four (4) 1-inch height Compaq hot-plug Wide Ultra2 SCSI hard drives A and B two 5.25-inch wide x half height drive bay (removable media area) 4 and 5...

  • Page 20: Thumbscrew Identification

    Compaq ProLiant 1850R Features Thumbscrew Identification The following figure shows the location of the thumbscrews used to secure the server to the rack and the thumbscrews used to attach the server cover. Figure 1-5. Thumbscrews locations on the front bezel...

  • Page 21: Proliant 1850R Rear Components

    ProLiant 1850R Rear Components The following figure shows the components on the rear of the server. Figure 1-6. ProLiant 1850R rear panel components Table 1-4 Rear Panel Components Reference Description RJ-45 Ethernet Connector with 10/100-Mbits operation Video Connector (black) External SCSI Connector...

  • Page 22: Locating Proliant 1850R Server Internal Components

    Inside View of the ProLiant 1850R Server The following illustration provides an inside view of the main features of the server. Table 1-5 designates key features. Figure 1-7. An inside view of the main components for the ProLiant 1850R server Table 1-5 ProLiant 1850R Internal Components...

  • Page 23: Industry Support

    PCI and ISA expansion boards, as well as support for Wide-Ultra SCSI-3 and Wide Ultra2 SCSI devices. Standard Features The following features are standard on all Compaq ProLiant 1850R models, unless otherwise noted. Processors and Processor Power Modules...

  • Page 24: Proliant 1850R System Memory

    The expansion slots on the riser board are configured as follows: Shared PCI/ISA Slot PCI Slots Figure 1-8. Locating ProLiant 1850R expansion slots These expansion slots on the riser board correspond to slots on the rear of the server, as shown below.

  • Page 25: Disk Controller

    Optional controller boards available for expanding storage capacity. Optional boards are the SMART-2SL Array Controller, the SMART- 2DH Array Controller, the SMART-2/P Array Controller, and the Wide- Ultra SCSI-3 Controller. Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 26: Integrated Network Controller

    Information pack. Mass Storage Wide Ultra SCSI-3 Models The Compaq ProLiant 1850R server can house up to 7 mass storage devices for a Wide Ultra SCSI-3 model. Up to three 1-inch height or two 1.6-inch height Compaq hot-plug hard drives A low profile IDE CD-ROM drive A 3.5-inch, 1.44-MB diskette drive, installed in the vertical position...
  • Page 27 1-13 SCSI ID 2 SCSI ID 1 SCSI ID 0 SCSI ID 1 SCSI ID 0 Figure 1-10. ProLiant 1850R server drive positions for a Wide Ultra SCSI-3 model Table 1-6 Description of ProLiant 1850R Media Bays Identifier Media Configuration Positions 5.25-inch wide x half height drive bay (removable media area)

  • Page 28: Mass Storage

    Compaq ProLiant 1850R Features Mass Storage Wide Ultra2 SCSI Models The Compaq ProLiant 1850R server with the Wide Ultra2 SCSI drive cage can house up to 8 mass storage devices. Up to four 1-inch height or two 1.6-inch height Compaq hot-plug hard...

  • Page 29: Standard Interfaces

    Media Configuration Positions 0, 1, 2, 3 Hot-Plug drive cage accommodating - Four (4) 1-inch height Compaq hot-plug Wide Ultra2 SCSI hard drives A and B two 5.25-inch wide x half height drive bay (removable media area) 4 and 5...

  • Page 30: Video

    1-16 Compaq ProLiant 1850R Features Video Integrated video controller provides maximum resolution of 1152 x 864 non-interlaced resolution at 256 colors. Supports SVGA, VGA, and EGA graphics resolution. 1-MB video memory Software-upgradable firmware including diagnostics ROMPaq utility used to upgrade ROM...

  • Page 31: Server Management And Configuration

    1-17 Server Management and Configuration Compaq offers an extensive set of features and optional tools to support effective server management and configuration. These features are described in this guide: Default Configuration Compaq SmartStart Server Management Fault Tolerance Compaq Insight Manager...

  • Page 32: Compaq Smartstart

    Compaq SmartStart Compaq SmartStart, which is located on the Compaq SmartStart and Support Software CD, is the intelligent way to configure your Compaq server with major operating system software. SmartStart helps you achieve a well-integrated server that ensures maximum managability and dependability. For further information about configuration, see Chapter 5, “Server Configuration and...

  • Page 33: Fault Tolerance

    RAID 1 - mirroring RAID 4 - data guarding RAID 5 - distributed data guarding Fault tolerance for the ProLiant 1850R server is covered in the online documentation on the System Reference Library CD. Compaq Insight Manager Compaq Insight Manger is a software utility for collecting server information.

  • Page 34: Compaq System Configuration Utility

    Automatic Server Recovery-2 (ASR-2) Automatic Server Recovery-2 (ASR-2) enables the server to boot automatically from either the operating system or the Compaq Utilities. If there is a critical system failure, ASR-2 automatically restarts the server and pages a designated system administrator. See the Systems Reference Library CD (SRL) for more...

  • Page 35: Compaq Integrated Remote Console

    1-21 Compaq Integrated Remote Console The standard Compaq Integrated Remote Console (IRC) performs a wide range of configuration activities. The IRC: Is accessible using ANSI terminal. Operates independently of the operating system. Provides for remote server reboot. Provides access to system configuration.

  • Page 36: Status Leds

    1-22 Compaq ProLiant 1850R Features Status LEDs There are three main groups of LEDs: One on each hot-plug power supply, two on the RJ-45 connector and a set of four on the front of the server. Additional LEDs include hard drives and the CD-ROM drive.

  • Page 37: Security Features

    Refer to the online documentation on the Systems Reference Library (SRL) CD for more information on these security features. Power-On Password Administrator Password Network Server Mode Diskette Boot Control Serial/Parallel Interface Control QuickLock Power Switch Security Feature Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 38: Diagnostics

    Compaq Authorized Reseller. Under the terms of this warranty, supported components are eligible for replacement before they actually fail, provided that you use Compaq Insight Manager and that the system determined that supported components have degraded below predetermined reliability thresholds within the product warranty period.

  • Page 39: Server Installation Overview

    Chapter 2 Server Installation Overview This chapter covers the following information about your new ProLiant 1850R server: Attaching the mounting hardware to the server and to the rack Installing the server into the rack Managing server cabling Accessing the internal components of the rack-mounted server You can choose the optional installation service from Compaq to install your rack products.
  • Page 40 The Compaq Installing Rack Products CD is included with your server. The Rack Builder Configuration and Rack Information Library information can be found on the web on the Compaq website at www.compaq.com. The entire Rack Resource CD Kit, P/N 298721-001, ships with all Compaq racks and can be ordered through a Compaq authorized reseller.

  • Page 41: Rack Warnings And Precautions

    To reduce the risk of personal injury, always ensure that the rack is adequately stabilized before extending a component outside the rack, and extend only one component at a time. Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 42: Server Warnings And Precautions

    CAUTION: The Rack-Mountable Compaq ProLiant Server must always be operated with the system unit cover on. Proper cooling will not be achieved if the system unit cover is removed.

  • Page 43: The Optimum Environment

    The Optimum Environment When installing your Compaq ProLiant 1850R server in a rack, certain standards of temperature and power requirements must be met. Space Requirements The following spatial needs should be considered when deciding where to install your rack: Clearance in the front of the rack should be a minimum of 25 inches for the front door to open all the way and for adequate airflow.

  • Page 44: Grounding

    To ensure continued safe and reliable operation of the equipment, locate the system in a well-ventilated, climate-controlled environment. The Compaq Maximum Recommended Ambient Operating Temperature (Tmra) for most server products is 35°C (95°F). Therefore, the temperature in the room where the rack is located should not exceed °...

  • Page 45: Airflow Requirements

    Airflow Requirements Compaq ProLiant rackmount servers draw cool air in through the front door and exhaust warm air out the rear. Therefore, the front door of the rack must be adequately ventilated to allow ambient room air to enter the cabinet, and the rear door must be adequately ventilated to allow the warm air to escape from the cabinet.

  • Page 46: Installation Sequence

    Server Installation Overview Installation Sequence A brief summary of the steps to install your Compaq ProLiant 1850R server follows: Select an appropriate site for your rack. See the Rack Planning and Information Guide online document. This guide can be found on the Rack Information Library CD or the information can be downloaded from the Compaq website at www.compaq.com and provides site selection...
  • Page 47 System Configuration utility), and then boot the server from the SmartStart program. Install Compaq Insight Manager to manage the server. For Compaq Management CD initialization procedures, refer to the Server Setup and Management pack shipped with your server.

  • Page 48: Unpacking The Rack Server

    Unpack the server box and locate the materials and documentation necessary to install your rack-mountable server. Locating Materials All of the equipment needed to install the ProLiant 1850R server into the Compaq rack is included with the rack or with the server. Figure 2-2. Rack mounting hardware...
  • Page 49 Hardware documentation and software packs inside the shipping box: Reference Information Software Products Installing Rack Products CD (shipped with Compaq servers or can be ordered with the Rack Resource CD Kit) In addition to these supplied items, you may need:...

  • Page 50: Installing Expansion Boards And Other Major Hardware Options

    See Chapter 3, “Installing Hardware Options,” for installing PCI and ISA expansion boards and other major hardware options. The following major hardware options are available for the ProLiant 1850R server and may be obtained from your local Compaq Reseller or Authorized Compaq Service Provider.

  • Page 51: Preparing The Rack Mounting Brackets And Slide Rail Assemblies

    Rack mouning bracket. The components of the Slide Rail Assembly include the Outer Bracket Rail which includes the Outer Bracket Rail Œ and the Inner Slide  . The Server Rail Ž attaches to the server. Figure 2-4. Slide rail assemby components Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 52: Attaching The Outer Bracket Rail To The Rack Mounting Bracket

    2-14 Server Installation Overview IMPORTANT: To make installing the rack mounting bracket easier, attach the outer bracket rail to the rack mounting bracket before attaching the rack mounting bracket assembly to the rack. This way, the joined mounting bracket and bracket rail can be fastened to the rack as one assembly. Attaching the Outer Bracket Rail to the Rack Mounting Bracket Lay the slide rail assemblies (2), rack mounting brackets (2) and...
  • Page 53 Figure 2-6. Separated outer bracket rail (top) and server rail The outer bracket rail consists of a fixed outer rail that attaches to the rack mounting bracket, and an inner slide on a steel ball-bearing movement. This inner slide does not detach. Compaq ProLiant 1850R Setup and Installation Guide...
  • Page 54 2-16 Server Installation Overview To identify the fronts of the rack mounting bracket and the outer bracket rail see the figure below: The front of the rack mounting bracket has alignment tabs on its flange and the round threaded holes Œ . The front of the outer bracket rail allows the inner slide to move forward on ball bearings ...
  • Page 55 5. Lay the outer bracket rails inside the rack mounting brackets along the inside edge of the rack mounting bracket. The front of both pieces (rack mount bracket and outer bracket rails) should be oriented in the same direction. Compaq ProLiant 1850R Setup and Installation Guide...
  • Page 56 2-18 Server Installation Overview Fully extend the inner slides from the front of each outer bracket rail Œ . With these pieces extended, a screw hole towards the rear, aligns in the rack mounting bracket and the outer bracket rail for each assembly. Fasten the outer bracket rail to the rack mounting bracket with a 8-32 x 1/4-inch slotted screw.
  • Page 57 When the three screws are fastened, the rack mounting bracket and outer bracket rail form a rack mounting bracket slide assembly that you attach to the rack. In total, you use six screws, three for each assembly. Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 58: Attaching The Rack Mounting Bracket And Slide Assembly To The Rack

    2-20 Server Installation Overview Attaching the Rack Mounting Bracket and Slide Assembly to the Rack WARNING: To reduce the risk of personal injury or damage to the equipment, be sure that the rack leveling feet are extended to the floor and support the full weight of the rack. Each rack must be level and stable.

  • Page 59: Inserting Cage Nuts In The Rack Frame

    The cage nuts and fitting tool are included in the hardware kit supplied with the rack. Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 60: Attaching The Rack Mounting Bracket Assembly To The Rack

    2-22 Server Installation Overview Position the cage nut as shown in the following figure, on the inside of the rail. Hook one of the lips of the cage nut through the square rail perforation. Insert the tip of the fitting tool through the other side of the perforation and hook the opposite lip of the cage nut.
  • Page 61 IMPORTANT: The screw holes on the front of the bracket are round and threaded. Figure 2-13. Attaching rack mounting bracket assembly to the front of the rack (right side) 2. Carefully align the mounting bracket assembly with the rear rack frame. Compaq ProLiant 1850R Setup and Installation Guide...
  • Page 62 2-24 Server Installation Overview 3. Secure the back end of the mounting bracket assembly to the back corner brace of the rack with one M6 x 1.0-12L Phillips screw through the bottom hole of the bracket and the cage nut, as shown in the following figure.

  • Page 63: Attaching Server Rails To The Server

    Attach the server bracket to the back of the server with two 6-32 x 1/4 Phillips screws. Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 64: Loading The Rack Server

    2-26 Server Installation Overview Figure 2-17. Attaching the server bracket to the server Loading the Rack Server Follow the steps below to load and secure the server to the rack with the front bezel thumbscrews before attaching additional mounting bracket assemblies. Ensure that this pair of brackets is perfectly aligned and installed and that the server fits before you continue.
  • Page 65 To return the server to the rack, depress the latches and slide the server into the rack. Secure the server front bezel to the front of the rack by screwing the thumbscrews into the cage nuts. Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 66: Attaching The Cable Management Arm

    2-28 Server Installation Overview Figure 2-19. Using thumbscrews to secure the positioned server in the rack 5. Tighten the thumbscrews before you close the rack door to prevent the door from hitting protruding thumbscrews. Attaching the Cable Management Arm A double-hinged cable management arm with fasteners ship with each server. The cable management arm attaches to the server's cable management arm bracket and to the rear frame of the rack.
  • Page 67 When the rack bracket is in place secure it with two 10-32 x 5/8-inch Phillips washer-face hex- head screws. Figure 2-21. Securing the cable management arm rack bracket Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 68: Connecting The Power Cord And Peripheral Devices

    2-30 Server Installation Overview Align the other end of the cable management arm on the outside of the rack bracket attached to the rack. Attach the arm to the rack bracket with two 10-32 x 5/8-inch Phillips washer-face hex-head screws. Figure 2-22.
  • Page 69 2-31 Figure 2-23. Rear panel of ProLiant 1850R Table 2-2 Rear Panel Connectors/LED Ref. Connector or LED RJ-45 Ethernet Connector with 10/100-Mbit operation, with LED Video Connector (black) External SCSI Connector Parallel Connector Serial Connector B Serial Connector A Key Board Connector (orange)
  • Page 70 2-32 Server Installation Overview Plug cables into the server. Figure 2-24. Cabling through the cable management arm and cable support Plug the power cord (s) into the server. Make a small loop in each power supply cable and secure the loop as a strain relief to the location below the power supply.

  • Page 71: Powering Up The Server

    NOTE: Do not place anything on power cords or cables. Arrange them so that no one may accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging from the electrical outlet, grasp the cord by the plug. Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 72: Configuring The Server With Compaq Smartstart

    Software CD. Configuring the Server with Compaq SmartStart Compaq SmartStart is the intelligent way to configure the server and to load the system software, thereby achieving a well-integrated server to ensure maximum dependability and supportability. The Compaq SmartStart and Support Software CD holds the Compaq System Configuration Utility and ROMPaq.
  • Page 73 Setup and Management pack, which is shipped with your server, to configure the system and load the operating system. To manage the system, refer to the Compaq Management CD provided in the Server Setup and Management pack shipped with your server.

  • Page 74: Using The Power Switch

    The software and firmware diagnostic tools available for your use are: Power-On Self-Test (POST) Diagnostics (DIAGS) ROMPaq utilities to upgrade flash ROMs Automatic Server Recovery (ASR-2) For information concerning Compaq diagnostic tools, refer to the Systems Reference Library CD included in the Reference Information pack of the shipping box.

  • Page 75: Registering Your Server

    The installation service covers the entire hardware installation from unpacking the components to routing the cables and running a test of the system. In the United States, Compaq will make all of the arrangements to have the rack system installed by qualified Guaranteed Service Providers. An order form with pricing is available from PaqFax, the Compaq fax retrieval service.

  • Page 76: Installing Hardware Options

    Installing Wide Ultra2 SCSI drives Accessing Hot-Plug Areas - you can install hot-plug options, upgrades or replacements without shutting down the power in the following areas: SCSI Hot-Plug drive bays Hot-Plug Redundant Power supplies Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 77: Accessing Non Hot-Plug Areas

    Power down the server and remove the power cord (s). IMPORTANT: The system power in the ProLiant 1850R server does not completely shut off with the front panel Power On/Standby switch. The two positions of the switch functions as ON and STANDBY, rather than ON and OFF.
  • Page 78 Figure 3-1. Thumbscrew locations Pull the server out from the rack. IMPORTANT: It is not necessary to completely remove the server from the rack. Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 79: Installing A Processor And Processor Power Module

    Installing Hardware Options Loosen the three thumbscrews on the front of the unit which secure the server cover. Slide the server cover toward the rear of the unit about 1 inch (2.5 cm), then remove the cover. Figure 3-2. Removing the server cover Installing a Processor and Processor Power Module To install a processor on the System Board, refer to the label inside the server...
  • Page 80 Failure to follow this process will result in the system failing to boot and halting during the POST test and may result in the system not functioning properly. CAUTION: The heatsink and processor guides are different for the 500-MHz processor. Compaq ProLiant 1850R Setup and Installation Guide...
  • Page 81 Installing Hardware Options To install the processor, press it into the socket. Figure 3-4. Sliding the processor into the processor socket (riser board removed for clarity) 2. Push the processor latches outward until the processor latches snap into place. Figure 3-5. Locking the processor into the processor socket (riser board removed for clarity) IMPORTANT: The retention mechanism for securing the heatsink is different for the 500-MHz processor.

  • Page 82: Installing A Processor Power Module

    Installing a Processor Power Module Every processor supplied by Compaq comes with a Processor Power Module (DC-to-DC converter). Each Processor Power Module (PPM) must be installed in the slot adjacent to its processor to provide power to that processor. If the processor is installed in slot 1, install the PPM in slot 1, if the processor is installed in slot 2 install the PPM in slot 2.

  • Page 83: Adding Memory To The Proliant 1850R Server

    Adding Memory to the ProLiant 1850R Server You can expand server memory by installing Compaq DIMMs (Dual Inline Memory Modules). The system supports up to four Registered SDRAM DIMMs installed in slots on the System Board. Memory can be added one module at a time.

  • Page 84: Maximum Memory Configuration

    DIMM Socket 3 DIMM Socket 4 Maximum Memory Configuration The ProLiant 1850R server allows ultimate expansion to 1-GB. In the maximum memory configuration, all four DIMM sockets would be populated with 256- MB 100-MHz Registered SDRAM (Synchronous DRAM) DIMMs. Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 85: Installing Dimms

    Press down firmly on the DIMM while pushing the latches inward until the latches snap into place. Identifying Expansion Slots The ProLiant 1850R server’s riser board contains four expansion slots: Three PCI slots for access to the 33-MHz PCI bus providing data transfer rates up to 133-MB/s One Shared PCI/ISA slot for access to either the PCI bus or to the ISA bus.
  • Page 86 3-11 Shared PCI/ISA Slot PCI Slots Figure 3-9. ProLiant 1850R riser board slots Expansion boards can be installed in the following slots. Figure 3-10. Locating ProLiant 1850R four (4) expansion slots Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 87: Installing An Expansion Board

    3-12 Installing Hardware Options Installing an Expansion Board To install an expansion board, refer to the following installation Procedure. WARNING: To reduce the risk of personal injury, be careful when installing and removing expansion boards. The cover retaining clasps can pinch or cut your fingers. Do not attempt to force boards in or out of position.
  • Page 88 Figure 3-13. Inserting an expansion board NOTE: Some full length PCI Boards include a plastic adapter to allow full retention in some shared slots. This adapter must be removed before installing the boards in the ProLiant 1850R server. Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 89: Removing Expansion Board Shipping Bracket

    Remove these components as one assembly. CAUTION: If the riser board or riser board brace needs to be replaced, both must be sent to Compaq as one unit. If they are sent separately, all warranties are voided for those components.
  • Page 90 Install the new riser board and riser board brace assembly. When installing this assembly, refer to figure 3-15 for proper alignment. Figure 3-16. Installing the riser board and riser board brace Replace all expansion boards. Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 91: Installing Removable Media Devices

    Refer to the General Installation Guidelines below for general rules regarding drive installation. General Installation Guidelines When adding SCSI hard drives to your ProLiant 1850R server, observe the following guidelines: A maximum of seven SCSI devices per controller can be added.

  • Page 92: Installing Proliant 1850R Mass Storage Devices

    There are three or four drive bays for internal mass storage devices in the ProLiant 1850R server. SCSI devices can be installed in drive bays A or B or attached to the external Wide-Ultra SCSI-3 port via an external storage system.
  • Page 93 3-18 Installing Hardware Options Figure 3-17. Optional mass storage device placement for ProLiant 1850R with Wide Ultra SCSI-3 model Figure 3-18. Optional mass storage device placement for ProLiant 1850R with Wide Ultra2 SCSI model IMPORTANT: A 2 by 1-inch Wide Ultra2 SCSI drive cage option is available...

  • Page 94: Replacing The 1.44-Mb Diskette Drive (Floppy Drive)

    Disconnect the cabling to the 1.44-MB diskette drive. Figure 3-19. Disconnecting the 1.44-MB diskette drive cabling 5. Remove the T-15 torx screw Œ and slide the diskette drive away from front bezel until it stops  . Compaq ProLiant 1850R Setup and Installation Guide...
  • Page 95 3-20 Installing Hardware Options Figure 3-20. Releasing the diskette drive 6. Rotate the rear of the drive towards the outside of the chassis Ž . 7. Lift the diskette drive straight up to remove it  . CAUTION: When removing or installing the diskette drive be careful not damage the eject button on the front of the diskette drive.

  • Page 96: Enabling The Power Switch Security Feature

    To enable the power switch security feature: Power OFF the server and remove power cord (s). IMPORTANT: The system power in the ProLiant 1850R server does not completely shut off with the front panel Power On/Standby switch. The two positions of the switch functions as ON and STANDBY, rather than ON and OFF.
  • Page 97 3-22 Installing Hardware Options Figure 3-22. Removing the power switch from the front bezel (power switch cabling removed for clarity) Rotate the switch assembly 180 degrees – . Insert the switch into the front bezel as shown below — . Make sure that you include the spring, the clips on the switch engage, and the center post of the switch aligns with the hole in the bezel.

  • Page 98: Replacing The Cd-Rom Drive

    Removing the CD-ROM drive from the chassis Installing the CD-ROM Drive To install the CD-ROM drive into the server, reverse the steps noted in the proceeding procedure. Below is an example of installing the CD-ROM. Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 99: Installing External Storage Devices

    1.6-inch height hard drives, SLR, DAT, or DLT tape drives. Installing External Storage Devices Optional mass storage devices can be connected to the Compaq ProLiant 1850R server by using the external Wide-Ultra SCSI-3 port on the back of the unit.
  • Page 100 Figure 3-26. Removing the removable media tray from the server 7. Configure the SCSI ID of the drive as shown with your options instructions. Attach the 3.5-inch drive to the 5.25-inch bracket with the screws provided with your option. Compaq ProLiant 1850R Setup and Installation Guide...
  • Page 101 3-26 Installing Hardware Options Figure 3-27. Attaching a 3.5-inch drive to a 5.25-inch bracket 9. Install the bracket and drive into the drive bay. Make sure the guide screw lines up with the guide slot in the removable media drive cage. Secure the bracket with one screw through the right side of the drive cage.

  • Page 102: Installing A Half-Height Device

    1 through 6. 2. Insert the half-height device into the removable media bay and secure it with a T-7 Torx screw from the expansion board brace. Compaq ProLiant 1850R Setup and Installation Guide...
  • Page 103 3-28 Installing Hardware Options Figure 3-30. Installing a half-height device 3. Connect the two device terminated SCSI cable to the half-height device. IMPORTANT: If the device is a Fast-SCSI-2 device, install a 68 to 50 pin adapter and connect to the device before connecting the cable. Figure 3-31.

  • Page 104: Installing A Full-Height Device (Dlt Tape Drive)

    Figure 3-32. Removing the two removable media trays from the removable media cage 3. Insert the DLT tape drive into the removable media bay area and secure from the bottom of the unit with four T-7 Torx screws. Compaq ProLiant 1850R Setup and Installation Guide...
  • Page 105 3-30 Installing Hardware Options Figure 3-33. Installing a DLT tape drive into the removable media cage 4. Connect the two device terminated cable to the DLT. Figure 3-34. Cabling a DLT tape drive to port 2 with the two device terminated cable 5.

  • Page 106: Accessing The Hot-Plug Areas

    Close the connector levers  . Figure 3-35. Installing a Wide Ultra SCSI-3 drive NOTE: Push the drive into the slot, then push the drive levers in to lock the drive in place. Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 107: Installing Hot-Plug Wide Ultra2 Scsi Drives

    3-32 Installing Hardware Options Installing Hot-Plug Wide Ultra2 SCSI Drives Remove the blank (s) from the hot-plug hard drive cage. Insert the hot-plug drive Œ . Close the connector levers  . Figure 3-36. Installing a Wide Ultra2 SCSI drive NOTE: Push the drive into the slot, then push the drive levers in to lock the drive in place.

  • Page 108: Scsi Id Numbers For Wide Ultra2 Scsi Models

    SCSI ID 0, 1, 2, and 3. The removable media bays can be removed to accommodate two additional hot-plug drives with SCSI ID 4 and 5. Figure 3-38. SCSI ID and removable media numbers for Wide Ultra2 SCSI models Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 109: Installing A Hot-Plug Redundant Power Supply

    3-34 Installing Hardware Options Installing a Hot-Plug Redundant Power Supply Open the rear door of the rack to access the back of the server. Open the lever on the cable management arm and swing the arm out of the way. Figure 3-39.
  • Page 110 Push the hot-plug power supply into the slot Œ and swing the arm into the locking position  and it locks in place. Figure 3-41. Installing a hot-plug power supply Plug the power cord into the new hot-plug power supply. Compaq ProLiant 1850R Setup and Installation Guide...
  • Page 111 3-36 Installing Hardware Options Figure 3-42. Plugging in the power cord Secure the power supply cord by fastening it to the clamp on the power supply and attach to the cable management arm. Figure 3-43. Securing the power cord Swing the cable management arm back into place Œ and secure the latch ...
  • Page 112 3-37 Figure 3-44. Securing the cable management arm 8. Close the rear rack door. Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 113: Cabling Guidelines

    IMPORTANT: Do not place anything on power cords or cables. Arrange them so that no one may accidentally step or trip on them. Do not pull on a cord or cable. When unplugging cords from the electrical outlet, grasp the cord by the plug. Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 114: Rear Panel Connectors

    Cabling Guidelines Rear Panel Connectors The illustration below shows the connectors and switches for the ProLiant 1850R server. Figure 4-1. Location of rear panel connectors Table 4-1 Rear Panel Connectors Ref. Connector RJ-45 Ethernet Connector with 10/100-Mbits operation Video Connector (black)

  • Page 115: Internal Connectors

    CAUTION: Remove the two device terminated cables from Port 2 when running external storage devices from SCSI Port 2 embedded controller, that is the Fast SCSI-2 connector. These connectors are shown below. Figure 4-2. SCSI connectors on the system board Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 116: Cabling The Server's Rear Panel Cables

    Cabling Guidelines Table 4-2 Important Connectors Ref. Connector Floppy Connector Port 2 SCSI Connector (2), It connects to the removable media bay for SCSI hard drives, tape drives, or external SCSI devices via the external connector. IDE Connector Port 1 SCSI Connector, It connects to the Hot-Plug Drive Cage. Cabling the Server’s Rear Panel Cables You are now ready to connect the power cord and peripheral devices to the connectors located on the rear panel of the server.
  • Page 117 Figure 4-4. Securing the hot-plug power supply cables 3. Bundle all of the cables, including the power cable (s), and tie them to the cable management arm. Figure 4-5. Cabling the server rear panel cables Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 118: Additional Mass Storage Devices

    Additional Mass Storage Devices Removable media bays for ProLiant 1850R servers The Compaq ProLiant 1850R server can house up to 2 non hot-plug hard drives or various other devices in the removable media bays. Two half height removable media bays, can support the following removable media devices: 1.6-inch or 1-inch form factor non hot-plug drive...

  • Page 119: Scsi Hard Drive Installation Guidelines

    A maximum of seven SCSI devices per port can be added. Each SCSI drive must have a unique ID. Compaq SCSI cables for the ProLiant 1850R server are terminated. Be sure to remove all terminating jumpers from third-party SCSI devices.

  • Page 120: Proliant 1850R Server Cable Kit Contents

    Cabling Guidelines ProLiant 1850R Server Cable Kit Contents All cabling for ProLiant 1850R models is illustrated below. Verify that you have all of the necessary items before beginning the installation process. Figure 4-6. ProLiant 1850R server cabling components Using the following table and figure 4-6 verify that you have the four cables shipped with your server.
  • Page 121 This adapter is included in all Compaq option kits containing narrow devices. To order an adapter for use with any third-party option, order Option Kit (Part Number 212055-001) direct from Compaq or through your local Compaq Reseller or Authorized Compaq Service Provider.

  • Page 122: Scsi Cable Connectors

    4-10 Cabling Guidelines SCSI Cable Connectors To help identify the SCSI cables required for ProLiant 1850R server installation, refer to the illustrations below. Keep in mind these characteristics of SCSI cables: External SCSI cables have a round wire with securable connectors.

  • Page 123: Scsi Cabling Guidelines

    The following guidelines are provided as an overview for first-time cable connections and installation in the ProLiant 1850R server. Only controllers listed in the tables below are supported by the ProLiant 1850R server. Refer to these tables to determine the parts that are necessary for successful cabling solutions for the ProLiant 1850R.

  • Page 124: Internal Scsi Cabling Guide For Compaq Proliant 1850R Servers

    4-12 Cabling Guidelines Internal SCSI Cabling Guide For Compaq ProLiant 1850R Servers The ProLiant 1850R server includes the following components to be used in cabling the server: One IDE cable for IDE CD-ROM drive One floppy drive cable One two device terminated SCSI cable...

  • Page 125: Internal Cabling

    4-13 Internal Cabling Table 4-4 Internal Cabling for the Compaq ProLiant 1850R Compaq ProLiant Wide-Ultra SCSI-3 Fast SCSI-2 Non Hot- 4/8 DAT Drive, 4/8 SLR Wide Ultra2 SCSI Hot- 1850R and Fast-Wide SCSI- Plug Drive, 12/24 DAT Drive, Plug Hard Drives...
  • Page 126 4-14 Cabling Guidelines Internal Cabling for the Compaq ProLiant 1850R Continued Compaq ProLiant Wide-Ultra SCSI-3 Fast SCSI-2 Non 4/8 DAT Drive, Wide Ultra2 SCSI 1850R and Fast-Wide Hot-Plug 4/8 SLR Drive, Hot-Plug SCSI-2 Hot-Plug Hard Drives 12/24 DAT Drive, Hard Drives...

  • Page 127: External Cabling For Primary Storage Only

    Wide cable or order Option Kit 295645- B21 for one 12’ VHDCI-Wide cable. Connect external storage device to external Wide-Ultra SCSI-3 Connector (Port 2). Be sure to disconnect internal 2-device cable from port 2 connector in the system board. Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 128: External Cabling For Secondary Storage

    4-16 Cabling Guidelines External Cabling for Secondary Storage Table 4-6 External Cabling for Secondary Storage All ProLiant 1850R 4/8 DAT Drive, 15/30 DLT Drive, CD Storage Models 4/8 SLR Drive, 35/70 DLT Drive System 12/24 DAT Drive, 20/40GB DLT Drive,...

  • Page 129: Proliant 1850R Cabling Examples

    ProLiant 1850R Cabling Examples The following examples illustrate cabling scenarios associated with a ProLiant 1850R server. They are provided as only an overview for installing and routing some of the cabling scenarios described in the SCSI Cable Usage Matrix. You may also want to refer to the hood labels attached to the inside of the server cover.
  • Page 130 4-18 Cabling Guidelines Cabling a DLT Tape Drive to SCSI Port 2 Figure 4-9. Cabling a DLT tape drive to the port 2 Cabling a Half-Height Tape Drive SCSI Port 2 Figure 4-10. Cabling a half height tape drive to the port 2...

  • Page 131: Proliant 1850R Maximum External Storage Cabling

    An additional Maximum storage configuration is available. Remove the point to point cable from the hot-plug drive cage and run it externally through the empty expansion slot for maximum totally external storage. Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 132: Server Configuration And Utilities

    Server Configuration and Utilities This chapter discusses many configuration options including, how to use the Compaq System Configuration Utility and Compaq SmartStart, and how to load device drivers. Compaq System Configuration Utility The Compaq System Configuration Utility performs a wide range of...

  • Page 133: Resolving Resource Conflicts

    The .CFG files provide information such as switch settings, IRQs, and software installation guidelines. The .CFG files for Compaq servers is located on the System Configuration diskettes and Compaq SmartStart and Support Software CD (SmartStart and Support Software CD).

  • Page 134: Starting The System Configuration Utility

    The first time you start the Compaq System Configuration Utility, follow the procedure on the Compaq SmartStart Installation poster. After the Compaq SmartStart and Support Software CD is used for the first time to create and populate the Compaq system partition, you may access the System Configuration Utility as follows: Press the Ctrl+Alt+Del keys to reboot the server.

  • Page 135: System Configuration Menu

    Server Configuration and Utilities Operating System Installation - Allows you to install one of the operating systems listed or to specify installation of an operating system that is not listed. Diagnostics and Utilities - Tests and inspects the computer. Exit from this Utility - Restarts the computer. System Configuration Menu The following options are available from the System Configuration Utility menu:...
  • Page 136 Use this step to save the configuration update when you have made changes. Drive Array Configuration This option runs the Compaq Array Configuration Utility. This Utility allows you to view and make changes to a Compaq SMART-2 Array Controller’s Configuration. Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 137: System Partition

    Server Configuration and Utilities Setting Power-On Defaults You can set and change the Power-On features at any time. Select System Configuration from the Main Menu; then select Power-On Defaults. Set the current date in the format: MM-DD-YYYY Set the correct time in the format: HH:MM:SS Set the Power-On Num Lock state: ( ) OFF...

  • Page 138: Verifying The System Partition

    Insert the Compaq SmartStart and Support Software CD in the CD-ROM drive and turn on the server. IMPORTANT: The system partition requires about 32 MB of disk space at the beginning of the hard drive and an unused entry in the boot record.

  • Page 139: Configuration Backup

    Server Configuration and Utilities Configuration Backup The Configuration Backup option allows you to create a backup of the system configuration and to restore the system configuration from the backup. The following menu options are available: Backup Restore Configuration Backup and Configuration History Files When you save and exit the System Configuration Utility, the utility keeps a history of the configuration.

  • Page 140: Configuring Pci Boards Automatically

    Installing an Operating System Single Processor Operating Support Compaq ProLiant 1850R servers support the following operating systems: NetWare 3.2, intraNetWare, intraNetWare for Small Business from Compaq, and NetWare for Small Business 4.11, NetWare 5. Microsoft Windows NT 3.51 server, 4.0, 4.0 Enterprise...

  • Page 141: Smp Operating System Support

    Banyan Vines 8.x SunSoft Solaris 2.5.1, 2.6, and above If you use Compaq SmartStart to install the OS, the drivers are installed automatically. Or when you select the Operating System Installation feature from the System Configuration Utility main menu, the utility provides prompts to simplify the installation.

  • Page 142: Loading Compaq Device Drivers

    Your server must have certain device drivers to operate with the Novell operating systems. These drivers are located on the Compaq SmartStart and Support Software CD shipped with the server. If you use Compaq SmartStart to install the operating system, these drivers will be installed automatically.
  • Page 143 LOAD A:\NETWORK\CPQNF3.LAN If using the Compaq Integrated Netelligent 10/100 TX Controller on a ProLiant 1850R server and you do not plan to use the SmartStart installation process to setup your server, you must install updated support software for your controller to connect properly to the network, refer to...

  • Page 144: Microsoft Windows Nt Device Drivers From Compaq

    5-13 Please read NETWORK.RDM from the NSSD diskettes for further information. Your ProLiant 1850R server comes with one IDE channel to which you can attach IDE devices. For each IDE channel to which you have an attached device, you must load the following drivers found on the NSSD diskette according to the type of device attached: For each IDE channel: LOAD A:\IDE\IDEATA.HAM...
  • Page 145 5-14 Server Configuration and Utilities Compaq SmartStart Installation If you use Compaq SmartStart to install the OS, the drivers are installed automatically. Manual Installation If you choose not to let SmartStart configure the server, follow this procedure: Insert the Compaq SmartStart and Support Software CD into the CD-ROM drive.

  • Page 146: Sco Openserver And Sco Unixware Device Drivers From Compaq

    Before attempting to install the SCO UNIX software, boot this diskette and read the README file for the Compaq EFS. It instructs you on how to use the BTLD or HBA diskettes along with the SCO installation media.
  • Page 147 Compaq SmartStart and Support Software CD and follow the instructions to create Supplemental Support Software diskettes. One of the diskettes on the Compaq EFS contains a bootable documentation diskette. Before attempting to install the SCO UNIX software, boot this diskette and read the README file for the Compaq EFS.

  • Page 148: Ibm Os/2 Device Drivers From Compaq

    IBM OS/2 Device Drivers from Compaq If using the Compaq Integrated Netelligent 10/100 TX Controller on a ProLiant 1850R server and you do not plan to use the SmartStart installation process to setup your server, you must install updated support software for your controller to connect properly to the network, refer to Appendix G, “Updating LAN Drivers”...
  • Page 149 5-18 Server Configuration and Utilities Compaq SmartStart Installation If you use Compaq SmartStart to install the OS, the drivers are installed automatically. Manual installation If you choose not to let Compaq SmartStart configure the server, follow this procedure: Insert the Compaq SmartStart and Support Software CD into the drive.

  • Page 150: Sunsolaris Device Drivers From Compaq

    Banyan Vines Device Drivers from Compaq If using the Compaq Integrated Netelligent 10/100 TX Controller on a ProLiant 1850R server and you do not plan to use the SmartStart installation process to setup your server, you must install updated support software for your controller to connect properly to the network, refer to Appendix G, “Updating LAN Drivers”...

  • Page 151: Diagnostics And Other Utilities

    5-20 Server Configuration and Utilities These drivers are located on the Compaq SmartStart and Support Software CD you received with your server. You can use SmartStart to create a Banyan VINES Support Software Diskette (SSD) from Compaq to support a manual installation of Banyan VINES.
  • Page 152 Controller Naming Conventions The Integrated 10/100TX UTP Controller that is embedded in this ProLiant 1850R server utilizes the same drivers as the Compaq NetFlex-3 and Netelligent 10/100 family of controllers. For your convenience, some of the popular operating systems and corresponding driver names are listed in the following table.
  • Page 153 5-22 Server Configuration and Utilities...

  • Page 154: Integrated Management Log

    Refer to the Compaq SmartStart and Support Software CD for instructions on installing the appropriate drivers. Multiple Ways of Viewing the Log You can view an event in the Compaq Integrated Management Log in several ways: From within Compaq Insight Manager...

  • Page 155: Compaq Insight Manager

    By being able to view the events that may occur to these components, you can take immediate action. You can view and print the event list from within Compaq Insight Manager by following the instructions below. You can also mark a critical or caution event as repaired after the affected component has been replaced, for example, if a fan that has failed has been replaced.

  • Page 156: Compaq Survey Utility

    It is delivered on the Compaq Management CD in the Server Setup and Management pack, or is available on the Compaq web site. Refer to the Compaq Management CD for information on installing and running the Survey Utility.

  • Page 157: List Of Events

    The event list displays the affected components and the associated error messages. Though the same basic information is displayed, the format of the list may be different depending on how you are viewing it from within Compaq Insight Manager, or from within the Compaq Survey Utility.
  • Page 158 Kernel Panic: Cause [UNIX] Abnormal Program Termination: Cause [NetWare] Automatic OS Shutdown Automatic Operating System Shutdown Initiated Due to Fan Failure Automatic Operating System Shutdown Initiated Due to Overheat Condition Fatal Exception (Number X, Cause) Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 159: Regulatory Compliance Notices

    Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Compaq Computer Corporation may void the user's authority to operate the equipment. Compaq ProLiant 1850R Setup and Installlation Guide...

  • Page 160: Cables

    Compaq Computer Corporation P. O. Box 692000, Mail Stop 530113 Houston, Texas 77269-2000 Or, call 1-800- 652-6672 (1-800-OK COMPAQ) For continuous quality improvement, calls may be monitored or recorded. For questions regarding this FCC declaration, contact: Compaq Computer Corporation P. O. Box 692000, Mail Stop 510101...

  • Page 161: Canadian Notice

    Compliance with these directives implies conformity to the following European Norms (in brackets are the equivalent international standards): EN55022 (CISPR 22) - Electromagnetic Interference EN50082-1 (IEC801-2, IEC801-3, IEC801-4) - Electromagnetic Immunity EN60950 (IEC950) - Product Safety Japanese Notice Compaq ProLiant 1850R Setup and Installlation Guide...

  • Page 162: Taiwan Notice

    A-4 Regulatory Compliance Notices Taiwan Notice Laser Devices The CD-ROM drive contains a laser device. All Compaq systems equipped with a laser device comply with safety standards, including International Electrotechnical Commission (IEC) 825. With specific regard to the laser, the equipment complies with laser product performance standards set by government agencies as a Class 1 laser product.

  • Page 163: Compliance With International Regulations

    Compliance with International Regulations All Compaq systems equipped with CD-ROM drives comply with appropriate safety standards including IEC 825. Laser Product Label The following label or equivalent is located on the surface of your CD-ROM drive. This label indicates that the product is classified as a CLASS 1 LASER PRODUCT.

  • Page 164: Battery Replacement Notice

    Lithium Manganese Dioxide or Lithium Vanadium Pentoxide battery. There is a danger of explosion and risk of personal injury if the battery is incorrectly replaced or mistreated. Replacement is to be done by a Compaq Authorized Service Provider using the Compaq spare designated for this product.

  • Page 165: Appendix B Electrostatic Discharge

    Use heel straps, toe straps, or boot straps at standing workstations. Wear the straps on both feet when standing on conductive floors or dissipating floor mats. Use conductive field service tools. Use a portable field service kit with a folding static-dissipating work mat. Compaq ProLiant 1850R Setup and Installation Guide...
  • Page 166 B-2 Electrostatic Discharge If you do not have any of the suggested equipment for proper grounding, have an Authorized Compaq Reseller install the part. NOTE: For more information on static electricity, or assistance with product installation, contact your Authorized Compaq Reseller.

  • Page 167: Power Cord Set Requirements

    10 A/125 volts AC, or 10A/250 volts AC, as required by each country’s power system. The appliance coupler must meet the mechanical configuration of an EN60320/IEC 320 Standard Sheet C13 Connector, for mating with the appliance outlet on the computer. Compaq ProLaint 1850R Setup and Installation Guide...

  • Page 168: Country-Specific Requirements

    C-2 Power Cord Set Requirements Country-Specific Requirements Use the following table to identify the appropriate accredited agency in your country. Table C-1 Power Cord Set Requirements - By Country Country Accredited Agency Applicable Note Numbers Australia EANSW Austria Belgium CEBC Canada China CCEE...

  • Page 169: Appendix D Installing A New Battery

    When your server no longer automatically displays the correct date and time, you may need to replace the battery that provides power to the real-time clock. Under normal use, battery life is usually about five to ten years. Use Compaq replacement battery part number 160274-001 a 600-milliampere alkaline, 4.5-volt battery.

  • Page 170: Installing The System Board Battery

    The System Board contains a clock/CMOS lithium battery. The lithium battery may explode if mistreated. The battery is soldered in place and may not be removed. Do not abuse or disassemble. Use only replacement batteries supplied by Compaq Computer Corporation (spare part number 160274-001).
  • Page 171 Reverse steps 1 through 3 to replace the server cover and cable the server, etc. 10. Place the sticker included with your battery kit on the back of your server above the power connector. Compaq ProLiant 1850R Setup and Installation Guide...
  • Page 172 Disconnect power from the server or other product by unplugging the power cord from either the electrical outlet or the server or other product. 12. Turn on the server. 13. Run the Compaq System Configuration utility to reconfigure the system. Refer to Chapter 5, “Server Configuration and Utilities.”...

  • Page 173: Appendix E Switches And Jumpers

    System Configuration utility. Setting System Board Switches The Compaq ProLiant 1850R System Board has two switch banks (1 and 2) located on the System Board that are used to set the overall configuration of your server.

  • Page 174: System Configuration Switch Settings (S1 Settings

    E-2 Switches and Jumpers System Configuration Switch Settings (S1 Settings) The following table defines the function for each switch setting on SW1. Table E-1 System Configuration Switch Settings ON Activates the function Switch Position Function Default Position Embedded Video Disable Configuration Lock Rack Mount Floppy Drive Override...

  • Page 175: Processor Switch Settings

    The following table defines the function for each switch setting on SW1. Table E-2 Processor Switch Settings Switch Function Default Position for Position Processor 350 MHz 400MHz 450MHz 500MHz Processor Core Frequency Processor Core Frequency Processor Core Frequency Processor Core Frequency Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 176: Nic Operating Mode

    E-4 Switches and Jumpers NIC Operating Mode The ProLiant 1850R server comes standard with the Compaq Netelligent 10/100 TX embedded controller. The controller automatically differentiates between the 10Mb and 100Mb environments when the RJ-45 connector is used. SCSI Device Jumper Settings No two SCSI devices connected to the same SCSI controller can have the same SCSI ID.

  • Page 177: System Board Battery Jumper Settings

    Board allows you to choose the internal battery and an external battery. Placing the jumper on pins 6-7 selects the internal battery. Placing the jumper on pins 5-6 selects the external battery. See Appendix D, “Installing a New Battery,” for more specific information. Compaq ProLiant 1850R Setup and Installation Guide...

  • Page 178: Specifications And Connector Interfaces

    Appendix F Specifications and Connector Interfaces This appendix provides operating and performance specifications for the Compaq Compaq ProLiant 1850R components. For other specifications, refer to the Systems Reference Library CD. ProLiant 1850R Specifications Table 1-1 ProLiant 1850R Specifications Dimensions Height 5.1 in...

  • Page 179: Connector Interfaces

    F-2 Specifications and Connector Interfaces ProLiant 1850R Specifications Continued Temperature Range ° ° ° ° Operating Range to 95 to 35 ° ° ° ° Non-operating Range to 122 to 50 Relative Humidity (noncondensing) Operating 8% to 90% 8% to 90%...

  • Page 180: Appendix G Updating Lan Drivers

    Appendix G Updating LAN Drivers Introduction This chapter provides installation instructions for installing the appropriate LAN drivers for the Compaq ProLiant 1850R embedded Network Interface controller. LAN driver’s provided with the following operating systems do not provide the correct drivers. CAUTION: Following the operating system’s driver installation...
  • Page 181 SmartStart and Support Software version 4.1 CD-ROM. The driver information is found under the following directory: (CD Drive letter) :\cpqsupsw\nssd\network . You can use the SmartStart Compaq Systems Utilities option to create Compaq Support Software. You can also download SoftPaq SP5701.EXE from the Compaq website www.compaq.com to create the Compaq Support Software For Novell Products...
  • Page 182 LAN Driver Update procedure For intraNetWare for Small Business from Compaq. Follow the procedure below to update the LAN Driver for the IntraNetWare for Small Business from Compaq Operating System. If the LAN driver does not load, the following warning and window will be displayed sequentially. WARNING: You do not have a LAN driver loaded.
  • Page 183 A:\NETWORK and press Enter. When the LAN Driver Options screen appears, scroll down and highlight the following driver: CPQNF3.LAN - Compaq 10/100 Embedded UTP controller and press Enter to select this driver. The new, updated driver is copied to your local hard drive. Follow the instructions that appear during the copy process.
  • Page 184 53C876 SCSI Controller found on the ProLiant 800/850R and the ProLiant 1850R before starting the installation. For more detailed information on this subject please refer to the NetWare/intraNetWare Customer Advisory/Technical Solutions document #EN971210_CD01 for the ProLiant 800/850R found on the Compaq Website.

  • Page 185: Lan Driver Update Procedure For Netware 3.2

    Installing Windows NT 4.0 LAN Drivers The LAN drivers on the Microsoft Windows NT 4.0 CD-ROM do not work with the embedded Network Interface Controller on the Compaq Proliant 1850R server. Follow the procedure below to install the Windows NT 4.0 drivers.

  • Page 186: Installing Ibm Os/2 Lan Drivers

    Type the following path into the space provided on the Insert Disk Dialog Box: A:\NET\NETFLX3 then press Enter. Wait for the Select OEM Option dialog box to appear. The Compaq NetFlex-3 Controller selection will be highlighted. Select OK. In the next dialog box under Network Adapters the Compaq NetFlex-3 Controller should be check marked if so, select next and continue with the Windows NT 4.0 network installation.

  • Page 187: Installing Banyan Vines Lan Driver

    Insert the OS/2 NIC Software Support Diskette (SSD) #2 Diskette into the floppy drive. Provide the path as A:\IBMCOM and select OK. In the Network Adapters list box, select Compaq NetFlex-3 and Netelligent Network Controllers and click on the Add button. Add the required protocols to the adapter(s) added.
  • Page 188 Select Add a card. From the list of controllers displayed. Select the Compaq Network Adapter which exists on your system. 10. Change the Slot Number to match the slot that the controller occupies, or for an integrated controller specify any slot number that does not contain a network controller.

  • Page 189: Installing Sunsoft Solaris 2.5.1, 2.6, And Later Versions (Intel Platforms) Lan Drivers

    G-10 Updating LAN Drivers 11. Save the configuration and exit. The following message is displayed: "Building device drivers, please wait .." 12. The Banyan Server Configuration screen is displayed. Select Return to the System Maintenance Menu. 13. From the System Maintenance menu select Return to the operator menu. 14.

  • Page 190: Index

    About This Guide xi accessing hot-plug areas 3-31 Backup configuration 5-8 hot-plug power supplies 3-34 Banyan Vines non hot-plug areas 3-2 device drivers 5-19 Airflow LAN drivers G-8 for rack 2-7 version 8.x 5-10 Compaq ProLiant 1850R Setup and Installation Guide...
  • Page 191 3-28, 4-18 CD-ROM drive location 1-3 a hard drive 3-26 1.44-MB diskette drive location an array controller to a hot-plug backplane board, illustrated Compaq Insight Manager 1-19, 6-2 4-17 Compaq Integrated Remote Console Campaq Wide-Ultra controller 1-18 (PCI) 4-13...
  • Page 192 SMART-2DH 1-11 slot identification 3-9 SMART-2SL 1-11 disassembly 3-1 controller driver naming conventions disk controller 1-11 5-21 distributed data guarding drives 1-19 controller, integrated 10/100 TX UTP DLT tape drive 4-6 1-12 controllers 1-11 Compaq ProLiant 1850R Setup and Installation Guide...
  • Page 193 Index-4 documentation and software packs expansion slots 2-11 locating 3-10 documentation kits 2-11 expansion slots, illustrated 1-11 DRAM installed 1-15 external cabling for primary storage Drive bay guidelines 4-15 positions 1-12, 1-14, 4-6 external cabling for secondary storage drive installation guidelines 4-7 4-16 drive positions 1-12, 1-15 guidelines 4-16...
  • Page 194 3-31, 3-32 hot-plug power supplies tools needed for rack model location 2-31 server 2-11 hot-plug power supply 1-16 installation sequence 2-8 installation 3-34 installations and upgrades 4-11 installing 3-35 Compaq ProLiant 1850R Setup and Installation Guide...
  • Page 195 4-3 mass storage devices 4-6 intraNetWare 4.11 SMP 5-10 mounting bracket assembly for IntraNetWare for Small Business rack server 2-22 frorm Compaq 5-10 operating system 5-9, G-1 IRQs 2-35 processor power module 3-7 rack model server 2-1 boards 3-10...
  • Page 196 CD-ROM drive 1-3 part number listing 3-9 DIMM sockets 1-8 Microsoft OS/2 half height drives 1-3 device drivers 5-17 hot-plug power supply 1-8 Microsoft Windows NT device drivers memory modules sockets 1-8 5-13 Compaq ProLiant 1850R Setup and Installation Guide...
  • Page 197 Index-8 Microsoft Windows NT servers 3.51 operating systems, installation 2-35 5-10 Option configuration files See .CFG Microsoft Windows NT servers 4.0 files 5-10 options mirroring drives 1-19 controller boards 2-12 MLR tape drive hot-pluggable hard drives 2-12 cabling 4-19 hot-pluggable redundant power mounting bracket supply 2-12 rack server 2-14...
  • Page 198 2-25 enabling the switch 2-36 blanking panels 2-7 powering down the server 3-2 grounding requirements 2-6 powering the server 2-33 inserting cage nuts 2-21 powering up the server 2-33 power-on password security 1-23 Compaq ProLiant 1850R Setup and Installation Guide...
  • Page 199 Index-10 Rack rack model server Continued installation sequence for rack installing 2-1 model server 2-8 rack mount brackets installing front identification 2-16 mounting bracket assembly rack mounting brackets 2-11 2-22 mounting to rack 2-22 internal temperature maximums preparation 2-13 rack mounting template 2-11 loading server 2-26 measuring server position in rack Planning and Installation Guide...
  • Page 200 2-37 Health Logs 1-17 internal components locations loading into rack 2-26 safety management and configuration rack server 2-26 1-17 SCO OpenServer rack mounting bracket 2-14 device drivers 5-15 rack slide rail assembly 2-14 Compaq ProLiant 1850R Setup and Installation Guide...
  • Page 201 Automatic Server Recovery-2 site planning 2-2 (ASR-2) 1-20 slide rail assemblies 2-11 cache memory 1-10 illustrated 2-13 Compaq Insight Manager 1-19 preparing 2-13 drive positions 1-12, 1-14, 4-6 slide rail assemblies, illustrated 2-13 expansion slots 1-10 slide rail assembly fault tolerance 1-19...
  • Page 202 5-7 Diagnostics 5-20 partition verifying 5-7 EISA Configuration Utility 2-9 System Board INSPECT Utility 2-35 battery replacement D-1 Inspect Utility, running after System Configuration utility 2-34, configuration 5-20 5-3, 5-4 system initialization 1-17 Compaq ProLiant 1850R Setup and Installation Guide...
  • Page 203 VINES device drivers 5-19 warnings rack installation 2-3 server installation 2-4 warranty 1-16 pre-failure 1-24 Website location Compaq G-2 SunSoft Solaris G-10 Wide Ultra2 SCSI 1-2, 1-4, 1-5, 1-9, 1-14, 1-15 wide-utra SCSI devices 1-9 Windows NT device drivers 5-13...

Table of Contents
