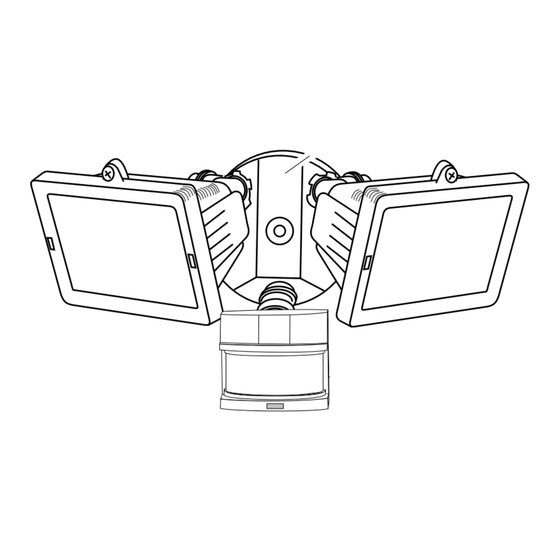

Twin Halogen
Motion Sensing
Light with 2-Level
Lighting
Model 5512
Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• 2-Level Lighting Timer.
• Photocell keeps the lighting off during daylight
hours.
• LED indicates motion was sensed (day or night).
This package includes:
Plastic Hanger
Rubber Plug
Cover
Sensor
Light Control
Mounting Bolt
Mounting Strap
2 Halogen Bulbs
Requirements
• The Light Control requires 120-volts AC.
• If you want to use Manual Mode, the control must be
wired through a switch.
• Some codes require installation by a qualifi ed
electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in wet
locations.
© 2007 DESA Specialty Products™
6 Mounting
Screws (3 sizes)
Plate
3 Wire
Connectors
Gasket
Light Shield
OPERATION
®
Mode:
On-Time:
Test
5 Sec
Auto
1, 5, 20 min.
Manual
Until Dawn*
* resets to Auto Mode at dawn.
Note: When fi rst turned on wait about 1
the circuitry to calibrate.
Put ON-TIME switch
on the sensor bot-
tom to TEST and
the 2-Level Lighting
switch OFF.
Put the ON-TIME switch in the 1, 5,
or 20 minute position.
Manual mode only works at night
because daylight returns the sensor
to AUTO.
Flip the light switch off for one second
then back on to toggle between AUTO
and MANUAL MODE.
Manual mode works only with the
ON-TIME switch in the 1, 5, or 20
position.
Mode Switching Summary
TEST
AUTO
MANUAL MODE
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the cali-
bration time the control will be in the AUTO mode.
2-LEVEL LIGHTING TIMER
Light comes on half bright for selected time after dusk
(Off, 3 hr., 6 hr., until dawn). If motion is sensed, the
light turns on full bright for the ON-TIME (1, 5, or 20
minutes) then returns to dim mode.
Works:
Day
1
/
2
TEST
2-Level
ON-TIME
Lighting
TEST 1 5 20
Off 3 6 Dusk to
AUTO
MANUAL MODE
1 Second OFF
Move ON-TIME Switch to
1, 5, or 20 minutes
Flip light switch
off for one second
then back on*
Night
x
x
x
x
minutes for
Dawn
ON-TIME
TEST 1 5 20
then...
... back on.
598-1275-00
Advertisement
Table of Contents
Related Manuals for Desa Twin Halogen Motion Sensing Light with 2-Level Lighting 5512
Summary of Contents for Desa Twin Halogen Motion Sensing Light with 2-Level Lighting 5512
- Page 1 • Some codes require installation by a qualifi ed electrician. • This product is intended for use with the enclosed gasket and with a junction box marked for use in wet locations. © 2007 DESA Specialty Products™ ® Mode: Test Auto Manual * resets to Auto Mode at dawn.
-
Page 2: Installation
INSTALLATION For easy installation, select an existing light operated by a wall switch for replacement. For best performance, mount the fi xture about 8 ft. (2.4 m) above the ground. CAUTION: Keep the sensor at least 1" (2.5 cm) away from the lamps. CAUTION: To Avoid Fire Or Burn Hazards: •... -
Page 3: Test And Adjustment
Replacement lamp ..T3, 150W halogen maximum 2-Level Lighting Timer . . Off, 3, 6 hours, Dusk-to- Motion DESA Specialty Products reserves the right to dis- continue products and to change specifi cations at any time without incurring any obligation to incorporate new features in products previously sold. -
Page 4: Troubleshooting Guide
This warranty does not include reimbursement for inconvenience, installation, setup time, loss of use, unauthorized service, or return shipping charges. This warranty covers only DESA Specialty Products assembled products and is not extended to other equipment and components that a customer uses in conjunction with our products. - Page 5 1, 5 ó 20 min. Manual Hasta el amanecer* *Se pone en Automático al amanecer. 598-1275-00 © 2007 DESA Specialty Products™ Cuando lo prenda por primera vez espere 1 hasta que el circuito se calibre. ® Ponga el interruptor de Duración (ON-TIME) que está...
- Page 6 INSTALACION Para una fácil instalación escoja una luz con un interruptor de pared. Para un mejor funcionamiento, instale el aparato a casi 2,4 m del suelo. CUIDADO: Mantenga al detector por lo menos a 2.5 cm de las lámparas. CUIDADO: Para evitar los peligros de incendio o quemazón: •...
-
Page 7: Prueba Y Ajuste
2 niveles ..Apagado, 3, 6 horas, del anocher Movimiento DESA Specialty Products se reserva el derecho de descontinuar productos y de cambiar especifi caciones a cualquier momento sin incurrir en ninguna obligación de tener que incorporar nuevas características en los... -
Page 8: Guia De Investigacion De Averias
Esta garantía cubre solamente los productos ensamblados por DESA Specialty Products y no se extiende a otros equipos o compo- nentes que el consumidor usa junto con nuestros productos.
