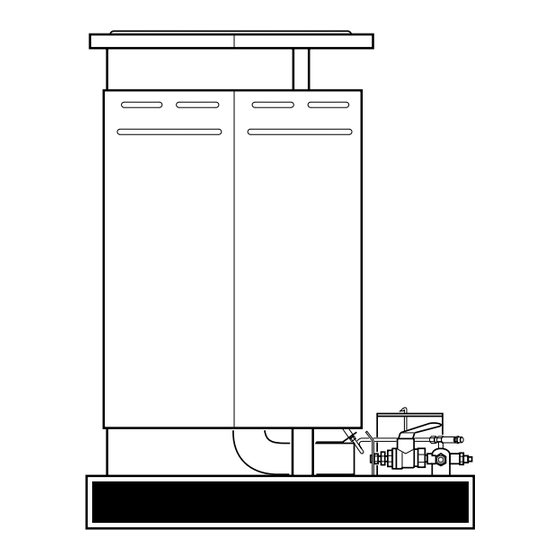

CONSTRUCTION
Read and understand this manual before assembling, starting, or servicing heater.
Improper use of heater can cause serious injury. Keep this manual for future
reference.
FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PRO-
VIDED WITH THIS HEATER, CAN RESULT IN DEATH, SERIOUS BODILY INJURY
AND PROPERTY LOSS OR DAMAGE FROM HAZARDS OF FIRE, EXPLOSION,
BURN, ASPHYXIATION, AND/OR CARBON MONOXIDE POISONING.
ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS
SHOULD USE OR SERVICE THIS HEATER.
IF YOU NEED ASSISTANCE OR HEATER INFORMATION SUCH AS AN INSTRUC-
TIONS MANUAL, LABELS, ETC. CONTACT THE MANUFACTURER.
PROPANE
HEATER
OWNER'S MANUAL
Models: TC80 and RCP80
IMPORTANT
GENERAL HAZARD WARNING:
Advertisement
Table of Contents
Related Manuals for Desa RCP80
Summary of Contents for Desa RCP80
- Page 1 PROPANE CONSTRUCTION HEATER OWNER’S MANUAL Models: TC80 and RCP80 Read and understand this manual before assembling, starting, or servicing heater. Improper use of heater can cause serious injury. Keep this manual for future reference. FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PRO-...
-
Page 2: Table Of Contents
CONTENTS SAFETY INFORMATION SECTION Safety Information ... 2 Product Identification ... 4 Specifications ... 4 Unpacking ... 5 Theory of Operation ... 5 Propane Supply ... 5 Ventilation ... 5 Installation ... 6 Operation ... 7 Storage ... 9 Maintenance ... 10 Troubleshooting ... -
Page 3: Safety Warnings
SAFETY INFORMATION Continued 099684 WARNINGS Propane Gas: Propane gas is odorless. An odor-making agent is added to propane gas. The odor helps you detect a propane gas leak. However, the odor added to propane gas may fade. Propane gas may be present even though no odor exists. Make certain you read and understand all warnings. -
Page 4: Product Identification
PRODUCT IDENTIFICATION SPECIFICATIONS Thermocouple Ignitor Electrode Burner Tube Main Burner Valve Handle Main Burner Valve Automatic Control Valve Button Figure 1 - Product Identification Rating (BTU/Hr) High ... 73,000 Low ... 30,000 Fuel ... Propane Vapor Only Fuel Consumption Gallons/Hour ... 1.1 Pounds/Hour ... -
Page 5: Unpacking
UNPACKING THEORY OF OPERATION PROPANE SUPPLY VENTILATION 099684 1. Remove all packing items applied to heater for shipment. Keep plastic cover caps (attached to inlet connector and hose/regulator assembly) for storage. 2. Remove all items from carton. 3. Check all items for shipping damage. If heater is damaged, promptly inform dealer where you bought heater. -
Page 6: Installation
INSTALLATION WARNING Review and understand the warnings in the Safety Informa- tion section, pages 2 and 3. They are needed to safely oper- ate this heater. Follow all local codes when using this heater. Test all gas piping and connections for leaks after installa- tion or servicing. -
Page 7: Operation
OPERATION 099684 5. Check all connections for leaks. Apply mixture of liquid soap and water to gas joints. Bubbles forming show a leak that must be corrected. Never use an open flame to check for a leak. Apply a mixture of liquid soap and water to all joints. - Page 8 5. If pilot light goes out, repeat step 4. 6. When pilot remains lit, fully open main burner valve. Do this by turning valve handle to the HIGH position. You can now position the handle to any setting between HIGH and LOW. CAUTION Only use the main burner valve handle to adjust the burner flame.
-
Page 9: Storage
STORAGE 099684 Burner Tube Flame Inside Burner Tube (makes roaring noise) Figure 6 - Flame Pattern during Flashback To Stop Heater 1. Tightly close propane supply valve on propane tank(s). Allow heater to burn remaining fuel in hose. 2. Shut off main burner valve. Do this by turning valve handle towards the OFF position until it stops. -
Page 10: Maintenance
MAINTENANCE TROUBLE- SHOOTING Never attempt to service heater while it is connected to propane supply, operating, or hot. Severe burns can occur. 1. Keep heater clean. 2. Inspect heater before each use. Check connections for leaks. Apply mixture of liquid soap and water to connections. Bubbles forming show a leak that must be corrected. -
Page 11: Accessories
Purchase these heater accessories and parts from your nearest dealer or service center. If they can not supply an accessory or part, either contact your nearest Parts Central (listed in the separate Authorized Service Center booklet) or call DESA International’s Parts Department at 1-800-972-7879 for referral information. You can also write to the address listed on the back page of this manual. -
Page 12: Illustrated Parts List
ILLUSTRATED PARTS BREAKDOWN RCP80, TC80 HEATER EXPLODED VIEW 099684... - Page 13 Piezo Ignitor (Includes Nut) 097155-01 Automatic Control Valve 098835-01 Nut, 1/2"-28 PARTS AVAILABLE - NOT SHOWN 099681-01 Information Decal 099683-01 Operation Decal 098851-03 Tradename Decal (RCP80) 098853-04 Tradename Decal (TC80) 099684-01 Owner’s Manual ACCESSORIES LPA1000 Hose Assembly LPA2130 Regulator LPA4020 Fuel Gas Connector QTY.
- Page 14 _______________________________________________________________ NOTES _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ 099684...
- Page 15 _______________________________________________________________ NOTES _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ 099684...
-
Page 16: Warranty And Repair Service
WARRANTY AND REPAIR SERVICE DESA International warrants this product and any parts thereof, to be free from defects in materials and workmanship for one (1) year from the date of first purchase when operated and maintained in accordance with instructions. This warranty is extended only to the original retail purchaser, when proof of purchase is provided.
