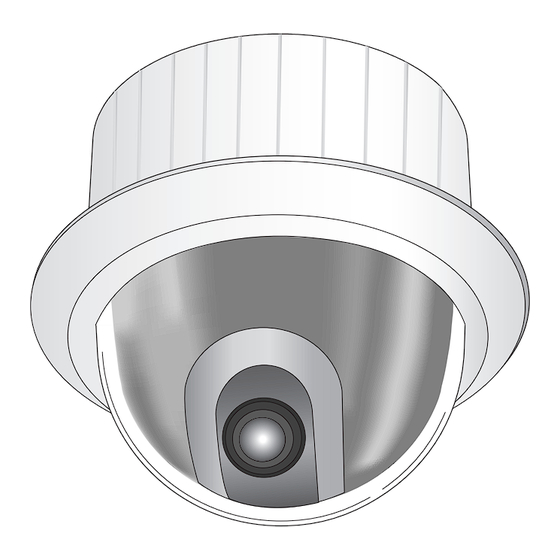

Samsung SCC-641 - 22x Zoom Smart Dome Camera Owner's Instructions Manual
Combi dome camera
Hide thumbs
Also See for SCC-641 - 22x Zoom Smart Dome Camera:
- Owner's instructions manual (140 pages) ,
- Specification sheet (2 pages) ,
- Specifications (1 page)
Related Manuals for Samsung SCC-641 - 22x Zoom Smart Dome Camera
Summary of Contents for Samsung SCC-641 - 22x Zoom Smart Dome Camera
- Page 1 Combi Dome Camera SCC-641(P) Owner s Instructions Part : AB68-00136A Printed in Korea...
-
Page 2: Before Usage
Before Usage This is a basic instruction manual for the SCC-641(P) user. It contains all the "Chapter 1 SCC-641(P) Overview" includes a brief introduction of the instructions needed to use the SCC-641(P) from a simple introduction of the SCC-641(P), part names and functions, and Switching Settings. control locations and functions of the SCC-641(P) to installation methods in the set up menu. - Page 3 Approval of Standards MEMO Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interface in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 4: Table Of Contents
Table of contents " - SHUTTER 3-10 - AGC 3-11 Before Usage - WHITE BAL 3-12 Chapter 1 SCC-641(P) Overview - SPECIAL 3-14 SCC-641(P) Introduction - AUTO FOCUS 3-15 SCC-641(P) Location of Controls - D-ZOOM 3-15 Locations of Controls - Front - EXIT 3-15 Locations of Controls - Back... -
Page 5: Chapter 1 Scc-641(P) Overview
Chapter 1 SCC-641(P) Overview SCC-641(P) Introduction The SCC-641(P) is the best performing zoom lens integrated surveillance In this chapter we will briefly introduce the SCC-641(P) and camera. It can be used with CCTV in banks or companies to provide high show main functions, locations of control and Switch Setting. -
Page 6: Locations Of Controls - Back
Locations of Control BACK FRONT... -
Page 7: Adapter Connection
EX) CAMERA ADDR: When it's number 1, set as follows. SCC-641(P) Adapter BOARD SW500 Setting communication Protocol. Use number 6~8 PIN of SW501 to set communication Protocol. A :SAMSUNG(SSC-1000) Setting BAUD RATE Use number 4 and 5 of SW501 to set BAUD RATE. SW501 PIN 5... -
Page 8: Setting Rs-422A/Rs-485 Termination
Setting RS-422A/RS-485 termination SWITCH SETTING Receiver Address SW500-1 SW500-2 SW500-3 SW500-4 SW500-5 SW500-6 SW500-7 SW500-8 As it is shown in the structure map, when Controller and RS-422A/RS-485 is connected it should be terminated according to the Cable feature of impedance on the each end of the transmitting line to transfer the signals in long distance by controlling the reflection of the signals to the lowest. - Page 9 Receiver Address SW500-1 SW500-2 SW500-3 SW500-4 SW500-5 SW500-6 SW500-7 SW500-8 Receiver Address SW500-1 SW500-2 SW500-3 SW500-4 SW500-5 SW500-6 SW500-7 SW500-8...
- Page 10 Receiver Address SW500-1 SW500-2 SW500-3 SW500-4 SW500-5 SW500-6 SW500-7 SW500-8 Receiver Address SW500-1 SW500-2 SW500-3 SW500-4 SW500-5 SW500-6 SW500-7 SW500-8...
-
Page 11: Checking Package Contents
Before Installing Chapter 2 SCC-641(P) Installation Checking Package Contents Please check that all components listed below are included in the package: In this chapter we will look over the checkpoints before installation, installation environmental requirements, and precautions during the installation of the SCC-641(P). After that we'll show the actual installation of the SCC-641(P) and cable connections. -
Page 12: Precautions For Installation And Usage
Precautions for Installation and Usage. Never face the SCC-641(P) towards the sun. Whether the SCC-641(P) is in use or not, never face it towards the sun. Use Do not attempt to disassemble the SCC-641(P). with caution when operating the SCC-641(P) in the vicinity of spotlights or There is a danger of electric shock if the screws or cover are removed. -
Page 13: Preparing The Cable
Cable Connection Preparing the Cables 1. First, connect one end of the BNC video cable connector to the Video Output Terminal (VIDEO OUT) To install and use the SCC-641(P), the following cables should be prepared. 2. Then, connect the other end of the connector to the Video Input Terminal of the monitor. -
Page 14: Scc-641(P) Installation
4. [Figure 3,4] Connect the various cables to the CAMERA ADAPTER. (See page 2-6) SCC-641(P) Installation 1. [Figure 1] Install the structure on the ceiling. (Refer to Installation reference for the Length of the structure) * Built in by the builder of the structure [Figure 1] [Figure 3] [Figure 4]... -
Page 15: Chapter 3 Setup Menu Overview
6. [Figure 6] Match the 3 holes on the back of the CAMERA and the CONNECTOR and turn it left about 15 degrees. (Check the sound of LOCKING and that the LEVER-LOCKING is in place) Chapter 3 Setup Menu Overview * Use the screws (BH M3XL8) to connect the CAMERA and the ADAPTER so they don't move. - Page 16 Structure of the Setup Menu ALARM SET ALARM PRIORITY SET ALARM1 1~4 ALARM2 1~4 ALARM3 1~4 CAMERA CAMERA ID ON.../OFF ALARM4 1~4 V-SYNC INT/LINE... EXIT QUIT/SAVE ZOOM SPEED 1/2/3/4 MOTION DET ON.../OFF ALARM IN SET ALARM1 NO/NC/OFF EXIT QUIT/SAVE/PRESET ALARM2 NO/NC/OFF ALARM3 NO/NC/OFF ALARM4 NO/NC/OFF VIDEO SET...
-
Page 17: Camera Id
CAMERA BLOCK MENU Contents Camera Menu consists of CAMERA SET Menu and VIDEO SET Menu. The diagram shown above illustrates the overall structure of the Setup Menu. (VIDEO SET) In this section, a description of the Setup menu features will enable users of (CAMERA SET) IRIS ALC... -
Page 18: Zoom Speed
MOTION DET (CAMERA SET) In the V-SYNC menu, vertical synchronization can be CAMERA ID In MOTION DET, you can set the Motion Detection function, Motion Detection Sensitivity, and V-SYNC selected. The vertical synchronization signal supported ZOOM SPEED the Area of Motion Detection. If the Motion Detection function is set, the movement of an MOTION DET by the SCC-641(P) is the INT mode made by clock inside intruder can be detected. -
Page 19: Exit
EXIT VIDEO SET MENU The EXIT menu is used to quit the CAMERA SET menu of the SCC-641(P) and return IRIS to the MAIN MENU. The video output level of the monitor can be controlled by the IRIS lens depending on the - QUIT: Ignores the changed information and restores the saved information. -
Page 20: Shutter
POSITION (VIDEO SET) POSITION IRIS ALC... Use the SHUTTER [Left, Right, Up, Down] WHITE BAL SPECIAL AUTO FOCUS Keys D-ZOOM SIZE SIZE EXIT QUIT MANU If the IRIS item is set to MANU, the sub screen to open and shut the Iris manually will If your press the left/right keys continuously, the speed will appear in the following order. -
Page 21: White Bal
WHITE BAL WHITE BAL The WHITE BAL menu insures that white is calibrated normally under any color Lights are generally denoted as color temperatures and expressed in Kelvin ( K) temperature condition. When the WHITE BAL menu is set to the ATW mode, the white units. -
Page 22: Special
SPECIAL AUTO FOCUS In the SPECIAL menu, POSI/NEGA, PIP, Mirror, and vertical and horizontal detail level In the AUTO FOCUS MENU, the Focus method can be set to AF, MF, can be adjusted. or ONEAF. - AF: With AUTO FOCUS MODE, you can monitor the screen continuously and it will focus - POSI/NEGA: Video output signal is outputted normal/reverse. -
Page 23: Preset
PRESET POSITION SET PRESET NO.0 SET PAN/TILT A total of 128 presets are available including the selection of PAN/TILT location and SET ZOOM/FOCUS From "POSITION SET " press [ENTER] to get into the Zoom/Focus, and setting up screen conditions and monitoring. (0 ~ 127) PAN/TILT, FOCUS/ZOOM SET screen to set the PAN/TILT Among the 128 PRESETS PRESET 0: HOME POSITION, PRESET 1: ALARM1, location and FOCUS/ZOOM condition then press [ENTER]... -
Page 24: Auto Mode
AUTO MODE END SET AUTO PAN and PATTERN functions are in AUTO MODE. SET END! "END SET" gets into the END SET setup screen by AUTO PAN pressing [ENTER]. Adjust PAN/TILT location and After selecting the locations of two points (PAN/TILT) of START and END, it loops press [ENTER] to return to a higher menu. -
Page 25: Pattern
PATTERN ALARM SET This is a replay function so that the MANUAL functions such as PAN, TILT, ZOOM, It consists of 4 ALARM INPUTs and 3 ALARM OUTs.It can sense an ALARM input from and FOCUS are played for 30 seconds. exterior SENSORs and it performs with PRESET or PATTERN function and outputs the ALARM OUT signals. -
Page 26: Other Set
ALARM OUT OTHER SET ALARM OUT ALARM1 Each ALARM input corresponds to one of the 3 ALARM2 HOME RETURN ALARM3 ALARM OUT. < The ALARM3 is designed as the ALARM4 MOTION Relay OUT > When there is no KEY input or other movement for a certain time, the camera moves to the HOME location automatically. - Page 27 SCC-641 Product Specifications SCC-641P Product Specifications Contents Contents Items Items Zoom lens single body COMBI DOME CAMERA Zoom lens single body COMBI DOME CAMERA Product Type Product Type - AC 24 10% (60Hz 0.3Hz) - AC 24 10% (50Hz 0.3Hz) Power Input Power Input - 18W...
