- Page 1 INSTALLATION INSTRUCTIONS REG-D1 MAN-REG-D1-03...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep this instruction. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with manufacturer instructions. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
- Page 3 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the power where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
- Page 4 Bosch Security Systems, Inc. will not be responsible for injuries or damages resulting from the improper installation or use of any camera sold by Bosch Security Systems, Inc., their agents, distributors or dealers. EU Directives covered by this declaration:...
- Page 5 PSU box. 3)Contact Bosch Service Center for further advice...
-
Page 6: Table Of Contents
INDEX – REG - D1 Camera Description………………………………………………...1 Unpacking………………………………………………..2 Parts List…………………………………………………..2 Items Required for Installation…………………………..2 Initial Preparations………………………………………..3 Guidelines………………………………………………..3 1. Mechanical Specification REG-D1………………..4 2. Input Power / Video Output Connections………….5 3. Mounting Specification………..……………………..6 4. Color Overview Camera Lens Setting…………… 10 5. Troubleshooting…………...…………………… …..14 6. -
Page 7: Description

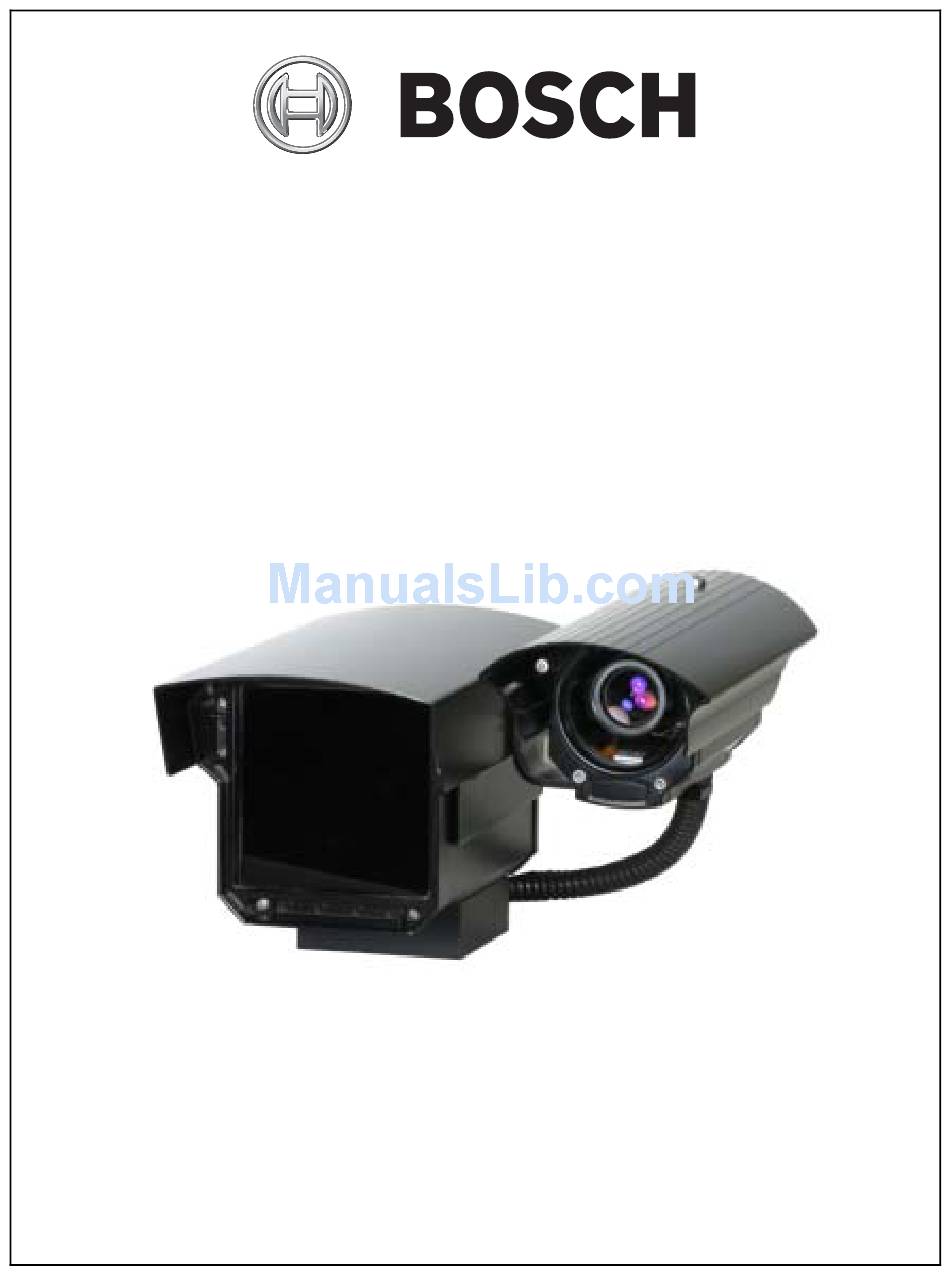

DESCRIPTION The REG-D1 license plate capture camera unit consists of one IR-sensitive monochrome camera, one integrated panel of Infrared LEDs, and one color overview camera. The license plate capture camera produces optimum license plate images during day and night settings in all-weather conditions. -
Page 8: Unpacking
Check the parts list and confirm all items have been located. Inspect the equipment thoroughly to ensure nothing was damaged in transit. Contact Bosch Service Center if a problem is noted, see the rear page of this booklet for contact numbers. PARTS LIST (items supplied with unit) -
Page 9: Initial Preparations
INITIAL PREPARATIONS • Determine the operating voltage at the installation site. The camera‘s Voltage Regulator Board accepts both 12-24VDC/VAC input without change to internal connections. See Section 2, Input Power Connections. • Determine the optimum location for the camera. See Section 3, Mounting Specification. •... -
Page 10: Mechanical Specification Reg-D1
1. MECHANICAL SPECIFICATIONS–REG D1 (See Section 6 - General Specifications, for more information) Front View Side View Bottom View *Optional mounting kits: EXMB028 or EXMB029 Figure 1 General Mechanical Specifications - 4 -... -
Page 11: Input Power / Video Output Connections
2. INPUT POWER / VIDEO OUTPUT CONNECTIONS The camera unit is pre-connected with a electrically isolated power board for 12 to 24 VDC/VAC operation with no wiring change or wiring polarity. Note: Input voltage is 12VDC to 24VDC for DC input. The AC input range is 12VAC to 24VAC. -
Page 12: Mounting Specification
3. MOUNTING SPECIFICATION Caution: Install with appropriate screws to suit mounting surface. Select a suitable location that is protected from accidental damage, tampering and environmental conditions exceeding the camera’s specifications. See page 20. Caution: Ensure the selected location is protected from falling objects, accidental contact with moving objects, and unintentional interference from personnel. - Page 13 The REG-D1 units have a recommended operation range with specified optimal capture distance for each model as shown below. Any number plate recognition installation should aim to control the traffic through a lane. Model Range, ‘R’ Optimal Distance* REG-D1-816 12 – 22 ft | 3.7 – 6.7 m 16 ft | 4.9 m REG-D1-825 20 –...
- Page 14 * Optimal distance calculated to allow license plates of 120 pixels wide. Most DVR application can provide readable plates larger than 80 pixels depending on level of image compression set on DVR. The maximum angle of the unit to the car is 40º. This is both horizontally and vertically.
- Page 15 Range ‘R’ 40ْ Figure 5 Maximum Horizontal Angle If the maximum range is exceeded the letters will become smaller and be more difficult to read. At the max range the width of the number plate covers approximately 12% of the width of the screen. Note: The ‘R’, Range is the distance from the camera to the license plate.
-
Page 16: Color Overview Camera Lens Setting
4. COLOR OVERVIEW CAMERA LENS SETTING The following steps show the installer how to access the camera board and the camera lens. Step 4.1 - Remove sunshield by loosening top bolt with a standard Philips screwdriver. Step 4.2 - Disconnect the power source to the camera and the video signal at the BNC connector. - Page 17 Figure 6 Rear Housing Removal - 11 -...
- Page 18 Remove Cap screw Loosen lens Lens set screws Figure 7 Housing Separation for Camera, Lens and Voltage Regulator Board Access - 12 -...
- Page 19 4.1 Vari-Focal and “Auto-Iris” Control Adjustments Step 4.1.1 - Loosen the lens set screws for focus/zoom adjustments. Step 4.1.2 - The set screw with no mark is used for image focus. Step 4.1.3 - The set screw marked T←→ W is used for telephoto or wide-angle settings.
-
Page 20: Troubleshooting
5. TROUBLESHOOTING GUIDE PROBLEM POSSIBLE LIKELY SOLUTION CAUSE No Video Power Check the input Supply power connections at Connections the terminal block, ensuring no wires are loose. Voltage The supply range is: Range 12 – 24 VDC or 12 – 24 VAC. - Page 21 Check the video signal. If okay, the problem is with the interconnections. If still no video, contact Bosch Service Center. See rear page of this manual for contact information. Horizontal Ground Check the coax cable Scan Loop on shield is not touching...
-
Page 22: Picture Quality
Poor Color Picture Quality Dim Image Iris closed Increase iris level on lens Snowy Image Noisy Power Check connections. (cont’d.) Supply Relocate or replace power supply. Horizontal Scan Lines, Ground Check the coax cable Rolling Up or Looping on shield is not touching Down video cable ground, e.g. - Page 23 Only qualified personnel shall install any Bosch Security Systems, Inc. product. Bosch Security Systems, Inc. will not be responsible for injuries or damages resulting from the improper installation or use of any product sold by Bosch Security Systems, Inc., their agents, distributors or...
-
Page 24: General Specifications
6. GENERAL SPECIFICATIONS Power Consumption: 27W Max. Input Voltage: 12 – 24 VDC or 12 – 24 VAC Enclosure (housing): Aluminum casting and extrusion (sealed to IP66 / NEMA4) Viewing Windows: Polycarbonate and Acrylic Dimensions: 167mm H ( 6.57” ) 277mm W ( 10.9”... - Page 25 Note: - 19 -...
