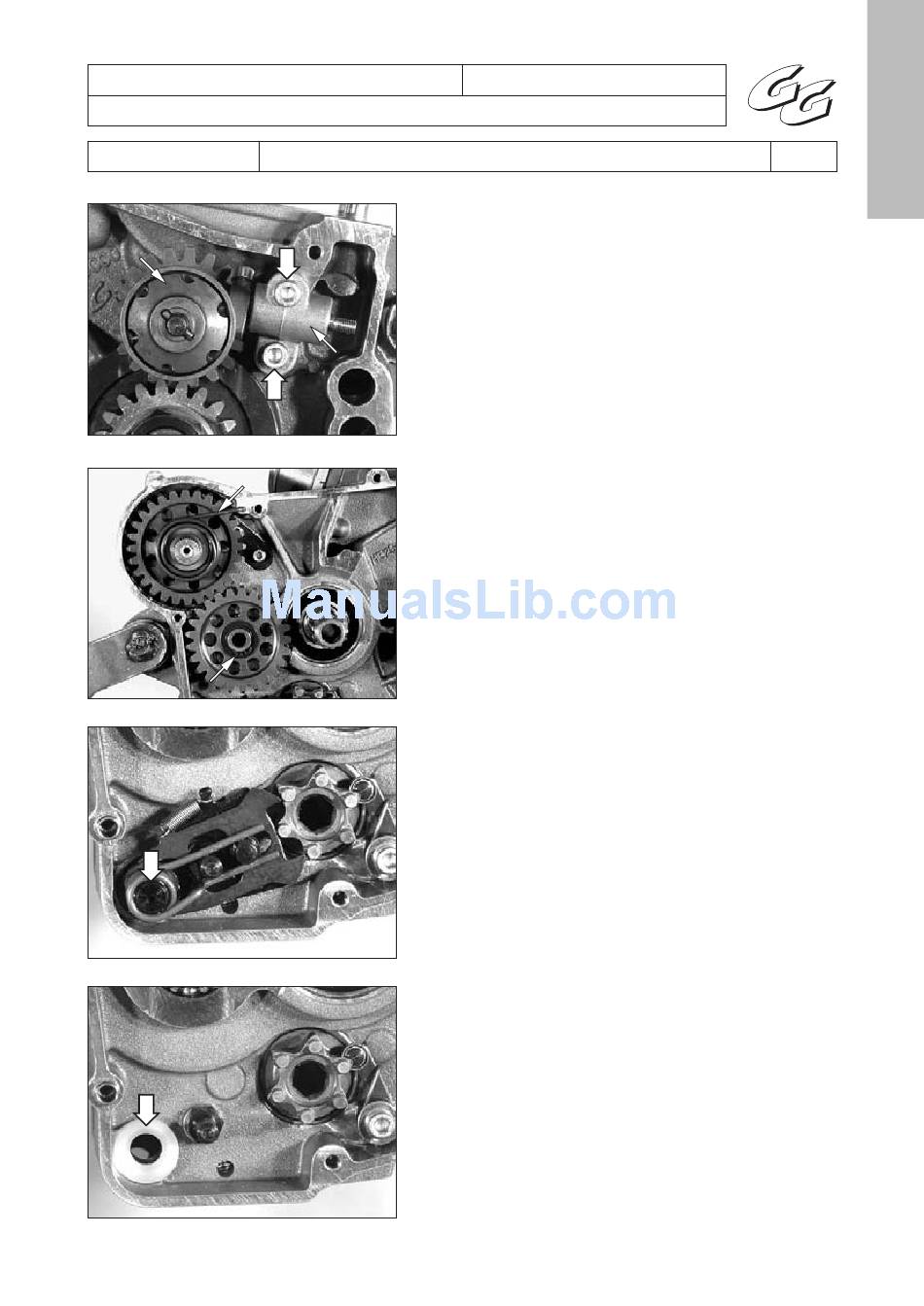

Dismount the centrifugal operating system of the exhaust
valve
2
- Take the shaft and pinion off the water pump.
- Undo the screws -arrows- and remove the support -1- from
the exhaust valve control shaft.
- Remove the centrifugal mechanism from the exhaust valve
-2-.
1

Dismantling the starter pinion unit

1
- Dismount the spring -1- using pliers and remove the starter
pinion unit.
- Remove the circlip -2-, remove the spacer washer, and take
off the inner starter pinion.
2

Dismantling the gear selector unit

- Remove the complete selector rod -arrow- by pulling
outwards.
- Remove the selector rod bushing -arrow-.
