GAS GAS EC - PART LIST 2009 Parts List

Hide thumbs Also See for EC - PART LIST 2009:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for GAS GAS EC - PART LIST 2009

Summary of Contents for GAS GAS EC - PART LIST 2009

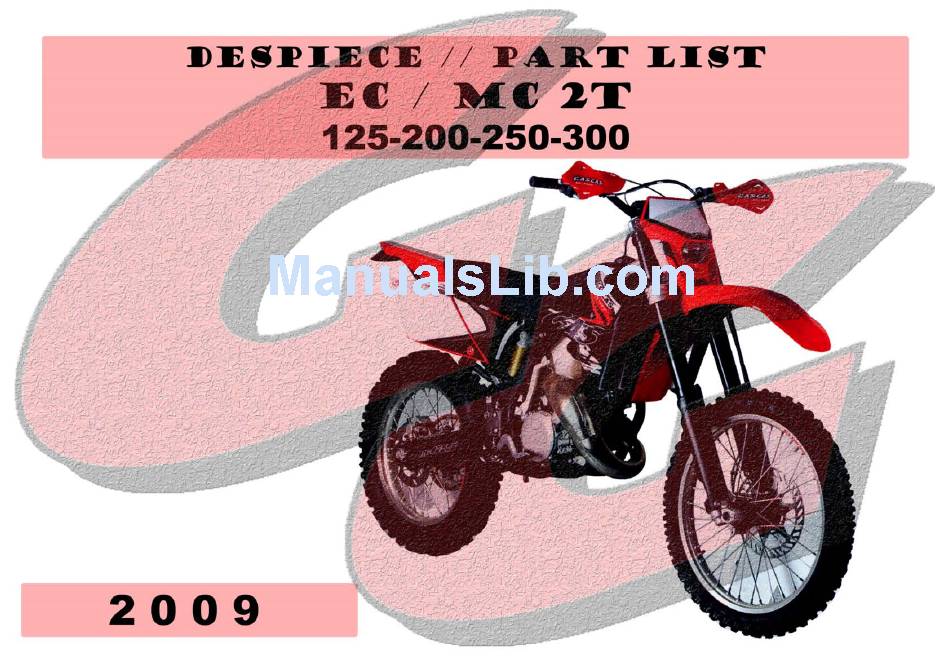

  • Page 3 Conjunto pedal arranque / EC/MC/ 2009 Kickstart set...
  • Page 4 PIÑÓN INTERIOR ARRANQUE EC125 / KICKSTART INNER PINION ME120126001 BOLA MUÑEQUILLA PEDAL ARRANQUE / KICKSTART PEDAL BASE BALL ME250036062 MUELLE MUÑEQUILLA PEDAL ARRANQUE / KICKSTART PEDAL BASE SPRING ME250036066 MUÑEQUILLA PEDAL ARRANQUE / KICKSTART PEDAL BASE ME120136061 Motor 1 GAS GAS...
  • Page 5 Conjunto pedal arranque / EC/MC/ 2009 Kickstart set...
  • Page 6 BOLA MUÑEQUILLA PEDAL ARRANQUE / KICKSTART PEDAL BASE BALL ME250036062 MUELLE MUÑEQUILLA PEDAL ARRANQUE / KICKSTART PEDAL BASE SPRING ME250036066 CTO. PEDAL ARRANQUE ALUMINIO / KICKSTART PEDAL SET ME250636060 RETÉN PEDAL ARRANQUE 20X30X7 / KICKSTART PEDAL SEAL 20X30X7 ME25632021 Motor 2 GAS GAS...
  • Page 7 Centrífugo - Bomba / EC/MC/ 2009 Impeller - Water pump...
  • Page 8 ALLEN 5X15 / 5X15 ALLEN BOLT T0305015 ALLEN 4X8 NEGRO / 4X8 BLACK ALLEN BOLT T0304008 RODAMIENTO AGUJAS HK0810 / NEEDLES BEARING MFS400126021 ARANDELA 4X12X1 / 4X12X1 WASHER T4004112 CENTRÍFUGO COMPLETO EC 125 / EC 125 IMPELLER SET ME120316005CT Motor 3 GAS GAS...
  • Page 9 Centrífugo - Bomba / EC/MC/ 2009 Impeller - Water pump...
  • Page 10 TURBINA BOMBA AGUA / WATER PUMP IMPELLER ME25610007 PIÑÓN CENTRÍFUGO / IMPELLER PINION ME250410005 ULS 6X16 PL. PRIM, GUAR, FIL. / ULS BOLT 6X16 T0506016 ARANDELA 25,8X17,5X05 BOMBA AGUA / WASHER 25,8X17,5X05 WATER PUMP M03625000 CENTRÍFUGO COMPLETO / IMPELLER SET ME250416005CT GAS GAS Motor 4...
  • Page 11 Caja de láminas / EC/MC/ 2009 Reed valve...
  • Page 12 ME250644105 PLATINA DISTANCIADOR LÁMINAS / REED SPACER BRACKET MC250416057 JUEGO LÁMINAS ADMISIÓN / REED VALVE SET ME120616041 ME120616041 ME120616041 ME120616041 Solo Motocross MC / Only Motocross MC bike CAJA DE LÁMINAS / REED VALVE ASSEMBLY ME200316021 Motor 5 GAS GAS...
  • Page 13 Selector cambio / EC/MC/ 2009 Shift cam...
  • Page 14 CTO. PEDAL CAMBIO / GEAR LEVEL SET ME120336026 HEXAGONAL 6X20 CON ARANDELA / 6X20 HEXAGONAL WITH WASHER T0206020 RETÉN SELECTOR / SELECTOR SEAL ME120136048 HORQUILLA SECUNDARIO 1-4 / SHIFT FORK 1-4 ME120136108 EJE SELECTOR EC125 COMPLETO / SELECTOR AXIS COMPLETE ME120236038CT Motor 6 GAS GAS...
  • Page 15 Selector cambio / EC/MC/ 2009 Shift cam...
  • Page 16 HEXAGONAL 6X20 CON ARANDELA / 6X20 HEXAGONAL WITH WASHER T0206020 SEEGER 12X1 EXT. EJE SELECTOR / SEEGER 12X1 ME25636043 CTO. PEDAL CAMBIO / GEAR LEVER SET *ME120336026 EJE SELECTOR COMPLETO EC250 / EC250 SELECTOR AXIS COMPLETE ME250236038CT Motor 7 GAS GAS...
  • Page 17 EC/MC/ 2009 Cárter / Crankcase...
  • Page 18 VISOR NIVEL DE ACEITE / OIL LEVEL PLUG ME25610015 TORNILLO ESPECIAL 6X40 / SPECIAL BOLT 6X40 T0206040 TAPÓN CENTRÍFUGO / IMPELLER CAP ME120332085 TÓRICA 28X1,78 / 28X1,78 O’RING GASKET ME120332086 TORNILLO ESPECIAL 6X20 / SPECIAL BOLT 6X20 T0206020 Motor 8 GAS GAS...
  • Page 19 Cárter / Crankcase EC/MC/ 2009...
  • Page 20 ALLEN 6X60 / ALLEN BOLT 6X60 T0306060 ALLEN 8X14 / ALLEN BOLT 8X14 T0308014 ARANDELA COBRE 8X12X1 / COPPER WASHER 8X12X1 T4008012 TÓRICA12X2 TAPÓN ACEITE / OIL CAP O’RING 2X2 MT280410030 TAPÓN LLENADO ACEITE / OIL FILL PLUG M01016002 Motor 9 GAS GAS...
  • Page 21 Encendido / Ignition EC/MC/ 2009...
  • Page 22 BUJÍA BPR9 / SPARK PLUG ME120134000 REGULADOR ALTERNADOR / ALTERNATOR REGULATOR L300031 Solo Motocross MC / Only Motocross MC bike VOLANTE MAGNÉTICO KOKUSAN FP8188 / FP8188 IGNITION COMP. MC250534005 CDI KOKUSAN CROSS / KOKUSAN CDI CROSS ME120534007 Motor 10 GAS GAS...
  • Page 23 EC/MC/ 2009 Encendido / Ignition...
  • Page 24 Solo Motocross MC / Only Motocross MC bike Nº DESCRIPCION / DESCRIPTION Cant. VOLANTE MAGNÉTICO FP8188 2G3 MULTISPARK / FP8188 IGNITION COMP. MC250534005 ALLEN 6X16 / ALLEN BOLT 6X16 T0306016 ARANDELA PLANA 6X12X1,5 / PLAIN WASHER 6X12X1.5 T4006012 Motor 11 GAS GAS...
  • Page 25 EC/MC/ 2009 Cigueñal / Crankshaft...
  • Page 26 NYLON CONTRAPESO / COUNTERWEIGHT NYLON ME120112021 CASQUILLO NYLON CONTRAPESO / COUNTER WEIGHT NYLON BUSHING ME120112011 TORNILLO ULS 6x16 / 6X16 ULS BOLT T0506016N CTO. BIELA / ROD. SET ME320001209 RODAMIENTO 18X22X22 PIE BIELA / ROD BEARING ME120116035 Motor 12 GAS GAS...
  • Page 27 Cigueñal / Crankshaft EC/MC/ 2009...
  • Page 28 ME25632019 TUERCA BLOCAJE PIÑÓN CIGÜEÑAL / CRANK SHAFT PINION LOCK.NUT ME250032018 HEXAGONAL CON ARANDELA / HEXAGONAL BOLT WITH WASHER T02012025 CASQUILLO CIGÜEÑAL / CRANK SHAFT BUSHING ME200512014 ME250112014 TÓRICA CIGÜEÑAL / CRANK SHAFT O’RING ST950207 ME250112011 Motor 13 GAS GAS...
  • Page 29 EC/MC/ 2009 Embrague / Clutch...
  • Page 30 COJINETE CAMPANA EMBRAGUE K25X29X10 / PRIMARY BEARING M02616000 CAMPANA EMBRAGUE / DRIVEN GEAR ME120132004 VARILLA EMBRAGUE / CLUTCH ROD. ME120132040 PINZA EMBRAGUE HIDRÁULICO / HYDRAULIC CLUTCH CALIPER ME120132026 ARANDELA LATIGUILLO / HOSE WASHER BE25622007 SANGRADOR / BLEEDER BE25622060 Motor 14 GAS GAS...
  • Page 31 EC/MC/ 2009 Embrague / Clutch...
  • Page 32 Nº DESCRIPCION / DESCRIPTION Cant. TAPÓN SANGRADO / BLEEDER CAP BT27922055 RACORD PINZA EMBRAGUE / RACORD CLUTCH CALIPER MO1060000 KIT REPARACIÓN PINZA EMBRAGUE / CLUTCH CALIPER REPARATION KIT BE120522050 Motor 14 GAS GAS...
  • Page 33 Embrague / Clutch EC/MC/ 2009...
  • Page 34 PINZA EMBRAGUE HIDRA. / HYDRAULIC CLUTCH CALIPER ME25632026 TORICA BOMBA EMBRAGUE / CLUTCH PUMP O’RING ME25632024 KIT REPARACIÓN PINZA EMBRAGUE / CLUTCH CALIPER REPARATION KIT BE250522050 RACORD PINZA EMBRAGUE / RACORD CLUTCH CALIPER M01060000 TORNILLO ESPECILA 6X20 / SPECIAL SCREW T0206020 Motor 15 GAS GAS...
  • Page 35 Cilindro - Culata / EC/MC/ 2009 Cylinder - Cyl. head...
  • Page 36 ME120316019 HEXAGONAL CON ARANDELA 6X14 / 6X14 HEXAGONAL BOLT WITH WASHER T0206014 VÁLVULA ESCAPE DERECHA / LEFT EXHAUST VALVE ME720001208 VÁLVULA ESCAPE IZQUIERDA / RIGHT EXHAUST VALVE ME720101209 TAPA VÁLVULA CENTRAL / CENTRAL VALVE COVER ME120510003CT Motor 16 GAS GAS...
  • Page 37 Cilindro - Culata / EC/MC/ 2009 Cylinder - Cyl. head...
  • Page 38 TUBO VALVULA / VALVE TUBE BE733001209 ALLEN 6X10 / 6X10 ALLEN BOLT T0306010 ARANDELA 8X16X1,5 / WASHER 8X16X1,5 T4008016 CONJUNTO CILINDRO EC 125 , 08 / CYLINDER SET EC 125 , 08 ME70000CT1209 RACORD /RACORD ME721001209 Motor 16 GAS GAS...
  • Page 39 Cilindro - Culata / EC/MC/ 2009 Cylinder - Cyl. head...
  • Page 40 BE250526006 EJE VÁLVULA ESC. LARGO 93 MM. / LONG EXHAUST VALVE AXIS 93MM ME25616027 EJE VÁLVULA ESC. CORTO 83 MM. / SHORT EXHAUST VALVE AXIS 83MM ME25616017 VÁLVULA ESCAPE CENTRAL / CENTRAL EXHAUST VALVE ME20916015 ME250616015-1 Motor 17 GAS GAS...
  • Page 41 Cilindro - Culata / EC/MC/ 2009 Cylinder - Cyl. head...
  • Page 42 ME20816123 ME25616123R PISTÓN TIPO F / F TYPE PISTON ME20816125 CONJUNTO CILINDRO / CYLINDER SET ME20916022CT ME25916022CT ME300216022CT Solo Motocross MC / Only Motocross MC bike Nº DESCRIPCION / DESCRIPTION Cant. CULATA / CYLINDER HEAD MC250116000 Motor 17 GAS GAS...
  • Page 43 Engranajes cambio / Gear set EC/MC/ 2009...
  • Page 44 ME120136058 RODAMIENTO TR15X25X12 / TR15X25X12 BEARING ME120136157 PIÑÓN SALIDA T13 / FRONT SPROCKET ME120136025 PIÑÓN SALIDA T12 ME120736025 FIJADOR COJINETE SALIDA CAMBIO / SHIFT OUTER BEARING HOLDER ME120336104 TORNILLO UFK M5X12 / UFK SCREW M5X12 T0315012 Motor 18 GAS GAS...
  • Page 45 Engranajes cambio / Gear set EC/MC/ 2009...
  • Page 46 RODAMIENTO CAMBIO 6305 / SHIFT BEARING 6305 ME25636058 RODAMIENTO CAMBIO 6203 / SHIFT BEARING 6203 ME25636057 RODAMIENTO CAMBIO 6205ZC3E / SHIFT BEARING 6205ZC3E ME250136056 RETÉN / SEAL ME25636024 JAULA AGUJAS KD22X25X9,8 / KD22X25X9,8 NEEDLES BEARING ME250236102 Motor 19 GAS GAS...
  • Page 47 EC/MC/ 2009 Carburador / Carburetor...
  • Page 48 ME25690039 CASQUILLO MUELLE COMPUERTA / COVER SPRING BUSHING ME25690040 BRIDA UNEX 2244 4.8X20 / UNEX CLAMP 2244 4.8X20 BE25634009 *TOPE MANDO DE GAS / STOP THROTTLE CABLE *ME250690010 SOPORTE CABLE STARTER / STARTER SUPORT CABLE BE785702508 Motor 20 GAS GAS...
  • Page 49 EC/MC/ 2009 Carburador / Carburetor...
  • Page 50 Nº DESCRIPCION / DESCRIPTION 125/200 Cant. AGUJA KEIHIN N1EE / KEIHIN N1EE NEEDLE ME250290427 AGUJA KEIHIN N1EG / KEIHIN N1EG NEEDLE ME250290428 AGUJA KEIHIN N1EF / KEIHIN N1EF NEEDLE ME250190429 Motor 20 GAS GAS...
  • Page 51 EC/MC/ 2009 Utillaje / Tools...
  • Page 52 Nº DESCRIPCION / DESCRIPTION 2007 Cant. BANCADA MOTOR / MOTOR HOLDER BT27950050 EXTRACTOR SEMICIGÜEÑAL ENCENDIDO / SEMI CRANK SHAFT EXTRACTOR ME25950000 EXTRACTOR VOLANTE KOKUSAN / KOKUSAN FLYWHEEL EXTRACTOR ME25634045 EXTRACTOR CARTERES / CRANKCASE EXTRACTOR ME25950005 Motor 21 GAS GAS...
  • Page 53 EC/MC/ 2009 Manillar / Handlebar...
  • Page 54 T2006001 BOMBA EMBRAGUE HIDRÁULICO / HYDRAULIC CLUTCH PUMP BE250522009 KIT TAPA BOMBA FRENO EMBRAGUE / CLUTCH BRAKE PUMP COVER KIT BE250522210 ESPEJO RETROVISOR / REAR-VIEW MIRROR L300760 BRIDA SUJECIÓN MANILLAR SUPERIOR / HANDLEBAR CLAMP (UPPER) BE250614012 Chasis 1 GAS GAS...
  • Page 55 EC/MC/ 2009 Manillar / Handlebar...
  • Page 56 INTERRUPTOR CDI / CDI SWITCH BE250634007 BE250634007 CABLE STARTER /STARTER CABLE BE256012508 Solo Motocross MC / Only Motocross MC bike Nº DESCRIPCION / DESCRIPTION Cant. RACORD 10X125 / 10X125 RACORD BC25722006 BOTÓN DE PARO KE9B / KE9B STOP BUTTON BC250334055 Chasis 1 GAS GAS...
  • Page 57 Eléctrico / Electric EC/MC/ 2009...
  • Page 58 SOPORTE CDI EC 2008 / EC 2008 CDI SUPPORT EE551002508 ULS 6X10 / 6X10 ULS BOLT T0506010 SOPORTE MULTIFUNCIÓN / MULTIFUNCTION SUPPORT BFS450634045 ALARGO INSTALACIÓN PORTAMATRÍCULA BE250734016 ALARGO LUCES RACING / I LENGTHEN LIGHTS ACING EE100152509 EE100152509 INTERRUPTOR / SWITCH BX25834001 BX25834001 Chasis 2 GAS GAS...
  • Page 59 EC/MC/ 2009 Eléctrico / Electric...
  • Page 60 TUERCA CON ARANDELA M6 / NUT WITH WASHER M6 T2206000 INTERMITENTE IZQUIERDO TRASERO / LEFT REAR INDICATOR BE250634022 INTERMITENTE DERECHO DELANTERO / RIGHT FRONT INDICATOR BE250634018 BOMBILLA / LAMP L200118 CRISTAL INTERMITENTE / INDICATOR COVER BE250634120 Chasis 2A GAS GAS...
  • Page 61 EC/ 2009 Plásticos / Plastics...
  • Page 62 Nº DESCRIPCION / DESCRIPTION EC 250 Cant. CTO. FARO DELANTERO / FRONT HEADLAMP SET BE90500CT2508 GUARDABARROS DELANTERO EC2008 / EC2008 FRONT FENDER BE91000CT2509 TAPA LATERAL RADIADOR DERECHO / RIGHT SIDE RADIATOR COVER BE91500CT2509 TAPA LATERAL RADIADOR IZQUIERDO / LEFT SIDE RADIATOR COVER BE92000CT2509 TAPA CAJA FILTRO DRCHA.
  • Page 63 RC/ 2009 Plásticos / Plastics...
  • Page 64 Nº DESCRIPCION / DESCRIPTION Cant. CTO. FARO DELANTERO / FRONT HEADLAMP SET BE90500RCNCT2508 GUARDABARROS DELANTERO EC2008 / EC2008 FRONT FENDER BE91000RCNCT2508 TAPA LATERAL RADIADOR DERECHO / RIGHT SIDE RADIATOR COVER BE91500RCNCT2508 TAPA LATERAL RADIADOR IZQUIERDO / LEFT SIDE RADIATOR COVER BE92000RCNCT2508 TAPA CAJA FILTRO DRCHA.
  • Page 65 RC AZUL/ 2009 Plásticos / Plastics...
  • Page 66 Nº DESCRIPCION / DESCRIPTION Cant. CTO. FARO DELANTERO / FRONT HEADLAMP SET BE90500RCNAZCT2508 GUARDABARROS DELANTERO EC2008 / EC2008 FRONT FENDER BE91000RCNAZCT2508 TAPA LATERAL RADIADOR DERECHO / RIGHT SIDE RADIATOR COVER BE91500RCNAZCT2508 TAPA LATERAL RADIADOR IZQUIERDO / LEFT SIDE RADIATOR COVER BE92000RCNAZCT2508 TAPA CAJA FILTRO DRCHA.
  • Page 67 SIX DAYS/ 2009 Plásticos / Plastics...
  • Page 68 Nº DESCRIPCION / DESCRIPTION Cant. CTO. FARO DELANTERO / FRONT HEADLAMP SET BE90500RCCT2509 GUARDABARROS DELANTERO EC2008 / EC2008 FRONT FENDER BE91000SXCT2509 TAPA LATERAL RADIADOR DERECHO / RIGHT SIDE RADIATOR COVER BE91500SXCT2509 TAPA LATERAL RADIADOR IZQUIERDO / LEFT SIDE RADIATOR COVER BE92000SXCT2509 TAPA CAJA FILTRO DRCHA.
  • Page 69 Montaje plásticos / EC/ 2009 Assembling plastics...
  • Page 70 TORNILLO ESPECIAL 6X25 / 6X25 SPECIAL SCREW T0206025 BRIDA NYLON 3,6X140 LATIG. EMBRAGUE / NYLON CLAMP 3,6X140 BE250022031 ARANDELA PLACAS RADIADOR EC 2005 / EC 2005 RADIATOR PLATE WASHER BE250511002 FUNDA SILLIN / SEAT COVER BE940012508 GAS GAS Chasis 4...
  • Page 71 Montaje plásticos / MC 2009 Assembling plastics...
  • Page 72 TUERCA HEXAGONAL REMACHABLE M6 / REVITABLE M6 NUT T2706000 JUEGO PARAMANOS / HANDS-PROTECTOR SET BE945002508 TORNILLO ESPECIAL 6X25 / 6X25 SPECIAL SCREW T0206025 ARANDELA PLACAS RADIADOR EC 2005 / EC 2005 RADIATOR PLATE WASHER BE250511002 GOMAS RADIADOR A CHASIS / RADIATOR RUBBER G200000 GAS GAS Chasis 4...
  • Page 73 EC/MC/ 2009 Chasis / Frame...
  • Page 74 MUELLE ESTRIBO IZQUIERDO / LEFT FOOTREST SPRING BE25610038 CASQUILLO ESTRIBO / FOOTREST BUSHING BE25610006 CLAVILLA ZINC 3X35 / 3X35 ZINC PIN BE25622022 CHASIS ENDURO / ENDURO FRAME BE100001209 BE100002509 BE100002509 TORNILLO ESPECIAL 8X30 / 8X30 SPECIAL SCREW T0508030 DISTANCIADOR GOMA DEPÓSITO BE250714036 GAS GAS Chasis 5...
  • Page 75 EC/MC/ 2009 Chasis / Frame...
  • Page 76 ARANDELA 10.5x19X2 / 10.5x19X2 WASHER T4001019 GOMA SUJECIÓN CDI / CDI RUBBER HOLDER BE250034100 TUERCA REMACHABLE / RIVETABLE NUT BE250010070 ARANDELA DIRECCIÓN / STEERING WASHER BE25610028 ARANDELA DIRECCIÓN INFERIOR / LOWER STEERING WASHER BE250610028 CAZOLETA DIRECCIÓN / STEERING CAP BE250610026 GAS GAS Chasis 5...
  • Page 77 Chasis / Frame EC/MC/ 2009...
  • Page 78 BRIDA INFERIOR Ø61 SUSP. CROSS / CROSS SUSP. LOWER CLAMP Ø61 BE210002509 CHASIS CROSS 2005 / CROSS FRAME 2005 BC100001209 BC100002509 TUERCA AUTOBLOCANTE M8 BAJA / LOW M8 SELF-LOCKING NUT T2108001 CASQUILLO CROSS 125 / CROSS 125 BUSHING BE120110065 TUERCA ENJAULADA / CAGED NUT T2606000 GAS GAS Chasis 5...
  • Page 79 Filtro de aire / EC/MC/ 2009 Air filter...
  • Page 80 RESTRICTOR AIRE TRAS.. CAJA FILTRO / FILTER BOX AIR RESTRICTOR BE798052509 TAPA CAJA FILTRO DEL. BE250728054 TAPA CAJA FILTRO TRAS. BE250728055 TAPA CAJA FILTRO DRCHA. BE250728056 TAPA CAJA FILTRO IZQ. BE250728057 TORN. ROSCA PLASTICO BE250420063 TORN. ROSCA PLASTICO PROTECTOR AMORTIGUADOR BE250728058 CASQUILLO PROTECTOR AMORTIGUADOR BE250728059 GAS GAS Chasis 6...
  • Page 81 EC/MC/ 2009 Basculante / Swingarm...
  • Page 82 Nº DESCRIPCION / DESCRIPTION 125/200 250/300 RACING Cant. TUERCA AUTOBLOCANTE M10+C41 / SELF-LOCKING NUT M10 T3110002 AMORTIGUADOR TRASERO / REAR SHOCK ABSORBER BE300001209 BE300002509 BE30000RC2509 TORNILLO ESPECIAL M10X55 / SPECIAL SCREW M10X55 T0210055 TORNILLO M10X40X1,25 / BOLT M10X40X1.25 T0110042 TORNILLO ESPECIAL 14X110 / SPECIAL SCREW 14X110 T0214110 TÓRICA 3.5X21 / 3.5X21 O’RING BE250510011...
  • Page 83 EC/MC/ 2009 Basculante / Swingarm...
  • Page 84 DESCRIPCION / DESCRIPTION Cant. AMORTIGUADOR TRASERO CROSS / CROSS REAR SHOCK ABSORBER BE300002509 BE30000RC2509 BIELETA / CONNECTING ROD BE120114008 BC250014008 SOPORTE GUÍA CADENA CROSS / CROSS CHAIN GUIDE SUPPORT BC250221018 TORNILLO ESPECIAL 6X45 / 6X45 SPECIAL SCREW T0206045 GAS GAS Chasis 7...
  • Page 85 EC/MC/ 2009 Basculante / Swingarm...
  • Page 86 T0308020 PLACA REFUERZO GUIA CADENA CROSS 2004 / 2004 CROSS CHAIN GUIDE STRAIN PLATE BC250412032 TUERCA M6 CON ARANDELA / M6 NUT WITH WASHER T2206002 GUIA CADENA / CHAIN GUIDE BC250212028 PROTECTOR BASCULANTE /PROTECTIVE TILT BE250328011 GAS GAS Chasis 7...
  • Page 87 Tubo de escape / Exhaust EC/MC/ 2009...
  • Page 88 MFS450410031 PROTECTOR ESCAPE HOMOLOGADO / ACCREDITED EXHAUST PROTECTOR BE250626254 BE250626254 BE250626254 ABRAZADERA 50-70 / 50-70 CLAMP BE250328033 BE250328033 BE250328033 ABRAZADERA 70-90 / 70-90 CLAMP BE250626255 BE250626255 BE250626255 VALVULA AIS / AIS VALVE BE785652509 BE785652509 BE785652509 BE785652509 GAS GAS Chasis 8...
  • Page 89 Tubo de escape / Exhaust EC/MC/ 2009...
  • Page 90 Nº DESCRIPCION / DESCRIPTION Cant. Solo Motocross MC / Only Motocross MC bike CAZOLETA FINAL / END CAP BE120326120 BE120326120 SILENCIOSO CROSS / CROSS SILENCER BC120726002 BC250726002 GAS GAS Chasis 8...
  • Page 91 EC/MC/ 2009 Depósito / Fuel tank...
  • Page 92 CASQUILLO DEPÓSITO / TANK BUSHING BE25610007 TIRA SUJECIÓN DEPÓSITO / FUEL TANK RUBBER BAND HOLDER BE250136020 TORNILLO ROSCA-CHAPA 10X1 / SCREW 10X1 T0610001 CASQUILLO DEPÓSITO / TANK BUSHING BIE050210007 DEPÓSITO EC2005 / EC2005 FUEL TANK BE250510024 GAS GAS Chasis 11...
  • Page 93 Depósito / Fuel tank EC/MC/ 2009...
  • Page 94 TUBO SUP. RADIADOR A CULATA / RADIATOR TO CYL.HEAD HOSE SET BE120732045 Solo Motocross MC / Only Motocross MC bike Nº DESCRIPCION / DESCRIPTION Cant. ABRAZADERA MUELLE / SPRING CLAMP BE250210047 TUBO 15 CM. LARGO / 15 CM. LONG TUBE BC25732008 GAS GAS Chasis 11...
  • Page 95 Rueda delantera / Front wheel EC/MC 2009...
  • Page 96 CTO. FRENO DELANTERO PURGADO / FRONT BRAKE SET BE250422108 ULS 3X10 NEGRO CON ARANDELA / BLACK 3X10 ULS WITH WASHER T0323010 CTO. SOPORTE CON IMAN C.K. / SUPPORT WITH MAGNET SET BE250334008 GUARDAPOLVO / DUST COVER BE620692508 GAS GAS Chasis 12...
  • Page 97 Rueda delantera / Front wheel EC/MC 2009...
  • Page 98 BC50000CT2509 EJE RUEDA DELANTERA CROSS / CROSS FRONT WHEEL AXLE BC250418017C PASTILLAS DE FRENO DELANTERO / FRONT BRAKE PADS BC250022065 LLANTA 1.60X21 SILVER / RIM 1.60X21 BE25618006 NEUMATICO 90-90-21 CROSS M12 / FRONT TIRE 90/90-21 BC25718102 Chasis 12 GAS GAS...
  • Page 99 Rueda trasera / Rear wheel EC/MC/ 2009...
  • Page 100 TORNILLO CLAVIJA PINZA FRENO / BRAKE CALIPER BOLT BE250022034 GUARDAPOLVO / DUST COVER BE675802509 PINZA FRENO TRASERO / REAR BRAKE CALIPER BE250322001 PASADOR PASTILLAS / BRAKE PADS PIN BE250022094 PROTECCIÓN PASADOR / PIN PROTECTION BE250022095 NEUMÁTICO TRASERO 140/80-18 / REAR TYRE 140/80-18 BE25618005 Chasis 13 GAS GAS...
  • Page 101 Rueda trasera / Rear wheel EC/MC 2009...
  • Page 102 RETÉN PISTÓN PINZA FRENO TRASERO / REAR BRAKE CALIPER PISTON O’RING BE675502509 TÓRICA PISTÓN PINZA FRENO TRASERO / REAR BRAKE CALIPER PISTON SEAL BE250022048 RUEDA TRASERA / REAR WHEEL SET BE55000RCCT2509 BE55000CT2509 ENGANCHE CADENA / CHAIN SPLIT LINK BE250310066 Chasis 14 GAS GAS...
  • Page 103 Rueda trasera / Rear wheel EC/MC 2009...
  • Page 104 BC25718011 CADENA 112 CROSS / 112 CROSS CHAIN BC120110036 CTO. RUEDA TRASERA CROSS / CROSS REAR WHEEL SET BC250418100 CTO. FRENO TRASERO PURGADO / REAR BRAKE SET BC250522118 TUERCA RADIO TRASERO / REAR SPOKE NUT BC250418016 Chasis 14 GAS GAS...
  • Page 105 Suspensión Marzocchi / EC/125/200 2009 Marzocchi fork...
  • Page 106 BE250514114 CARTUCHO AMORTIGUADOR / CARTRIDGE BODY VARILLA INTERNA / INNER ROD BE250114234 CTO. VARILLA / DAMPING SHAFT UNIT BE250514116 MUELLE / REBOUND SPRING BE250114118 BRIDA UNEX 2244 16/02 4.8X30 / UNEX CLAMP 2244 16/02 4.8X30 BE25634007 Chasis 15 GAS GAS...
  • Page 107 Suspensión Marzocchi / EC/125/200 2009 Marzocchi fork...
  • Page 108 CTO. SUSPENSIÓN DELANTERA MARZOCCHI / MARZOCCHI FRONT SUSP. BE20000MZ1208 JUEGO PROTEC. HORQUILLA INVERTIDA / REV. FORK PROT. SET BE946002509 FIJACIÓN LATIGUILLO / HOSE HOLDER TORNILLO ESPECIAL 6X16 8.8 ZINCADO / 6X16 8.8 SPECIAL SCREW T0805020 TORNILLO ESPECIAL 6X12 / 6X12 SPECIAL SCREW T0316013 Chasis 15 GAS GAS...
  • Page 109 Suspensión Sachs / EC/ 2009 Sachs fork...
  • Page 110 CTO. TAPON MAS REGULADOR EXTENSION / CAP SET WITH PRELOAD AJUST. BE201302509 BE20130RC2509 TUBO EXTERIOR ALUMINIO / ALUMINIUM BUTER TUBE BE201002509 PUNTERA IZQ. CON SOPORTE FRENO / LEFT AXLE CLAMP WTH BRAKE BRAKET BE201102509 PUNTERA DRCH. / RIGHT AXLE CLAMP BE201202509 Chasis 16 GAS GAS...

This manual is also suitable for:

Mc 2t - part list 20092009 mc 125 2t2009 ec 200 2t2009 mc 250 2t2009 mc 300 2t2009 mc 200 2t
