Controls and functions

Controls and functions

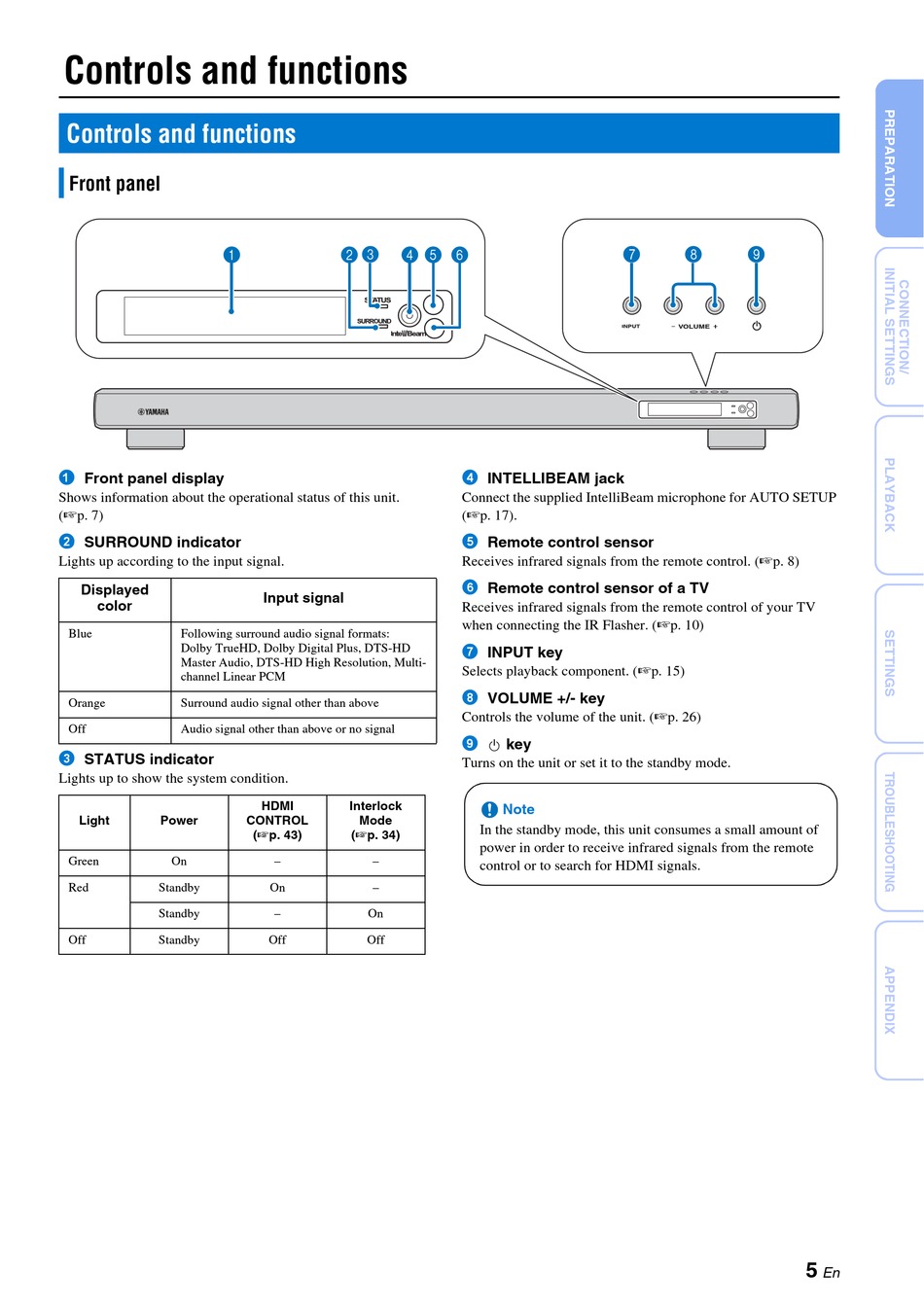

Front panel

1
1
Front panel display
Shows information about the operational status of this unit.
(☞p. 7)
2
SURROUND indicator
Lights up according to the input signal.
Displayed
color
Blue Following surround audio signal formats:
Dolby TrueHD, Dolby Digital Plus, DTS-HD
Master Audio, DTS-HD High Resolution, Multi-
channel Linear PCM
Orange Surround audio signal other than above
Off Audio signal other than above or no signal
3
STATUS indicator
Lights up to show the system condition.
Light Power
Green On
Red Standby
Standby
Off Standby
2 3
4 5 6
Input signal
HDMI Interlock
CONTROL Mode
(☞p. 43) (☞p. 34)
– –
On –
– On
Off Off
7
4
INTELLIBEAM jack
Connect the supplied IntelliBeam microphone for AUTO SETUP
(☞p. 17).
5
Remote control sensor
Receives infrared signals from the remote control. (☞p. 8)
6
Remote control sensor of a TV
Receives infrared signals from the remote control of your TV
when connecting the IR Flasher. (☞p. 10)
7
INPUT key
Selects playback component. (☞p. 15)
8
VOLUME +/- key
Controls the volume of the unit. (☞p. 26)
9
key
Turns on the unit or set it to the standby mode.
Note
In the standby mode, this unit consumes a small amount of
power in order to receive infrared signals from the remote
control or to search for HDMI signals.
8 9
5
En
