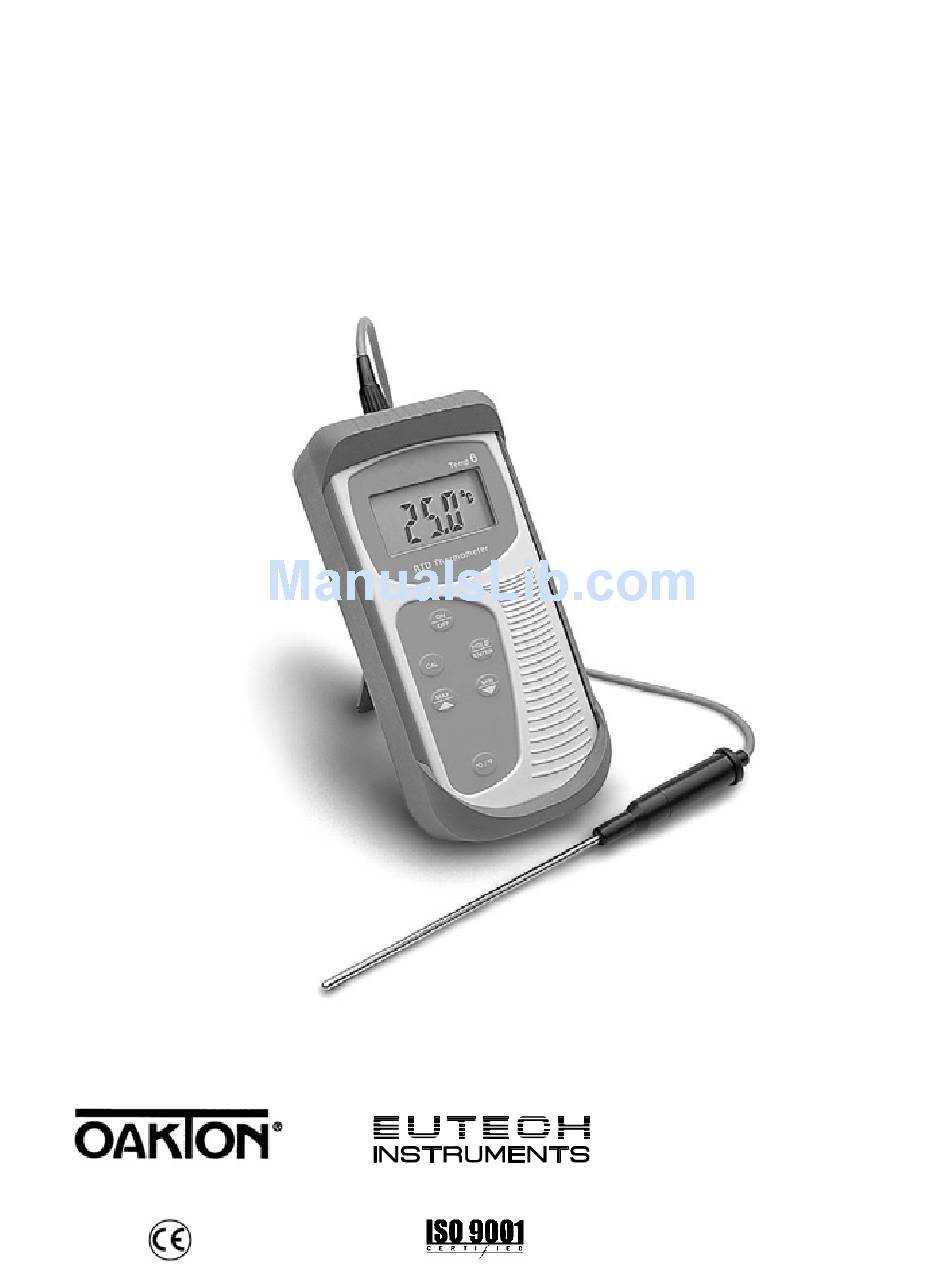

- Page 1 Instruction Manual Temp 4/5/6 Temperature Meter Series 68X243607 Technology Made Easy ... Rev. 3 08/03...
- Page 3 This manual is written to cover as many anticipated applications of the Temp 4/5/6 meter as possible. If there are doubts in the use of this meter, please do not hesitate to contact the nearest Eutech Instruments/ Oakton Instruments Authorised Distributor.
-
Page 4: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION 1.1 Introducing the economy series 2. GETTING STARTED 2.1 Description of Keypad Functions 2.2 Description of LCD Annunciators 2.3 Inserting & Removing the Rubber Boot 2.4 Inserting New Batteries 2.5 Battery Replacement 2.6 Connecting the Temperature Sensor 2.7 Switching the Meter On 3. -
Page 5: Introduction
Instruction Manual Temp 4/5/6 1. INTRODUCTION 1.1 Introducing the economy series Thank you for purchasing the Temp 4/5/6 meter. These microprocessor-based handheld meters are economical and easy to use. They are available in three models: • The Temp 4 uses *YSI 400 series thermistor temperature sensor •... -
Page 6: Getting Started
Instruction Manual Temp 4/5/6 2. GETTING STARTED 2.1 Description of Keypad Functions Temp 4/5/6 meters have six keys on its splash-proof keypad. These keys include ON / OFF, CAL, HOLD / ENTER, F, MAX / (UP) and MIN / (DOWN) keys. ON/OFF: Powers meter ON or OFF. -
Page 7: Inserting & Removing The Rubber Boot
Instruction Manual Temp 4/5/6 2.3 Inserting & Removing the Rubber Boot 1. To remove meter from rubber boot, push out from the bottom edges of meter until it is completely out of boot. Ensure that the connector of temperature sensor is not connected. 2. -
Page 8: Inserting New Batteries
Instruction Manual Temp 4/5/6 2.4 Inserting New Batteries The battery compartment is found at the back of instrument. To open the battery compartment, push in the direction of arrow and lift up the cover. Note the polarity of battery before inserting into position. After replacement, place cover back and press down until it locks tight. -
Page 9: Battery Replacement
Instruction Manual Temp 4/5/6 2.5 Battery Replacement A “LO” annunciator in the LCD alerts you when battery power is running low. Replace with the same type as recommended by the manufacturer. °C Caution: Power off the meter when changing battery. 2.6 Connecting the Temperature Sensor To connect a temperature probe into the meter, align the connector of probe to the meter’s socket and push fully until it is in position. -
Page 10: Switching The Meter On
Instruction Manual Temp 4/5/6 2.7 Switching the Meter On 1. Press ON/OFF key to power up your meter. All the LCD segments display momentarily as the meter performs a self-diagnostic test, per shown in section 2.2. The LCD then switches into measurement mode. 2. -
Page 11: Calibration
Instruction Manual Temp 4/5/6 3. CALIBRATION 3.1 Temperature Calibration The temperature sensor included (only for Temp 5) with your meter is factory calibrated. Over time, the temperature calibration may drift and the probe requires recalibration. The Temp 4/5/6 meters allow you to have a 1-point calibration as fine adjustment by changing its offset value. - Page 12 Instruction Manual Temp 4/5/6 6. Press ENTER key to confirm calibration. 7. The LCD displays “CO” momentarily, and the meter then reverts to measurement mode. See figure below. Press down CAL key for 5 seconds before release ° ° From measurement mode HOLD °C °...
-
Page 13: Temperature Curve Selection (Temp 5 Meter Only)
Instruction Manual Temp 4/5/6 3.1.2 Temperature Curve Selection (Temp 5 Meter Only) In the event temperature probe has drifted too far from its original characteristic – due to age and use or if the probe is being replaced, it may be a good idea to match probe to the best curve. -
Page 14: Measurement
Instruction Manual Temp 4/5/6 4. MEASUREMENT 4.1 Taking Measurements 1. Power on the meter. The meter automatically enters Temperature mode. C or F annunciator displays in your LCD to indicate which mode you are taking measurements in. 2. Press the F key to toggle between each measurement mode. -
Page 15: Releasing A Held Reading
Instruction Manual Temp 4/5/6 4.4 Releasing a Held Reading Press HOLD key again to deactivate HOLD function or to release your frozen reading. The meter returns to measurement mode, and the “HO” annunciator disappears from the LCD. 4.5 Maximum and Minimum Hold Mode With the Maximum and Minimum Hold Mode, the EcoScan Temp meter can be used as a maximum registering (or minimum registering) thermometer. -
Page 16: Disable Auto Power-Off Feature
Instruction Manual Temp 4/5/6 5. DISABLE AUTO POWER-OFF FEATURE By default this meter will auto power-off 17 minutes after last key operation. This is to conserve battery power. The auto power-off feature can be disabled in situation where longer periods of monitoring are desired. NOTE: The meter switches back to auto power-off mode as soon as it is turned off. -
Page 17: Probe Care And Maintenance
Instruction Manual Temp 4/5/6 6. PROBE CARE AND MAINTENANCE For best results, always clean the temperature probe with clean tissue paper after measurement to keep the probe in good working condition. Wash the probe thoroughly with tap water if necessary to wash off any residue. Should there be any thin oil film sticking on the probe, wash with mild detergent or soap and warm water. -
Page 18: Specifications Of Temp Series
Instruction Manual Temp 4/5/6 8. SPECIFICATIONS OF TEMP SERIES Model Temp 4 and 5 Temp 6 (Thermistor) (RTD) Temperature Range -40.0 to 125.0 -200.0 to 850.0 -40.0 to 257 -328.0 to 1562 Resolution C/0.1 C/0.1 F (-99.9 to 199.9 -99.9 to 391.9 F (range <... -
Page 19: Accessories
Instruction Manual Temp 4/5/6 9. ACCESSORIES Item Description Eutech Instruments Oakton Instruments Order Code Ordering Code Temp 4 Meter EC-TEMP4/00 35626-00 General Purpose Probe 93824-00 Temp 5 Meter with probe EC-TEMP5/01 35626-10 100K Thermistor Temperature EC-TEM5TEM01P 35626-50 probe Temp 6 Meter (with probe) -
Page 20: Warranty & Return Of Items
If repair or adjustment is necessary and has not been the result of abuse or misuse within the designated period, please return – freight pre-paid – and correction will be made without charge. Eutech Instruments/ Oakton Instruments will determine if the product problem is due to deviations or customer misuse. -
Page 21: Return Of Items
Instruments will not be responsible for damage resulting from careless or insufficient packing. A restocking charge will be made on all unauthorised returns. NOTE: Eutech Instruments Pte Ltd/ Oakton Instruments reserves the right to make improvements in design, construction, and appearance of products without notice. - Page 22 NOTES...
- Page 23 NOTES...
- Page 24 For more information on Eutech Instruments/ Oakton Instruments’ products, contact your nearest distributor or visit our website listed below: Oakton Instruments Eutech Instruments Pte Ltd. Distributed by: P.O Box 5136, Blk 55, Ayer Rajah Crescent, Vernon Hills, IL60061, USA #04-16/24 Singapore 139949 Tel (in U.S.): 888-462-5866...
