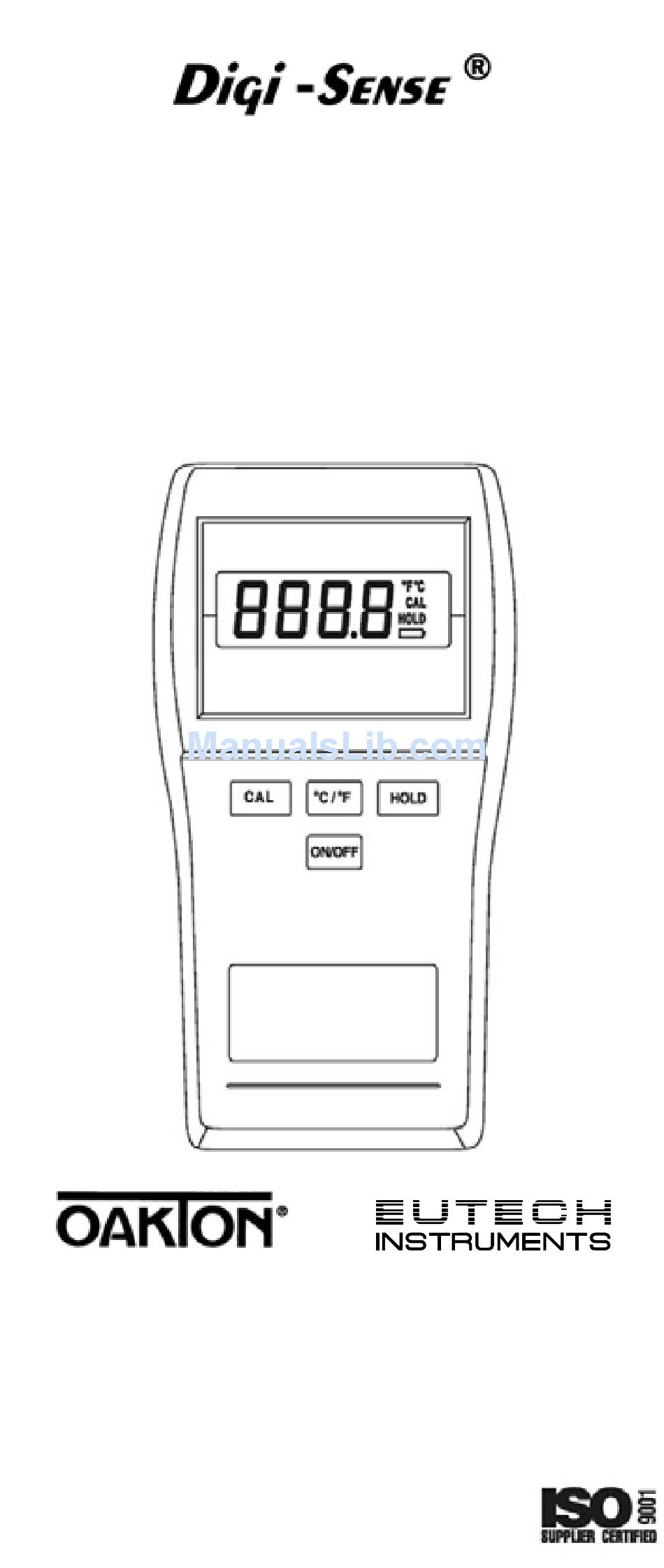

- Page 1 Thermocouple Thermometer Models 60010-00 (Type J) 60010-10 (Type K) 60010-20 (Type T) Technology Made Easy ... 68X309905 Rev 1 04/04...
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION SAFETY PRECAUTIONS SPECIFICATIONS BATTERY INSTALLATION AND REPLACEMENT SELF TEST CONNECTING A THERMOCOUPLE SELECTING TEMPERATURE SCALE HOLD FUNCTON CALIBRATION CANCELING A FIELD CALIBRATION FIELD CALIBRATION LOCKOUT AND RE-ENABLE LOCKOUT PROCEDURE RE-ENABLE PROCEDURE MAINTENANCE CLEANING BATTERIES ACCESSORIES SERVICE WARRANTY PRODUCT RETURN... -
Page 4: Introduction
INTRODUCTION This versatile hand-held instrument provides highly accurate temperature measurements. instrument designed easy operation includes the following features: • Operator selection of Celsius or Fahrenheit scale • Resolution of 0.1° from –99.9 to 299.9° • Four-digit LCD • Hold feature for temporarily retaining a reading •... - Page 5 • Low battery warning • Built-in tilt stand for easy hands-free operation • blade female ANSI mini- connector input • Operates with a wide selection of probes 2...
-
Page 6: Safety Precautions
SAFETY PRECAUTIONS WARNING: THIS INSTRUMENT IS DESIGNED ACCEPT LEVEL SIGNALS SUPPLIED STANDARD THERMOCOUPLES. UNDER CIRCUMSTANCES SHOULD INPUT VOLTAGE EXCEED THE SPECIFIED 50V RMS. CAUTION: DO NOT USE OR STORE THIS INSTRUMENT IN MICROWAVE OVENS OR ANY ABNORMALLY HOT OR COLD AREAS. CAUTION: WEAK BATTERIES... -
Page 7: Specifications
SPECIFICATIONS THERMOCOUPLE PROBES Type Temperature range Type J –200°C to 1000°C (–328°F to 1832°F ) Type K –250°C to 1372°C (–418°F to 2501°F ) Type T –250°C to 400°C (–418°F to 752°F ) Out of range display: - - - - Resolution 0.1°/1°... -
Page 8: Low Battery Indication
Input Protection 50V rms Battery Two AA, 1.5V alkaline ANSI-L40, IEC- LR6. Battery Life: 750 hours continuous, typical. Low battery indication Battery Symbol on when 8 to 10 hours of battery life remains. Battery symbol blinking: replace battery Operating Conditions Stated accuracy: 18°C to 28°C (64°F to 82°F) Useful range:... - Page 9 Ingress protection Meets IEC-529 IP-54 for dust and water resistant enclosures. Intrinsic safety This product is energy limited for intrinsically safe operation in hydrogen atmospheres per Class I, Division 1, Groups hazardous(classified) locations for UL per UL913 and CSA per C22.2 No. 0- M1982 and No.
-
Page 10: Battery Installation And Replacement
BATTERY INSTALLATION AND REPLACEMENT If battery indicator turns on, battery life is approximately 8 to 10 hours. The battery indicator will start blinking with less than 1 hour of life remaining. Selected settings are stored in memory and will remain in memory even after power is turned off, or while batteries are being replaced. - Page 11 CAUTION: WEAK BATTERIES SHOULD NOT BE LEFT IN THE INSTRUMENT. DEAD BATTERIES CAN LEAK AND CAUSE DAMAGE TO UNIT. DANGER: VOLTAGES PRESENT AT THE THERMOCOUPLE MAY ALSO BE PRESENT AT THE BATTERY TERMINALS. ALWAYS DISCONNECT THERMOCOUPLE WHEN CHANGING BATTERIES. WARNING: TO PREVENT IGNITION OF A HAZARDOUS ATMOSPHERE, BATTERIES MUST...
-
Page 12: Self Test
SELF TEST Press ON/OFF key. thermometer performs a self-test and all display digits and indicators, as shown below, should remain on for approximately one second. CONNECTING A THERMOCOUPLE Use the correct thermocouple type for your instrument. Using an incorrect thermocouple type will result... - Page 13 Thermocouple wiring polarity must be correct. If readings decrease as the temperature increases, thermocouple wires may be reversed. wire negative thermocouple wires manufactured in North America.
-
Page 16: Selecting Temperature Scale
If a thermocouple is not connected or if the thermocouple is defective, the display will indicate OPEn. Thermocouples are sensitive at the tip or measuring junction. When taking measurements, allow time for the reading to stabilize. Multiplying the time constant of the probe by 5 will give you the approximate time required. -
Page 17: Hold Functon
HOLD FUNCTON Press the HOLD key to retain the reading on the display. Press the HOLD key again for normal operation. CALIBRATION The thermometer is factory calibrated and does not require calibration before use. The CAL function allows single point calibration of the thermometer, at 0°C (32°F) compensate... -
Page 18: Canceling A Field Calibration
temperature reading is stable, press the CAL key. The CAL indicator will stop blinking and the reading will be set to 0°C (32°F). The CAL indicator will remain turned on, indicating a field calibration is active. If “Err” is displayed, either the displayed reading is outside the above limits or the batteries are weak. -
Page 19: Field Calibration Lockout And Re-Enable
11. FIELD CALIBRATION LOCKOUT AND RE-ENABLE The calibration lockout feature prevents any field calibration changes. The lockout remains in effect until a lockout re-enable has been performed. Use the following procedures to lockout or re-enable the field calibration operation. 12. LOCKOUT PROCEDURE 1. -
Page 20: Re-Enable Procedure
13. RE-ENABLE PROCEDURE 1. Turn the thermometer off. 2. Simultaneously press and hold the HOLD and the CAL keys down and momentarily press the ON/OFF key. Continue to hold the HOLD and CAL keys until the display blanks. 14. MAINTENANCE Properly used, the thermometer should maintain calibration indefinitely and not require service other than occasional... -
Page 21: Cleaning
15. CLEANING WARNING: PREVENT IGNITION HAZARDOUS ATMOSPHERE ELECTROSTATIC DISCHARGE,CLEAN WITH DAMP CLOTH. clean with abrasives solvents. Use mild detergents, never immerse nor use excessive fluid. 16. BATTERIES If there is no display when the thermometer turned check condition of the two AA batteries. Also check that the battery terminals are clean batteries... -
Page 22: Accessories
17. ACCESSORIES Replacement Meter Meter Accessories Item Ordering Code Type J 60010-00 Type K 60010-10 Type T 60010-20 Soft carrying case 08520-05 Replacement AA 09376-01 batteries, pack of 4 Call for part number Certificate of Calibration Traceable to NIST... - Page 23 General purpose EC-TPGLPJ- probe (immersion 01M/ 08517-55 Into liquids), type J Penetration probe EC-TPPENJ- (meat, semi-soft 01M/ 08517-65 Materials), type J Surface probe EC-TPSURJ- (direct contact on 01M/ 08517-60 Hot surfaces), type J Clip-on probe EC-TPCLPJ- (surface contacts- 01M/ 08469-00 Electronics), type J General purpose EC-TPGLPK-...
-
Page 24: Service
18. SERVICE WARNING SUBSTITUTION OF COMPONENTS MAY IMPAIR INTRINSIC SAFETY. There are no internal adjustments or user replaceable parts. If “Err” followed by the numbers 1 through 9 is displayed (see example below) return unit for service. Note that “Err” alone may be displayed during improper field calibration. -
Page 25: Warranty
19. WARRANTY Manufacturer warrants this product to be free from significant deviations from published specifications for a period of three years. repair adjustment necessary within the warranty period, the problem will be corrected at no charge if it is not due to misuse or abuse on your part as determined by the Manufacturer. - Page 26 NOTES...
- Page 28 Instruments/ OAKTON Instruments’ products, contact your nearest distributor or visit our web site listed below: Eutech Instruments Pte Ltd Blk 55 Ayer Rajah Crescent #04-16 Singapore 139949 Tel: (65) 6778 6876 Fax: (65) 6773 0836 Website: www.eutechinst.com Email: marketing@eutechinst.com OAKTON Instruments P.O.
