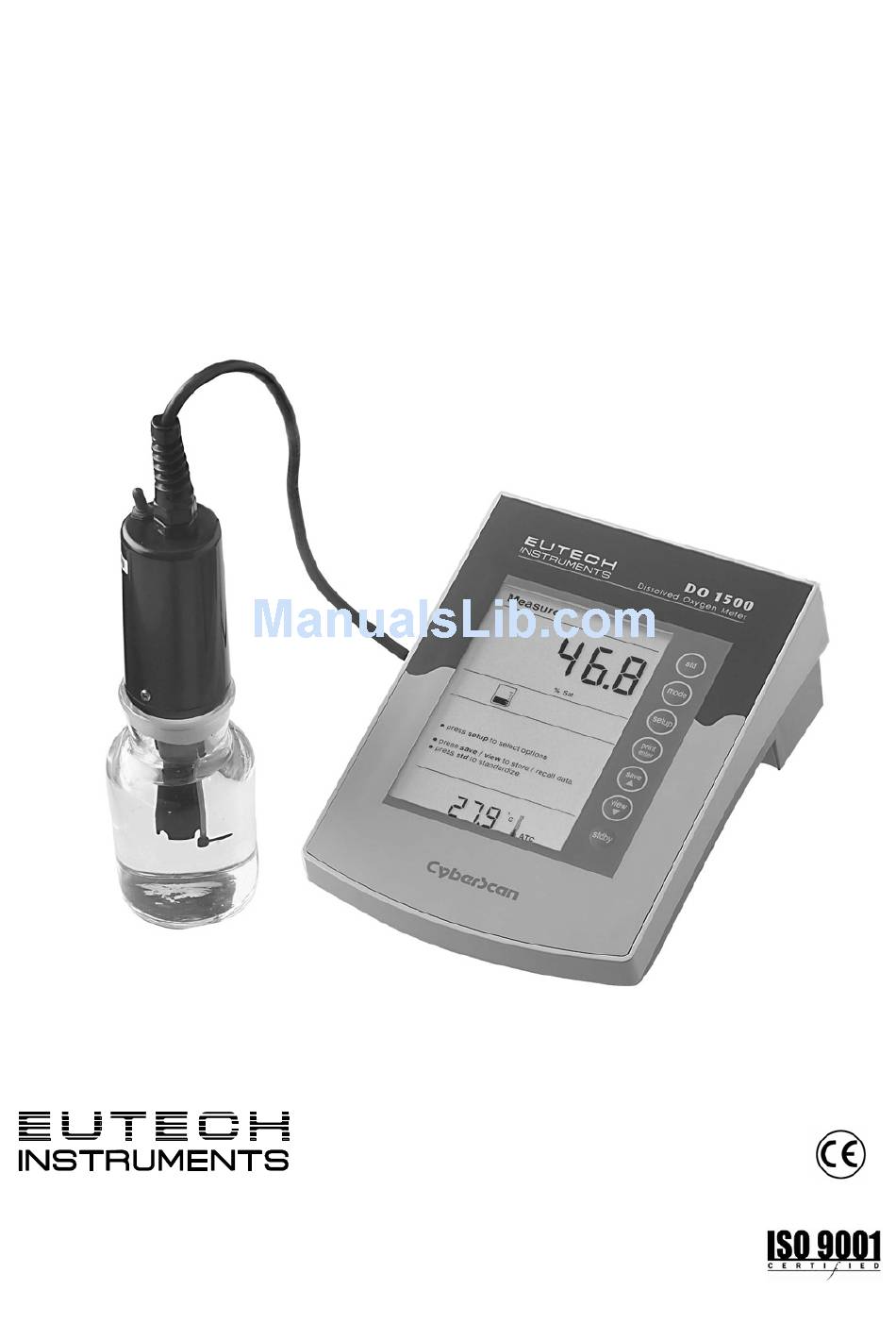

- Page 1 Instruction Manual CyberScan DO 1500 Dissolved Oxygen Meter Technology Made Easy ... 68X292336 Rev. 1 01/04...
- Page 2 PREFACE Thank you for selecting the Eutech Instruments CyberScan DO 1500 bench meter. The instruction manual serves to explain the use of the CyberScan DO 1500 bench meter as a step-by-step operational guide to help you familiarise with the meter’s features and functions. It is structured sequentially with illustration of diagrams that explains the various functions and setup menus available.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION 2. GETTING STARTED 2.1. Connectors 3. USING THE METER 3.1. The Electrode 3.2. Display/ Keys 3.3. Screen Display 3.3. Screen Display 4. SETUP PROCEDURE CHECK 4.1. CyberScan DO 1500 Setup Pages 4.1.1. Setup P 1.0: View the Calibration Data 4.1.2. -
Page 4: Introduction
Instruction Manual CyberScan DO1500 1. INTRODUCTION Thank you for selecting a Eutech Instruments CyberScan Dissolved Oxygen bench-top meter. This instruction manual describes the operation of the meter. The state-of-art meter that you have purchased is easy to operate and will guide you through the various functions by displaying easy to understand prompts. -
Page 5: Getting Started
Instruction Manual CyberScan DO 1500 GETTING STARTED 2.1. Connectors 1. Review the layout and arrangement of the rear connector panel. 2. Connect the power adapter’s output power jack to the meter’s rear panel DC input power socket and plug in the adapter to a power source. -
Page 6: Using The Meter
Instruction Manual CyberScan DO 1500 3. USING THE METER 3.1. The Electrode This meter comes equipped with a self-stirring BOD probe, model 5010, from YSI. Read the accompanying manual prior to installation and operation. The 5010 probe need be plugged into the meter only, as the meter supplies both its operation power and stirring power. -
Page 7: Display/ Keys
Instruction Manual CyberScan DO 1500 3.2. Display/ Keys Overview of the meter screen display and function key layout. Measure Press std key to initiate standardisation from measure mode. Or press std key at the ‘Standardize’ mode to exit to Measurement mode without confirming the calibration OR to exit from Setup mode. -
Page 8: Screen Display
Instruction Manual CyberScan DO 1500 3.3. Screen Display Familiarise yourself with the layout of the digital screen display. -
Page 9: Setup Procedure Check
Instruction Manual CyberScan DO 1500 4. SETUP PROCEDURE CHECK 4.1. CyberScan DO 1500 Setup Pages The setup button brings you to the setup menus of the various parameters. Press setup while in measurement to access to the setup menus. The ▲/save or ▼/view keys allow you to change several operating parameters. - Page 10 Instruction Manual CyberScan DO 1500 P 1.0: View calibration P 8.0: Set the Baud data Rate - View the last calibrated cal - Set baud rate as factor and 0% offset value if 4800, 9600, 19200 or two points are calibrated. 38400 bps.
-
Page 11: Setup P 1.0: View The Calibration Data
Instruction Manual CyberScan DO 1500 4.1.1. Setup P 1.0: View the Calibration Data This setup menu allows you to view the last calibrated Cal factor in % Sat and mg/L mode. View press to set value press enter to accept 1. - Page 12 Instruction Manual CyberScan DO 1500 2. Press enter to access View Last calibrated Cal factor setup page. press enter to accept...
- Page 13 Instruction Manual CyberScan DO 1500 3. If the unit has not been standardised, a series of dashes will appear on the display rather than a number. 4. Press enter key to confirm selection and to go to next setup page, OR press std to exit from this page without confirming the change mode.
-
Page 14: Setup P 2.0: Set Pressure
Instruction Manual CyberScan DO 1500 4.1.2. Setup P 2.0: Set Pressure The setup option allows you to set the atmospheric pressure (mmHg) value. You are able to set the salinity value in the range of (450mmHg to 825 mmHg). mmHg press to set value press... - Page 15 Instruction Manual CyberScan DO 1500 3. Press enter to go to the ‘Pressure adjustment’ setup page as shown below. 4. Adjust the pressure value using the keys. 5. Press enter key to confirm selection and to go to next setup page OR press std to exit from this page without confirming the change mode.
-
Page 16: Setup P3.0: Set The Salinity Value
Instruction Manual CyberScan DO 1500 4.1.3. Setup P3.0: Set the Salinity Value The setup option allows you to set the Salinity (as ppt) value. You are able to set the salinity value in the range of 0.0- 45.0 ppt. Salinity press to set value press... - Page 17 Instruction Manual CyberScan DO 1500 Press enter to go to the ‘Salinity adjustment’ setup page as shown below. Adjust the salinity value using the keys. Press enter key to confirm selection and to go to next setup page OR press std to exit from this page without confirming the change mode.
-
Page 18: Setup P4.0: Select Number Of User Cal Points For %Sat Calibration
Instruction Manual CyberScan DO 1500 4.1.4. Setup P4.0: Select Number of User Cal Points for %Sat calibration This setup option allows you to select the number of user cal points for % Sat calibration to be either 1 or 2. % Sat press to set value... - Page 19 Instruction Manual CyberScan DO 1500 3. Press enter to accept the current value or press adjust and set the value to be 1 or 2. 4. Press enter key to confirm selection and to go to next setup page OR press std to exit from this page without confirming the change mode.
-
Page 20: Setup P5.0: Enable/ Disable Auto Cal
Instruction Manual CyberScan DO 1500 4.1.5. Setup P5.0: Enable/ Disable Auto Cal This setup option allows you to enable the auto calibration for % Sat and mg/L modes. % Sat press to set value press enter to accept To Enable/ Disable Auto Cal Access the Setup pages by pressing setup while in measurement mode Press the... - Page 21 Instruction Manual CyberScan DO 1500 3. Press to select YES or NO. 4. Press enter key to confirm selection and to go to next setup page OR press std to exit from this page without confirming the change mode.
-
Page 22: Setup P6.0: Select The Temperature Unit
Instruction Manual CyberScan DO 1500 4.1.6. Setup P6.0: Select the Temperature Unit press to set value press enter to accept select This setup option allows you to select unit of measure for Temperature either in °C or °F. To Select Temperature Unit Access the Setup pages menu from the measurement mode by pressing the setup key. - Page 23 Instruction Manual CyberScan DO 1500 Press key to select °C or °F. Press enter key to confirm selection and to go to next setup page OR press std to exit from this page without confirming the change mode. select select...
-
Page 24: Setup P7.0: Enable/ Disable Stability Indicator
Instruction Manual CyberScan DO 1500 4.1.7. Setup P7.0: Enable/ Disable Stability Indicator This setup option allows you to set the stability indicator to be displayed on the screen whenever reading has stabilised, thus minimises guesswork. ST AB L E press to set value press enter... - Page 25 Instruction Manual CyberScan DO 1500 Press key to select ON or OFF. Press enter key to confirm selection and to go to next setup page OR press std to exit from this page without confirming the change mode.
-
Page 26: Setup P8.0: Baud Rate
Instruction Manual CyberScan DO 1500 4.1.8. Setup P8.0: Baud Rate This setup option allows you to set the baud rate (bits per second) of the communication protocol interface. P rint press to set value press enter to accept To Set Baud Rate Access the Setup pages menu from the measurement mode by pressing the setup key. - Page 27 Instruction Manual CyberScan DO 1500 Press key to toggle between 4800, 9600, 19200 or 38400. Press enter key to confirm selection and to go to next setup page OR press std to exit from this page without confirming the change mode. view save Print...
-
Page 28: Setup P9.0: Parity Bit
Instruction Manual CyberScan DO 1500 4.1.9. Setup P9.0: Parity Bit This setup option allows you to set the parity bit of the communication protocol interface. Print P rint press to set value pres s to s et value pres s enter to accept press... - Page 29 Instruction Manual CyberScan DO 1500 Press key to toggle between toggle between 0 (none), 1 (odd) or 2 (even). Press enter key to confirm selection and to go to next setup page OR press std to exit from this page without confirming the change mode.
-
Page 30: Setup P10.0: Stop Bit
Instruction Manual CyberScan DO 1500 4.1.10. Setup P10.0: Stop Bit This setup option allows you to set the stop bit of the communication protocol interface. Print P rint press to set value pres s to s et value pres s enter to accept press... - Page 31 Instruction Manual CyberScan DO 1500 Press key to toggle between 1 or 2. Press enter key to confirm selection and to go to next setup page OR press std to exit from this page without confirming the change mode. view save view save...
-
Page 32: Setup P11.0: Print Data
Instruction Manual CyberScan DO 1500 4.1.11. Setup P11.0: Print Data This setup option allows you to print current displayed data or data stored in the meter’s memory to a computer or printer via its RS232 interface port. Note all the communication protocol for both the meter and computer/printer must match before successful printing can be performed. - Page 33 Instruction Manual CyberScan DO 1500 Press key to toggle between Curr or Store. Press enter key to confirm selection and to go to next setup page OR press std to exit from this page without confirming the change mode. P rint Print P rint Print...
-
Page 34: P12.0: Clear Stored Data
Instruction Manual CyberScan DO 1500 4.1.12. P12.0: Clear Stored Data This setup option allows you to clear all stored data sets (from previous measurements) in the meter’s memory for new data to be stored. Note old data sets will be overwritten by any new data sets in the event when the stored locations have exceeded. - Page 35 Instruction Manual CyberScan DO 1500 Press key to toggle between YES or NO. Press enter key to confirm selection and to go to next setup page OR press std to exit from this page without confirming the change mode. When you press enter key to confirm the clearing of memory, meter displays blinking “clear”...
-
Page 36: P13.0: Clear Buffer Values
Instruction Manual CyberScan DO 1500 4.1.13. P13.0: Clear Buffer Values This setup option allows you to clear the standardised buffer values. mg/L % Sat clear BUFFER press to set value press enter to accept To Clear Buffer Values 1. Access the Setup pages menu from the measurement mode by pressing the setup key. - Page 37 Instruction Manual CyberScan DO 1500 3. Press key to toggle between YES or NO. 4. Press enter key to confirm selection and to go to next setup page OR press std to exit from this page without confirming the change mode. If you are doing user reset from %sat setup page, it will clear both % sat and mg/L calibration.
-
Page 38: User Calibration
Instruction Manual CyberScan DO 1500 5. USER CALIBRATION 5.1. %Sat – One Point calibration (Auto) User can do the 100%Sat calibration. The pressure that has been set in the setup will be applied only during the calibration. Accepted window for 100% sat= 50% - 200%Sat 1. -
Page 39: Sat - Two Point Calibration (Auto)
Instruction Manual CyberScan DO 1500 5.2. %Sat – Two Point calibration (Auto) User must do the 0.0%Sat cal first. This point will be considered as offset. After successful 0%Sat calibration, meter will prompt for the 100% Sat calibration. User must do the two points. Otherwise meter displays the error message. -
Page 40: Sat - One Point Calibration (Manual)
Instruction Manual CyberScan DO 1500 5.3. %Sat – One Point calibration (Manual) User can calibrate to the know value. Accepted window is 70% of the default value. Lowest value that can be calibrated is 20.0 %Sat. 1. Press std to enter to ‘Standardize’ screen. Both Upper and lower display shows the present measured value. -
Page 41: Mg/L- One Point Calibration (Auto)
Instruction Manual CyberScan DO 1500 5.4. mg/L– One Point calibration (Auto) User can do calibration in mg/L. 1. Press std to enter to ‘Standardize’ screen. Upper display shows the present measured value while lower display shows theoretical value. [Based on pressure and salinity setting] 2. -
Page 42: Mg/L- One Point Calibration (Manual)
Instruction Manual CyberScan DO 1500 5.5. mg/L– One Point calibration (Manual) User can do calibration in mg/L. 1. Press std to enter to ‘Standardize’ screen. Both upper and lower display shows the present measured value. 2. Use the keys to adjust the known standard value. 3. -
Page 43: Atc Calibration
Instruction Manual CyberScan DO 1500 5.6. ATC Calibration User can adjust the ATC temperature offset. 1. From the measurement mode, press std and followed by mode key to go into the temperature calibration mode. 2. Use the keys to adjust the offset. 3. -
Page 44: Memory
Instruction Manual CyberScan DO 1500 6. MEMORY 6.1. Store Value into Memory In any measurement mode, press ▲/save key to store the displayed save reading into the meter’s non-volatile memory. A memory location is shown momentarily and the meter returns to measurement mode. 6.2. -
Page 45: Print Data
Instruction Manual CyberScan DO 1500 7. PRINT DATA 7.1. Printing Data Depending on the print option in the meter setup, pressing print key allows you to print either current displayed reading or stored data from meter to a PC or printing device via a RS232 communication print cable. -
Page 46: Do Theory
Instruction Manual CyberScan DO 1500 8. DO THEORY The polarographic type Oxygen probe used with the CyberScan DO 1500 meter responds to the partial pressure exerted by oxygen in a given sample. As Oxygen reaches the probe's cathode, it is reduced according to the following equation: + 2 H O + 4e... -
Page 47: Meter Specifications
Instruction Manual CyberScan DO 1500 METER SPECIFICATIONS Description CyberScan DO 1500 DO range 0.00 to 60.00 mg/L Resolution 0.01 mg/L DO range (% saturation) 0.01% to 600.0%Sat Resolution (% saturation) 0.1% Accuracy ±0.5% Full Scale + 1 LSD Temperature range 0.0 to 45.0°C (32.0 to 113.0°F) Barometric pressure 450 to 825 mmHg... -
Page 48: Cleaning
Instruction Manual CyberScan DO 1500 10. CLEANING This meter requires no regular maintenance, but it is recommended to occasionally wipe down the front with a damp cloth from time to time. 11. TROUBLESHOOTING The CyberScan DO 1500 displays pertinent error messages to guide you should an error occur with a measurement or meter operation. -
Page 49: Accessories
Instruction Manual CyberScan DO 1500 12. ACCESSORIES Consult your Authorised Distributors for these items. 12.1. Replacement Meters and Accessories CODE NO. DESCRIPTION EC-DO1500/12 CyberScan DO 1500 Bench DO/BOD Meter with self stirring BOD probe (EC-620-SSP), Data Acquisition Software and 110VAC power adapter, 2-flat pin US type (center negative) EC-DO1500/22 CyberScan DO 1500 Bench DO/BOD Meter with self... -
Page 50: Warranty
Instruction Manual CyberScan DO 1500 13. WARRANTY Eutech Instruments supplies this bench meter with a 3-year warranty and 6-month warranty for electrode against manufacturing defects from the date of purchase. If repair or adjustment is necessary and has not been the result of abuse or misuse within the warranty period, please return, freight prepaid, and correction will be made without charge. -
Page 51: Notice Of Compliance
Warning! To meet or exceed FCC regulations and comply with CE requirements, the Eutech Instruments supplied power supply must be used. Use of a power supply that is not approved by Eutech Instruments may cause safety hazards and/or cause unit to exceed EMC limits and/or damage unit. - Page 52 For more information on Eutech Instruments products, contact your nearest Eutech Instruments distributor or visit our website listed below: Manufactured by: Distributed by: Eutech Instruments Pte Ltd. Blk 55, Ayer Rajah Crescent, #04-16/24 Singapore 139949 Tel: (65) 6778 6876 Fax: (65) 6773 0836 E-mail: marketing@eutechinst.com...
