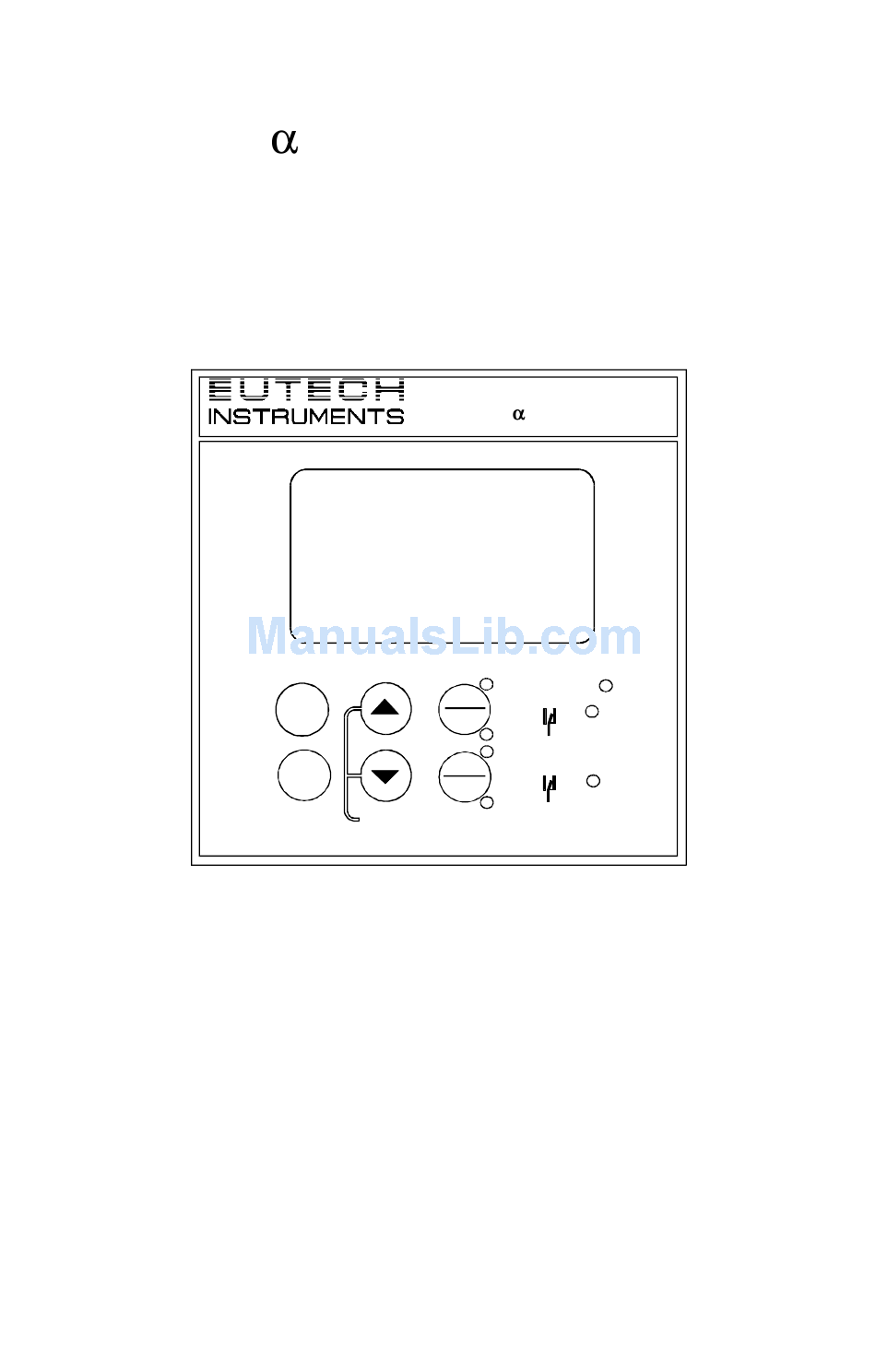

- Page 1 Instruction Manual lpha-CON1000 Conductivity Controller/Transmitter Conductivity Controller lpha CON1000 MEAS 8.08 8.08 25.0 25.0 ALARM REL A REL B REL A AUTO ENTER MANU REL B 68X216802...
-
Page 2: Table Of Contents
The information presented in this manual is subject to change without notice as improvements are made, and does not represent a commitment on part of Eutech Instruments Pte Ltd. Eutech Instruments cannot accept any responsibility for damage or malfunction of the unit due to improper use of the instrument. -
Page 3: Introduction
Operating Instructions lpha-CON1000 Controller (Cntr) sub-function............... 19 Measurement Range sub-function ............20 Current Output (rng) sub-function............21 Configuration (ConF) sub-function ............22 Calibration (CAL) sub-function ............23 Auto/Manual Mode ..................24 Auto mode (mode after switch-on) ............24 Manual mode..................24 Technical Specifications................ -
Page 4: Applications
Three control modes: limit, proportional pulse length or proportional pulse frequency Large dual display LCD for easy reading with clear multiple annunciators, alarm status and operational message annunciators Two switching contacts as set-point triggering relays and an alarm output relay Separate alarm relay alerts you when set points have exceeded the limits and if the Pt100/Pt1000 wires are broken or disconnected during the ATC function Hold function freezes output current (0/4...20mA) and releases control relays... -
Page 5: Assembly And Installation
Assembly and Installation Measurement and Control System A typical measurement system consists of: lpha-CON1000 process controller a suitable Conductivity electrode with the appropriate Cell constant and integrated temperature sensor Pt 1000 or Pt 100, an immersion, flow or process assembly a final control element such as pump or valve and a chart recorder. -
Page 6: Electrical Connection
The field-tested control panel housing is 96 x 96 mm; with protection class IP 54 (front). Electrical Connection Connection Diagram 19 2 0 2 1 2 2 PE/S Pt 1000/100 Signa l Input Conductivity Relay A Hold Input Sign al Ou tpu t Po wer M ains Relay B Alarm... -
Page 7: Back Panel
Operating Instructions lpha-CON1000 Back Panel The back panel consists of two connectors. The first connector is the 17-way PCB edge connector and the other is the 5-way connector. Connection for the 17-way screw terminals (from left to right): 1. AC mains live wire 10. -
Page 8: Overview
Overview 4.1 Keypad and Display 4.1.1 Keypad Perform rapid calibration Allows entry to Set up mode Select individual functions within the function group of Set up mode Store input data in the Set up mode Start calibration in the calibration mode Select various function groups in the Set up mode. -
Page 9: Function Groups
Operating Instructions lpha-CON1000 Function Groups The main function and sub-function groups are organised in a matrix format for configuration and selection of parameters. The main function groups are: Temperature Coefficient settings ( tC tC Temperature Measurement / compensation settings ( S S E E t t Control relay 1 configuration ( Control relay 2 configuration (... -
Page 10: Control Concept
Control Concept The main function and sub-function groups are organised in a matrix format as shown below. These functions can be accessed via the front keypad for configuration and selection of parameters. The controller offers two levels of password protection: (1) for direct access to calibration function and (2) for setting or editing specific controller parameters or functions in the SETUP mode to suit individual requirements. -
Page 11: Measurement
Operating Instructions lpha-CON1000 MEASUREMENT Display in Measurement mode When the controller is initially powered on, it automatically enters into the Measurement mode after the large dual LCD displays all segments briefly. The upper display shows the measured Conductivity value, while the lower display shows the temperature value. - Page 12 NOTE: To view (not change) the SETUP parameters, push the ENTER key when the security code reads “000”. 68X216802...
- Page 13 Operating Instructions lpha-CON1000 5.2.1.1 Clearing the Calibration security code from the display The calibration security code automatically resets from “11” to “000” after you return to Measurement mode, so you do not need to clear the security code from the display. 5.2.2 How to enter and change parameters in Advanced Setup mode 1) Press the ENTER key once.
-
Page 14: Calibration Mode
Calibration Mode You can reach the Calibration mode directly from the Measurement mode by pressing the CAL key and entering the Calibration security code. You can also reach the Calibration mode from the Advanced Setup mode. Conductivity Calibration Calibration is always carried out in the specific range selected. The Conductivity Controller allows a one-point calibration. -
Page 15: Advanced Set-Up Mode
ADVANCED SET-UP MODE Temperature Coefficient sub-function This sub-function allows you to select the correct temperature coefficient for optimum operations. For applications in the pure water or ultr-pure water industries, simply select the “Pur” temperature coefficient option. For all other applications, select “Lin” temperature coefficient. The controller allows further input of temperature coefficient values, independently for the process and for the calibrating solutions. -
Page 16: Temperature Calibration (Atc Mode Only)
Temperature calibration (ATC mode only) Select “ATC on” as described above in Section 7.4.1. Press the ENTER key. The upper display indicates the current temperature offset. The current measured temperature is HOLD SETUP on on shown in the lower display. Compare the current measured temperature on the controller display to a thermometer known to be accurate. -
Page 17: Control Relay A/Control Relay B (Sp1/Sp2) Sub-Function
Operating Instructions lpha-CON1000 Control Relay A/Control Relay B (SP1/SP2) sub-function The SP1 option sets the operating parameters for Relay A; and SP2 for relay B. Since these groups have the same set-up parameters, they are described together. HOLD SETUP HOLD SETUP HOLD SETUP HOLD SETUP HOLD SETUP... - Page 18 Example: You have set your set point 1 (Lo) at 6.00 S and your hysteresis limit value is at 0.50 S. If your measured value undershoots the low set point of 6.00 S, the controller’s relay activates, which in turn activates an external device such as a pump or valve. The actions of the external device will cause the value to rise above 6.00 S.
-
Page 19: Controller (Cntr) Sub-Function
Operating Instructions lpha-CON1000 Controller (Cntr) sub-function You can set the controller’s parameters in this sub-function. 7.4.1 Entering the Controller sub-function Enter Advanced Set-up mode. Push the ENTER key and scroll to Advanced set-up security code “22”. Push the ENTER key again. Press the keys to scroll until the upper display shows “Cntr”. -
Page 20: Measurement Range Sub-Function
7.4.3 Choosing break/make contact relay type Note: If the controller type “oFF” is set, the parameters listed in 7.5.3, 7.5.4, 7.5.5 and 7.5.6 are blanked out. This mode lets you determine the relay-state under Non-Alarm condition – dEEN (de-energised) or EN (energised). -
Page 21: Current Output (Rng) Sub-Function
Operating Instructions lpha-CON1000 Current Output (rng) sub-function This sub-function lets you set the transmitter current output range of this unit. The difference between the upper and lower range has to be a minimum of 20% of Full Scale, anywhere on the scale. 7.6.1 Entering current output sub-function HOLD SETUP... -
Page 22: Configuration (Conf) Sub-Function
Press the ENTER key to confirm your selection. Press the ENTER key to return to Advanced Set-up mode, or return to Measurement mode by pressing the keys simultaneously (escape). HOLD SETUP HOLD SETUP HOLD SETUP HOLD SETUP HOLD SETUP COnf COnf Stdy Stdy... -
Page 23: Calibration (Cal) Sub-Function
Operating Instructions lpha-CON1000 Follow directions in 7.9.2 to enter Configuration mode. HOLD SETUP Press the ENTER key. Scroll with the keys until the upper Stdy Stdy display shows “Stdy” or “FLEt” and lower display shows “AL.C.”. AL.C AL.C AL.C = alarm contact StdY = steady contact FLEt = fleeting (single pulse) contact Press the... -
Page 24: Auto/Manual Mode
7.8.1 Entering Calibration mode from Advanced Set-up mode Enter Advanced Set-up mode. Push the ENTER key and scroll to Advanced Set-up security code “22”. Push the ENTER key again. Press the keys to scroll until the upper display shows “CAL”. See section 6 for complete calibration procedures. -
Page 25: Technical Specifications
Operating Instructions lpha-CON1000 Technical Specifications Conductivity Range Resolution Default Cell Constant, K Optional Cell, K 0.01 0.000 to 1.999 S/cm 0.001 S/cm 0.01 0.00 to 19.99 S/cm 0.01 S/cm 0.0 to 199.9 S/cm 0.1 S/cm 0 to 1999 S/cm 1 S/cm 0 to 5000 S/cm 5 S/cm 0.00 to 19.99 mS/cm... -
Page 26: Accessories Assembly Accessories
11.1 Warranty Eutech Instruments warrants this product to be free from significant deviations in material and workmanship for a period of one year from the date of purchase. If repair is necessary and has not been the result of abuse or misuse within the warranty period, please return by freight pre-paid and amendment will be made without any charge. -
Page 27: 12 Appendices
Operating Instructions lpha-CON1000 12 Appendices 12.1 Appendix 1 – Jumper Positions Jumper Positions - Internal to the controller JP 1 Selects the input voltage 220 VAC. JP 2 Selects the input voltage 110 VAC. JP 3 Selects the temperature sensor for Pt1000/Pt100 Fuse Note that there is a fuse (slow-blow 100mA) internal to the controller. -
Page 28: Appendix 2 - Measurement Ranges Available In The Controller
12.2 Appendix 2 – Measurement Ranges available in the Controller Range No. Range Resolution Default cell K 0.01 0.000 – 1.999 S 0.001 S 0.01 0.00 – 19.99 S 0.01 S 0.00 – 19.99 S 0.01 S 0.0 – 199.9 S 0.1 S 0.0 –... - Page 29 Substance Concentration wt % Conductivity 10 S/cm Conductivity Coefficient 1.04 1129 1.14 2070 1.50 2087 1.61 2073 1.74 NaCl 2.17 1211 2.14 1642 2.12 1957 2.16 2153 2.27 2.36 2.49 2.56 1969 1.58 3124 1.56 3463 1.54 1.52 5152 2085 1.21 3915 1.28...
- Page 30 2810 1.66 Substance Concentration wt % Conductivity 10 S/cm Conductivity Coefficient 2.06 1.94 1907 1.77 3.25 2.07 1026 1.93 1.98 1776 1.86 2586 1.71 3365 1.61 4025 1.54 2.15 1010 2.03 1779 1.93 2292 1.91 12.4 Appendix 4 – Conductivity of Various Aqueous Solutions at 25 Conductivity Resistivity Pure Water...
-
Page 31: Appendix 5 - Simple Explanation On The Function Of Hysteresis
12.5 Appendix 5 - Simple Explanation on the Function of Hysteresis SP1 Set to LO SP2 Set to HI RELAY ON RELAY OFF 10.0 10.5 100.0 100.5 FORWARD DIRECTION HYSTERESIS BAND REVERSE DIRECTION The controller relay activates when the set-point is reached. In the reverse direction, it does not de- activate when the value reaches the set-point. -
Page 32: Appendix 6 - General Instructions Concerning Controller Setting
12.6 Appendix 6 – General Instructions Concerning Controller Setting MIN Function MAX Function 100 % 50 % + Xw - Xw SP 1 SP 2 Xp = 0 Xp = 0 Control characteristic of P-Controllers as limit value switch 68X216802...
