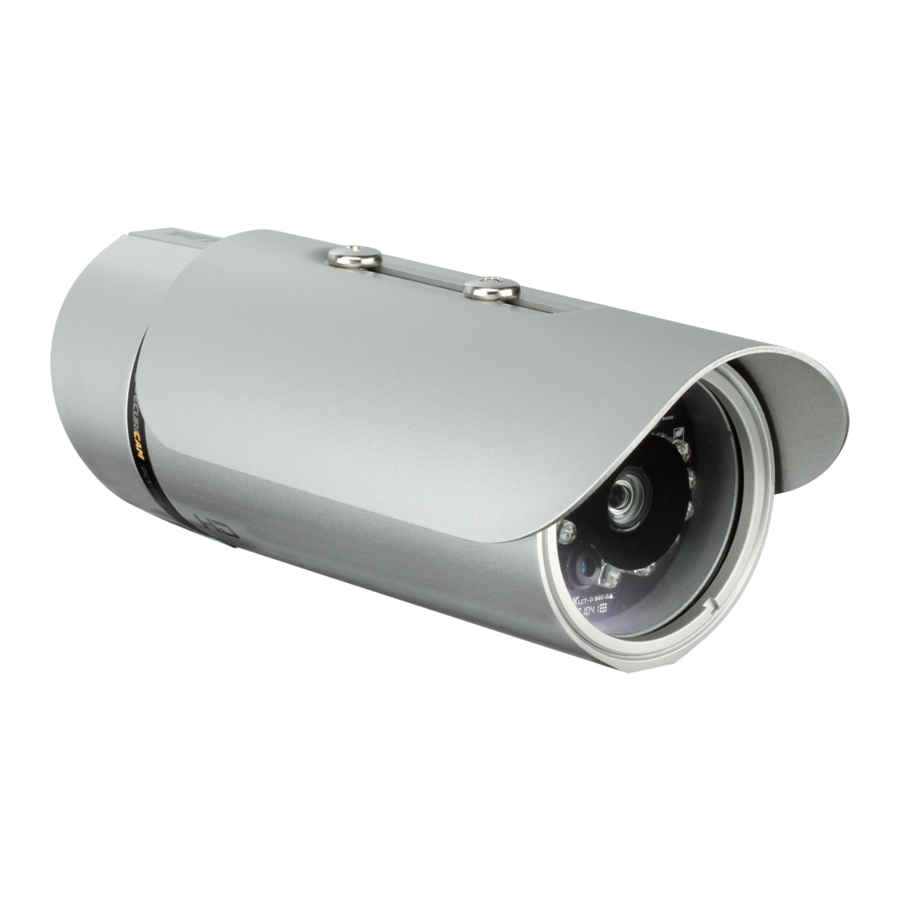

D-Link DCS-7110 User Manual

Hd ir outdoor camera
Hide thumbs Also See for DCS-7110:
Table of Contents

Advertisement

Quick Links

See also: User Manual

Advertisement

Table of Contents
loading

Related Manuals for D-Link DCS-7110

Summary of Contents for D-Link DCS-7110

  • Page 2: Preface

    Preface Preface D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Revision Date Description March 7, 2011 DCS-7110 Revision A1 with firmware version 1.00 Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.

  • Page 3: Table Of Contents

    DI and DO ................50 Setup Wizard ................13 Event Settings ..............51 Recording ................57 Configuration ................19 Recording Settings ............57 Web-based Configuration Utility ..........19 PTZ Control ................59 Live Video ..................20 Digital PTZ .................59 Client Setup ..................24 Mechanical PTZ ...............60 D-Link DCS-7110 User Manual...
  • Page 4 HTML Code Examples ...........63 System ..................64 User Settings ..............64 Device Settings ..............65 Time and Date ..............66 Maintenance ..............67 Parameter List ..............69 Logs ..................70 Technical Specifications ............71 Contacting Technical Support ..........73 Warranty ................... 74 Registration ................80 D-Link DCS-7110 User Manual...

  • Page 5: Product Overview

    Product Overview Product Overview Product Overview Package Contents ƒ DCS-7110 HD IR Outdoor Camera ƒ Mounting Bracket ƒ Power Adapter ƒ CAT5 Ethernet Cable ƒ User Manual and Software on CD-ROM ƒ Quick Install Guide Note: Using a power supply with a different voltage than the one included with the package will cause damage and void the warranty for this product.

  • Page 6: Introduction

    Nothing herein represents a warranty or representation that the D-Link product provided herein is suitable for the end-user’s intended use under the applicable laws of his or her state. D-Link disclaims any liability whatsoever for any end-user use of the D-Link product, which fails to comply with applicable state, local, or federal laws.

  • Page 7: Features

    Flexible Connectivity The DCS-7110 includes input and output ports for connectivity to external devices such as IR sensors, switches, and alarm relays. It also comes with an RS-485 interface, providing connectivity to an optional pan/tilt scanner. The DCS-7110 also incorporates Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling.

  • Page 8: Hardware Overview

    Adjustable sunshield protects the Infrared LEDs camera sensor from direct sunlight IR LEDs Illuminate the camera's field of view IR-Cut Removable (ICR) Sensor IR-Cut Removable sensor judges lighting conditions and switches from day mode to night mode accordingly D-Link DCS-7110 User Manual...

  • Page 9: Cable Connectors

    An RS-485 scanner can be connected to the RS-485 connectors for mechanical pan and tilt controls. DI/DO Connectors DI/DO connectors provide a physical interface to send and receive digital signals to and from a variety of external devices D-Link DCS-7110 User Manual...

  • Page 10: Installation

    7. The camera cables can be installed through a separate large hole drilled in the ceiling, or using an external cable conduit. D-Link DCS-7110 User Manual...

  • Page 11: Wall Mount

    6. Attach the camera enclosure to the mounting bracket. Align the camera to the correct field of view and tighten the thumbscrew to lock it into place. 7. The camera cables can be installed through a separate large hole drilled in the wall, or using an external cable conduit. D-Link DCS-7110 User Manual...

  • Page 12: Cable Connections

    If using a PoE switch or router, connect the network camera via Ethernet cable. PoE will transmit both power and data over a single cable. Note: Once power has been established, the LED will turn red. When the device has obtained an IP address and is accessible, the LED will turn green. D-Link DCS-7110 User Manual...

  • Page 13: Software Installation

    Setup Wizard Insert the DCS-7110 CD into your computer's CD-ROM drive to begin the installation. If the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive letter of your CD-ROM drive.
  • Page 14 Installation Click Yes to accept the License Agreement. To start the installation process, click Next. Note: The installation may take several minutes to finish. D-Link DCS-7110 User Manual...
  • Page 15 Installation Click Finish to complete the installation. Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu. Start > D-Link > Setup Wizard SE D-Link DCS-7110 User Manual...
  • Page 16 Click the Wizard button to continue. Enter the Admin ID and password. When logging in for the first time, the default Admin ID is admin with the password left blank. Click Next to proceed to the next page. D-Link DCS-7110 User Manual...
  • Page 17 Select DHCP if your camera obtains an IP address automatically when it boots up. Select static IP if the camera will use the same IP address each time it is started. Click Next to proceed to the next page. Take a moment to confirm your settings and click Restart. D-Link DCS-7110 User Manual...
  • Page 18 D-ViewCam Device Pack Setup D-ViewCam software is included for the administrator to manage multiple D-Link IP cameras remotely. You may use the software to configure all the advanced settings for your cameras. D-ViewCam is a comprehensive management tool for IP surveillance.

  • Page 19: Configuration

    Configuration Web-based Configuration Utility This section will show you how to configure your new D-Link Network Camera using the Web-based Configuration Utility. To access the configuration utility, open a web-browser such as Internet Explorer and enter the IP address for your Network Camera (http://192.168.1.179).

  • Page 20: Live Video

    When you connect to the camera's web interface you will see the following page. This is the Live Video page which will allow you to view the camera's video feed and control basic camera functions using the icons on the screen. Please refer to the tables on the following pages for detailed information about the icons on this screen. D-Link DCS-7110 User Manual...
  • Page 21 Configuration Click this logo to visit the D-Link website. D-Link Logo The logos and website can be customized to fit your needs. For more information, please refer to User Customization on page 62. Securicam Logo Setup the stream transmission mode and saving options on the local computer.
  • Page 22 Go Preset Control Pan/Tilt/Zoom speed Pan Speed Control Tilt Speed Control Zoom Speed Control Speed Control *See Mechanical PTZ on page 61 for more information about the installation of a PTZ scanner. D-Link DCS-7110 User Manual...
  • Page 23 Zoom ratio 50%: Keep the video zoom ratio at 50% 25%: Keep the video zoom ratio at 25% Click the Help button to learn the detailed information regarding camera setup and solve any problems you encounter. Help D-Link DCS-7110 User Manual...

  • Page 24: Client Setup

    Local Streaming Buffer Time Enter the buffer time in milliseconds. The buffer will cause a slight delay between live activity and the video of the live stream but may increase the quality of video. D-Link DCS-7110 User Manual...

  • Page 25: Setup

    Configuration Setup The DCS-7110 includes basic and advanced setup screens. Both screens include a tree view with multiple setup options. This manual includes detailed explanations for all advanced setup screens. Basic Setup Click the setup button to enter the setup screen.

  • Page 26: Advanced Setup

    - Motion Detection, Tamper Detection, DI and DO, Event Settings Recording - Recording Settings PTZ Control - Digtal PTZ, Mechanical PTZ User Customization - Live Video Page Config, HTML Code Examples System - User Settings, Device Settings, Time and Date, Maintenance, Parameter List, Logs D-Link DCS-7110 User Manual...

  • Page 27: System Overview

    Configuration System Overview The system overview page contains a summary of the camera's current settings. For more information about adjusting these settings, please consult the subsequent instructions found in this manual. D-Link DCS-7110 User Manual...

  • Page 28: Video

    "Output Frame Rate" (size of the live view window). Stream 4: This is global view stream which captures the full view of the video. Users can also define the "Output Frame Rate" (size of the live view window). D-Link DCS-7110 User Manual...
  • Page 29 2. Select the applied mode: Day mode, Night mode, or schedule mode. Please manually enter a range of time if you choose Schedule mode. 3. Configure Exposure setting in the second column. 4. Click Save to enable the setting and click Close to exit the page. D-Link DCS-7110 User Manual...
  • Page 30 • Fixed quality: To optimize the bandwidth utilization and video quality. The video quality can be adjusted to the following setting: Medium, Standard, Good, Detailed and Excellent. You can also select Customize and manually enter a value. D-Link DCS-7110 User Manual...

  • Page 31: Image Settings

    Brightness: Adjust the image brightness level, which ranges from -5 to +5 Saturation: Adjust the image saturation level, which ranges from -5 to +5 Contrast: Adjust the image contrast level, which ranges from -5 to +5 D-Link DCS-7110 User Manual...
  • Page 32 • Up to 5 privacy mask windows can be set up on the same screen. • If you want to delete the privacy mask window, please click the ‘x’ at the upper right-hand corner of the window. D-Link DCS-7110 User Manual...

  • Page 33: Day And Night Settings

    Light Sensor Sensitivity: Select Low, Normal, or High sensitivity for the light sensor. Disable IR LED: Select this box to disable the IR LED. The IR LED automatically switches on at night. By default the LED automatically switches on at night. D-Link DCS-7110 User Manual...

  • Page 34: Network

    Secondary DNS: Secondary Domain Name Server (DNS) that backups the Primary DNS. Primary WINS Server: The primary WINS server that maintains the database of computer name and IP address. Secondary WINS Server: The secondary WINS server that maintains the database of computer name and IP address. D-Link DCS-7110 User Manual...
  • Page 35 4. Go to Setup > Network > IP settings. Select PPPoE and enter the user name and password provided by your ISP. Click Save to enable the setting. 5. The camera will reboot. 6. Disconnect the power to the camera. Remove it from the LAN environment. D-Link DCS-7110 User Manual...
  • Page 36 3. Press Enter on the keyboard or click Refresh button to refresh the webpage. Manually Setup the IP Address: Select this option to manually configure IPv6 setting if your network environment does not have DHCPv6 server and advertisements- enabled routers. D-Link DCS-7110 User Manual...

  • Page 37: Port And Access Name Settings

    By default, the HTTPS port is set to 443. It can also be assigned to another port number between 1025 and 65535. The FTP server allows the user to save recorded video clips. You can utilize D-Link's IP Cam Wizard to upgrade the firmware via FTP server. By default, the FTP port is set to 21.
  • Page 38 Multicast TTL [1~255]: The multicast TTL (Time To Live) is the value that tells the router the range a packet can be forwarded. Click the items to display the detailed configuration information. Select the Always multicast option to enable multicast for stream 1 ~ 4. D-Link DCS-7110 User Manual...

  • Page 39: Dynamic Dns

    Host Name: Enter the host name of the DDNS server. Username: Enter your username or e-mail used to connect to the DDNS Password: Enter your password used to connect to the DDNS server. Status: Indicate the connection status, automatically determined by the system. D-Link DCS-7110 User Manual...

  • Page 40: Https

    1. Click Create to open the Create Certificate page, then click Save to generate the certificate. 2. The Certificate Information will automatically be displayed in the third column as shown below. You can click Property to see detailed information about the certificate. D-Link DCS-7110 User Manual...
  • Page 41 If you want to create and install other certificates, please remove the existing one. To remove the signed certificate, deselect Enable HTTPS secure connection in the first column and click Save. Then click Remove to erase the certificate. D-Link DCS-7110 User Manual...

  • Page 42: Access List

    User settings. 2. The administrator has set up a user password, but set RTSP Authentication to “disable“. For more information about RTSP Authentication, please refer to RTSP Streaming. D-Link DCS-7110 User Manual...
  • Page 43 Administrator IP address Always allow the IP address to access this device: You can select this item and add the Administrator’s IP address in this field to make sure the Administrator can always connect to the device. D-Link DCS-7110 User Manual...

  • Page 44: Advanced Settings

    • Authentication type: Select MD5 or SHA as the authentication method. • Authentication password: Enter the password for authentication (at least 8 characters). • Encryption password: Enter a password for encryption (at least 8 characters). D-Link DCS-7110 User Manual...
  • Page 45 The following are the main benefits of a QoS-aware network: The ability to prioritize traffic and guarantee a certain level of performance to the data flow. D-Link DCS-7110 User Manual...
  • Page 46 They only offer a "best-effort." Users can think of CoS as "coarsely-grained" traffic control and QoS as "finely-grained" traffic control. • Though CoS is simple to manage, it lacks scalability and does not offer end-to-end guarantees since it is based on L2 protocol. D-Link DCS-7110 User Manual...
  • Page 47 Quality of service guarantees are important if the network capacity is insufficient, especially for real-time streaming multimedia applications. Quality can be defined as, for instance, a maintained level of bit rate, low latency, no packet dropping, etc. D-Link DCS-7110 User Manual...

  • Page 48: Event Management

    3. Define the sensitivity to moving objects and the space ratio of all alerted pixels by moving the Sensitivity and Percentage slide bar. 4. Click Save to apply the changes. 5. Select Enable motion detection to activate motion detection. D-Link DCS-7110 User Manual...

  • Page 49: Tamper Detection

    Set up the event source as Camera Tampering Detection on Event Settings > Server Settings (how to send alarm message)/ Media Settings (send what type of alarm message)/Event Settings/. Please refer to Event settings for detailed information. D-Link DCS-7110 User Manual...

  • Page 50: Di And Do

    (DI+. GND) and digital output (DO-, +12V) that is used for connecting a diversity of external alarm devices to the camera such as IR-Sensors and alarm relays. Once triggered images will be taken and e-mailed. DI/DO Schematics D-Link DCS-7110 User Manual...

  • Page 51: Event Settings

    To verify if the e-mail settings are correctly configured, click Test. The result will be shown in a pop-up window. If successful, you will also receive an e-mail indicating the result. Click Save to enable the settings, then click Close to exit the page. D-Link DCS-7110 User Manual...
  • Page 52 Network storage: Select to send the media files to a network storage location when a trigger is activated. Click Save to enable the setting, then click Close to exit the page. When completed, the new server settings will automatically be displayed on the Event Settings page. D-Link DCS-7110 User Manual...
  • Page 53 Pre-event recording: The camera has a buffer area. It temporarily holds data up to a certain limit. Enter a number to decide the duration of recording before a trigger is activated. Up to 9 seconds can be set. D-Link DCS-7110 User Manual...
  • Page 54 There are several choices of trigger sources as shown below. Select the item to display the detailed configuration options. The input type that triggers the event. D-Link DCS-7110 User Manual...
  • Page 55 Specify the period for the event 1. Select the days of the week. 2. Select the recording schedule in 24-hr time format. Action Define the actions to be performed by the camera when a trigger is activated. D-Link DCS-7110 User Manual...
  • Page 56 To set an event with recorded video or snapshots, it is necessary to configure the server and media setting so that the camera will know what action to take (i.e. the server to send the media files to) when a trigger is activated. • Add Server: same as Server Settings • Add Media: same as Media Settings D-Link DCS-7110 User Manual...

  • Page 57: Recording

    Capacity: You can choose either the entire free space available or limit the reserved space. The recording size limit must be larger than the reserved amount for cyclic recording. File name prefix: Enter the text that will be appended to the front of the file name. D-Link DCS-7110 User Manual...
  • Page 58 Network Storage. The new recording name will appear in the drop-down list on the recording page. To remove a recording setting from the list, select a recording name from the drop-down list and click Delete. D-Link DCS-7110 User Manual...

  • Page 59: Ptz Control

    5. If you want to delete a selected location, select it from the Source list and click Remove. 6. Select a location and click Up or Down to rearrange the patrol order. 7. Click Save to enable the setting. D-Link DCS-7110 User Manual...

  • Page 60: Mechanical Ptz

    The more bits used for stop bits, the greater the lenience in synchronizing the different clocks but the slower the data transmission rate. The stop bit can be set to 1 or 2. The default value is 1. D-Link DCS-7110 User Manual...
  • Page 61 No (none), Even, and Odd. Preset Position: Clicking this button returns the camera to a preset position. Custom Command: Clicking this button allows you to define up to five custom commands for your PTZ scanner. D-Link DCS-7110 User Manual...

  • Page 62: User Customization

    5. The selected color will be displayed in the corresponding fields and in the Preview column. Click Save to enable the setting. Title: You can also change the title at the top of your Live Video page. D-Link DCS-7110 User Manual...

  • Page 63: Html Code Examples

    MJPEG stream. Still Image Format: • Refresh interval second - If user only need to embedded still image in the browser, please use this option and setup the refresh interval of the still image. D-Link DCS-7110 User Manual...

  • Page 64: System

    Username: Enter a username for the new account. Password: Enter a password for the new account. Privilege: Select the access rights for the new user. Manage user: Manage the accounts for existing users. Authentication: The access rights for existing users. D-Link DCS-7110 User Manual...

  • Page 65: Device Settings

    This will prevent anyone from observing the operation of the network camera. Camera Name: Create a unique name for your camera and you can access the camera using this name in your web-browser. For example: http://DCS-7110. D-Link DCS-7110 User Manual...

  • Page 66: Time And Date

    Update Interval: The time interval for updating the time information from NTP server. Set the date and time manually: This option allows you to set the time and date manually. Copy Your Computer’s Time Setting: This will synchronize the time information from your PC. D-Link DCS-7110 User Manual...

  • Page 67: Maintenance

    4. When completed, save the file. Upload daylight saving time rule: Click Browse… and specify the XML file to upload. Export language file: Click to export language strings. DCS-7110 provides 5 languages: English, Deutsch, Español, Français, Italiano. D-Link DCS-7110 User Manual...
  • Page 68 Note: Do not power off the camera during the upgrade! Follow the steps below to upgrade the firmware: 1. Download the latest firmware file from the D-Link website. The file is in .pkg file format. 2. Click Browse… and specify the firmware file.

  • Page 69: Parameter List

    Configuration Parameter List The Parameters List page lists the camera's parameter settings in alphabetical order. Refer to the list of variables to troubleshoot and debug code. D-Link DCS-7110 User Manual...

  • Page 70: Logs

    4. When completed, click Save to enable the setting. Current Log: This column displays the system log in chronological order. The system log is stored in the camera’s buffer area and will be overwritten when reaching a certain limit. D-Link DCS-7110 User Manual...

  • Page 71: Technical Specifications

    Network Protocols IPv4, IPv6, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP / HTTPS, Samba Client, PPPoE, UPnP Port Forwarding, RTP / RTSP/ RTCP, IP filtering, 3GPP, LLTD, CoS/QoS, SNMP, IGMP, 802.1x, ONVIF Compliant ƒ...
  • Page 72 -20 to 50 ˚C (-4 to 122 ˚F) Storage Temperature -20 to 70 ˚C (-4 to 158 ˚F) Humidity 90% non-condensing Weight 783 g Certifications CE (Class A), CE LVD (EN60965-1), FCC (Class A), ICES-003, ICES-006, C-Tick Dimensions D-Link DCS-7110 User Manual...

  • Page 73: Contacting Technical Support

    • Hardware Revision (located on the label on the bottom of the Network Camera (e.g. rev A1)) • Serial Number (s/n number located on the label on the bottom of the Network Camera) You can find software updates and user documentation on the D-Link website as well as frequently asked questions and answers to technical issues.

  • Page 74: Warranty

    Any repair or replacement will be rendered by D-Link at an Authorized D-Link Service Office. The replacement hardware need not be new or have an identical make, model or part. D-Link may, at its option, replace the defective Hardware or any part thereof with any reconditioned product that D-Link reasonably determines is substantially equivalent (or superior) in all material respects to the defective Hardware.
  • Page 75 D-Link further warrants that, during the Software Warranty Period, the magnetic media on which D-Link delivers the Software will be free of physical defects. The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under this Limited Warranty will be, at D-Link’s option, to replace the non-conforming Software (or defective media) with software that substantially conforms to D-Link’s...
  • Page 76 D-Link Systems, Inc., 17595 Mt. Herrmann, Fountain Valley, CA 92708. D-Link will not be held responsible for any packages that are lost in transit to D-Link. The repaired or replaced packages will be shipped to the customer via UPS Ground or any common carrier selected by D-Link.

  • Page 77: Limitation Of Liability

    FOR WARRANTY SERVICE) RESULTING FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE FOREGOING LIMITED WARRANTY IS REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NONCONFORMING PRODUCT.
  • Page 78 The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. D-Link DCS-7110 User Manual...
  • Page 79 Warranty For detailed warranty information applicable to products purchased outside the United States, please contact the corresponding local D-Link office. Industry Canada Notice: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 80: Registration

    Registration Registration Register your product at registration.dlink.com Product registration is entirely voluntary and failure to complete or return this form will not diminish your warranty rights. Version 1.0 March 7, 2011 D-Link DCS-7110 User Manual...
