NETGEAR UTM10-100NAS Installation Manual

ProSecure™ Unified Threat Management (UTM) Appliance
Follow these instructions to configure your ProSecure Unified Threat Management
appliance to use a single WAN interface, and enable the default threat management
scanning. Then, consult the Reference Manual for instructions on configuring other
options such as multiple WAN settings, VPN, firewall, and custom scanning. You can
access the Reference Manual from the product management interface, via the Resource
CD and from the NETGEAR support site
at http://kbserver.netgear.com.
Estimated completion time: 30 minutes.
Verify the Package Contents
Unpack the box and verify the contents:
• ProSecure™ Unified Threat Management appliance.
• Depending on the model purchased, a license registration card.
• Installation Guide.
• Resource CD.
• Rubber feet (4) with adhesive backing.
• Rack mount brackets (some models).
• Power cord.
Familiarize Yourself with the Unit

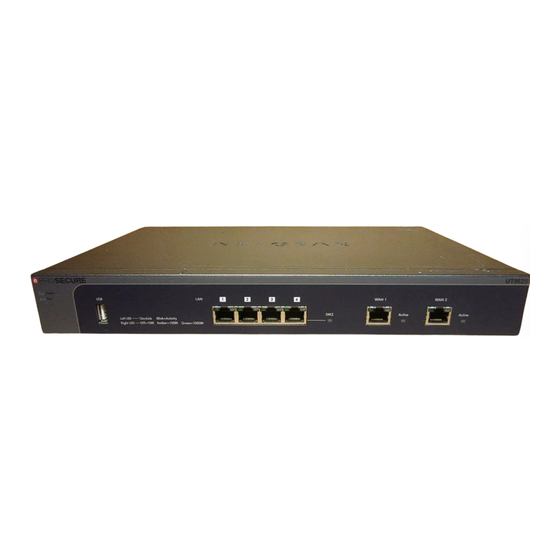

Familiarize yourself with the ports and status lights on the front of the unit.
1
2
3 4 5
1. Green power LED 2. Amber test LED
4. Gigabit LAN ports 5. LAN port 4 DMZ identifier 6. Gigabit WAN ports, dual
Familiarize yourself with the connectors and controls on the back of the unit.
7
7. Kensington lock
9. Factory reset button
Complete the Basic Setup
Follow these steps to quickly setup the Unified Threat Management appliance.
Connect the Unit
For initial setup, connect the WAN Ethernet port to an active WAN connection such as a
broadband modern, connect a DHCP enabled PC to a LAN port, and turn on the unit.
Verify the following:
• Power LED: It takes about a minute to boot. The power LED should turn solid green.
If it does not, see the Troubleshooting section of the Reference Manual.
• Test LED: When you first turn on the unit, the amber test LED will be lit for
approximately 2 minutes.
• WAN Status LED: The status LED on the connected WAN port should be lit. If not,
make sure the Ethernet cable is securely attached to the modem and the WAN port,
and that the modem is powered on.
• LAN Status LED: A LAN status LED should be lit. If not, ensure that the Ethernet
cable from the computer to the unit is securely attached at both ends, and that the
computer is turned on.
Log in to the Unit
6
3. USB port (for future use) 1. Use a browser to connect to
https://192.168.1.1.
WAN model shown
9 10
8
8. Console port
10. Power connector
https://192.168.1.1
2. When prompted, enter admin for the User
Name and password for the Password. Click
Login.
You are now connected. After 5 minutes of
inactivity (the default login time-out), you are
automatically logged out.
Note: When the unit scans secure HTTPS traffic,
import its root CA certificate into client browsers.
Click the link at the bottom of the login screen to
download it.
Use the Setup Wizard for Basic Configuration
The Setup Wizard will guide you through the basic network and scanning setup.
Note: If you choose to bypass the Setup Wizard, be sure to configure an alerts email
address and change the admin password.
1. Start the Setup Wizard.
Select Wizards > Setup
Wizard to start the wizard.
For guidance on how to fill in
the wizard screens, refer to the
online help or the Reference
Manual via a link in the Support
> Documentation page.
2. Use the Setup Wizard to configure these basic network and scanning settings:
• LAN and WAN network settings.
• System time (NTP server) and time zone.
• Scanning of network protocols and services.
• Default scan actions when the unit detects threats.
• Scan exceptions like the maximum file size.
• Specify the notification server and notices for email notices.
• Scan engine and signature updates.
3. Click Apply to save your changes.
The unit will reboot. Your computer will lose its connection to the unit if its IP
address is now on a different subnet. If so, restart the computer to refresh its network
settings.
