Crest Audio V-12 Specifications

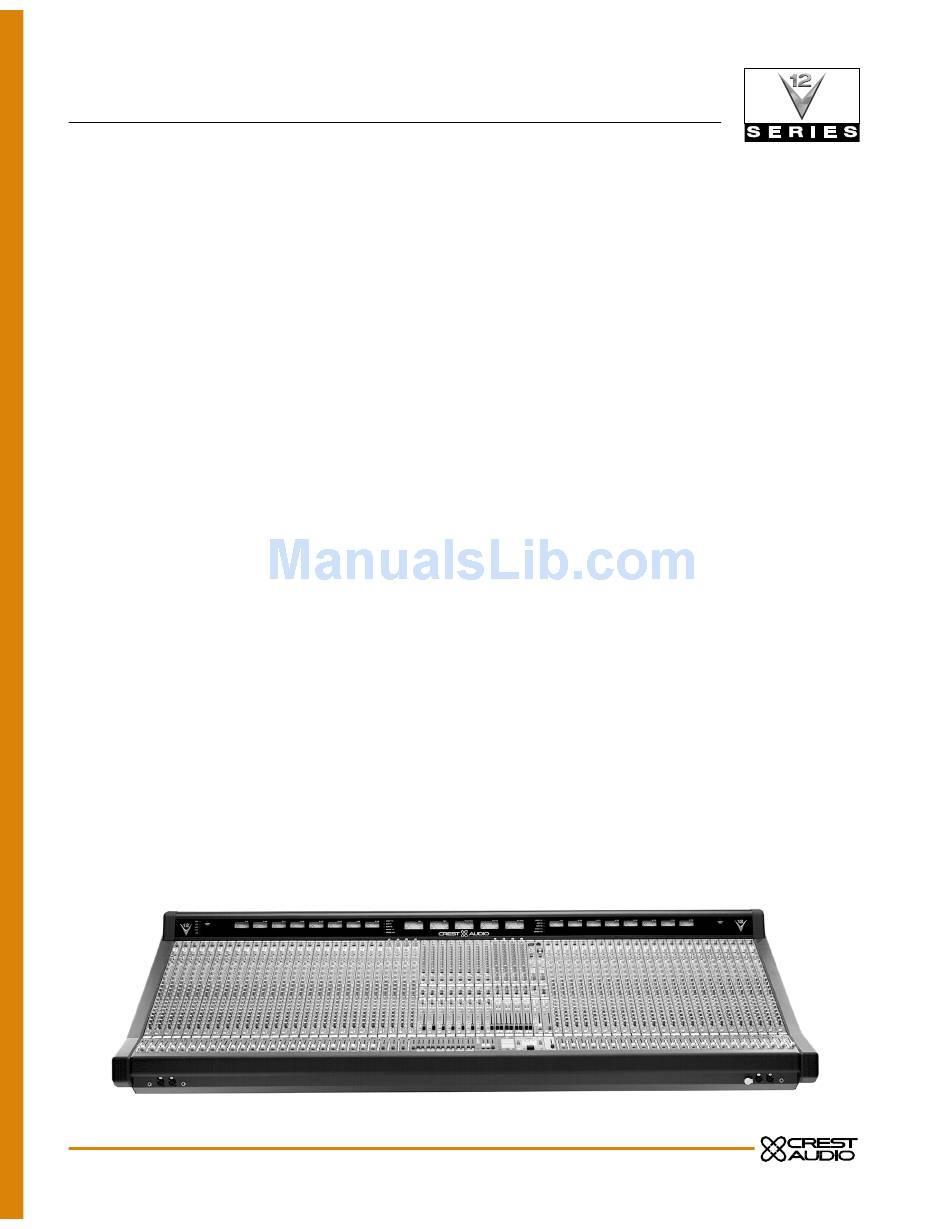

V12 console
description
When your professional live-sound reputation is on the line,
Crest Audio's V12 becomes your secret-weapon: delivering
bullet-proof quality and reliability in a superlative front-of-house
or monitor console. V12 includes those features most-desired by
touring and permanent-installation engineers. Full-parametric eq
is provided on all input channels. A wealth of outputs are available
for unexpected situations. Gold-plated connectors and balanced-cir-
cuitry are provided, both internally and externally, for long-term
interference-free operation
sound fundamentals
The sonic performance of the V12 is sure to please discriminating
sound engineers and audiences alike, even when the console is
pushed hard in demanding applications. In order to maintain
high-headroom with low-noise,V12 circuits exclusively employ the
latest-generation of integrated circuits
and studio-grade proprietary-design microphone pre-amplifiers.
Dual-VCA elements are the best available from THAT Corporation,
offering improved performance over single-element VCA designs.
Phase-shift has received special attention in the design, revealing less
than five-degrees of phase-shift on lower frequencies and less than
18-degrees on upper frequencies—better performance than that
observed in significantly more-expensive consoles.
wide range of configurations
V12 consoles are supplied with either 24, 32, 40, and 48 mono input
channels, plus four full-featured stereo mic/line input channels. Basic
configurations for all consoles include Master and Group modules,
plus four stereo-input modules that may be used as effect-returns.
All other inputs may be individually-ordered as mono-mic/line or
stereo-mic/line modules. An optional expansion-system enables the
addition of up to two 28-input side cars. Up to three V12 chassis
may also be linked together for single-console operation.
muting systems
Three-types of mute systems provide the appropriate mute
system for any application. Microprocessor based systems may be
disabled for total manual mute operation. The V12 microprocessor
mute system was co-developed with JL Cooper, insuring utmost
reliability and industry-standard operation methods.
also available without microprocessor system
( operated on +/-20 volt rails )
features
• front-of-house console with secondary-applications—a full-facility
monitor console capable of generating up to 28 monitor-mixes
• four-band full-parametric eq on both mono and stereo input modules—HF
and LF frequency bands are switchable between bell- and shelving-curves
• sweepable 18db high-pass filters on both mono and stereo input modules
• twelve VCA masters—dual THAT - VCA elements used throughout
• sixteen aux mixes, with eight switchable between mono and stereo
operation—aux controls include on/off and pre/post fader switching
• stereo solo-system includes last-pressed, momentary, and cumulative
default solo switch operation—plus normal, input priority and
( )
input solo-in-place operating modes
• solo system may be switched between stereo AFL and PFL source modes
• solo-isolate switch is available for use when multiple consoles
are linked together—master
SOLO CLEAR
• direct-output system optimized for use in live-performance recording,
or for use in expanded-operation as a monitor console
• discrete bus assignment to groups, left/right and mono outputs
• true LCR panning available on mono input channels
• five-segment level meters on mono and stereo input modules
separate left and right meters on stereo input modules
(
intensity indicator and multiple sample-point
SIGNAL PRESENT
• full-time pre-fader signal-monitoring of analog groups,
aux, and matrix pre-level output controls
• output meter bridge provided as standard
• all balanced inputs and outputs utilize gold-plated connectors,
including both balanced insert-send and -return connectors
• fully-balanced internal busing to minimize or eliminate
most types of external interference
• internally-illuminated switches used throughout, with
separate dimmer controls for switches and external lighting system
• group swap-controls re-map group/aux/matrix operations
to accommodate use as a front-of-house, monitor, or matrix mixer
• eight-mono and four-stereo matrix outputs, plus four
which may be operated in mono or stereo
built to defy murphy's law
V12 consoles are constructed to endure the rigors of the road.
A segmented mother-board system is employed, thoroughly shock-
mounted from the multi-walled chassis. Despite being extremely-rigid,
the V12 console is amazingly light. Gold-plated interconnects and con-
nectors are used throughout, delivering impeccable performance in
even the most harsh environments.
switch is provided
with variable-
)
indicator
PEAK
ALTERNATE OUTPUTS
