Crest Audio NC-NXS - TECHNICAL Technical Data

FOR CKS, CKV & CKX SERIES
POWER PROCESSING AMPLIFIERS
NC-NXS
Full NexSys
Product Information
The NC-NXS is the 'central' NexSys interface module that supports all
NexSys functions, including Load, AC and Line-Level Output Audio
Return Monitoring, Amplifier ID, Module ID, and NexSys-initiated
Sequential Turn-On/Off. It fits in the Network bay located on the rear
panel of Crest Audio CKS, CKV & CKX Series Power Processing
amplifiers.
Features
• Microprocessor-based NexSys network interface
• NexSys-downloadable firmware permits easy future upgrade path
• Twisted-pair data bus connection via two 5mm 3-pin Phoenix connectors
• Level, load and line monitoring

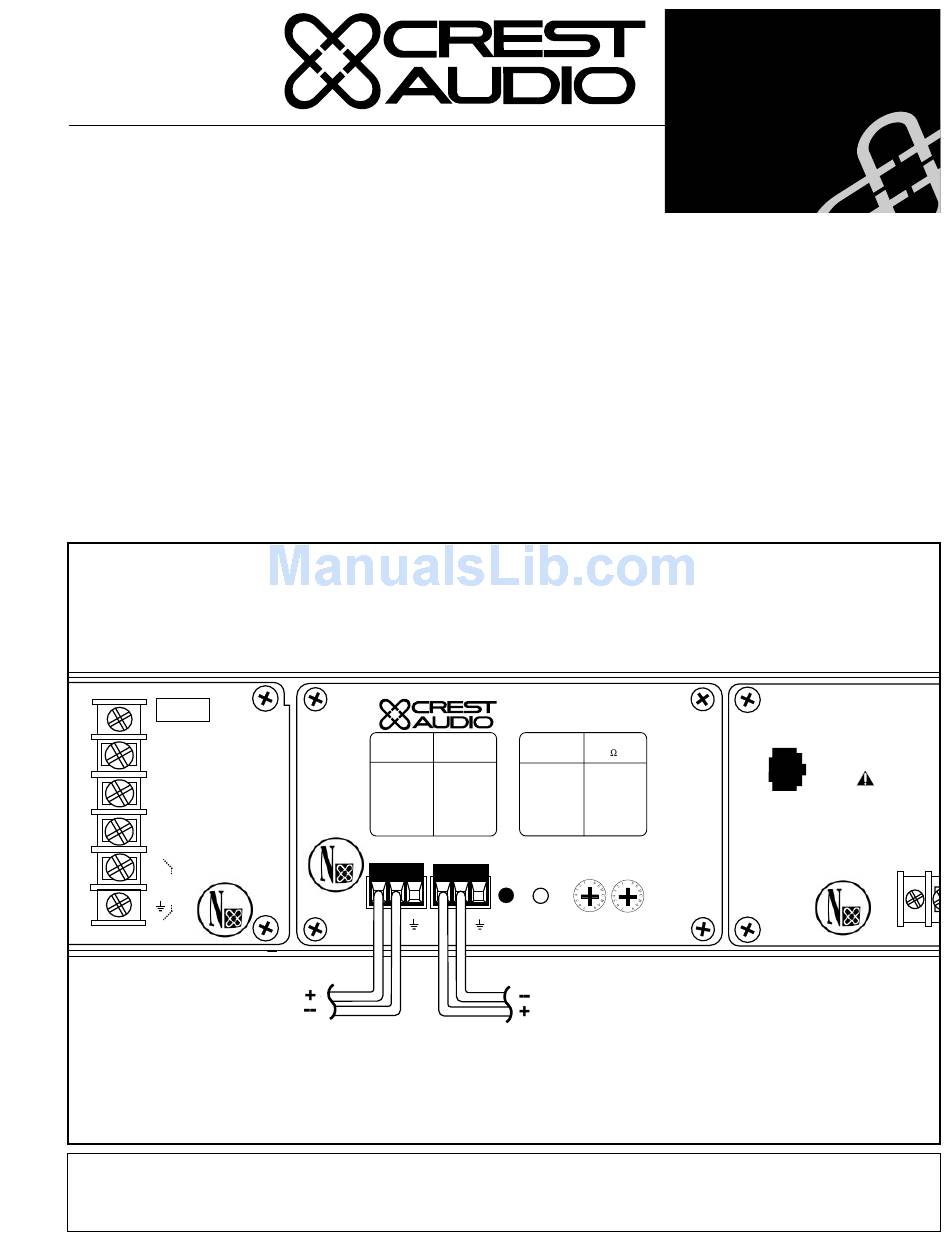

N C - N X S c o n n e c t i o n s
CLASS 2
WIRING MAY
BE USED
Output
–
A
+
+
B
–
Signal
Ground
Lift
Jumper
Architects and Engineers Specifications - NC-NXS.
The module shall plug into Crest Audio CKS or CKV Power Processing amplifiers in the
Network bay. The module shall provide a 5mm 3-pin Phoenix connector for connection to a
NexSys data bus and another for "daisy-chaining" to other amplifiers. Two rotary switches
shall assign the module a NexSys data bus address.
NETWORK MODULE
® Functions & Control
The NC-NXS requires both an NC-IPN (or any other programmable
Input Processor NC Module) and a compatible Power/Output NC
Module. Connection to the NexSys data bus is via two 5mm three-pin
Phoenix connector. Data bus address selection is via two recessed rotary
switches. A Data LED indicates data signal presence.
Firmware is upgradable thru the NexSys system.
Designed & manufactured in the USA by:
Model Output Power
Name @70.7V
CKV 100 50W
CKV 200 100W
CKV 400 200W
CKV 800 400W
CKV 1600 800W
CKV 2400 1200W
Network
Data
+ – + –
NexSys Bus
A green LED shall indicate when data is being sent from or received by the module. The
module shall require a Power/Output module which, by definition, provides the power sup-
ply required for the Network module. The module shall be fully compatible with NC-STI,
NC-SAC, and NC-SLM Power/Output modules. The module shall be designated the Crest
Audio model NC-NXS.
Power
Processing
Modules
• Provides for all NexSys functions
• Data signal present LED
• Monitoring of amplifier status
• Computer sequential turn-on/off (STO) control
Crest Audio Inc.
100 Eisenhower Dr.
Paramus, New Jersey 07652 USA
Model Output Power
Name @8 /Ch.
CKS 100 50W
CKS 200 100W
CKS 400 200W
CKS 800 400W
CKS 800-2 400W
CKS 1200-2 600W
CKS 1600-2 800W
Address Model
NC-NXS
8
8
Hi Lo
N-Coder
Data
Port
