IMPORTANT SAFETY INSTRUCTIONS Your TV is designed and manufactured to operate within defined design limits. Misuse may result in electric shock or fire. To • The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of prevent your TV from being damaged, the following instructions should be observed for the installation, use, and maintenance un-isolated, dangerous voltage within the inside of your TV that may be of sufficient magnitude to constitute a risk of electric of your TV.
Page 3
DO YOU HAVE QUESTIONS? LET US HELP! YOUR PRODUCT INCLUDES FREE LIFETIME TECH SUPPORT The VIZIO support team is highly trained and is based in the United States. We can help with: New Product Setup • Connecting Your Devices •...

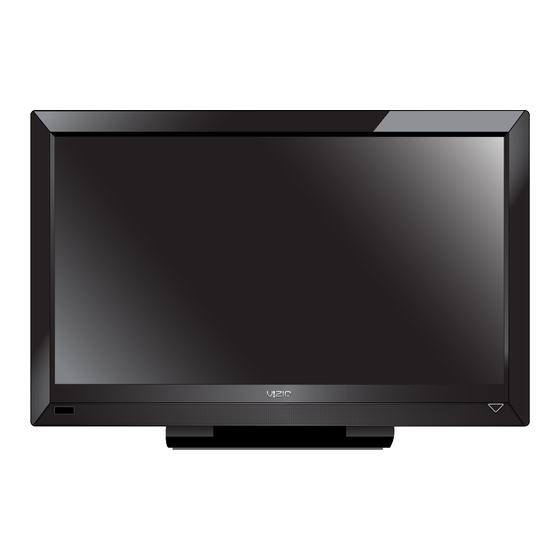

PACKAGE CONTENTS Power Cord Remote Control This Quick Start Guide with Batteries VIZIO LCD HDTV with Stand HELP VIZIO REDUCE PAPER WASTE. DOWNLOAD THE FULL USER MANUAL AT VIZIO.COM/SUPPORT...
USING THE REMOTE APP LAUNCHER Quickly launch the pictured app. INPUT POWER Change the currently-displayed input. Turn TV on or off. A/V CONTROLS INFO Control USB media player. Display the info window. CLOSED CAPTIONS MENU Open the closed caption menu. Display the on-screen menu.
INSTALLING THE BASE Place the TV screen-down on a clean, flat surface. Place the TV on a stable, level surface. To prevent scratches or damage to the screen, place the TV on a soft surface, such as a blanket. Attach the base to the TV by tightening 4 screws (E552VLE has 8 screws).
WALL MOUNTING YOUR HDTV Wall mount your new HDTV using the VIZIO XMF1000 Quick Install Slim HDTV Mount.* It utilizes a modern, smart design to support 32” to 55” TVs up to 100 pounds. Installation is fast, easy, and secure, thanks to a simple crossbar and hook combination.
FIRST-TIME SETUP Remove the battery cover by pressing gently on Connect the power cord to the back of the TV. the arrow and sliding away from the remote. Plug the power cord into an electrical outlet. Insert the included batteries. Gently slide the battery cover back into place.
Page 9
Coaxial Ethernet Cable Cable If you have an external antenna or a cable Turn the TV on by pressing the Power button on connection that extends from a wall outlet, the remote. connect it to the TV with an RF/Coaxial cable. The Setup App is displayed.
Page 10
Use the OK and Arrow Up/Down buttons on the Select the name of your wireless network from remote to read and accept the Terms of Service the list of available networks and press OK. and Privacy Policy for Yahoo! TV Widgets. Enter your network key using the on-screen When you are finished, highlight Next and press keyboard, then highlight Connect and press OK.
Page 11
Enter your First Name, Last Name, Phone Answer the on-screen questions about your TV Number, ZIP Code, and E-mail Address using the connection using the Arrow and OK buttons on on-screen keyboard. the remote. When you have finished the channel scan, Highlight Next and press OK.
CONNECTING YOUR DEVICES BACK OF TV Match colored connectors to colored ports.
Page 13
Choose ONE connection type for each device. Commonly-connected (Cables are not included.) devices: • DIGITAL HDMI CABLE • HD VIDEO (1080p)* BEST • HD AUDIO Cable or Satellite Boxes COMPONENT CABLE • ANALOG BETTER • HD VIDEO (1080i)* • STEREO AUDIO Blu-ray ™...
Page 14
GETTING STARTED WITH VIZIO INTERNET APPS Highlighted App V.I.A. Press this button to open the V.I.A. Dock. Use the OK and Arrow Up/Down buttons on the Select the name of your wireless network from remote to read and accept the Terms of Service the list of available networks and press OK.
Page 15
Your V.I.A Dock has many popular apps pre-loaded, but you can add more at any time. To discover and add new apps to the Dock, open the Widget Gallery app. Highlight Categories and press A list of app categories is When you’ve found an app you displayed.
HELP TOPICS • The on-screen menu has guided setup. Press MENU, then select HELP > Guided Setup. How do I return to the Select the type of setup you need and press OK. The Setup App will begin. Setup App? •...
Page 17
UPGRADE TO POWERFUL DIGITAL AUDIO The VIZIO Home Theater Sound Bar with Wireless Subwoofer delivers exceptional audio performance in a new sleeker, slimmer design - a perfect complement for a 40” HDTV and larger. This powerful sound system is also remarkably versatile.
LEGAL / COMPLIANCE FCC Class B Radio Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
(90) days of commercial use. If a Product covered by this warranty is determined to be ABOVE. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANT- defective within the warranty period, VIZIO will either repair or replace the Product at its sole ABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION option and discretion.
