FEATURES DESCRIPTIONS (CON.)

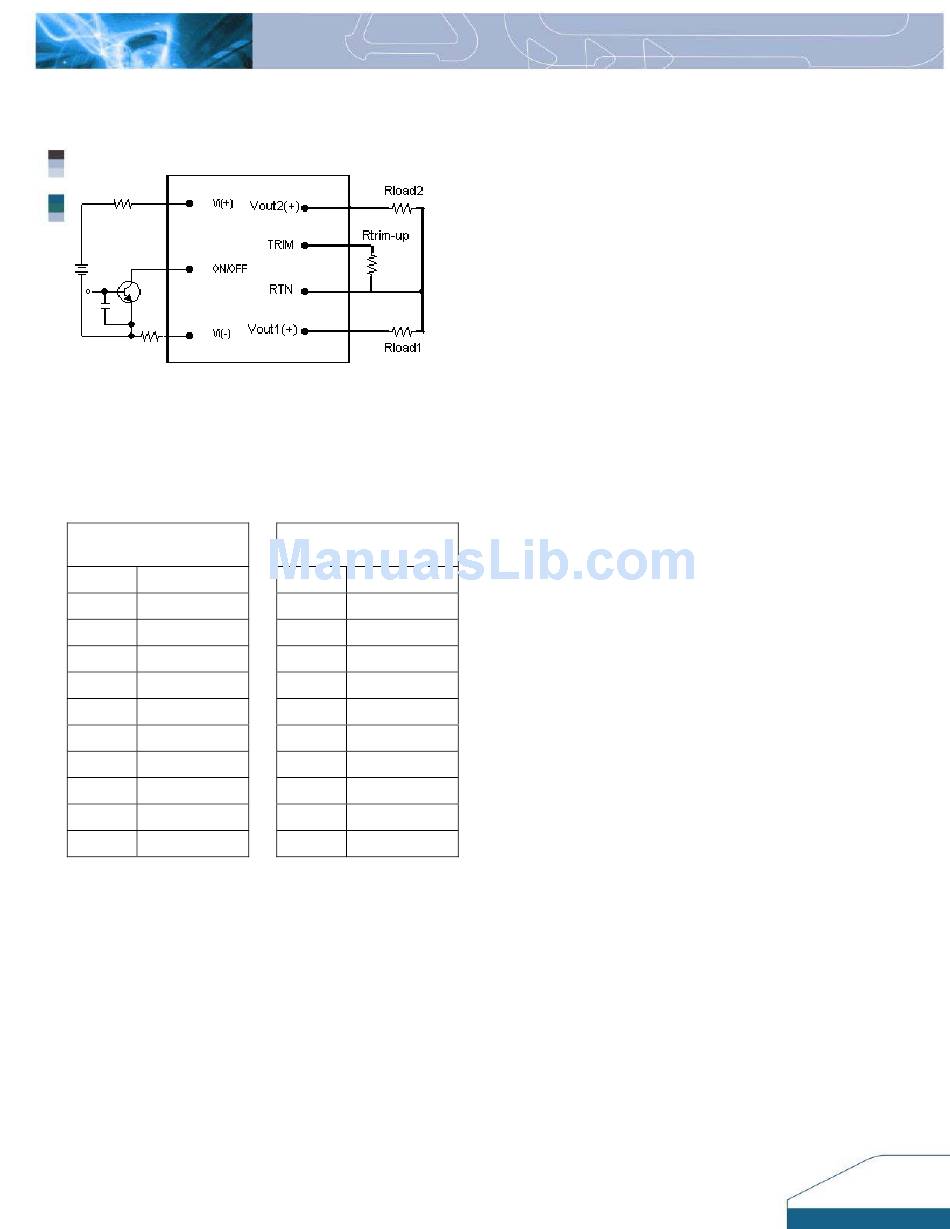

Figure 25: Circuit configuration for trim-up (increase output
voltage)
If the external resistor is connected between the TRIM
and RTN, the output voltage set point increases (Fig.
25). The external resistor value is from table below.
Trim Resistor
(Vout Increase)
Δ [%]
Rtrim-up [KΩ]
1
57.4
2
25.5
3
14.9
4
9.57
5
6.38
6
4.26
7
2.47
8
1.60
9
709
10
0
The output voltage can be increased by the trim pin,
When using trim; the output voltage of the module is
usually increased, which increases the power output of
the module with the same output current. Care should
be taken to ensure that the maximum output power of
the module remains at or below the maximum rated
power.
DS_Q48DR1R533_03152007
Trim Resistor
(Vout Decrease)
Δ [%]
Rtrim-down [KΩ]
1
70.2
2
31.2
3
18.2
4
11.7
5
7.80
6
5.20
7
3.34
8
1.95
9
867
10
0
12
