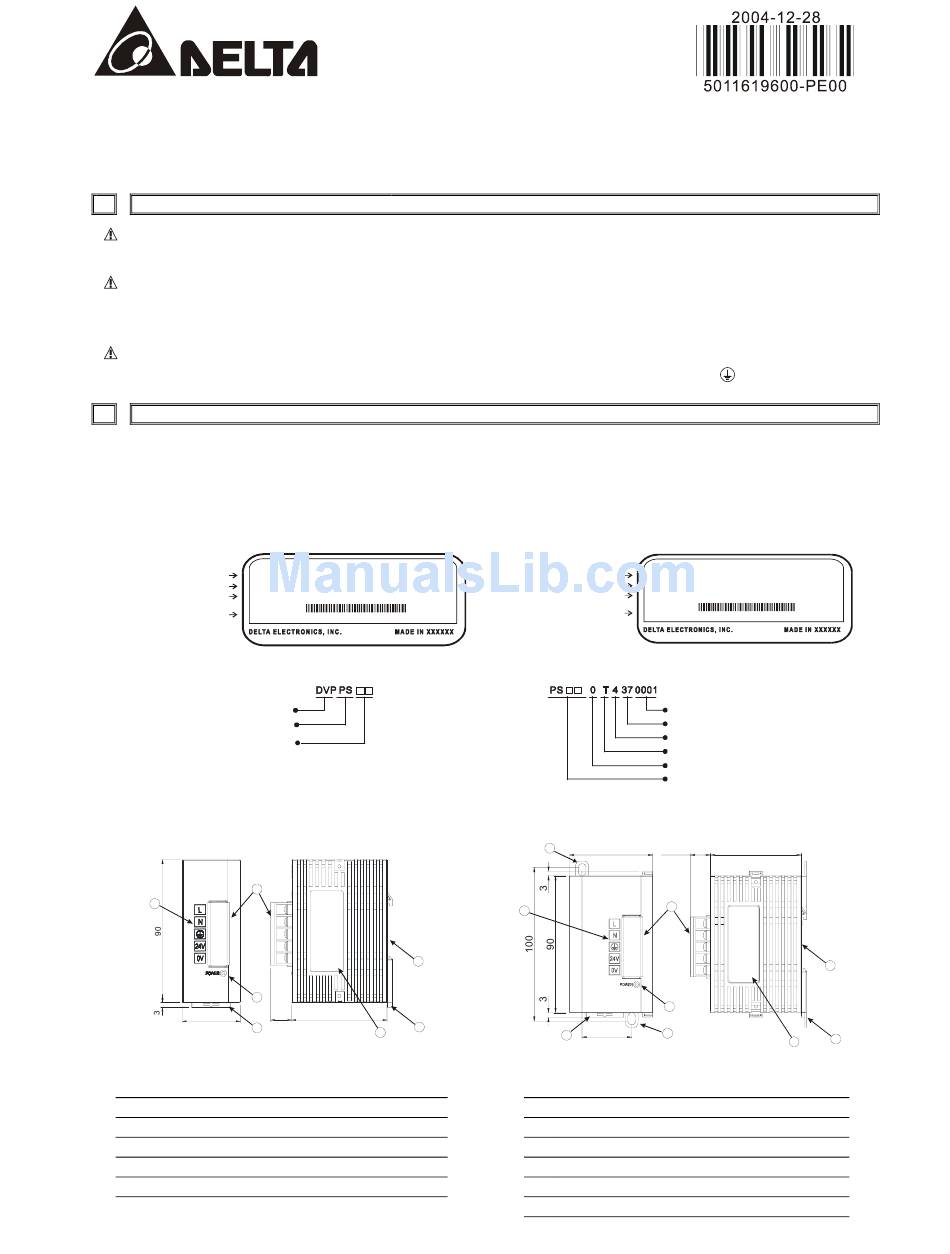

Delta Electronics Power Output Module DVPPS01 Instruction Manual

http://www.delta.com.tw/products/plc.asp
DVPPS01
DVPPS02
1
This instruction will be helpful in the installation, electronic specification, function specification and troubleshooting of the DVPPS01 and
DVPPS02.
This is an OPEN TYPE DVPPS series. The DVPPS series should be kept in an enclosure away from airborne dust, high humidity,
electric shock risk and vibration. Also, it is equipped with protective methods such as some special tools or keys to open the enclosure,
so as to avoid the hazard to users and the damage to the DVPPS series.
Never connect the AC main circuit power supply to any of the output terminals, as it will damage the DVPPS series. Check all the wiring
prior to power up. To avoid any electromagnetic noise, make sure the DVPPS series is properly grounded
2
2.1 Model Explanation
Thank you for choosing DELTA DVP series. DVPPS series is a power module with 2 types that sorted by output circuit. 1. PS01 provides
24VDC and 1A current for output power. 2. PS02 provides 24VDC and 2A current for output power. DVPPS series is only used for Delta DVP
series. DVPPS series is separated from the PLC MPU for better space utilization and easier installation.
PS01
Nameplate Explanation
M odel MODEL : DVPPS01
Input Power Supply Spec.
INPUT : 100~240VAC 50 / 60Hz
Output Module Spec.
OUTPUT : 24Vdc 1.0A
Barcode and Serial Number
Model Name
Series name
Power module
Output current
2.2 Product Profile and Outline
PS01
2
DVPPS01
5
1
36.5
3
Unit: mm
1 Power LED
2 Output/input terminal (fixed terminal)
3 DIN rail clip
4 DIN rail track (35mm)
5 I/O terminal label
6 Nameplate
PS 01 0T4360 001
4
13.3
60
3
6
POWER OUTPUT MODULE
Warning
Introduction
PS02
M odel
Input Power Supply Spec.
Output M odule Spec.
Barcode and Serial Number
Serial Number
PS02
7
55
5 DVPPS02
32.5
3
1 Power LED
2 Output/input terminal (fixed terminal)
3 DIN rail clip
4 DIN rail track (35mm)
5 I/O terminal label
6 Nameplate
7 Mounting holes
.
MODEL : DVPPS02
INPUT : 100~240VAC 50 / 60Hz
OUTPUT : 24Vdc 2.0A
PS 0 2 0 T4 3 70 0 0 1
Production number
Production weeks
Production year (2004)
Production factory
Version
Production model
13.3 60
2
4
1
7
3
6
Unit: mm
