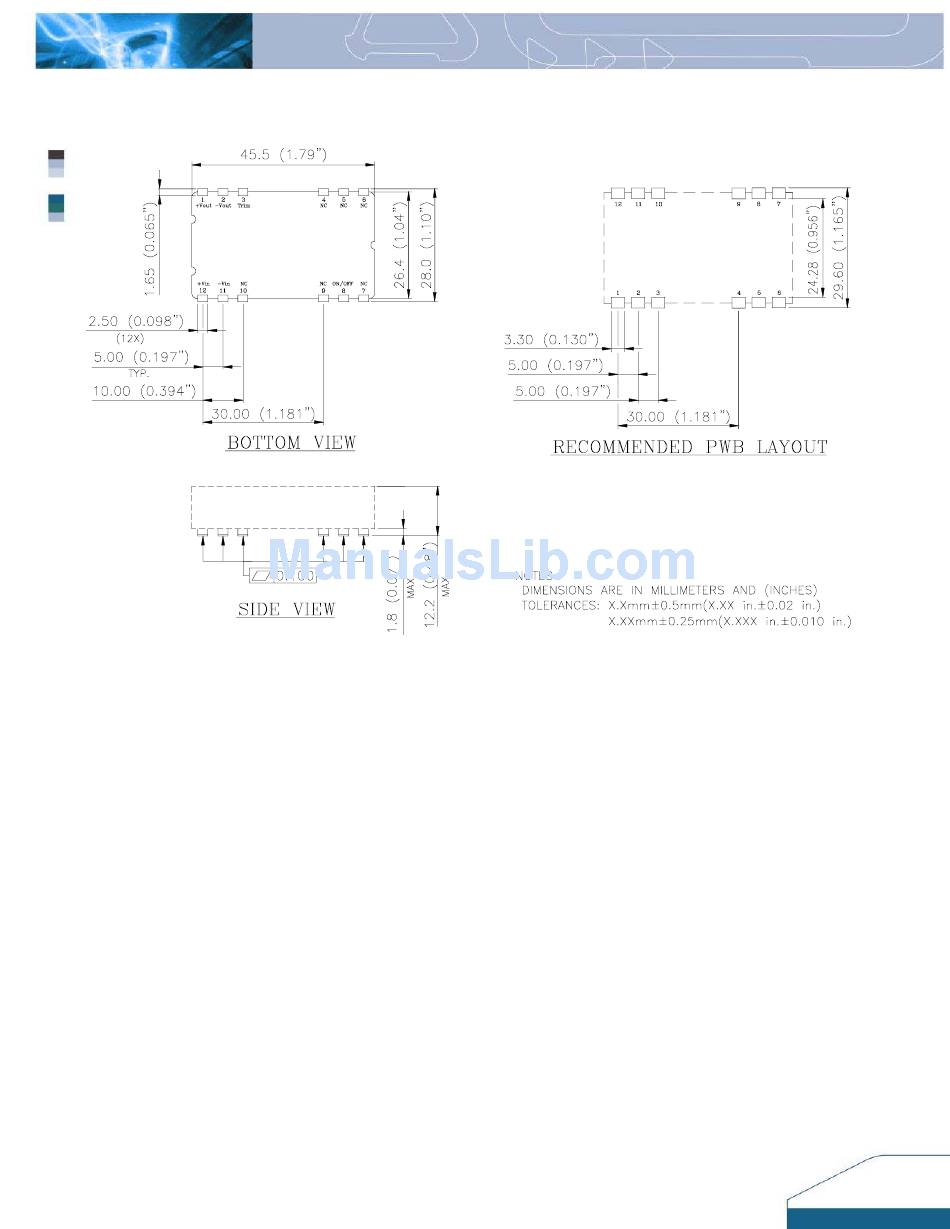

MECHANICAL DRAWING

Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
DS_s48SS12001_06082006
Name Function
+Vout Positive output voltage
-Vout Negative output voltage
Trim Output voltage trim
NC No Connection
NC No Connection
NC No Connection
NC No Connection
ON/OFF ON/OFF Logic
NC No Connection
NC No Connection
-Vin Negative input voltage
+Vin Positive input voltage
