Delta Electronics Profibus Communication Module CME-PD01 Instruction Sheet

Profibus Communication Module (CME-PD01) Instruction Sheet
Profibus is a registered trademark of Profibus International.
Please thoroughly read and understand the following contents to ensure correct use before operation.
The content of this instruction sheet may be revised without prior notice. Please consult our distributors or
download the most updated version at http://www.delta.com.tw/industrialautomation

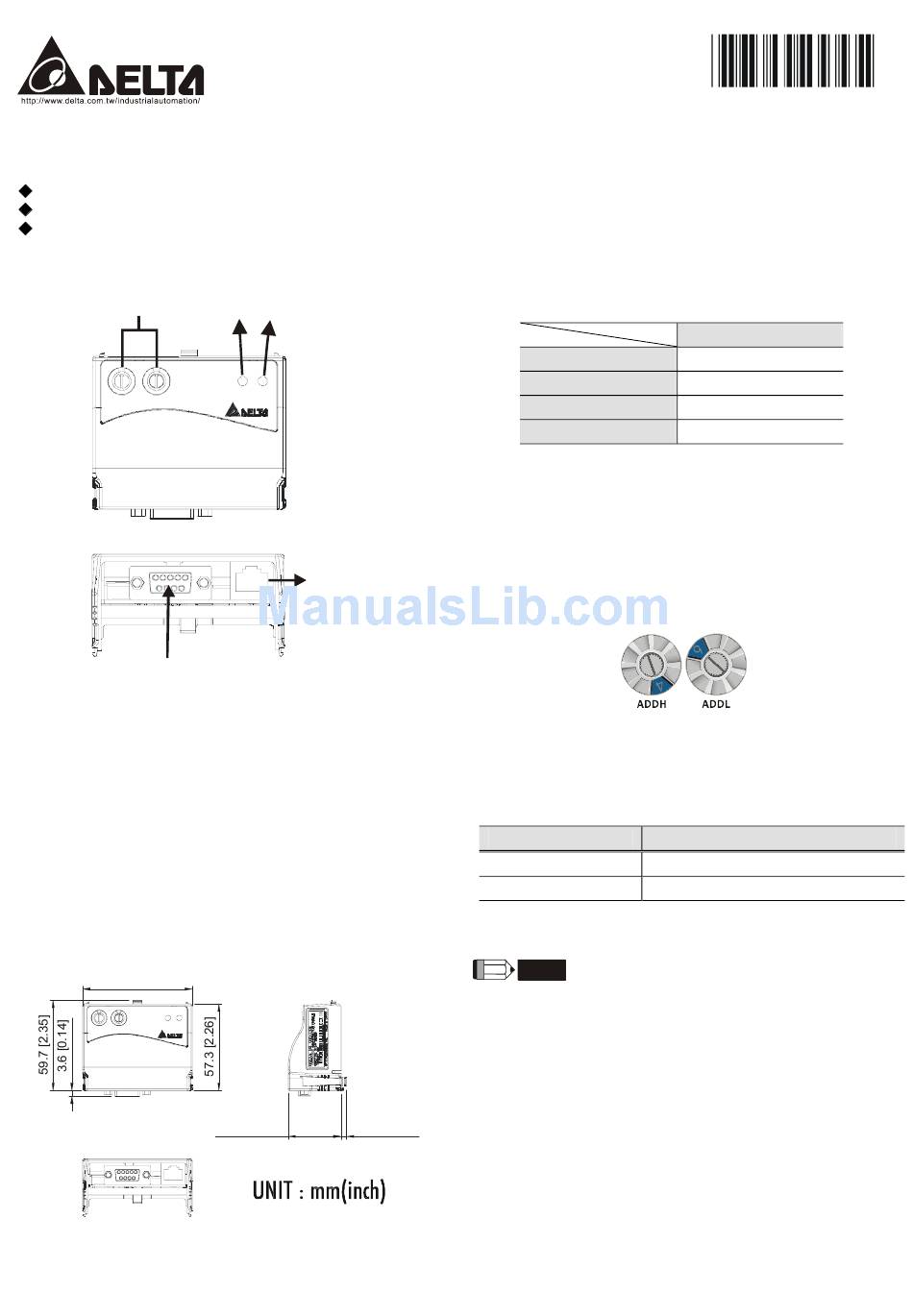

A. Panel Appearance
Address Switches
ADDH ADDL
Profibus-DP
Interface (DB9)
1. SP LED: Indicating the connection status between
VFD-E and CME-PD01.
2. NET LED: Indicating the connection status between
CME-PD01 and PROFIBUS-DP.
3. Address Switches: Setting the address of
CME-PD01 on PROFIBUS-DP network.
4. RS-485 Interface (RJ45): Connecting to VFD-E, and
supply power to CME-PD01.
5. PROFIBUS-DP Interface (DB9): 9-PIN connector
that connects to PROFIBUS-DP network.
6. Extended Socket: 4-PIN socket that connects to
PROFIBUS-DP network.
B. Dimensions
72.2 [2.84]
NE T S P
AD DH A DDL
CME-P B01
NET LED
SP LED
NET SP
CME-P D01
RS-485 (RJ45)
1: Reserved
2: EV
3: GND
4: SG-
5: SG+
6: Reserved
7: Reserved
8: Reserved
34.8 [1.37] 3.5 [0.14]
C. Parameters Setting in VFD-E
Baud Rate 9600
RTU 8, N, 2
Freq. Source
Command Source
D. Power Supply
The power of CME-PD01 is supplied from VFD-E. Please
connect VFD-E to CME-PD01 by using 8 pins RJ-45 cable,
which is packed together with CME-PD01. After connection
is completed, CME-PD01 is powered whenever power is
applied to VFD-E.
E. PROFIBUS Address
CME-PD01 has two rotary s select the PROFIBUS address.
The set value via 2 address switches, ADDH and ADDL, is
in HEX format. ADDH sets the upper 4 bits, and ADDL sets
the lower 4 bits of the PROFIBUS address.
Address
1..0x7D
0 or 0x7E..0xFE
NOTE
Please download the GSD file and user manual at
http://www.delta.com.tw/industrialautomation/
2007-10-12
5011644101-PDT1
VFD-E
Pr.09.01=1
Pr.09.04=3
Pr.02.00=3
Pr.02.01=3
Meaning
Valid PROFIBUS address
Invalid PROFIBUS address
