Pioneer AVIC Z3 - Navigation System With DVD player Installation Manual page 17

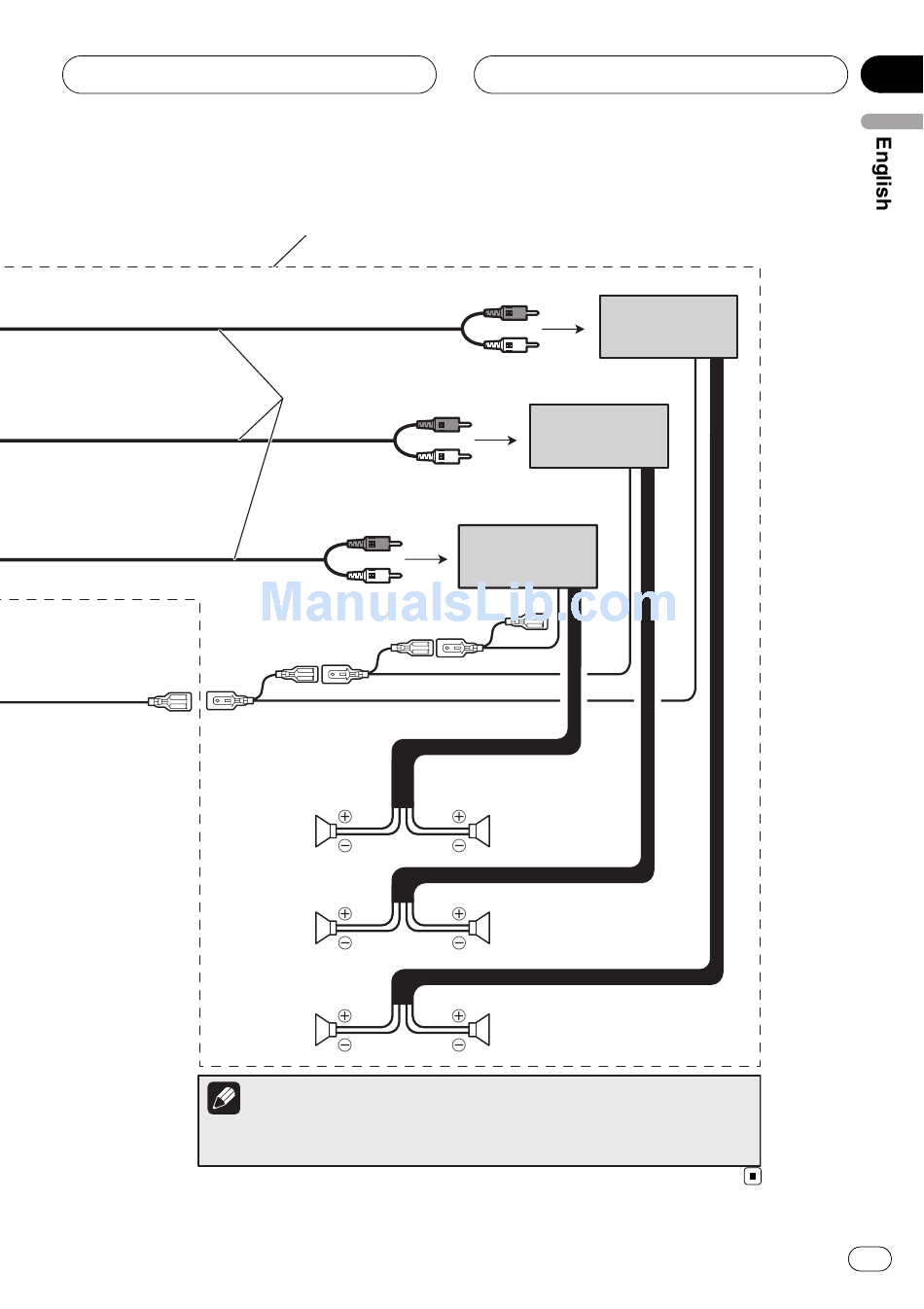

Connecting the System
Front speaker
Rear speaker
Subwoofer
Note
You can change the RCA output of the subwoofer depending on your subwoofer
system. (Refer to the operation manual.)
Perform these connections when using the
optional amplifier.
RCA cables
(sold separately)
System remote control
Left
Power amp
(sold separately)
Power amp
(sold separately)
Power amp
(sold separately)
Right
Front speaker
Rear speaker
Subwoofer
Section
02
17
En
