2 • SYSTEM SETUP

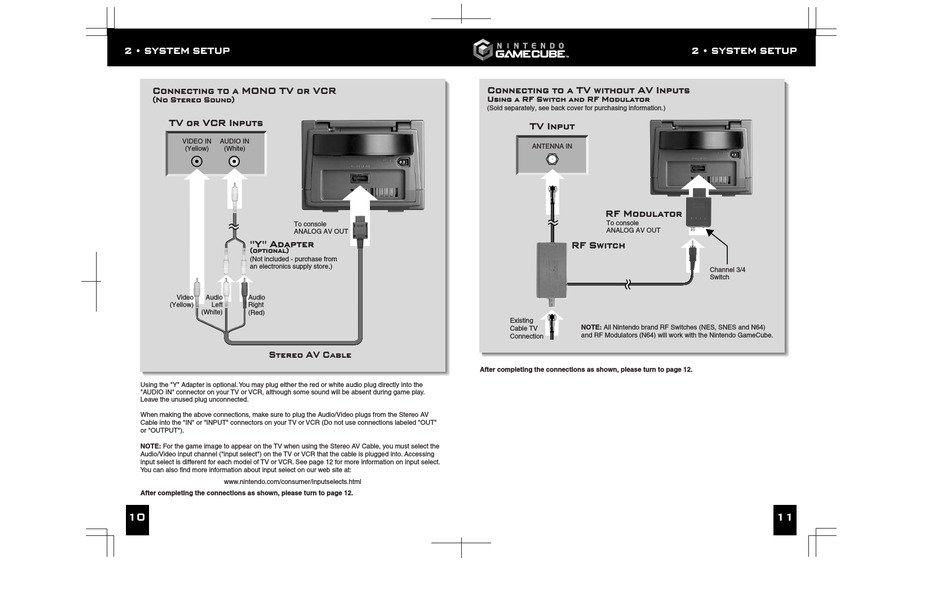

Connecting to a MONO TV or VCR
(No Stereo Sound)
TV or VCR Inputs
VIDEO IN AUDIO IN
(Yellow) (White)
To console
ANALOG AV OUT
"Y" Adapter
(optional)
(Not included - purchase from
an electronics supply store.)
Video Audio Audio
(Yellow) Left Right
(White) (Red)
Stereo AV Cable
Using the "Y" Adapter is optional. You may plug either the red or white audio plug directly into the
"AUDIO IN" connector on your TV or VCR, although some sound will be absent during game play.
Leave the unused plug unconnected.
When making the above connections, make sure to plug the Audio/Video plugs from the Stereo AV
Cable into the "IN" or "INPUT" connectors on your TV or VCR (Do not use connections labeled "OUT"
or "OUTPUT").
NOTE: For the game image to appear on the TV when using the Stereo AV Cable, you must select the
Audio/Video input channel ("input select") on the TV or VCR that the cable is plugged into. Accessing
input select is different for each model of TV or VCR. See page 12 for more information on input select.
You can also find more information about input select on our web site at:
www.nintendo.com/consumer/inputselects.html
After completing the connections as shown, please turn to page 12.
10
Connecting to a TV without AV Inputs
Using a RF Switch and RF Modulator
(Sold separately, see back cover for purchasing information.)
TV Input
ANTENNA IN
RF Modulator
To console
ANALOG AV OUT
RF Switch
Existing
NOTE: All Nintendo brand RF Switches (NES, SNES and N64)
Cable TV
and RF Modulators (N64) will work with the Nintendo GameCube.
Connection
After completing the connections as shown, please turn to page 12.
2 • SYSTEM SETUP
Channel 3/4
Switch
11
