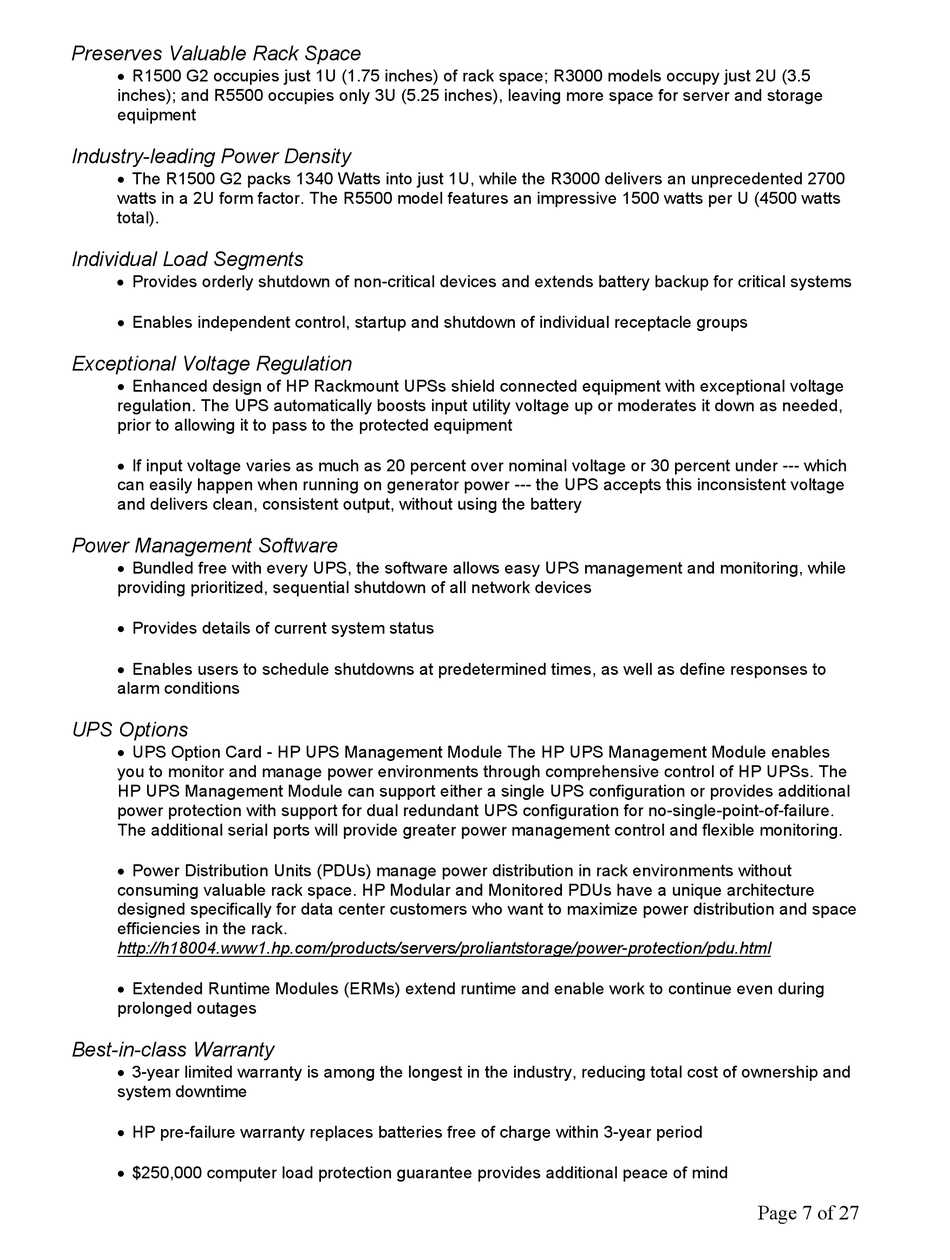

Power Management Software - HP 204451-002 - UPS T2200 XR Best Practices Manual

Preserves Valuable Rack Space
 R1500 G2 occupies just 1U (1.75 inches) of rack space; R3000 models occupy just 2U (3.5
inches); and R5500 occupies only 3U (5.25 inches), leaving more space for server and storage
equipment
Industry-leading Power Density
 The R1500 G2 packs 1340 Watts into just 1U, while the R3000 delivers an unprecedented 2700
watts in a 2U form factor. The R5500 model features an impressive 1500 watts per U (4500 watts
total).
Individual Load Segments
 Provides orderly shutdown of non-critical devices and extends battery backup for critical systems
 Enables independent control, startup and shutdown of individual receptacle groups
Exceptional Voltage Regulation
 Enhanced design of HP Rackmount UPSs shield connected equipment with exceptional voltage
regulation. The UPS automatically boosts input utility voltage up or moderates it down as needed,
prior to allowing it to pass to the protected equipment
 If input voltage varies as much as 20 percent over nominal voltage or 30 percent under --- which
can easily happen when running on generator power --- the UPS accepts this inconsistent voltage
and delivers clean, consistent output, without using the battery

Power Management Software

 Bundled free with every UPS, the software allows easy UPS management and monitoring, while
providing prioritized, sequential shutdown of all network devices
 Provides details of current system status
 Enables users to schedule shutdowns at predetermined times, as well as define responses to
alarm conditions
UPS Options
 UPS Option Card - HP UPS Management Module The HP UPS Management Module enables
you to monitor and manage power environments through comprehensive control of HP UPSs. The
HP UPS Management Module can support either a single UPS configuration or provides additional
power protection with support for dual redundant UPS configuration for no-single-point-of-failure.
The additional serial ports will provide greater power management control and flexible monitoring.
 Power Distribution Units (PDUs) manage power distribution in rack environments without
consuming valuable rack space. HP Modular and Monitored PDUs have a unique architecture
designed specifically for data center customers who want to maximize power distribution and space
efficiencies in the rack.
http://h18004.www1.hp.com/products/servers/proliantstorage/power-protection/pdu.html
 Extended Runtime Modules (ERMs) extend runtime and enable work to continue even during
prolonged outages
Best-in-class Warranty
 3-year limited warranty is among the longest in the industry, reducing total cost of ownership and
system downtime
 HP pre-failure warranty replaces batteries free of charge within 3-year period
 $250,000 computer load protection guarantee provides additional peace of mind
Page 7 of 27
