Overview
The densest, most power packed UPS available - offering HP customers more watts per U than any other UPS - allowing for more
valuable rack space to be utilized by all your server, storage and networking equipment.

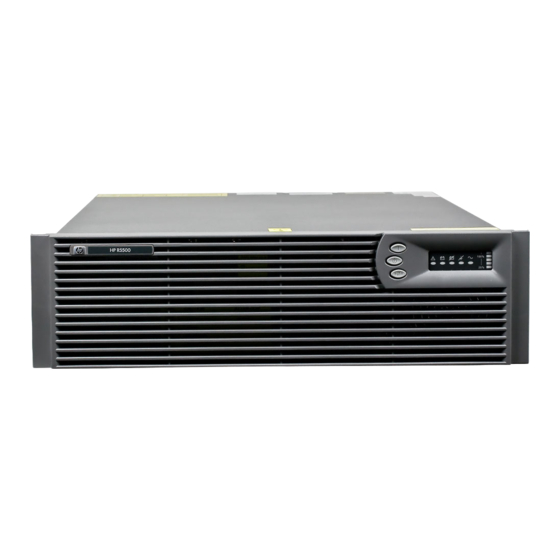

The leading edge HP UPS R5500 Uninterruptible Power System features a slim 3U rack-mount design, offering up to 4500 Watts of
true power (5400 watts international). This new rack-space saving design allows more support for critical rack mountable
equipment. This product brings unprecedented power density and innovative features to the proven HP family of rack-mountable UPS
products.
The UPS R5500 is a high power density solution, designed for customers who want to provide power protection in space-constrained
rack enterprise environments. In addition, this new UPS R5500 has the capability to be connected to an optional Extended Runtime
Module (ERM). Customers can further increase the run-time on their UPS R5500 by using this ERM. The HP UPS "" models denote
"Extended Runtime Capable" UPS models.
1. REPO port
2. Ground bonding screw
3. Communications port/option slot
4. Load segment 1 circuit breaker
5. Load segment 1 (two IEC-320-C19 receptacles and two IEC-
320-C13 receptacles)
6. Load segment 2 circuit breaker
What's New
What's New
What's New
What's New
New part numbers meet EU RoHs compliant specifications.
DA - 11871
Worldwide — Version 10 — July 7, 2006
HP UPS R5500 Uninterruptible Power System
HP UPS R5500 Uninterruptible Power System
HP UPS R5500 Uninterruptible Power System
HP UPS R5500 Uninterruptible Power System
7. Load segment 2 (two IEC-320-C19 receptacles and two IEC-
320-C13 receptacles)
8. Battery circuit breaker
9. Cord retention clip attach. locations
10. ERM connector
11. PDU output NEMA L6-30 receptacle (NA/JPN) or 32 A IEC-
309 receptacle (INTL) associated with load segment 1
12. Power cord with NEMA L6-30 plug (NA/JPN) or 32 A IEC-309
plug (INTL)
Page 1
Advertisement
Related Manuals for HP R5500
Summary of Contents for HP R5500
- Page 1 HP UPS R5500 Uninterruptible Power System Overview The densest, most power packed UPS available - offering HP customers more watts per U than any other UPS - allowing for more valuable rack space to be utilized by all your server, storage and networking equipment.
- Page 2 Models HP R5500 UPS, High Voltage (US/JPN) 326529-D71 NOTE: NOTE: NOTE: NOTE: #0D1 will appear after the part number on the sales order if HP factory integration is indicated. HP R5500 UPS, High Voltage (INTL) 326529-B31 NOTE: NOTE: NOTE: NOTE: #0D1 will appear after the part number on the sales order if HP factory integration is indicated.
- Page 3 3U Power Packed Design 3U Power Packed Design 3U Power Packed Design Rated near unity at 5500VA / 4500W (5400W international), the HP UPS R5500 packs more power in space-conserving rack-mount design, allowing you to support more critical equipment in your rack.
- Page 4 Ease of Maintenance with Ease of Maintenance with Ease of Maintenance with Ease of Maintenance with The UPS R5500 is modular in design, and both the battery and the electronics modules are hot Hot-Swappable Batteries Hot-Swappable Batteries Hot-Swappable Batteries Hot-Swappable Batteries swappable.
- Page 5 Warranty Warranty The HP UPS R5500 is covered by a three year warranty, with the first year including parts and labor. Also, standard on all HP UPS units, is our exclusive Pre-Failure Warranty, which extends the advantage of a HP three-year, limited warranty by applying it to the battery before it actually fails. This warranty is offered worldwide.
- Page 6 HP Care Pack Installation HP Care Pack Installation HP Care Pack Services provide a range of life cycle support options that let you choose the service levels that meet your business requirements, from basis to mission-critical. A full range of HP Care Pack hardware and software services are available including:...
-
Page 7: Innovative Options To Meet Your Data Center Needs
UPS. The R5500 has 2 load segments, so this card will allow you to serially communicate with up to 3 servers. And the R5500 has 2 load segments, so you can communicate with up to 2 servers using this card. -
Page 8: Related Options
NOTE: Replaces non-RoHs compliant part number 326564-B21. NOTE: NOTE: NOTE: NOTE: #0D1 will appear after the part number on the sales order if HP factory integration is indicated. Service & Support (Care Service & Support (Care Service & Support (Care Service &... - Page 9 QuickSpecs HP UPS R5500 Uninterruptible Power System HP UPS R5500 Uninterruptible Power System HP UPS R5500 Uninterruptible Power System HP UPS R5500 Uninterruptible Power System UPS R5500 Model Matrix High Voltage Models High Voltage Models High Voltage Models High Voltage Models...
-
Page 10: Estimated Backup Times Chart (Minutes)
QuickSpecs HP UPS R5500 Uninterruptible Power System HP UPS R5500 Uninterruptible Power System HP UPS R5500 Uninterruptible Power System HP UPS R5500 Uninterruptible Power System Estimated Backup Times Chart (Minutes) NA/JPN model NA/JPN model NA/JPN model NA/JPN model (5000 VA / 4500 Watt) -
Page 11: Technical Specifications
QuickSpecs HP UPS R5500 Uninterruptible Power System HP UPS R5500 Uninterruptible Power System HP UPS R5500 Uninterruptible Power System HP UPS R5500 Uninterruptible Power System Technical Specifications Unit Dimensions Unit Dimensions Unit Dimensions Unit Dimensions 5.13 x 17.53 x 26 in / 13.0 x 44.5 x 66.0 cm... - Page 12 The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
