SuperLoader
(SuperLoader DLT and SuperLoader LTO) Quick Start Guide
c.

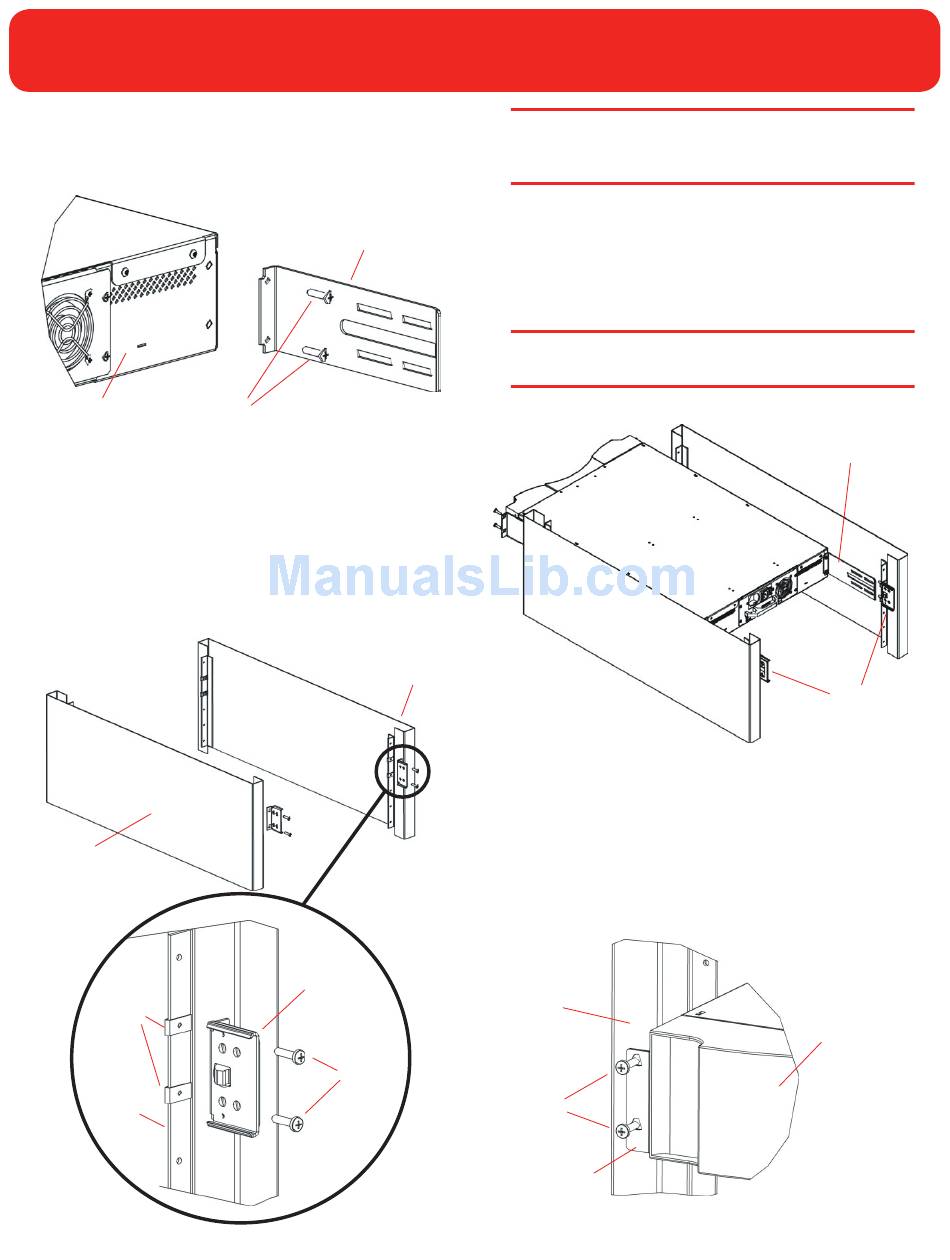

Select the long or short SuperLoader brackets (depending on
the depth of the rack) and attach them to the rear of the
SuperLoader on the right and left sides.
Rear of
Screws (10-32 x 1/4 only)
SuperLoader
d.
Using rack screws, attach a support bracket to the clip nuts
on each rear rail. Tighten the screws just enough to hold the
support brackets firmly against the rail while still allowing
the support bracket to be slightly shifted by hand. This
shifting will help facilitate the engagement of SuperLoader
brackets as the SuperLoader is installed in the rack (You will
fully tighten these screws later.)
Rack
Clip nuts
Right
rear rail
e.
Bracket (right side)
Right
rear rail
f.
Support
bracket
Rack
screws
Note:
Be sure to attach the support brackets correctly;
the side of the bracket with only two holes should be
secured to the rail.
With the help of a second installer, insert the SuperLoader
into the rack so that each SuperLoader bracket slides into the
corresponding support bracket on the rear rails and the tabs
at the front of the SuperLoader align flush with the clip nuts
on the front rails.
Caution:
Do not let go of the front end of the
SuperLoader until it can be secured to the rack.
While the other installer holds the front end of the
SuperLoader, secure the SuperLoader in the rack by doing
the following:
(1)
Secure the front end tabs of the SuperLoader to the
rack using four rack screws (two per tab). Make sure the
screws are finger tight.
Left
front
rail
Rack
screws
Tab (one on
each side)
Page 3
SuperLoader
bracket
Support
brackets
SuperLoader
(front)
