SuperLoader
(SuperLoader DLT and SuperLoader LTO) Quick Start Guide
Step 2:
Prepare Parts and Tools
a.

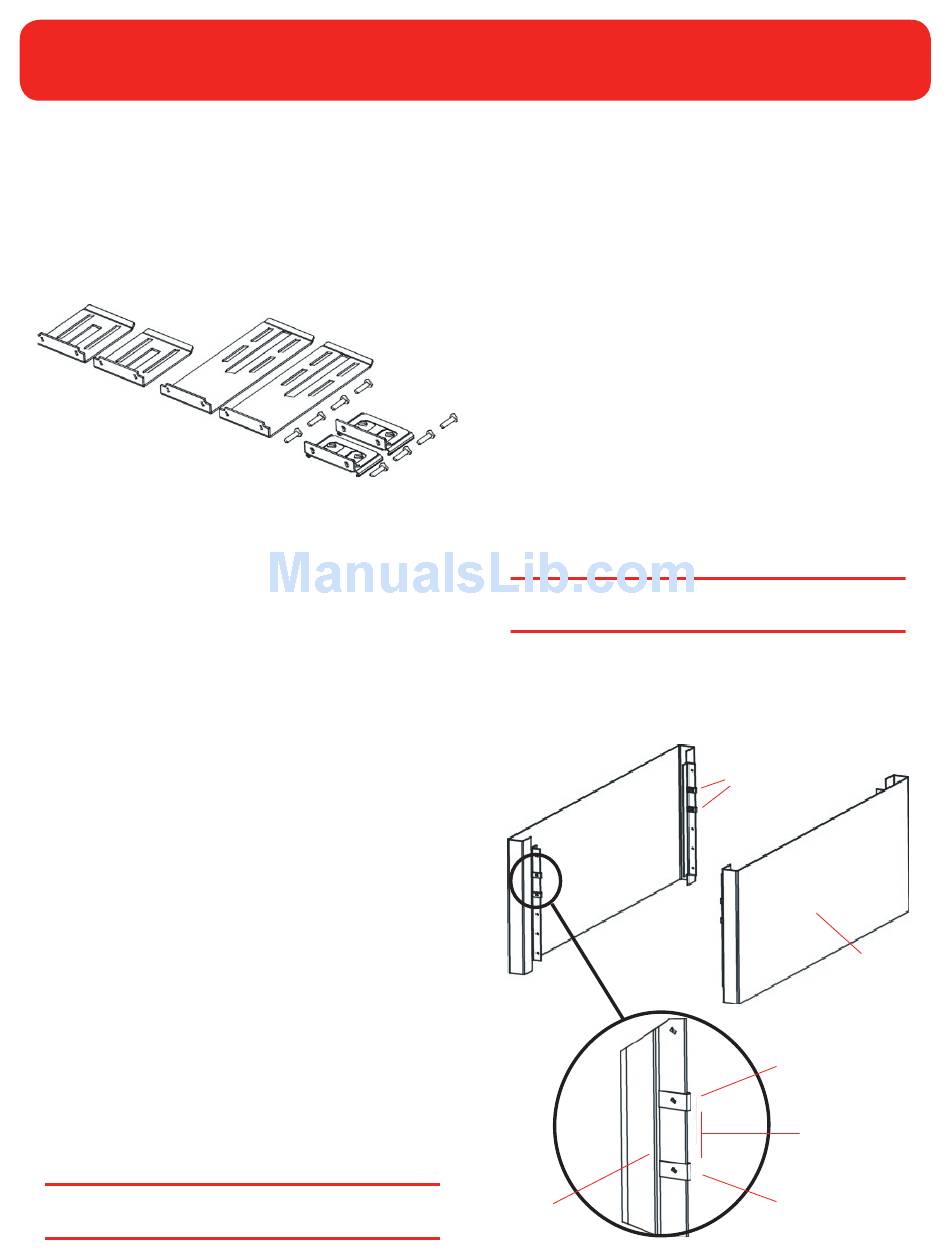

Check that you have the following parts from the
SuperLoader accessories kit:
•
2 short SuperLoader brackets
•
2 long SuperLoader brackets
•
2 support brackets
•
8 10-32 x 1/4-inch button head support bracket screws
Short brackets
Long brackets
b.
Obtain the following items from the accessories kit that
came with your rack:
•
8 clip nuts
•
8 screws
c.
Make sure you have the following tools:
•
#2 Phillips screwdriver
•
Level
Step 3:
Choose a Location for the
SuperLoader
The SuperLoader has the following dimensions:
•
Length: 29.67 inches (753.7 mm)
•
Width: 17.693 inches (449.4 mm)
•
Height: 3.49 inches (88.6 mm)
The SuperLoader is designed to fit in a standard 19-inch rack
using either the long or short brackets (depending on the depth
of the rack).
When selecting a location for the SuperLoader, keep in mind the
following guidelines:
•
Minimum clearances of 27 inches (686 mm) in front of
the unit and 17 inches (432 mm) in back are required to
facilitate component removal and installation.
•
The SuperLoader should be positioned away from cooling
vents or exhaust from other devices to help minimize the
amount of debris entering the tape path.
Caution:
Excessive dust or other debris in the tape
path can damage tapes and tape drives.
Support brackets
and screws
Step 4:
Install the SuperLoader in the
Rack
a.
Take the following safety precautions for a rackmount
installation:
(1)
Lower the rack's feet.
(2)
Extend the rack's anti-tip device (if available).
(3)
Ensure that the rack and all equipment mounted in the
rack have a reliable ground connection.
(4)
Verify that the total current of the rack components
(including SuperLoader) will not exceed the current rating
of the power distribution unit or outlet receptacles. For
SuperLoader specifications, refer to the User's Guide.
(5)
Have the help of at least one other person. At least two
people are required to safely install the SuperLoader into
a rack.
Caution:
Failure to take these safety precautions may
result in personal injury or equipment damage.
b.
Install two clip nuts onto each of the four rails of the rack,
spacing the nuts 1.75 inches (44.45 mm) apart at exactly the
same level.
Rail
Page 2
Clip nuts
Rack
outer
cover
Clip nut
1.75 inches
(44.45 mm)
Clip nut
