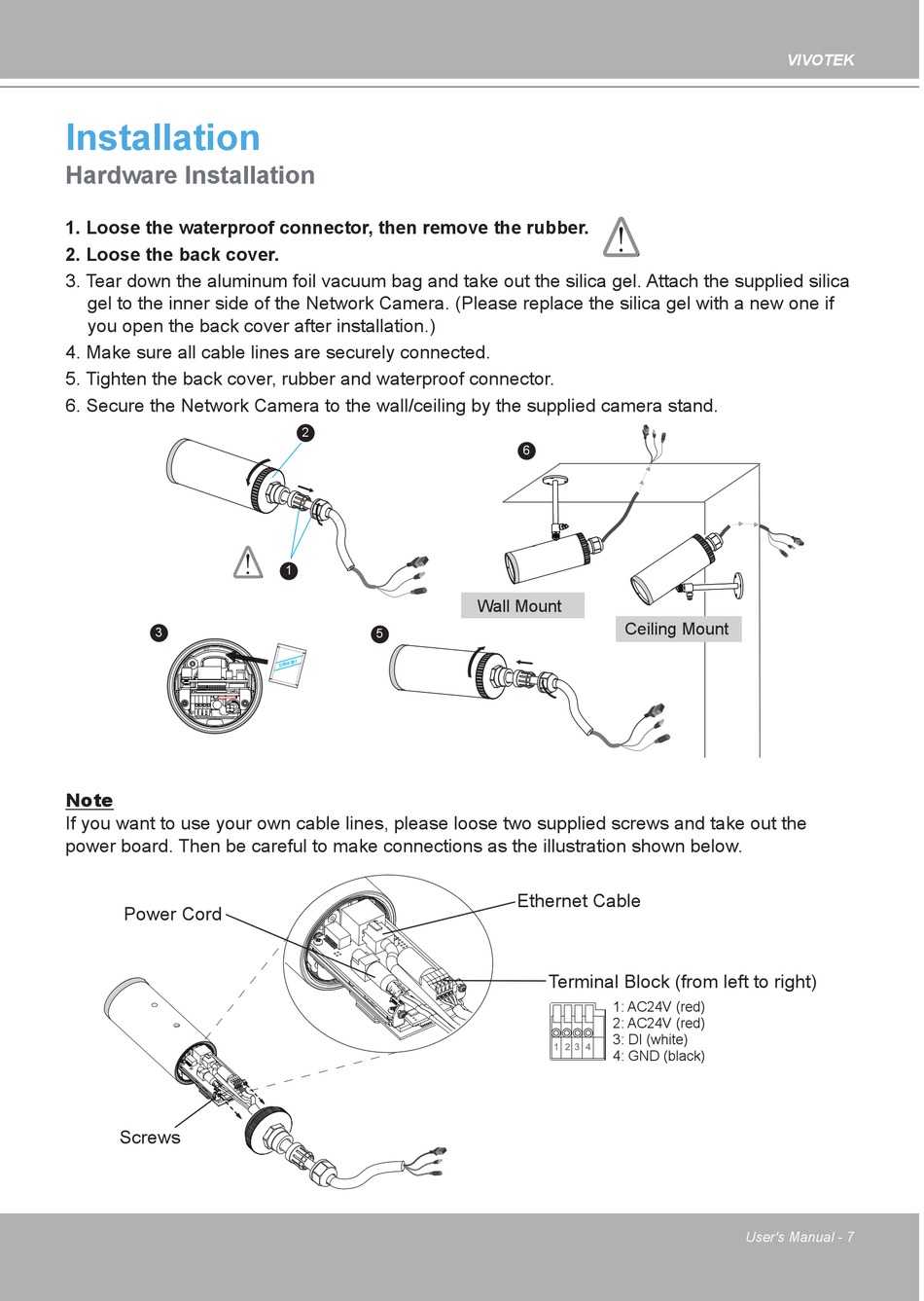

Installation

Hardware Installation

1. Loose the waterproof connector, then remove the rubber.
2. Loose the back cover.
3� Tear down the aluminum foil vacuum bag and take out the silica gel� Attach the supplied silica
gel to the inner side of the Network Camera� (Please replace the silica gel with a new one if
you open the back cover after installation�)
4� Make sure all cable lines are securely connected�
5� Tighten the back cover, rubber and waterproof connector�
6� Secure the Network Camera to the wall/ceiling by the supplied camera stand�
3
Note
If you want to use your own cable lines, please loose two supplied screws and take out the
power board� Then be careful to make connections as the illustration shown below�
Power Cord
Screws
2
1
5
6
Wall Mount
Ceiling Mount
Ethernet Cable
Terminal Block (from left to right)
1: AC24V (red)
2: AC24V (red)
3: DI (white)
4: GND (black)
