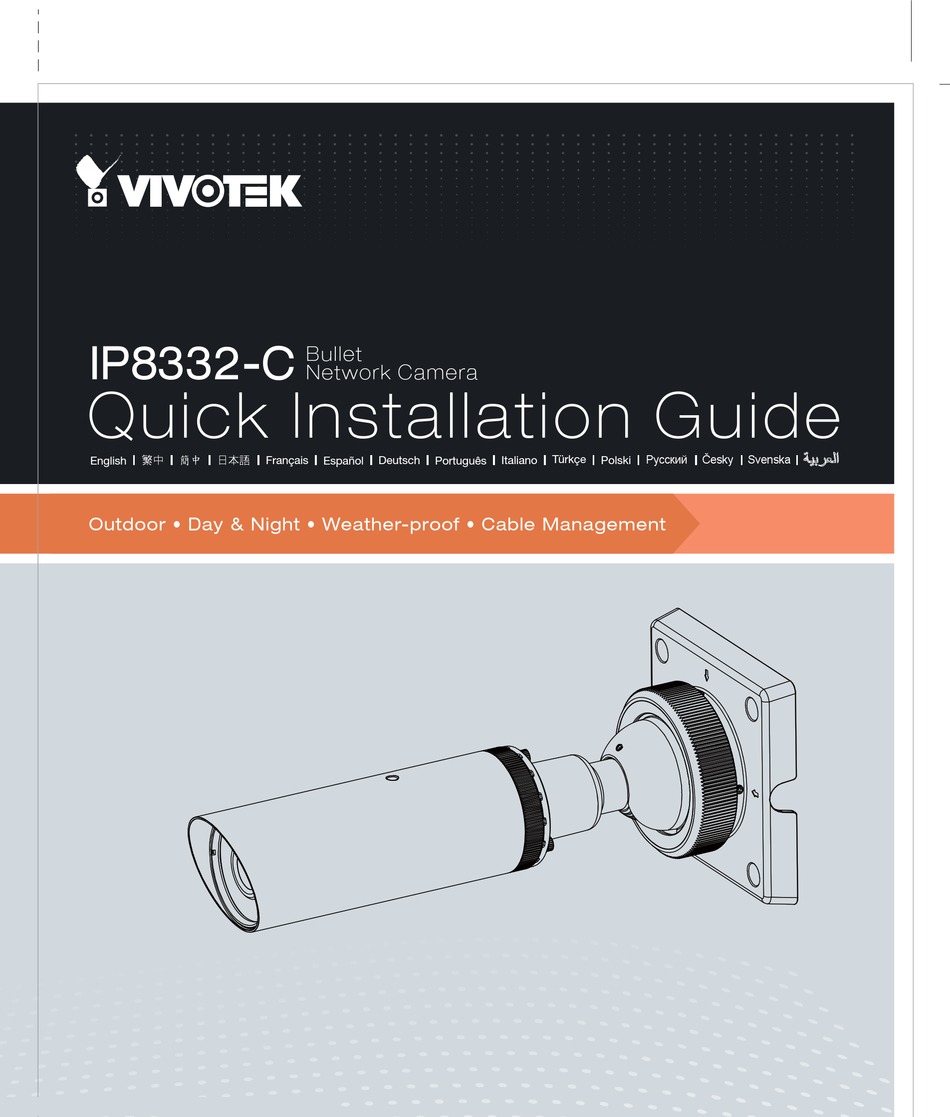

- Page 1 IP8332-C Bullet Network Camera Quick Installation Guide Русский Česky Svenska 繁中 簡中 日本語 Türkçe English Français Español Deutsch Português Italiano Polski Outdoor • Day & Night • Weather-proof • Cable Management...
-
Page 2: Package Contents
IP65/66/67 warranty. Package Contents Quick Installation Guide / Warranty IP8332-C Card / Alignment Sticker Software CD L-type Hex Key Wrench / Dessicant Bag / Screws / RJ45 Female-Famale... -
Page 3: Physical Description
Physical Description Front Panel Lens IR LEDs Light Sensor Rear Panel Reset Button MicroSD/SDHC Card Slot Connectors General I/O Terminal Block Ethernet 10/100 RJ45 Plug Power Cord Socket (Black) EN-2... -
Page 4: Hardware Installation
Hardware Installation If you prefer installing a MicroSD card as onboard storage: 1. Loosen the waterproof connector, and then remove the rubber seal, and the waterproof connector. 2. Loosen and open the rear cover. 3. Install a MicroSD/SDHC card. 4. Tear down the aluminum foil vacuum bag and take out the dessicant bag. Attach the supplied dessicant bag to the inner side of the Network Camera. - Page 5 5. Tighten the rear cover, rubber seal and waterproof connector. 6. Pass the cables through the center of the ball swivel mount bracket, one at a time. 7. Fasten the bracket to the camera using 3 hex socket screws. NOTE: The camera weighs up to 1.28 kgs.
-
Page 6: Network Deployment
9. Secure the Network Camera to a wall or ceiling. Ceiling Mount Wall Mount Network Deployment General Connection (without PoE) 1. If you have external devices such as : Ground sensors and alarms, make connections : Digital Input from general I/O terminal block. AC24V : 24V- AC24V AC24V... - Page 7 Power over Ethernet (PoE) When using a PoE-enabled switch The Network Camera is PoE-compliant, allowing transmission of power and data via single Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch via Ethernet cable. PoE Switch When using a non-PoE switch Use a PoE power injector (optional) to connect between the Network Camera and...
-
Page 8: Assigning An Ip Address
2. The program will conduct an analysis of your network environment. After your network is analyzed, please click on the "Next" button to continue the program. 3. The program will search for VIVOTEK Video Receivers, Video Servers or Network Cameras on the same LAN. -
Page 9: Secure The Shooting Angle
Secure the Shooting Angle When you are done with tuning the field of view and obtain a satisfactory image, tighten the fastening ring and the 3 small hex screws on the ball-swivel bracket. NOTE: Orient the camera so that the protruding edge of its sunshield is positioned against the direction of direct sunlight. - Page 10 P/N:625018500G Rev. 1.0 All specifications are subject to change without notice. Copyright 2012 VIVOTEK INC. All rights reserved. VIVOTEK INC. VIVOTEK USA, INC. 6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C. 2050 Ringwood Avenue, San Jose, CA 95131 |T: +886-2-82455282| F: +886-2-82455532| E: sales@vivotek.com...
