2457
S S u u b b m m i i t t t t e e d d M M o o d d e e l l N N o o . . : : _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
S S p p e e c c i i f f i i c c F F e e a a t t u u r r e e s s : : _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
9 1/4" (235 mm)
360° Swing
Spout
9"
(229 mm)
4"
(102 mm)
13 3/4"
(349 mm)
1 1/8"
(29 mm)
Max. Deck
Thickness
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselectonli.com for finish options and product availability.
DSP-K-2457 Rev. C
2"
(51 mm)
Dia.
8" (203 mm)
Centers
10 3/8"
1 1/8" (29 mm)
(264 mm)
1/2"-14 NPSM

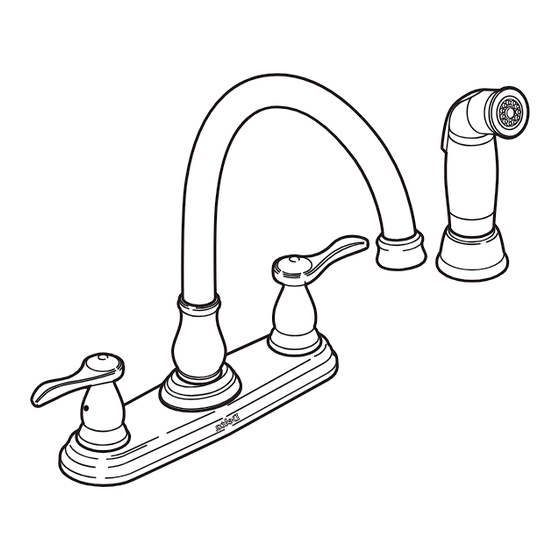

KITCHEN
FAUCETS
I Orleans™ Series
I Two Handle Deck Mount
I 4 Hole Sink Application
STANDARD SPECIFICATIONS:
•
•
•
•
•
•
•
•
WARRANTY
•
•
5 7/8"
(149 mm)
C C O O M M P P L L I I E E S S W W I I T T H H : :
•
1"
(25 mm)
•
Dia.
•
Max. Deck
Thickness
55 E. 111th Street, Indianapolis, IN 46280
395 Matheson Blvd. E., Mississauga, ON L4Z 2H2
© 2007 Masco Corporation of Indiana
Solid brass fabricated body
8" (203 mm) centers.
9 1/4" (235 mm) long, 13 3/4" (349mm) high
spout swings 360°.
Metal lever handles with 1/4" turn stops.
Hot and cold stems are interchangeable
Control mechanism shall be of the rotating cylinder
type with stainless steel plate and with replaceable
non-metallic seats operating in stainless steel lined
.
sockets
1/2" I.P.S. threaded male inlet shanks.
Model 2457 Series with spray attachment has anti-
siphon device as integral part of valve body
Lifetime Faucet and Finish Limited Warranty to the
original consumer purchaser to be free from
defects in material and workmanship.
5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
U P
®
C
®
ASME A1 12.18.1 / CSA B125.1
Indicates ADA compliance to
ICC/ANSI A117.1
IAPMO Listed
CSA Certified
Pressure (kPa)
0
69
138
207
276
345
414
6
5
4
3
2
1
0
0
10
20
30
40
50
60
Pressure (PSI)
.
.
483
552
621
22.7
18.9
15.1
11.4
7.6
3.8
0
70
80
90
4.D.35
