Delta 2497LF Series Installation Instructions Manual

Delta 2497LF Series Installation Instructions Manual

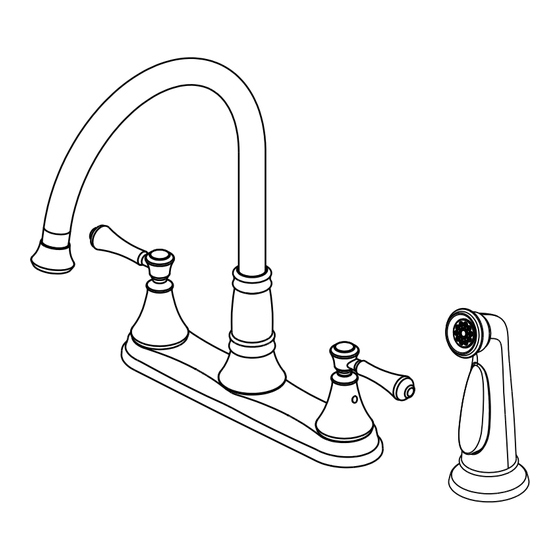

Two handle washerless kitchen faucet
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
Model/Modelo/Modèle
2497LF
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
For easy installation of your Delta
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and maintenance
information.
• To purchase the correct water supply hook-up.
Para instalación fácil de su llave Delta
usted necesitará:
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
• Comprar las conexiones correctas para el
suministro de agua.
Pour installer votre robinet Delta
facilement, vous devez:
• LIRE TOUTES les instructions avant de
débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Acheter le bon nécessaire de raccordement.
www.deltafaucet.com
67757
86378
You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
67757
86378
1
7/24/14
Rev. A
