Delta 50-851 Instruction Manual

2 h.p. single-stage dust collector
Hide thumbs

Advertisement

Table of Contents

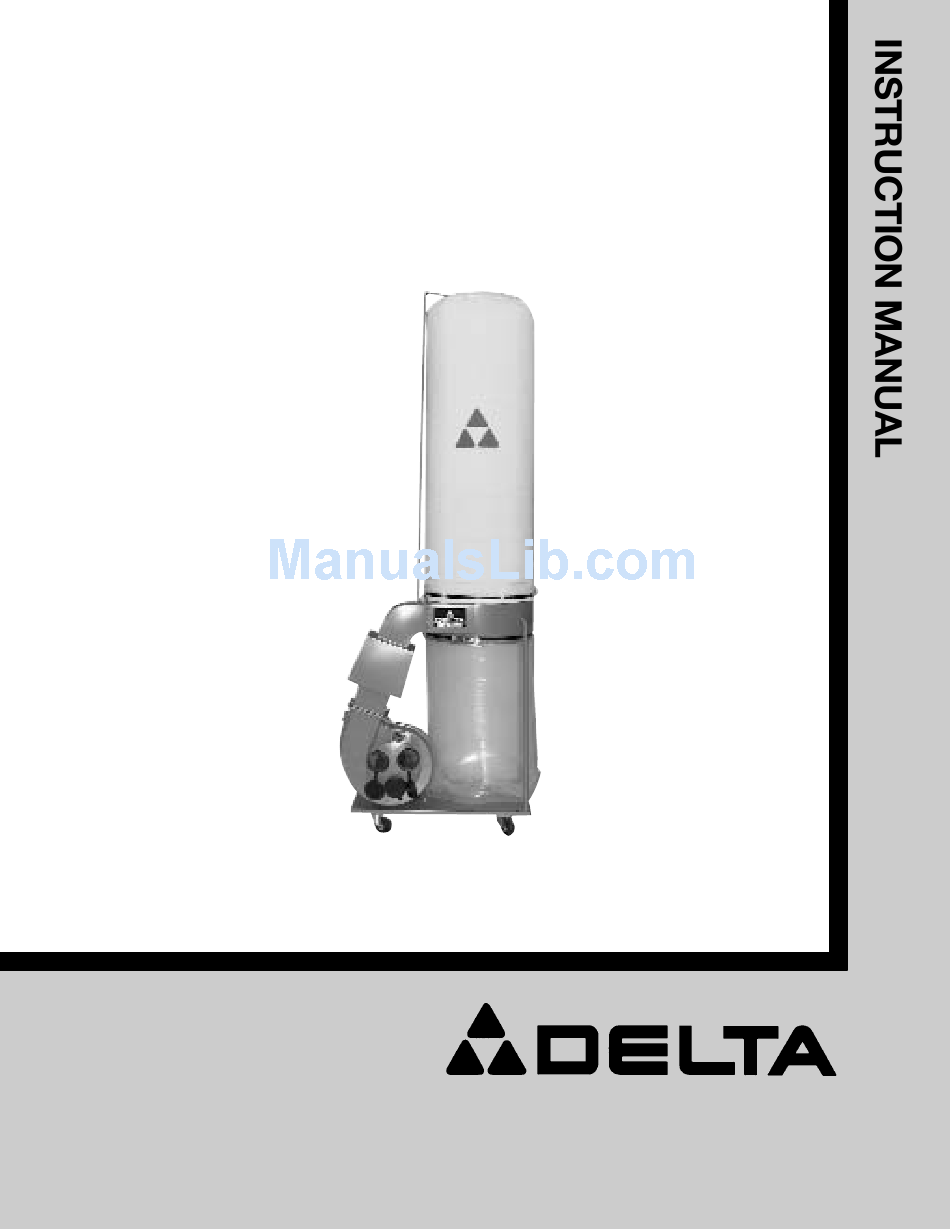

2 H.P. Single-Stage
Dust Collector
(Model 50-851)
PART NO. 902114 - 07-01-02
Copyright © 2002 Delta Machinery
To learn more about DELTA MACHINERY
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
1-800-223-7278 (
1-800-463-3582).
please call
In Canada call

Advertisement

Table of Contents
loading

Related Manuals for Delta 50-851

Summary of Contents for Delta 50-851

  • Page 1 2 H.P. Single-Stage Dust Collector (Model 50-851) PART NO. 902114 - 07-01-02 Copyright © 2002 Delta Machinery To learn more about DELTA MACHINERY visit our website at: www.deltamachinery.com. For Parts, Service, Warranty or other Assistance, 1-800-223-7278 ( 1-800-463-3582). please call...

  • Page 2: General Safety Rules

    If you have any questions relative to a particular application, DO NOT use the machine until you have first contacted Delta to determine if it can or should be performed on the product.

  • Page 3: Additional Safety Rules For Dust Collectors

    13. REPLACE a damaged cord immediately. DO NOT use a damaged cord or plug. If the dust collector is not operating properly, or has been damaged, left outdoors or has been in contact with water, take it to an Authorized Service Center for service.

  • Page 4: Unpacking And Cleaning

    UNPACKING AND CLEANING Carefully unpack the tool and all loose items from the shipping container(s). Remove the protective coating from all unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone, gasoline or lacquer thinner for this purpose).
  • Page 5 WARNING: FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL THE MACHINE IS COMPLETELY ASSEMBLED AND YOU READ AND UNDERSTAND THE ENTIRE INSTRUCTION MANUAL. ASSEMBLING CASTER ASSEMBLIES TO BASE 1. Align the holes in swivel caster assembly (A) Fig. 4, with four holes in caster bracket (B) located on the underside of base (C).
  • Page 6 5. Place ten-hole rubber gasket (J) Fig. 8, on blower flange (H). Align holes in gasket with mounting holes in blower flange and press gasket onto flange as shown. 6. Align mounting holes in chute (K) Fig. 9, with holes in gasket (J), which was assembled in STEP 5.
  • Page 7 11. Attach the lower dust bag retaining clip (A) Fig. 14A, to the dust collector drum. Align the two holes (B) in the retaining clip (A) Fig. 14A, with the two holes in the drum.
  • Page 8 12. Assemble the other end of drum support arm (T) Fig. 16, to base (B). Place a 5/16" lockwasher onto a 5/16-18x5/8" hex head screw (W), insert the hex head screw through drum support arm (T), and thread into base (B). Repeat this process for the remaining hole. NOTE: Do not completely tighten mounting hardware at this time.
  • Page 9 5. Place the locking clamp (C) Fig. 22 around dust collection bag and dust collector drum and lock in place. NOTE: Make certain locking clamp is positioned in the channel of the dust collector drum before locking clamp.

  • Page 10: Connecting Machine To Power Source

    SINGLE PHASE INSTALLATION The motor rating of the Model 50-851 Dust Collector is 2 HP, 230 Volt, Single Phase. Before connecting your dust collector to an electrical power system, be sure the electrical system agrees with the motor rating of the tool.

  • Page 11: Operating Controls

    1-800-223-7278 (In Canada call 1-800-463-3582). Delta will repair or replace, at its expense and at its option, any Delta machine, machine part, or machine accessory which in normal use has proven to be defective in workmanship or material, provided that the customer returns the product prepaid to a Delta factory service center or authorized service station with proof of purchase of the product within two years and provides Delta with reasonable opportunity to verify the alleged defect by inspection.
  • Page 12 Delta products should be obtained by contacting any Porter-Cable · Service Center, or Porter-Cable Delta Factory Service Center. If you do not have access to any of these, call 800-223-7278 and you will · be directed to the nearest Porter-Cable Delta Factory Service Center.
