Page 1
5748010000 6-08-2003 18:02 Pagina 1 DEC 21 Dehumidifier...
Page 2
5748010000 6-08-2003 18:02 Pagina 2 Control Panel Air filter Lifting handle Air outlet grille Intake grille Condensate collection tank Accessory condensate drain hose (2 m.) rubber bung Dehumidifier...
Page 3
50cm must be left at the front and back of the dehumidi- fier to ensure adequate ventilation. Do not place the dehumidifier next to a radiator or other heat source as this will reduce its performance.

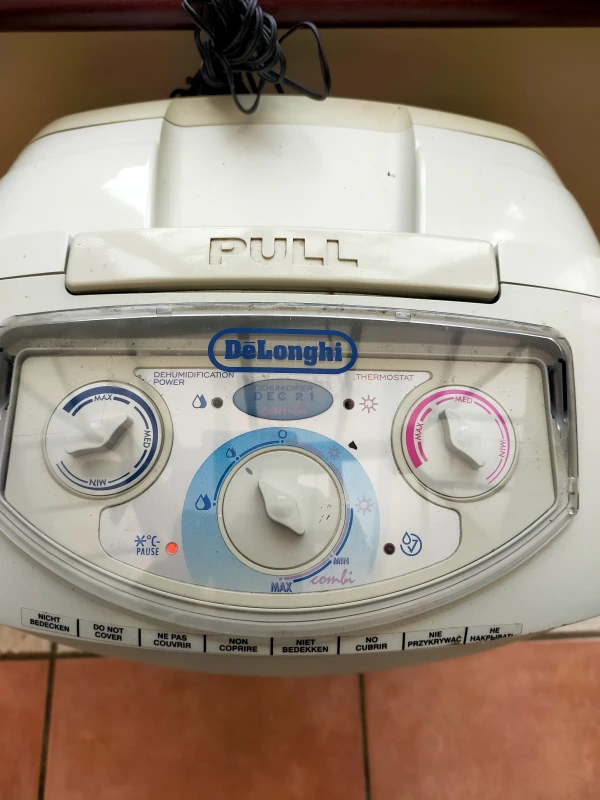

5748010000 6-08-2003 18:02 Controls This dehumidifier is fitted with a special device to ensure correct operation. A red indicator light on the control panel comes on to warn the user when: 1. the tank is full 2. the tank is missing 3.
Page 5
Leave the unit on this setting until signs of excess moisture (e.g. condensation on windows) decrease. At this point select knob anti-clockwise until the dehumidification light switches off. The dehumidifier will then keep the humidity at the selected level automatically. How to heat 1) Plug the appliance into a mains socket.
Page 6
Cleaning the permanent air filter Your dehumidifier is fitted with a permanent air filter. If the filter is dirty, air circulation is compromised and the efficiency of the dehumidifying and air purifying functions decreases.
5748010000 6-08-2003 18:02 Problem solving Check the following points before calling your Service Centre PROBLEM The dehumidifier doesn’t work for about 3 minutes from turning on The appliance does not work in dehumidifying mode (indicator light off) The appliance operates in...
The appliance must be installed in conformity with the relevant national legislation. • Do not use the appliance outdoors. • Do not obstruct the air intake or outlet. Technical assistance Keep the list of Technical Service Centres and identify the Centre nearest you. Pagina 9 Dehumidifier...
Only 13amp replacement fuses which are asta approved to B.S. 1362 should be fitted. This appliance conforms to the Norms EN 55014 regarding the sup- pression of radio interference. Warning - this appliance must be earthed Dehumidifier Pagina 10 Green and Yellow to Earth 13 amp Fuse...
Page 11
5748010000 6-08-2003 18:02 Pagina 11 Dehumidifier...
Page 12
5748010000 6-08-2003 18:02 Pagina 12 5748009300/07.02 Dehumidifier...
