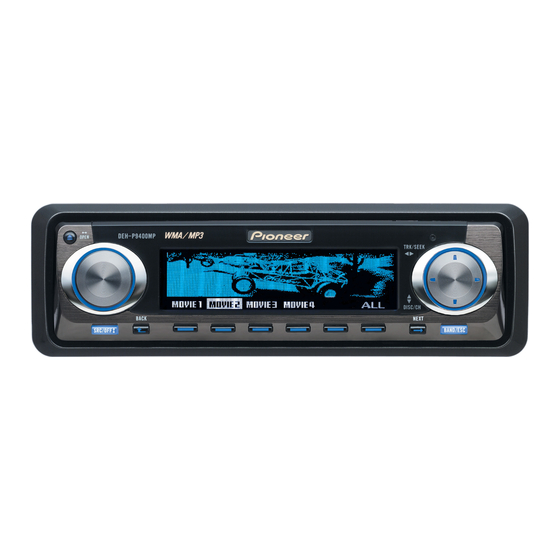

Pioneer DEH-P9400MP Installation Manual

DEH-P9400MP
This product conforms to CEMA cord colors.
Le code de couleur des câbles utilisé pour ce produit est
conforme à CEMA.
Printed in Japan
Imprimé au Japon
<CRD3591-A> UC <KMMUF/02A00000>
Connecting the Units
Note:
• This unit is for vehicles with a 12-volt battery and • When an external power amp is being used with
negative grounding. Before installing it in a recre- this system, be sure not to connect the blue/white
ational vehicle, truck, or bus, check the battery lead to the amp's power terminal. Likewise, do not
voltage. connect the blue/white lead to the power terminal
• To avoid shorts in the electrical system, be sure to of the auto-antenna. Such connection could cause
disconnect the ≠ battery cable before beginning
excessive current drain and malfunction.
installation. • To avoid short-circuiting, cover the disconnected
• Refer to the owner's manual for details on con- lead with insulating tape. Especially, insulate the
necting the power amp and other units, then make unused speaker leads without fail. There is a possi-
connections correctly. bility of short-circuiting if the leads are not insulat-
• Secure the wiring with cable clamps or adhesive ed.
tape. To protect the wiring, wrap adhesive tape • To prevent incorrect connection, the input side of
around them where they lie against metal parts. the IP-BUS connector is blue, and the output side
• Route and secure all wiring so it cannot touch any is black. Connect the connectors of the same colors
moving parts, such as the gear shift, handbrake, correctly.
and seat rails. Do not route wiring in places that • If this unit is installed in a vehicle that does not
get hot, such as near the heater outlet. If the insula- have an ACC (accessory) position on the ignition
tion of the wiring melts or gets torn, there is a dan- switch, the red lead of the unit should be connected
ger of the wiring short-circuiting to the vehicle to a terminal coupled with ignition switch ON/OFF
body. operations. If this is not done, the vehicle battery
• Don't pass the yellow lead through a hole into the may be drained when you are away from the vehi-
engine compartment to connect to the battery. This cle for several hours. (Fig. 1)
will damage the lead insulation and cause a very
dangerous short.
• Do not shorten any leads. If you do, the protection
circuit may fail to work when it should.
• Never feed power to other equipment by cutting
the insulation of the power supply lead of the unit
and tapping into the lead. The current capacity of
the lead will be exceeded, causing overheating.
• When replacing fuse, be sure to use only fuse of
ACC position No ACC position
the rating prescribed on the fuse holder.
• Since a unique BPTL circuit is employed, never
wire so the speaker leads are directly grounded or
the left and right ≠ speaker leads are common.
• If the RCA pin jack on the unit will not be used, do
• The black lead is ground. Please ground this lead
not remove the caps attached to the end of the con-
separately from the ground of high-current prod-
nector.
ucts such as power amps.
• Speakers connected to this unit must be high-
If you ground the products together and the ground
power types with minimum rating of 50 W and
becomes detached, there is a risk of damage to the
impedance of 4 to 8 ohms. Connecting speakers
products or fire.
with output and/or impedance values other than
those noted here may result in the speakers catch-
• Cords for this product and those for other prod-
ing fire, emitting smoke, or becoming damaged.
ucts may be different colors even if they have the
• When this product's source is switched ON, a con-
same function. When connecting this product to
trol signal is output through the blue/white lead.
another product, refer to the supplied Installation
Connect to an external power amp's system remote
manuals of both products and connect cords that
control or the car's Auto-antenna relay control ter-
have the same function.
minal (max. 300 mA 12 V DC). If the car features
a glass antenna, connect to the antenna booster
power supply terminal.
Connection diagram for standard mode
Antenna jack
15 cm (5/8 inch)
DSP switch
Switch the DSP switch as
This Product
illustration below.
IP-BUS input (Blue)
15 cm
Multi-CD player (5/8 inch)
(sold separately)
IP-BUS cable
Yellow/black
If you use a cellular telephone,
connect it via the Audio Mute lead on
the cellular telephone. If not, keep the
Audio Mute lead free of any
connections.
Yellow
Fuse holder
To terminal always supplied with
power regardless of ignition switch
Fig. 1
position.
Red
Fuse resistor
To electric terminal controlled by
ignition switch (12 V DC) ON/OFF.
Orange/white Fuse resistor
To lighting switch terminal.
Black (ground)
To vehicle (metal) body.
With a 2 speaker system, do not connect
anything to the speaker leads that are not
connected to speakers.
Connecting cords with RCA pin
plugs (sold separately)
23 cm (7/8 inch) Subwoofer output
(LOW/SUBWOOFER OUTPUT)
Rear output
15 cm
(MID/REAR OUTPUT)
(5/8 inch)
Front output (HIGH/FRONT OUTPUT)
Blue/white
To system control terminal of the power amp
or Auto-antenna relay control terminal (max.
300 mA 12 V DC).
System remote control
+
Front speaker
≠
White Gray
+
Front speaker
≠
White/black Gray/black
Left
Green Violet
+
Rear speaker
≠
Green/black Violet/black
+
Rear speaker
≠
+
Subwoofer
≠
Perform these connections when using a
different amp (sold separately).
<ENGLISH>
Power amp
(sold separately)
Power amp
(sold separately)
Power amp
(sold separately)
+
Front speaker
≠
+
Front speaker
≠
Right
+
Rear speaker
≠
+
Rear speaker
≠
+
Subwoofer
≠
Fig. 2
