When FPM or EDO memory writes data to a particular cell, the memory controller selects the location
in which to write the data. The memory controller first selects the page by strobing the Row Address
onto the address/command bus. It then selects the exact location by strobing the Column Address
onto the address/command bus (see Figure 2). These actions are called Row Address Strobe (RAS)
and Column Address Strobe (CAS). The Write Enable (WE) signal is activated at the same time as the
CAS to specify that a write operation is to be performed. The memory controller then drives the data
onto the memory bus. The DRAM devices capture (latch) the data and store it into the respective cells.

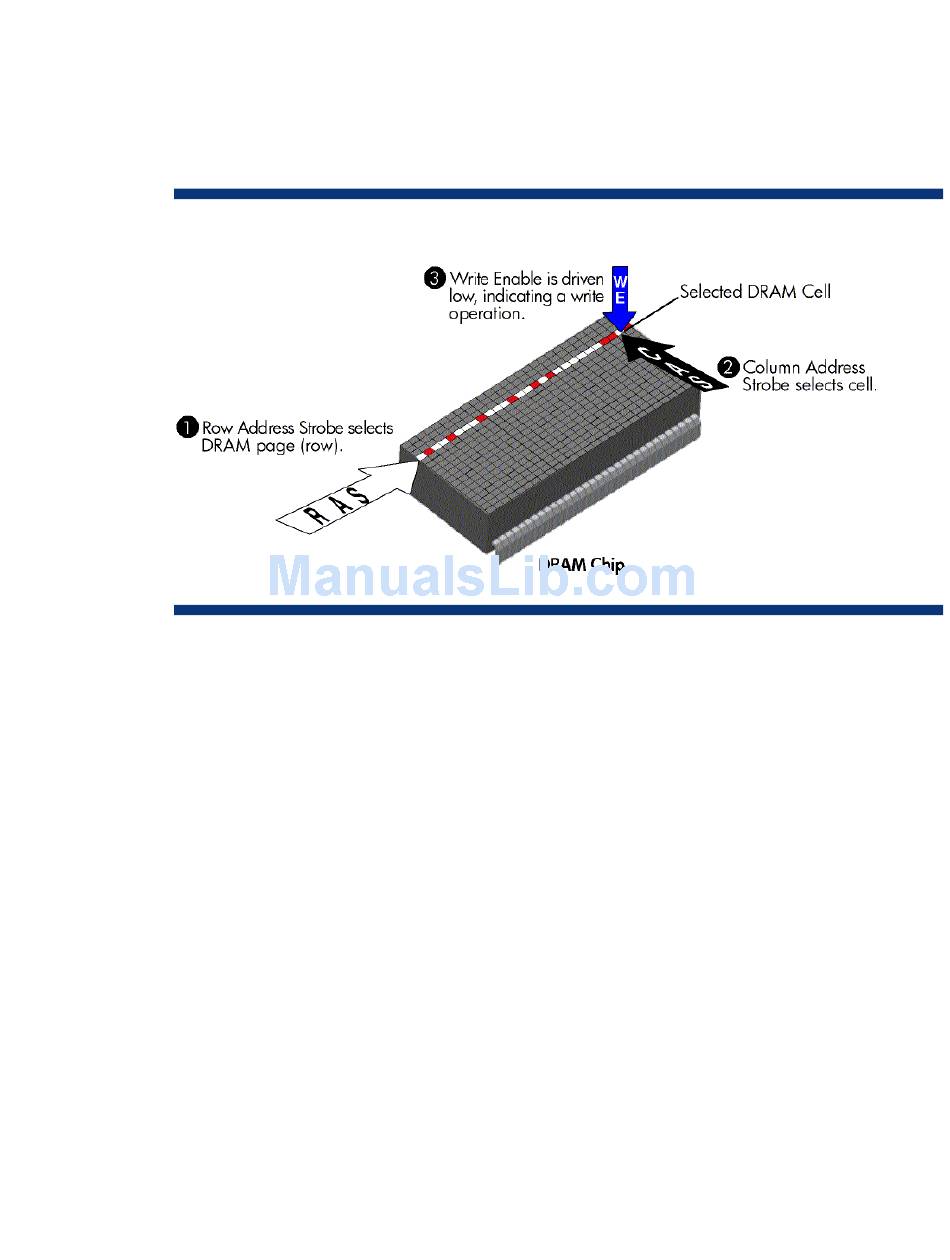

Figure 2. Representation of a write operation for FPM or EDO RAM
During a DRAM read operation, RAS followed by CAS are driven onto the memory bus. The WE
signal is held inactive, indicating a read operation. After a delay called CAS Latency, the DRAM
devices drive the data onto the memory bus.
DRAM cannot be accessed during a refresh. If the processor makes a data request during a DRAM
refresh, the data will not be available until the refresh completes. There are many mechanisms to
refresh DRAM, including RAS only refresh, CAS before RAS (CBR) refresh, and Hidden refresh. CBR,
which involves driving CAS active before driving RAS active, is used most often.

DRAM storage density and power consumption

The storage capacity (density) of DRAM is inversely proportional to the cell geometry. In other words,
storage density increases as cell geometry shrinks. Over the past few years, improvements in DRAM
storage density have increased capacity from almost 1 kilobit (Kb) per chip to 2 gigabit (Gb) per
chip. In the near future, it is expected that capacity will increase even further to 4 Gb per chip.
The industry-standard operating voltage for computer memory components was originally 5 volts.
However, as cell geometries decreased, memory circuitry became smaller and more sensitive.
Likewise, the industry-standard operating voltage decreased. Today, computer memory components
operate at 1.8 volts, which allows them to run faster and consume less power.
